Holdfast by
NAREX
Available, delivery time: 1-3 businessdays within Germany
Product information

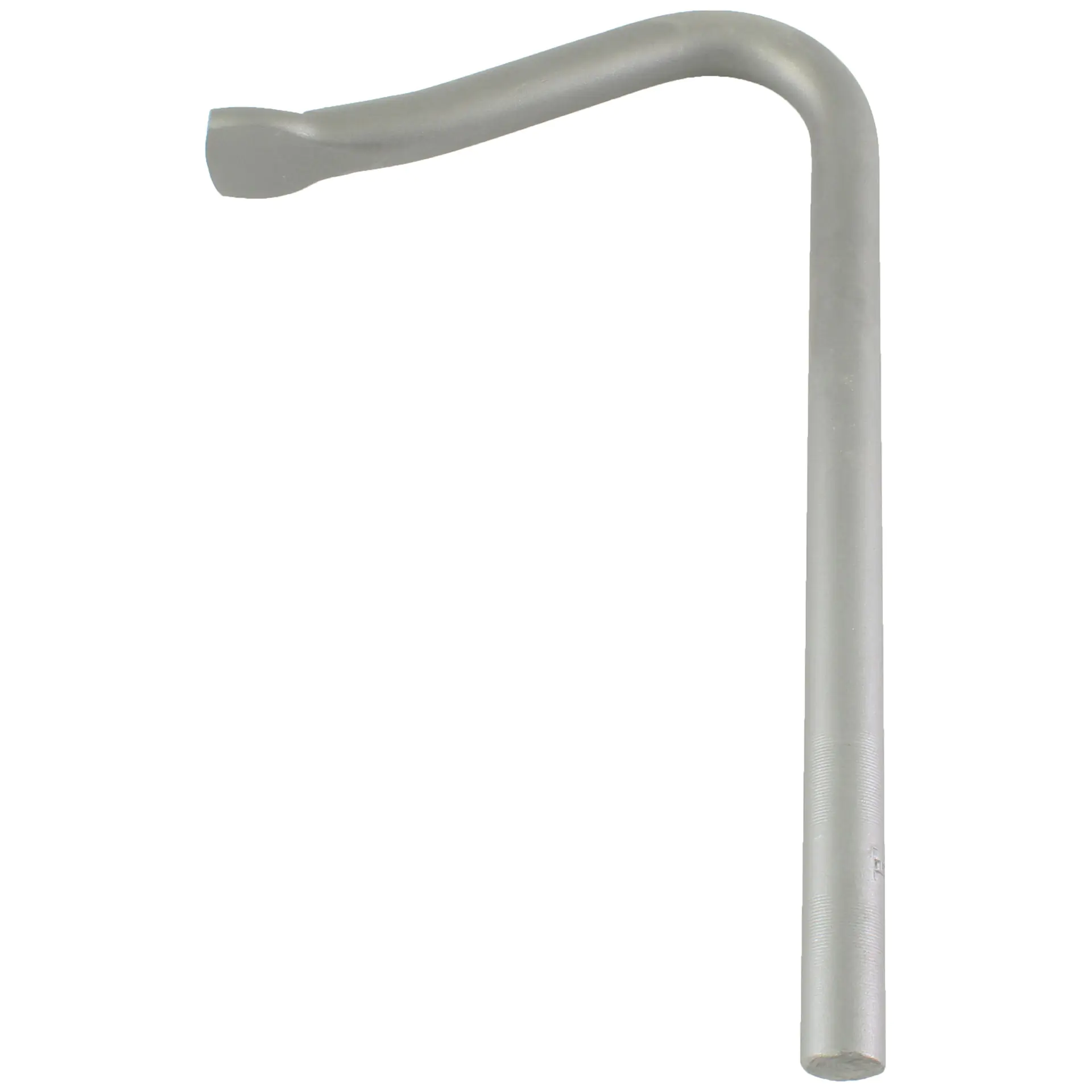

Workpiece hold-down clamp with proven design, featuring a slightly roughened, sandblasted surface for better grip. Additional roughening across the shaft using coarse sandpaper with grit 40 or 60 should only be necessary in exceptional cases.
The unique feature is the hot-forged end piece, with the bending occurring while still warm. Grinding of the pressure plate is done before blasting.
Besides its stability, the best thing about it is that workpieces can be incredibly quickly clamped and released. A tap on the top: the workpiece is clamped. A side tap on the shaft: the workpiece is released again! For many workpieces, it is recommended to use 2 hold-down clamps, as this allows especially longer workpieces to be optimally clamped, i.e., also with lateral support.
Manufactured for holes with a diameter of 19 mm, the diameter is slightly undersized at 18.5 mm to ensure clamping action through a slight tilt.
Technical Data:
- Plate thickness at least 45 mm
- Reach 190 mm
- Total length 303 mm
- Clamping height max. 190 mm with a plate thickness of 50 mm
