Mobile Workstation with tommy bar, depth including jaw
530 mm, width 350 mm PINIE
Available, delivery time: 1-3 businessdays within Germany
Product information

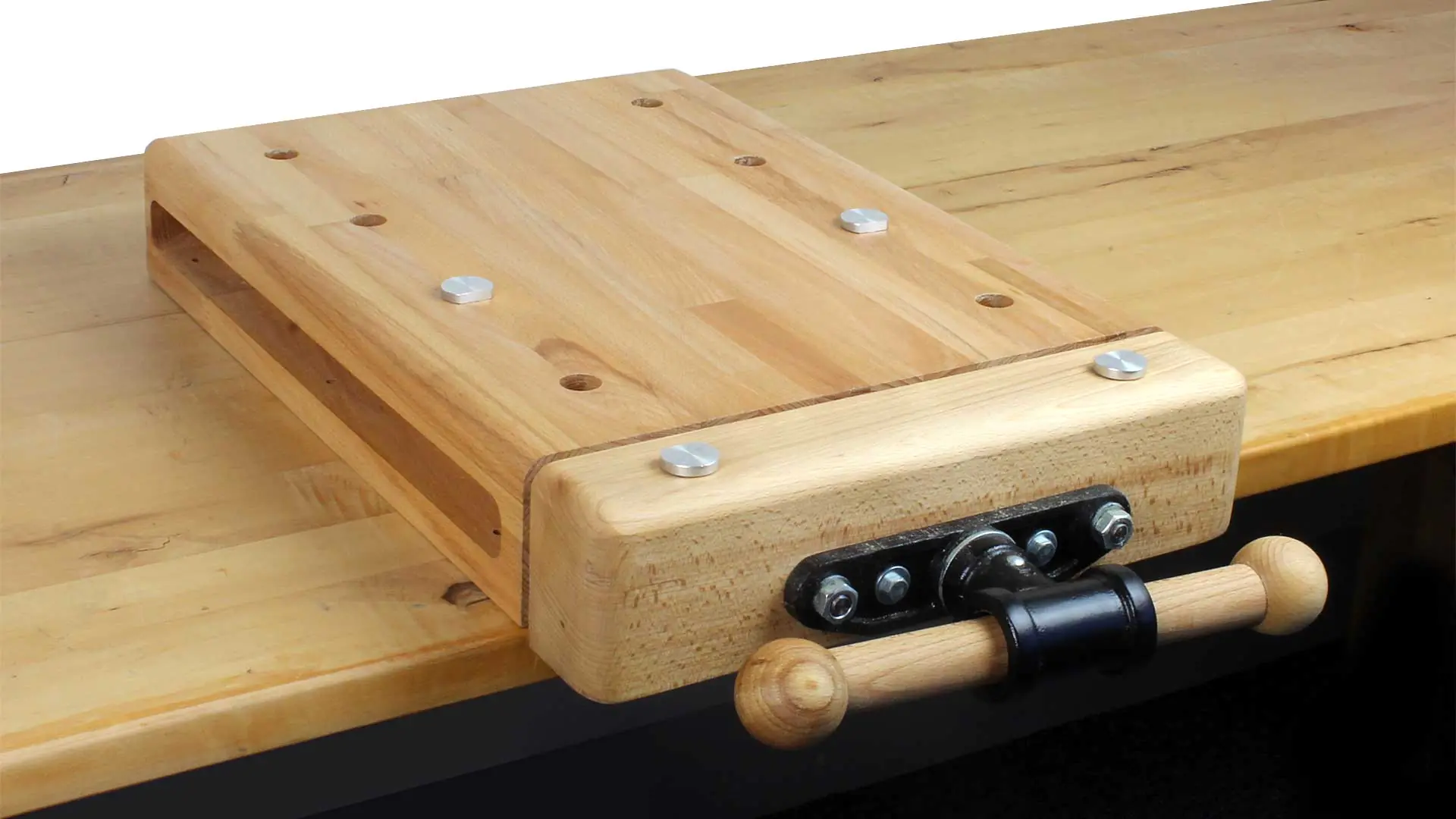

This mobile workbench can be used on practically any stable table or workbench. Two grooves on the sides allow for the attachment of clamps to secure it to the table. Alternatively, this mobile workbench can also be fastened to the table with a threaded screw, for which two holes in the groove are used. The holes have a diameter of only 6 mm and are therefore only suitable for correspondingly thin threaded screws.

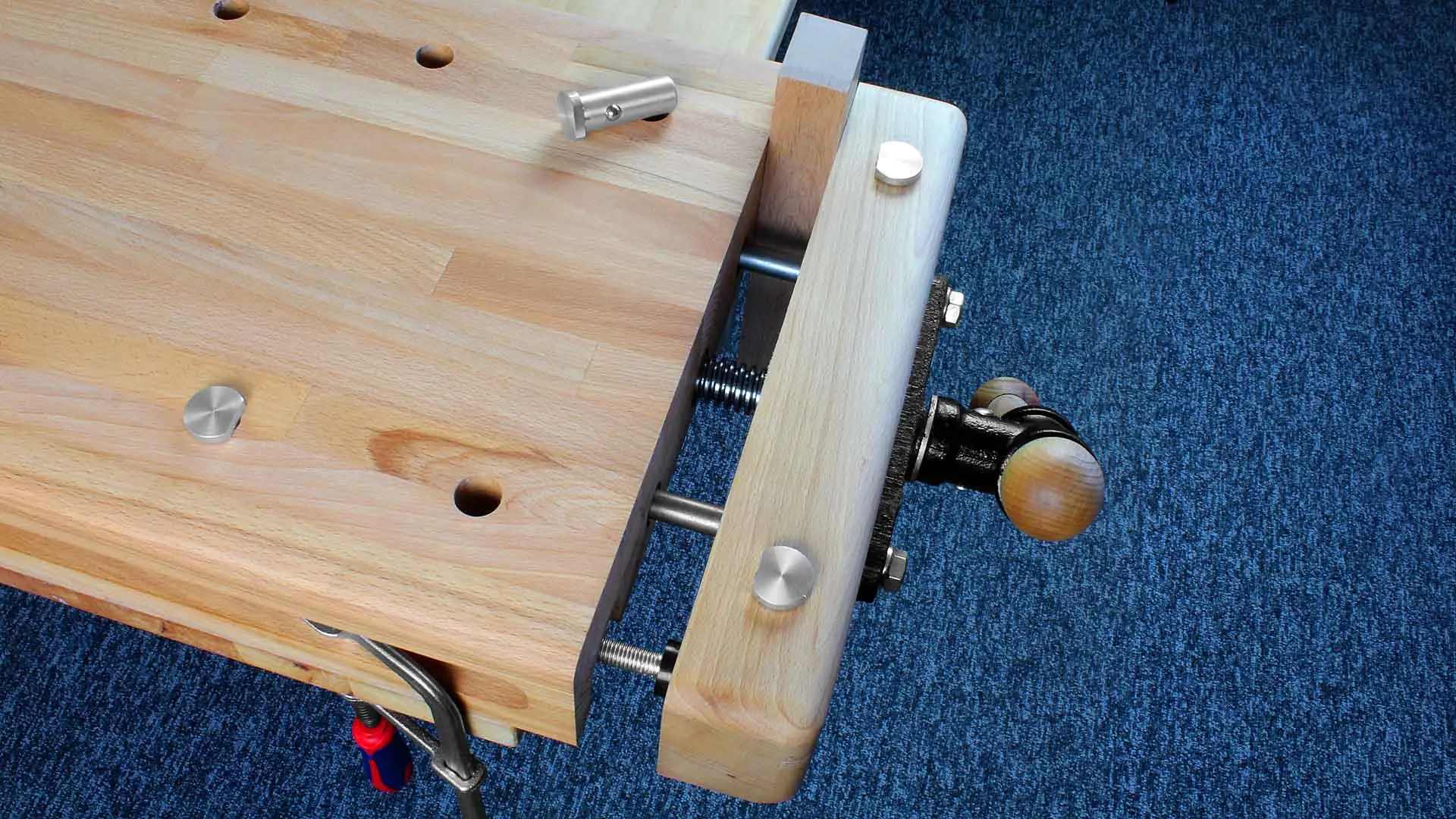

We find the adjustment screw that can be screwed in on the front right or left very clever. By turning it out up to 90 mm on one side, it can prevent the clamp from jamming when clamping workpieces on one side.
The bench dog holes have a diameter of 19 mm, which ensures the use of an extensive accessory program from various manufacturers. Already included are four round bench dogs with non-recessed heads with a length of 57 mm.
The surface is oiled.
| Features | |
|---|---|
| Width of the workbench | 350 mm |
| Total length incl. clamp | 625 mm |
| Weight | 13 kg |
| Length of the plate | 470 mm |
| Length with wooden jaw | 530 mm |
| Max. clamp opening | 120 mm |
| Thickness of the workbench | 80 mm |
| Packaging | 650 × 370 × 110 mm |
