Surface Clamp
VERITAS
€89.90*
Available, delivery time: 2-3 days
Product number: 307869
Product information

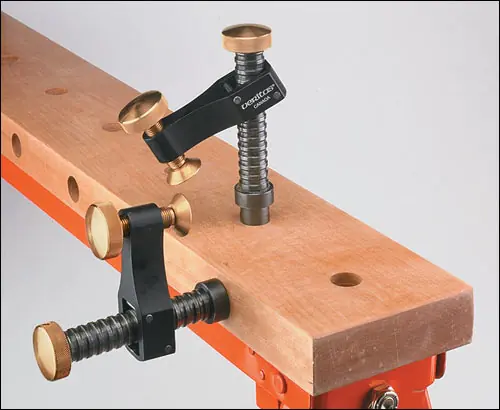

This easy and, above all, quick-to-use clamp can be used with any 3/4 inch (19 mm) hole. The shaft is equipped with a wedge mechanism that securely and quickly fixes the clamp in any suitable material – whether plywood or solid wood – with a thickness of at least 16 mm.
By turning the knurled screw at the top of the shaft, the split shaft base is pushed apart and reliably wedges itself into the wood.

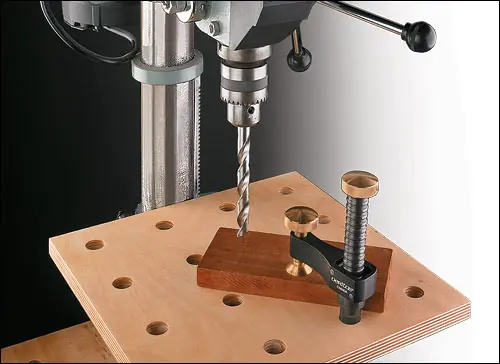

The simple and secure application makes this clamp interesting for all kinds of jigs. The shaft is made of steel, the arm is made of aluminum, and the threaded screw and knurled screws are made of brass.
| Features | |
|---|---|
| Hole Diameter | 19 mm |
| Material | Aluminum, Brass, Steel |
| Minimum Plate Thickness | 16 mm |
| Clamping Height | 76 mm |
| Clamping Range | 54 mm |
