Pivoting Drilling Jig max. hole depth
160 mm with return spring, clamping elements, drill bushing plate FAMAG
Available, delivery time: 5-20 days
Product information

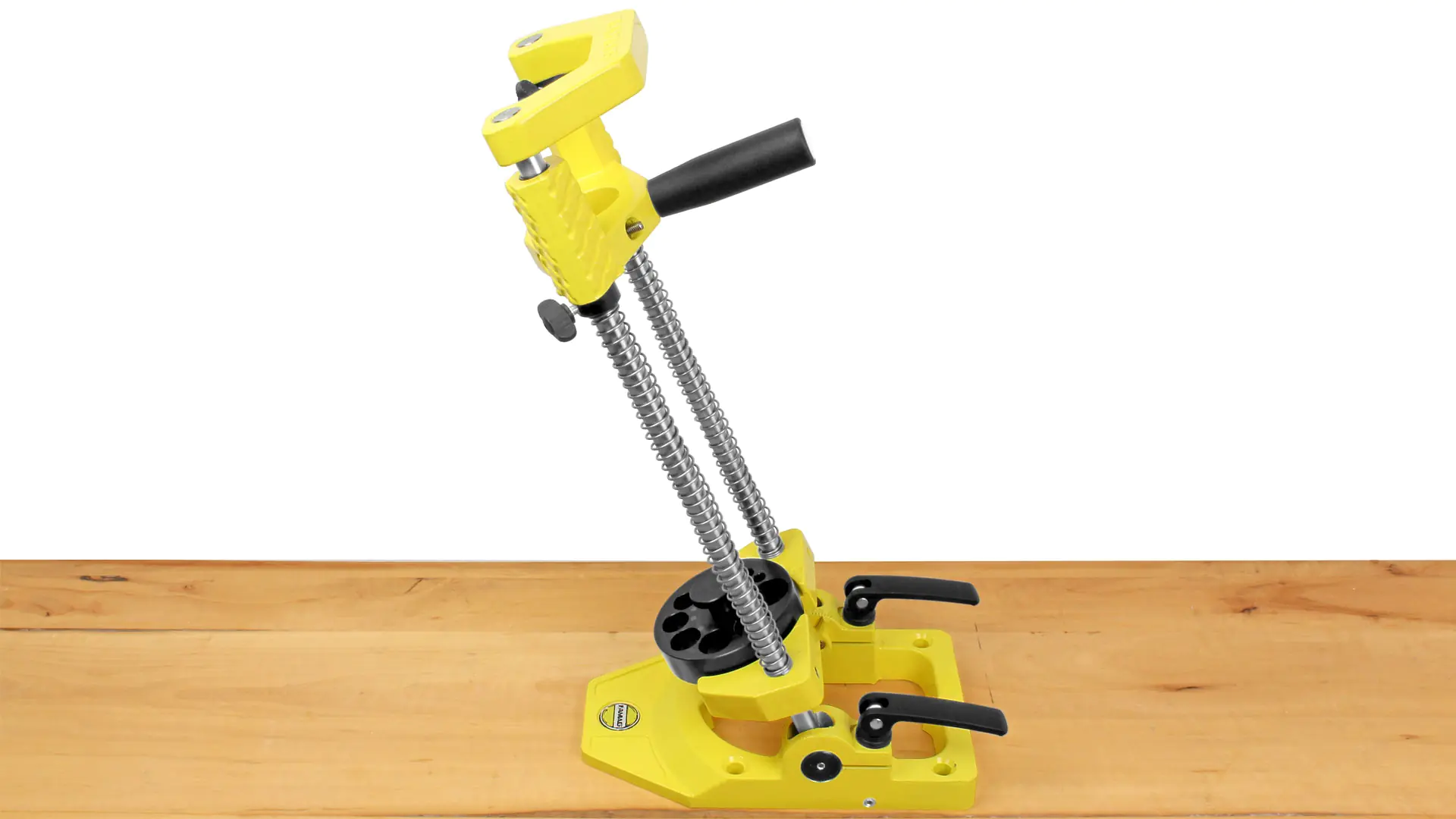

This drill stand by FAMAG with a square base and adjustable depth stops is designed for drilling holes at the desired angle into larger objects. This device is particularly helpful for larger drill diameters. You simply need to clamp your drill – suitable for drills with a Euro neck of 43 mm.

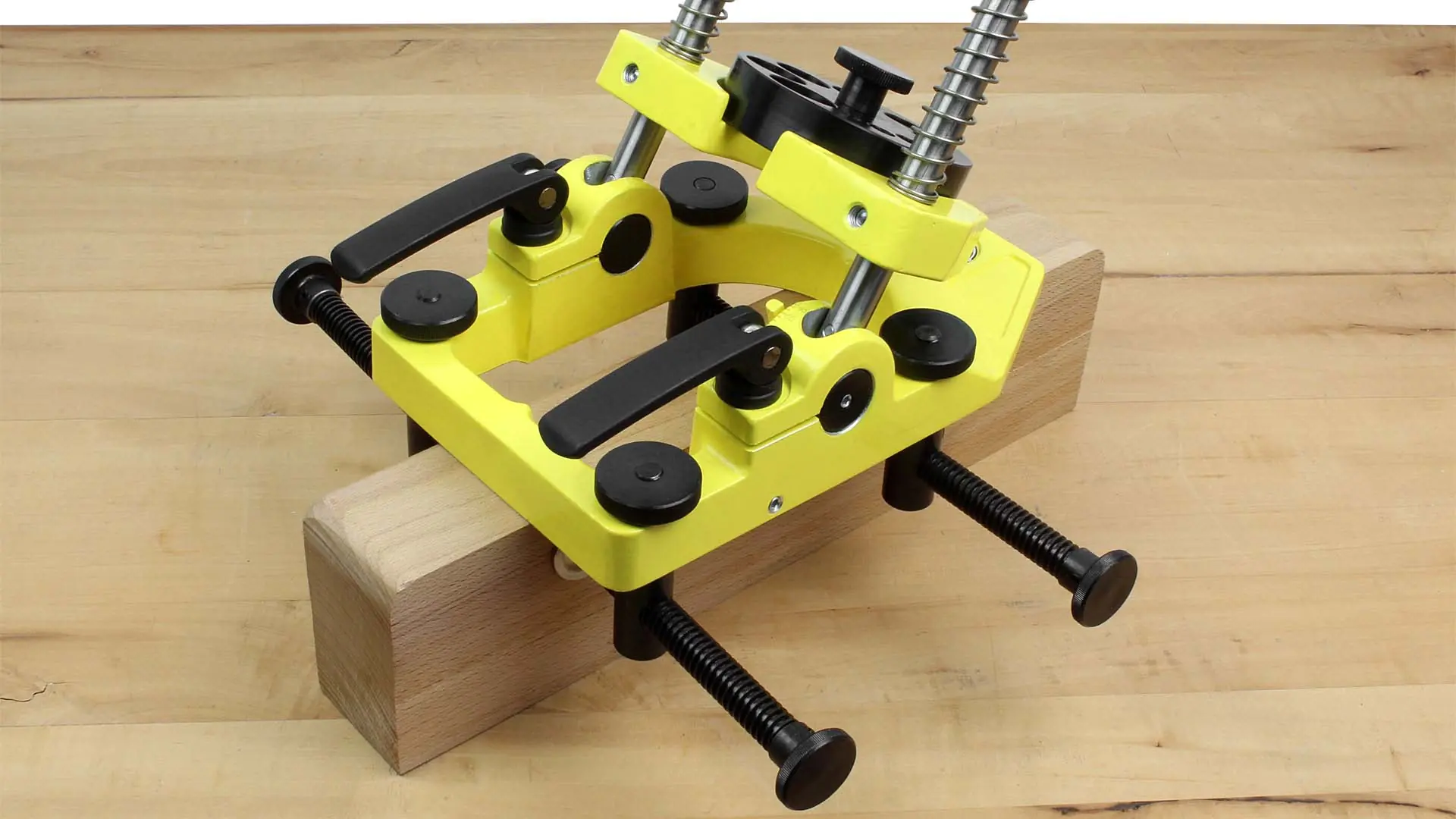

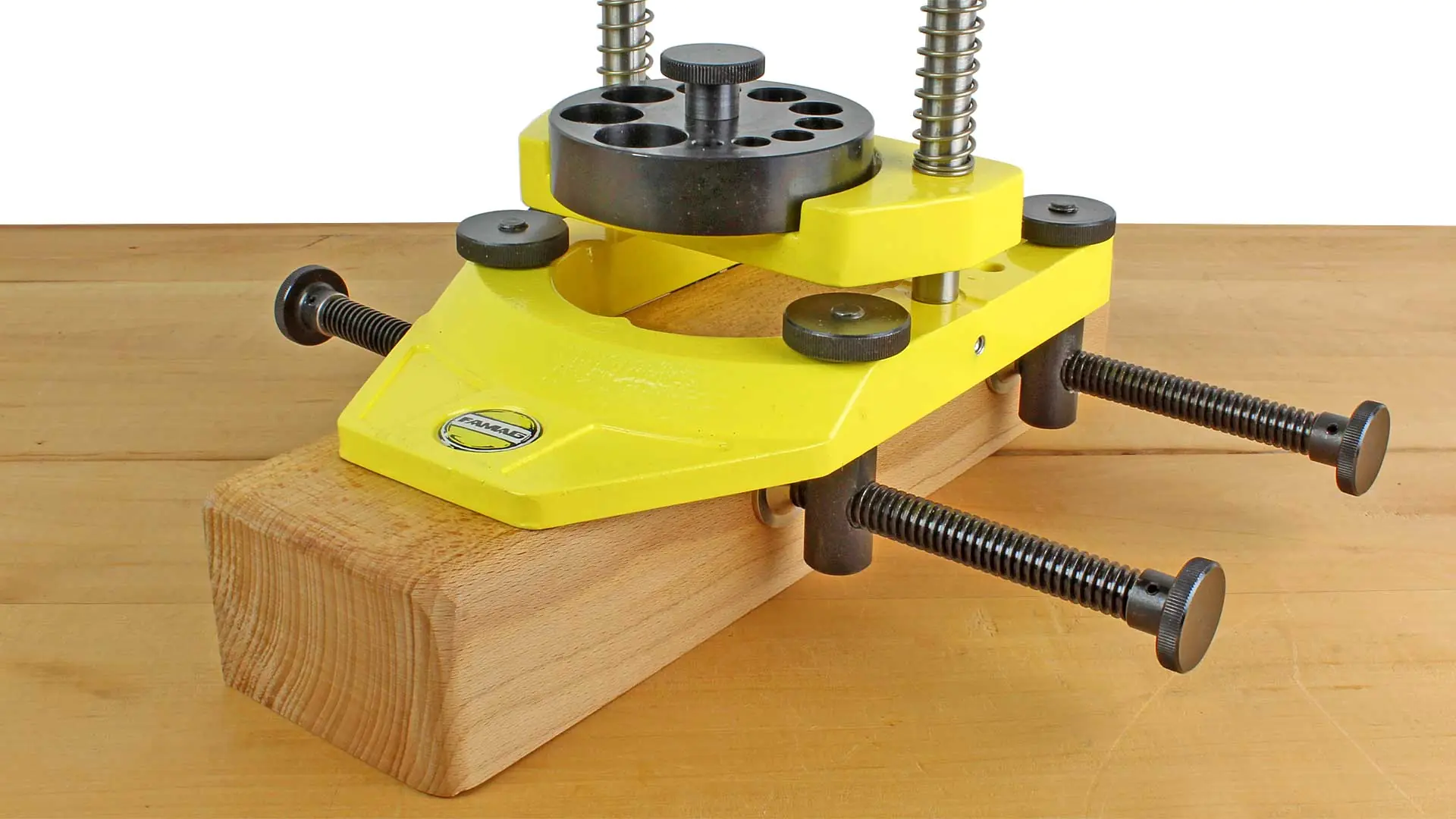

The flattened trapezoidal bracket allows the drill stand to be held firmly on the workpiece with the base. The return spring brings the drill back to the starting position. The drill bushing plate with holes for 8, 10, 12, 14, 16, 18, 20, 22, 24, and 26 mm drills, just above the base, provides the drill with good guidance. Lateral deviation, which is easily possible with freehand drilling, is thus reliably prevented. The included four-part clamping device allows for precise positioning of holes on beams and timbers.
- Possible drill diameters: 8, 10, 12, 14, 16, 18, 20, 22, 24, and 26 mm
- Base dimensions inside: 140 × 90 mm
- Base dimensions outside: 250 × 150 mm
- Four-part clamping device for beam width up to 90 mm
- Delivered with 5 mm angle key
- With return springs made of stainless steel
- With drill bushing plate
- Maximum drill length: 320 mm
- Maximum drilling depth: 160 mm
- Weight: approx. 6.7 kg
- Famag-No. 1404.322
- Total length of this device: 490 mm
| Features | |
|---|---|
| Drilling Depth | 160 mm |
