Drill Stand
KB 43 Drilling Depth 120mm DUSS
Available in 14 days, delivery time 5-20 days
Product information

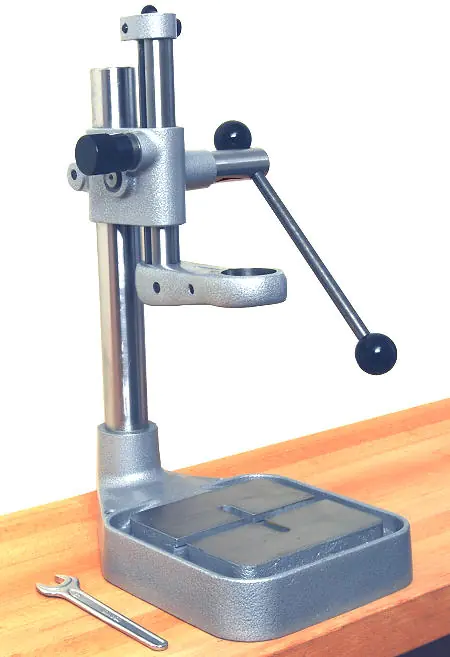

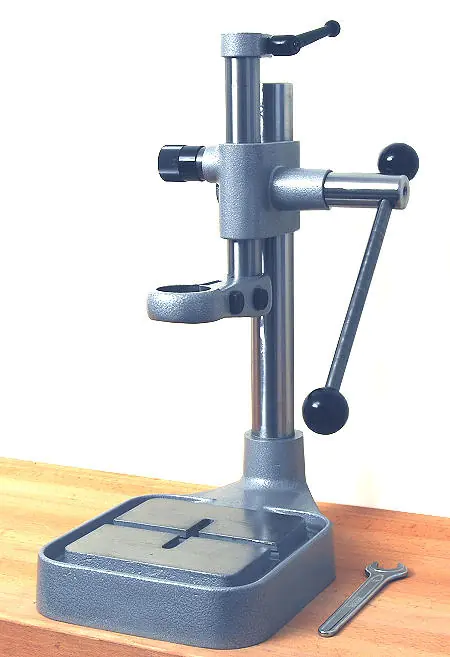

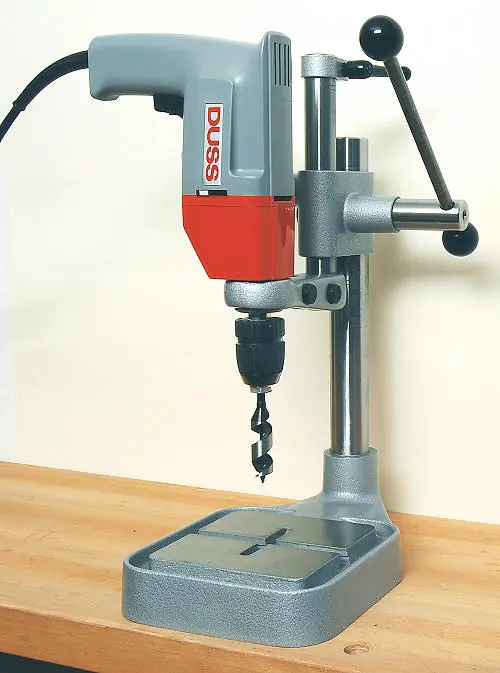

You can already tell by the weight of 15 kg: Everything here is massive and solid. The table and drilling unit are made of stable cast iron, and the columns are made of steel. All moving parts operate without play. The delivery includes a 17 mm wrench for securing the drill and fixing the height of the drilling unit to the column. Suitable for drills with a Euro neck of 43 mm.

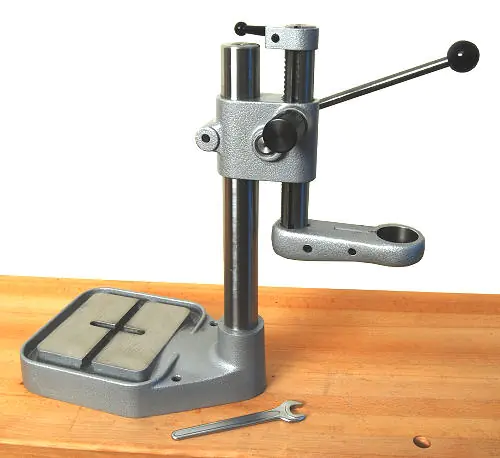

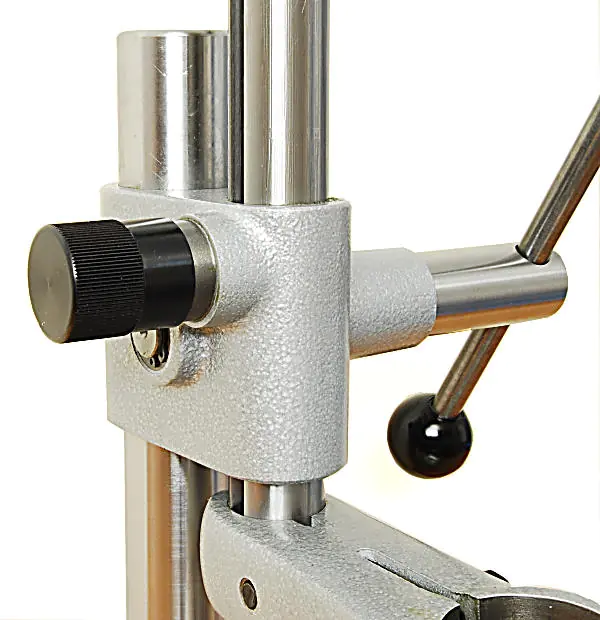

Stroke 120 mm or 180 mm (vertical stroke in one pull), infinitely adjustable using a stopper with an eccentric lever. The drilling unit is rotatable, allowing for drilling in larger objects, e.g., round bench dog holes in a workbench top. Smoothness is infinitely adjustable from light to heavy using a knurled screw on the left.
For clamping a machine vice, we recommend T-slot nuts.
Made in Germany.
| Properties | |
|---|---|
| Throat Depth | 170 mm |
| Weight | 15 kg |
| Base Plate | 200 × 300 mm |
| Stroke | 120 mm |
| Maximum Distance Table to Chuck | 260 mm |
| Slot Width | 11.5 mm |
| Slot Width Bottom (T-Section) | 17.5 mm |
| Slot Table | 150 × 150 mm |
| Slot Height Bottom (T-Section) | 9.5 mm |
| Slot Depth | 18.5 mm |
| Column Diameter | 40 mm |
| Column Height | 410 mm |
