Auger Bit Lewis Type Diameter =
14 mm Total Length = 1080 mm FAMAG
Available in 14 days, delivery time 5-20 days
Product information
Achieve clean, tear-free holes with a flat bottom using the proven auger bits from FAMAG, available in drill diameters up to 50 mm. Manufactured in Remscheid, Germany.

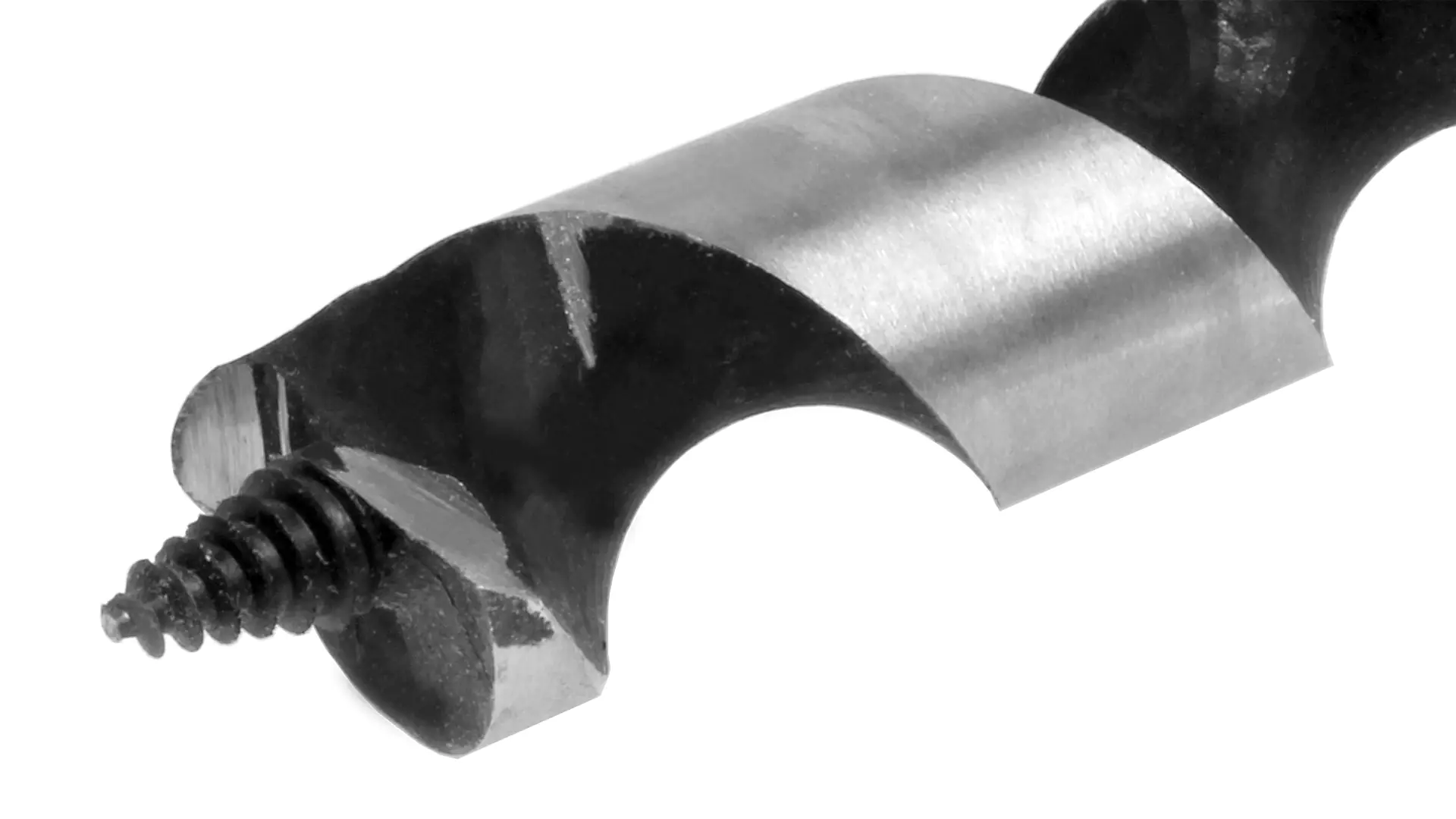

These drill bits feature a curved, pronounced pre-cutter that creates a clean hole edge even at slow speeds. The main cutting edge is shaped like a chisel, rotating around the threaded tip, shaving off layer by layer of wood within the circle cut by the pre-cutter. The threaded tip pulls the drill bit into the wood, requiring virtually no pressure.
These auger bits are suitable for all types of softwoods and European hardwoods such as beech and oak. They are not suitable for extremely hard tropical woods. Avoid overheating the drill bit and „vent” it frequently, meaning retract the drill bit with the drill running (do not pull it out) to aid chip removal and cool the drill bit. Work with light pressure only!
Features:
- Lewis type
- 1 main cutting edge
- 1 pre-cutter
- Threaded tip
- Hex shank
| Features | |
|---|---|
| Diameter mm | 14 |
| Total length | 1080 |
| Shank | 13 |
| Spiral length | 1010 |
