Drill Guide Kit with 4-5-6-8-10-12 mm bushings

JUUMA

Drill right-angled and precisely positioned holes into any workpiece with this versatile drill guide!

In most drill guides, the drill templates are fixed and often arranged in several sizes right next to each other. This makes them relatively inflexible and cumbersome to handle. The main body in which they are installed is usually opaque, and only the stop for the respective application ensures the precise positioning of the drill.

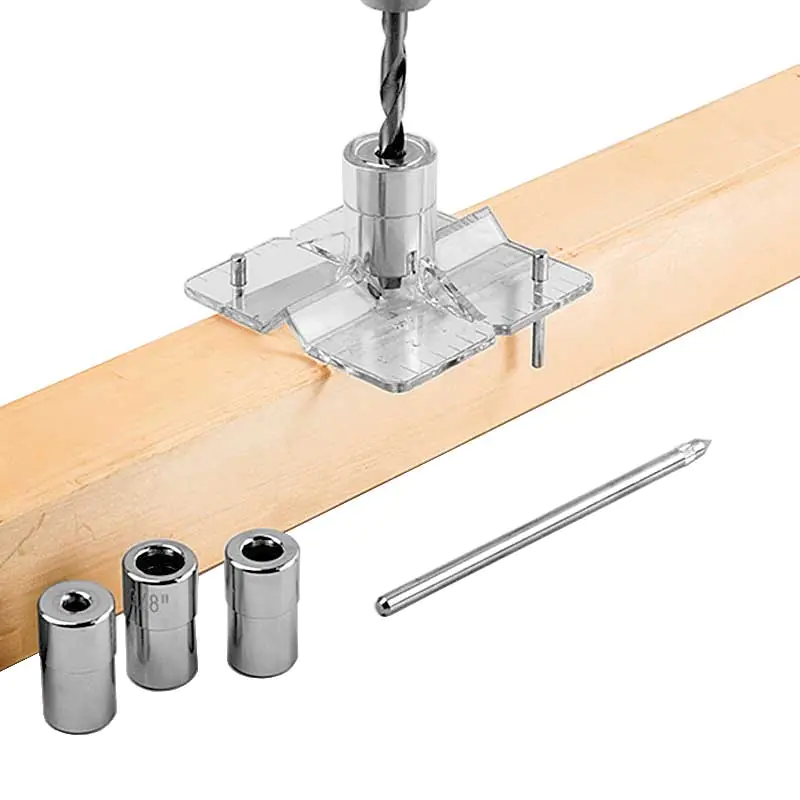

With the JUUMA drill guide, you always have a clear view of the drilling position, as the main body is made of transparent acrylic. Additionally, each individual template is loosely inserted and can therefore be easily replaced. With the included 112 mm long center punch and your workshop hammer, you can clearly mark the drill holes. The pilot bit of the wood twist drill introduced into the marking holds the position, allowing you to hold the main body with your hand while drilling. However, the main body, with dimensions of 75 × 75 mm, can also be clamped onto the workpiece with a clamp if necessary.

The versatility of this template also shows in that you can drill holes at a 45° angle directly into the edge of a workpiece – thanks to the V-groove in the base plate.

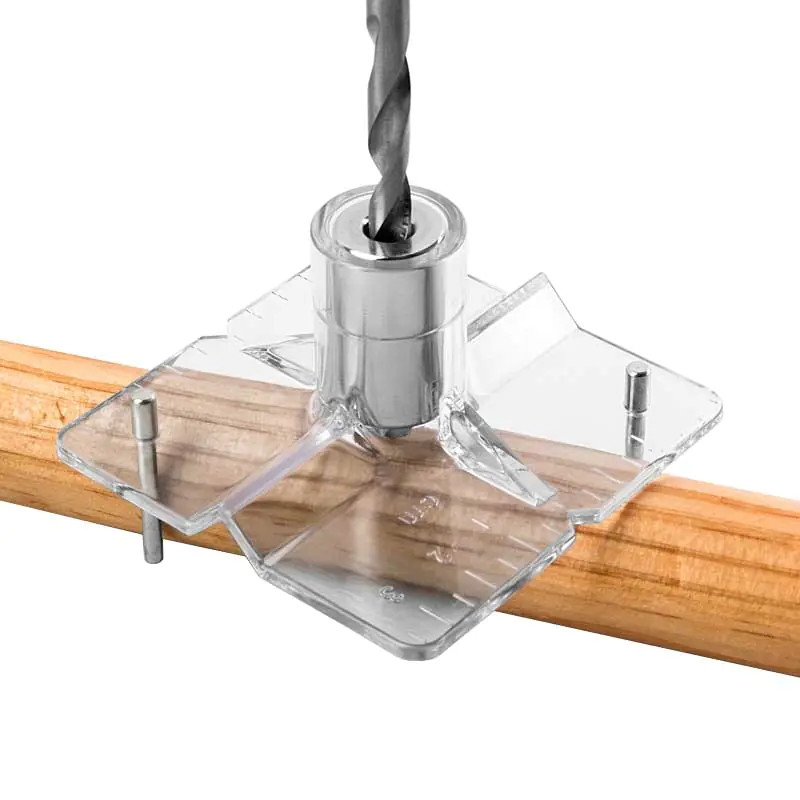

This V-groove in the base plate also allows for precise positioning of the drill on round workpieces. To do this, insert the two supplied centering pins into the diagonally arranged holes of the base plate. Both pins must touch the opposite sides of the round workpiece. Maximum diameter of the round wood is approximately 50 mm.

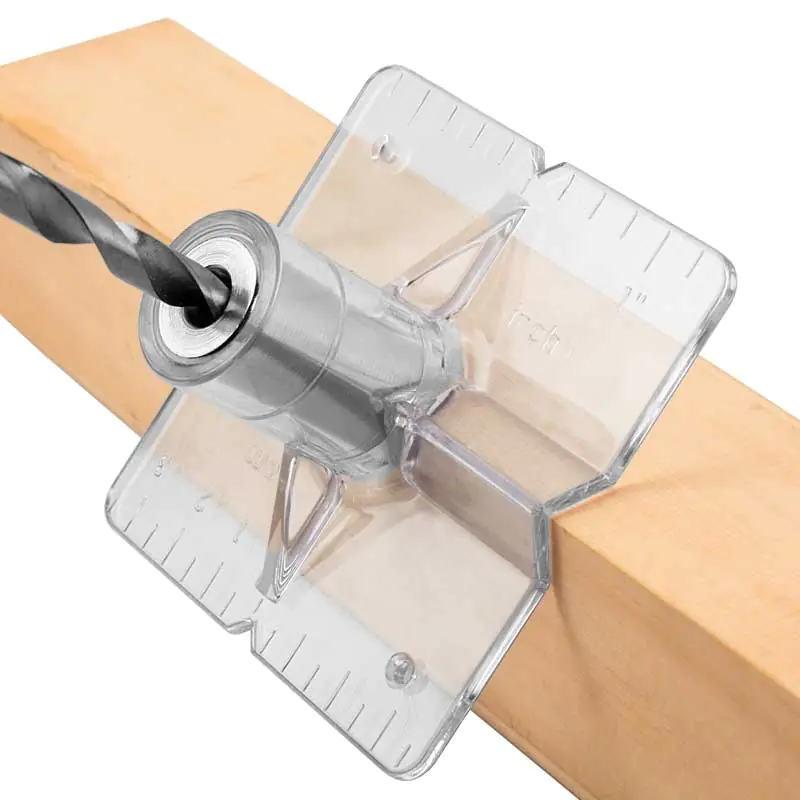

Clean holes in board edges are also possible. The application is analogous to drilling in round wood.

The cutouts on the base plate also allow for drilling holes in balls. Ensure that the workpiece is securely clamped during all applications. Suitable for both wood and aluminum.

Drill bushings made of hardened steel 4, 5, 6, 8, 10, 12 mm.
