Drill Stop Gauge
VERITAS
Available in 217 days, delivery time 2-3 days
Product information
If you try to set the depth stop or countersink attachment on a drill using a ruler or folding rule, it usually means balancing these three items in one hand while attempting to tighten the hex screw with the other hand. Most of the time, this is easier said than done.

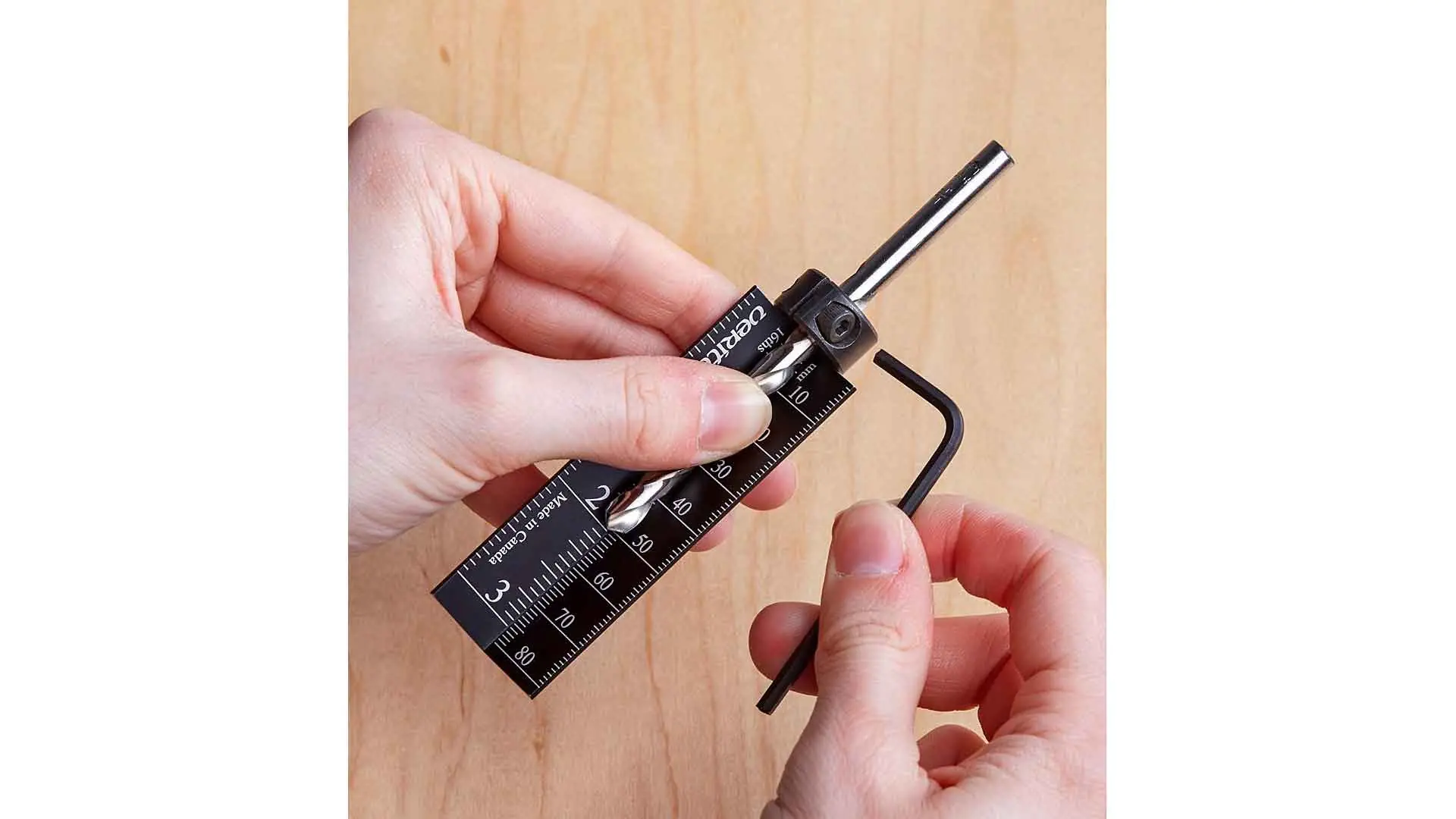

This template features a V-shaped cross-section that makes it easier to center the drill and align the adjustment ring. It is much simpler to hold these three parts while tightening the hex screw.
The angle of the adjustment template is 110°, and it can be used for drills with a diameter of up to 25 mm. It features a metric scale (graduated in 1 mm) and an inch scale (graduated in 1/16 inch). The template is 83 mm long and made of aluminum. The surface is anodized, and the scale is laser-engraved for easy reading.
Made in Canada
