Combination square
300 mm WERKA
Available, delivery time: 2-3 days
Product information
Combination square in classic design with a wide range of uses. The central component is always the easy-to-read stainless steel ruler with various scales, which can also be used separately.
Both the 45°/90° stop and the centering square and protractor are made of cast iron, with finely ground application edges. All these functional units, some of which can also be used individually but primarily interact with the ruler, are presented in a subtle matte black.
Probably the most frequently used, the 45°/90° stop holds a scribe, which is protected against loss by being not only inserted but also screwed in. The stop is further enhanced by an embedded spirit level, allowing it to function as a compact level.
The protractor with a rotatable angle unit, which can be fixed using two screws on the back of the body, also features a spirit level. For easier and error-reducing handling, the scale is double, but inversely executed.
With the attached centering head, the center can be determined on the face of cylindrical workpieces.
The three attachments can be freely positioned on the ruler and fixed with a clamping screw and knurled nut. In total, this results in a wide range of applications in the areas of measuring and marking but also in setting up machines:
- Carpenter’s square
- Miter gauge
- Depth gauge
- Marking tool in the function of a marking gauge
- Center finder/centering square
- Spirit level
- Ruler
- ...

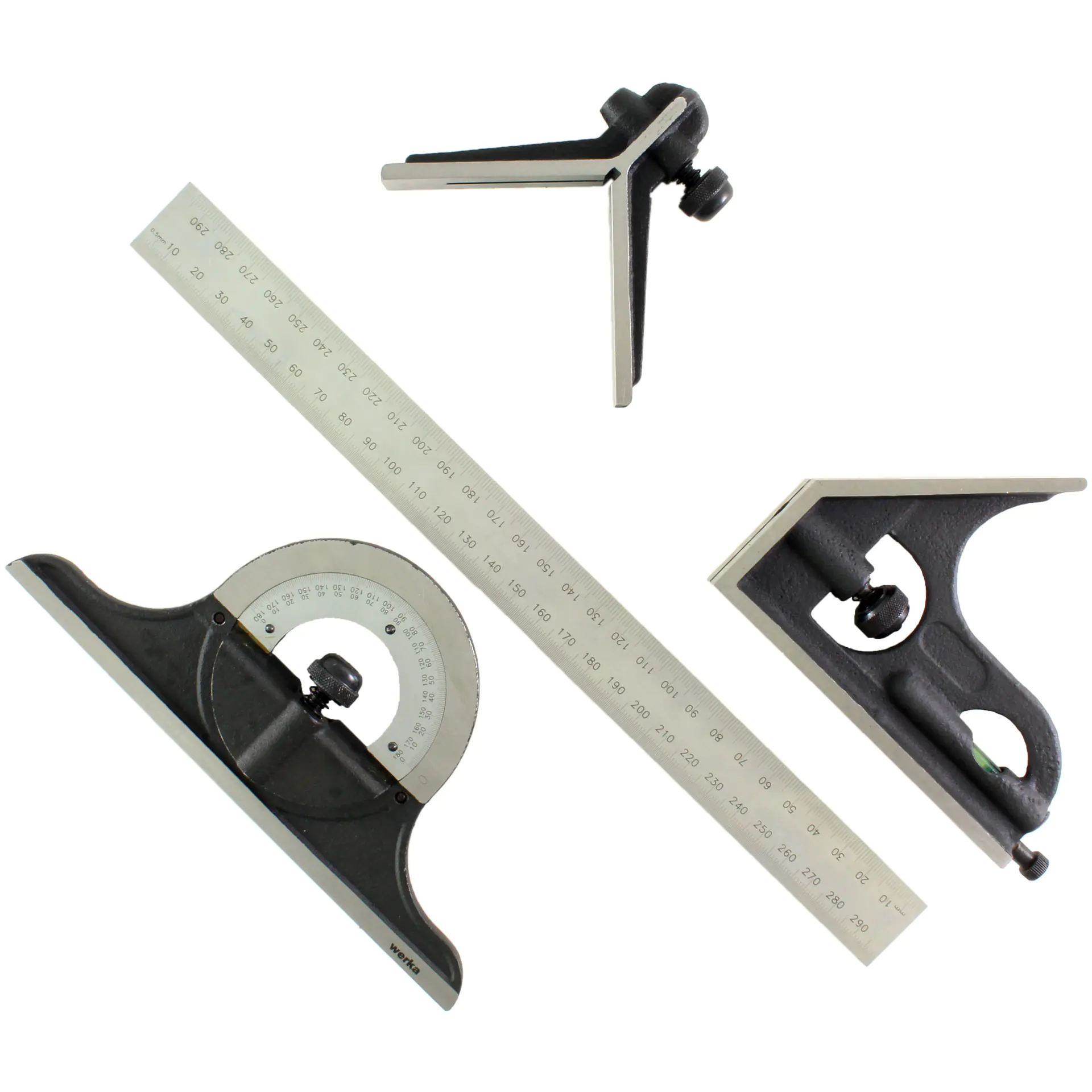

Scope of delivery:
- Ruler: 300 × 25 × 2mm, satin stainless steel, deeply etched scale: one edge with ½ mm on each side, the other inversely in full mm
- three stops (cast iron): 90°/45° with spirit level and scribe, centering square, protractor with spirit level
- sturdy plastic box
