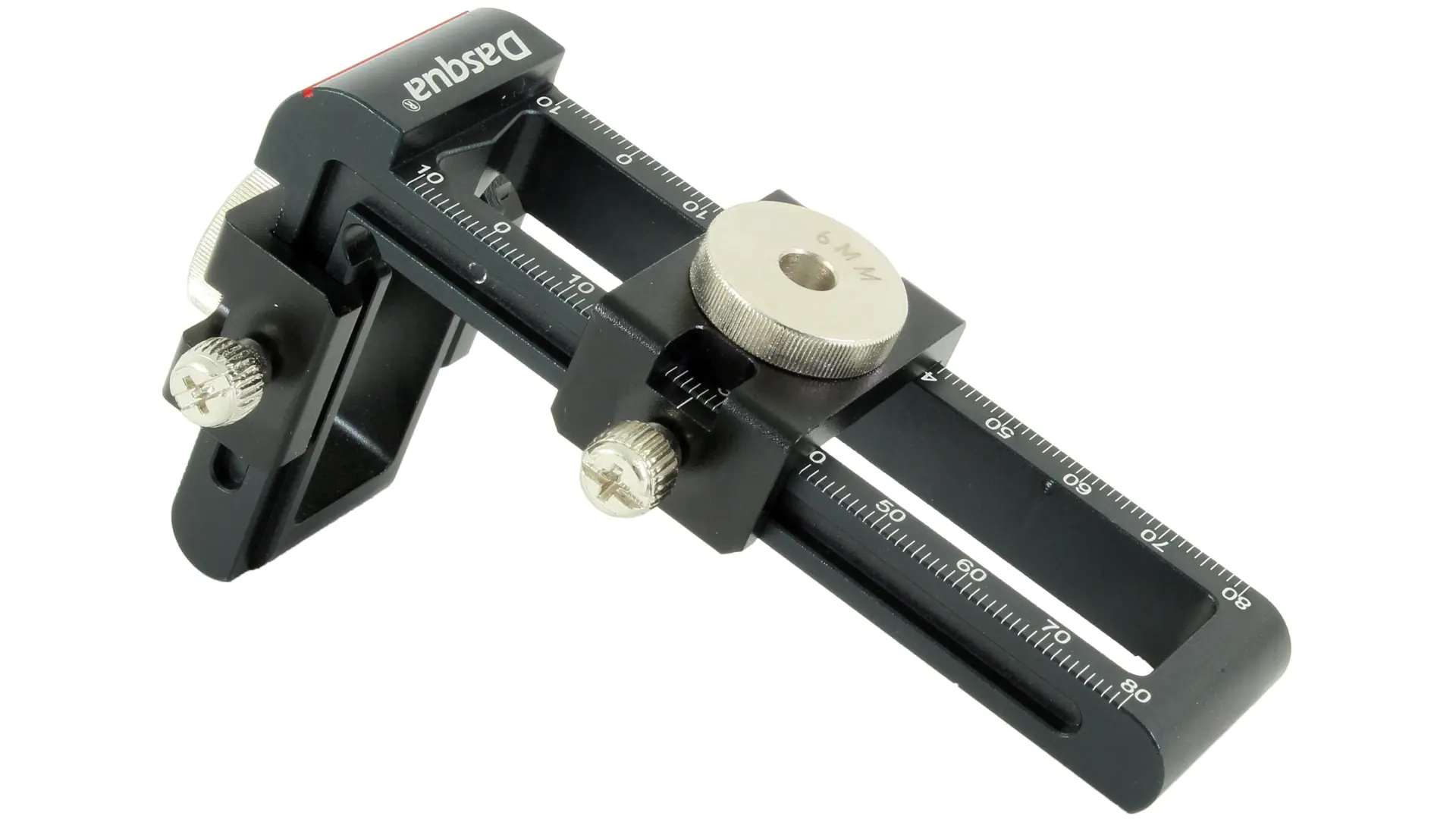

Adjustable universal Dowelling Jig ❘ BLACK-RED Plus ❘
DASQUA
Available, delivery time: 2-3 days
Product information
Versatile doweling jig for different dowel diameters. On both the short and long arms, the distance to the edge of the workpiece can be set with repeat accuracy over a wide range and fixed with a handy screw. Double-sided millimeter scale.
At a minimum, the center of the hole is 10 mm from the edge, and at a maximum, depending on the drill bushing used, up to 34 mm on the short arm and up to 86 mm on the long arm.
To position the holes along the edge of a workpiece correctly, two index pins protrude beyond the edge.
Aluminum alloy, CNC machined, black anodized, with laser-engraved scaling. The slightly matte surface texture provides a comfortable grip on the jig. Fingerprints do not adhere. The high contrast of the white markings on a black background ensures excellent, glare-free readability. The scaling and labeling in white are not merely printed but are protected within the laser-created recess. This ensures the tool can be used without issues for many years.
Drill bushings made of steel:
1x each 6, 8, 10, 12, 15 mm
Main body dimensions:
115 × 65 × 30 mm
