Mitre Squares

Mitre Squares

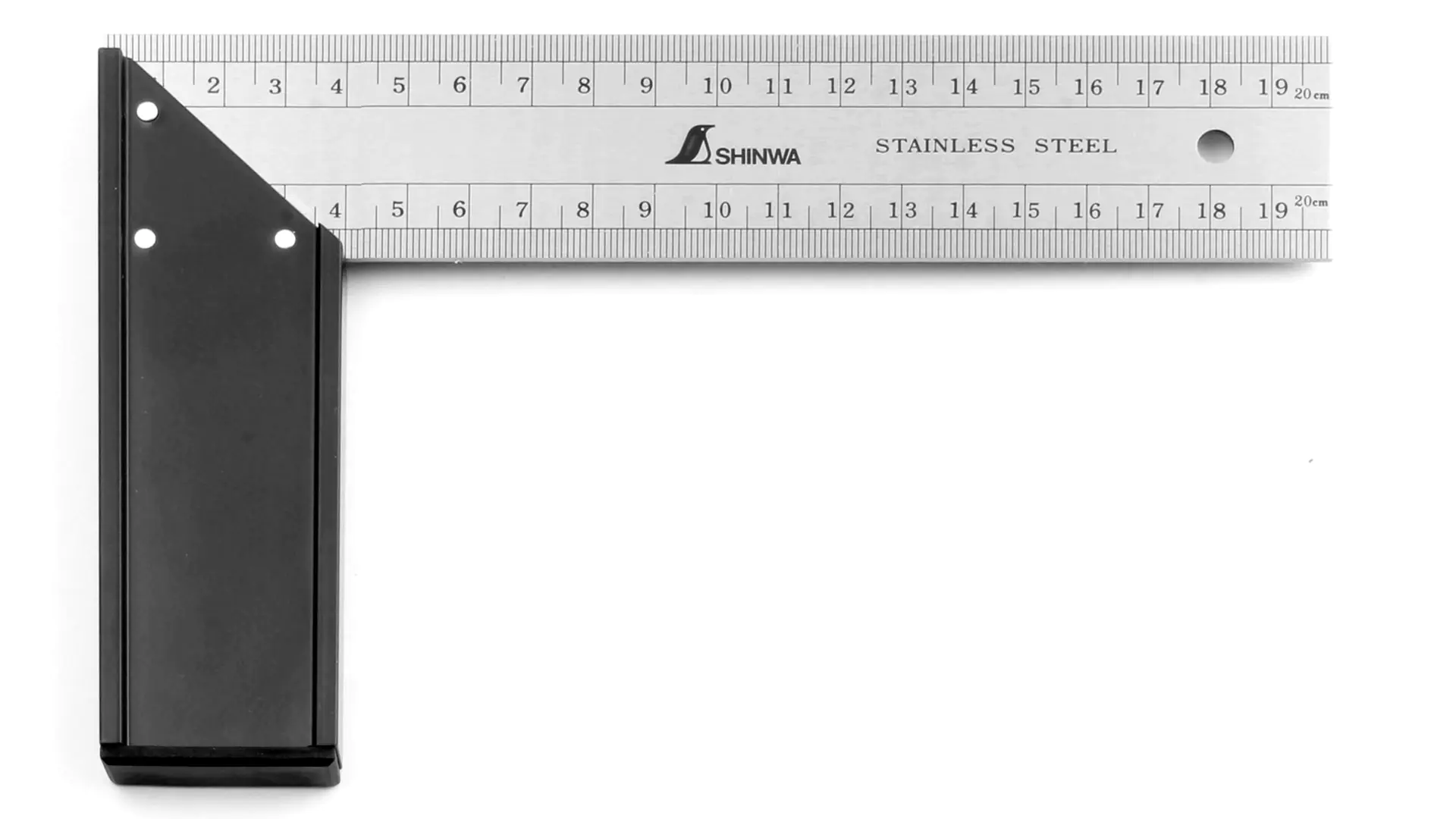

SHINWA Mitre Square with Steel Blade The blade is 200 mm long and made of stainless steel. Deeply edged mm graduation on front and rear side. Handle is made of aluminium.
Blade width 40 mm
Blade thickness 1.5 mm
Code 310360CartPrice € 18.90

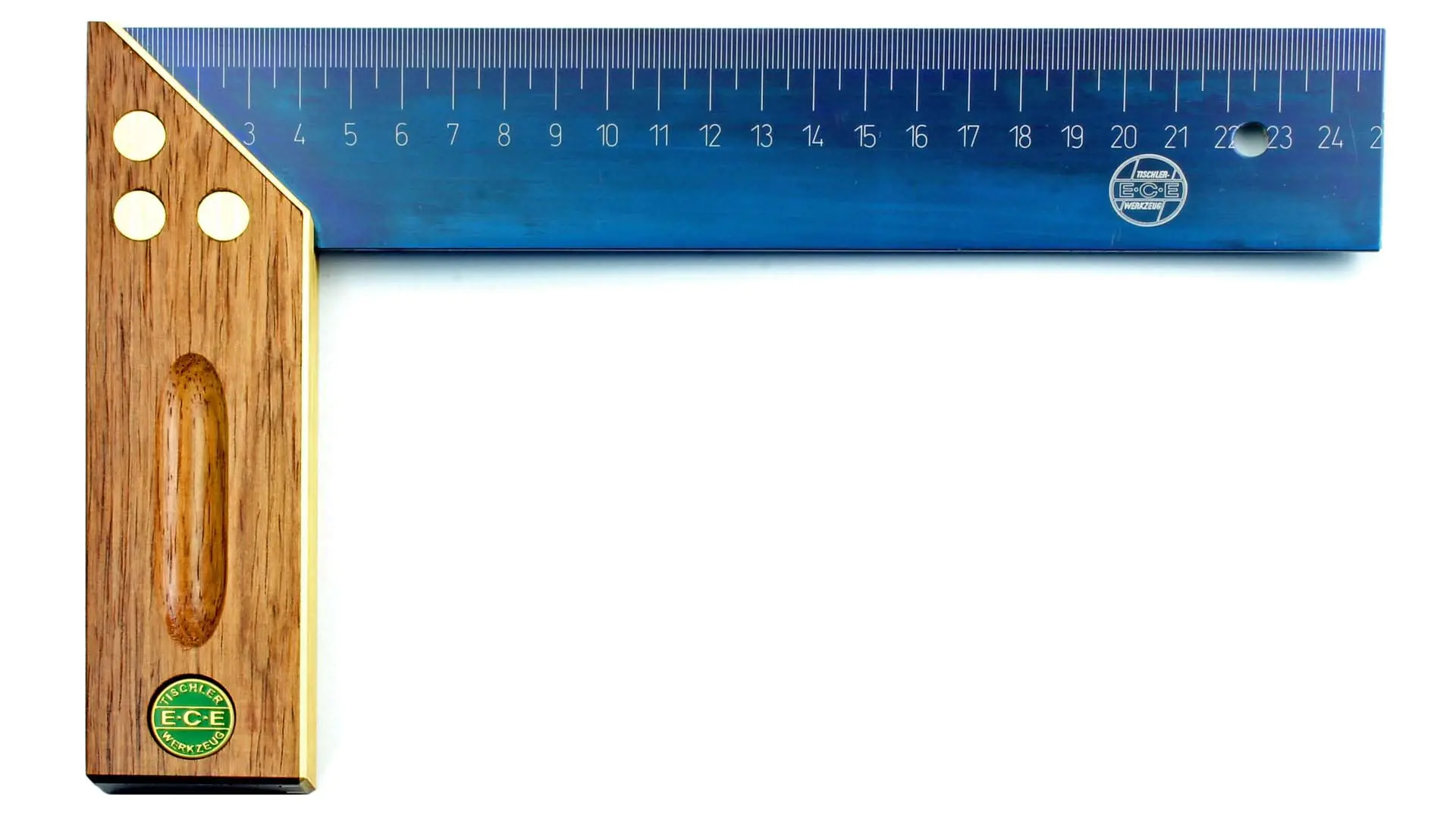

ECE Precision Try Square with Mitre These squares come with rosewood handle.

Blade length CodePrice
200 mm This item we ship only within the European Union!
Code 301126CartPrice € 49.00
250 mm This item we ship only within the European Union!
Code 301127CartPrice € 59.00
300 mm This item we ship only within the European Union!
Code 301128CartPrice € 65.00
ECE Precision Mitre Square
Blade length CodePrice
250 mm This item we ship only within the European Union!
Code 301131CartPrice € 55.00
300 mm This item we ship only within the European Union!
Code 301132CartPrice € 62.00
Square with Mitre A versatile tool with 90°, 45° and 135°. Size 16 x 11 cm. Made by Shinwa.
Code 309601CartPrice € 18.50
Mitre Square Length 11 cm. Made by Shinwa.
Code 309602CartPrice € 11.90

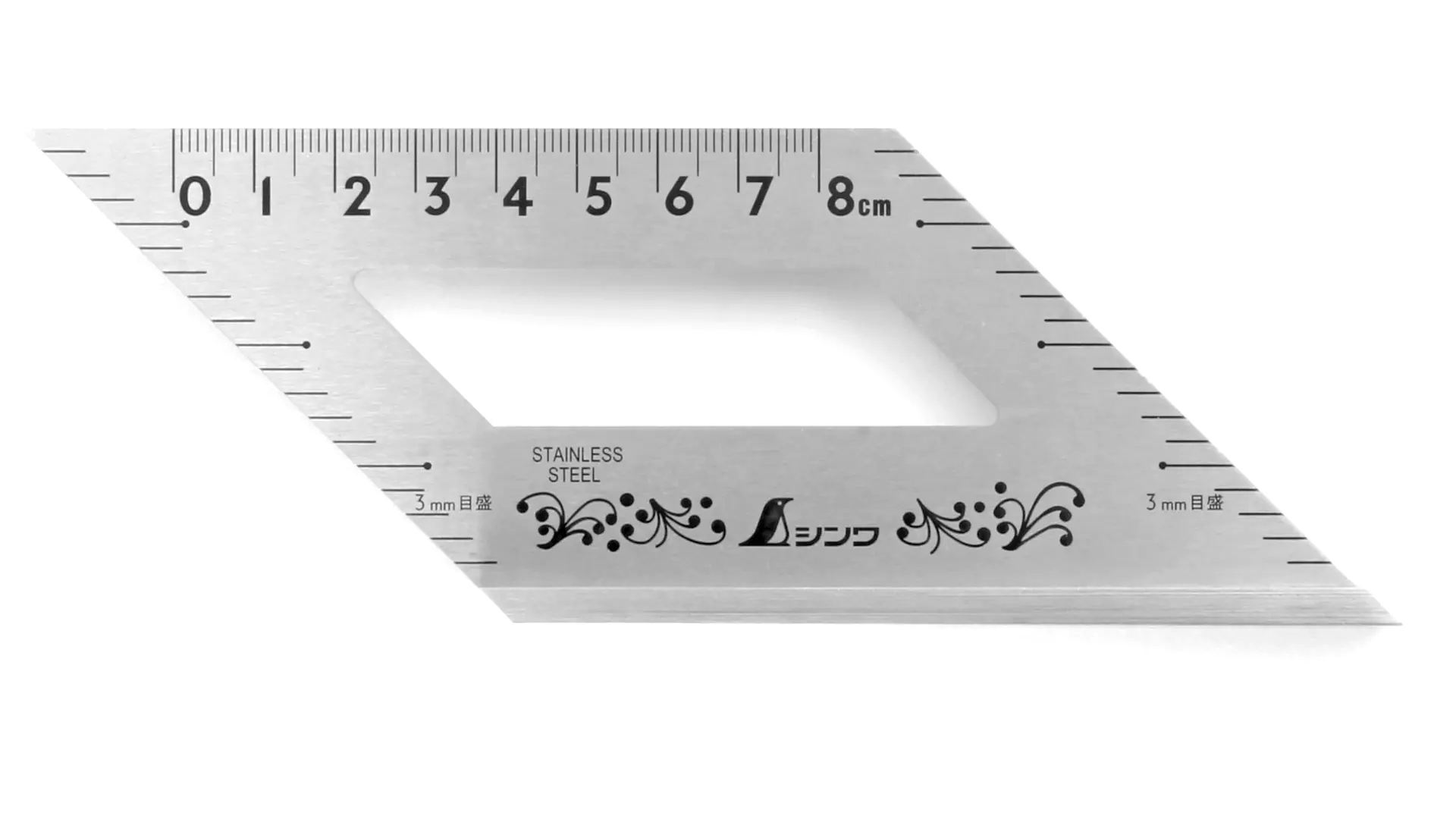

Mitre Square as above, with graduation of 10 cm
Code 309603CartPrice € 12.50
Square with Mitre Make both markings in one step!
Made of aluminium, blade 60 mm.
Code 309606CartPrice € 18.50

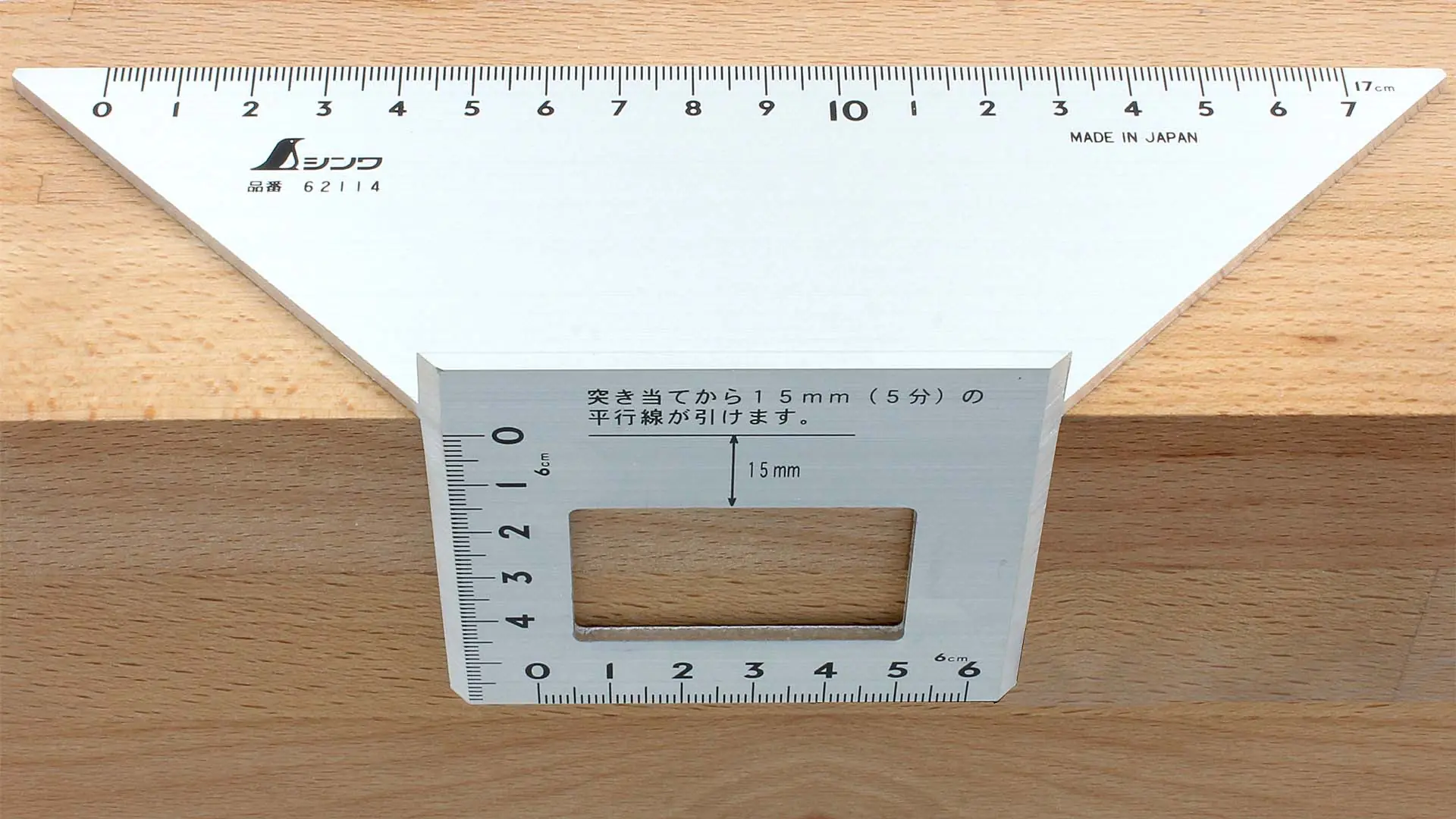

Mitre Marking Saddle For marking both left and right handed mitres in one step.
Made of aluminium, blade width 60 mm, blade length 197 mm.
Code 309621CartPrice € 19.90

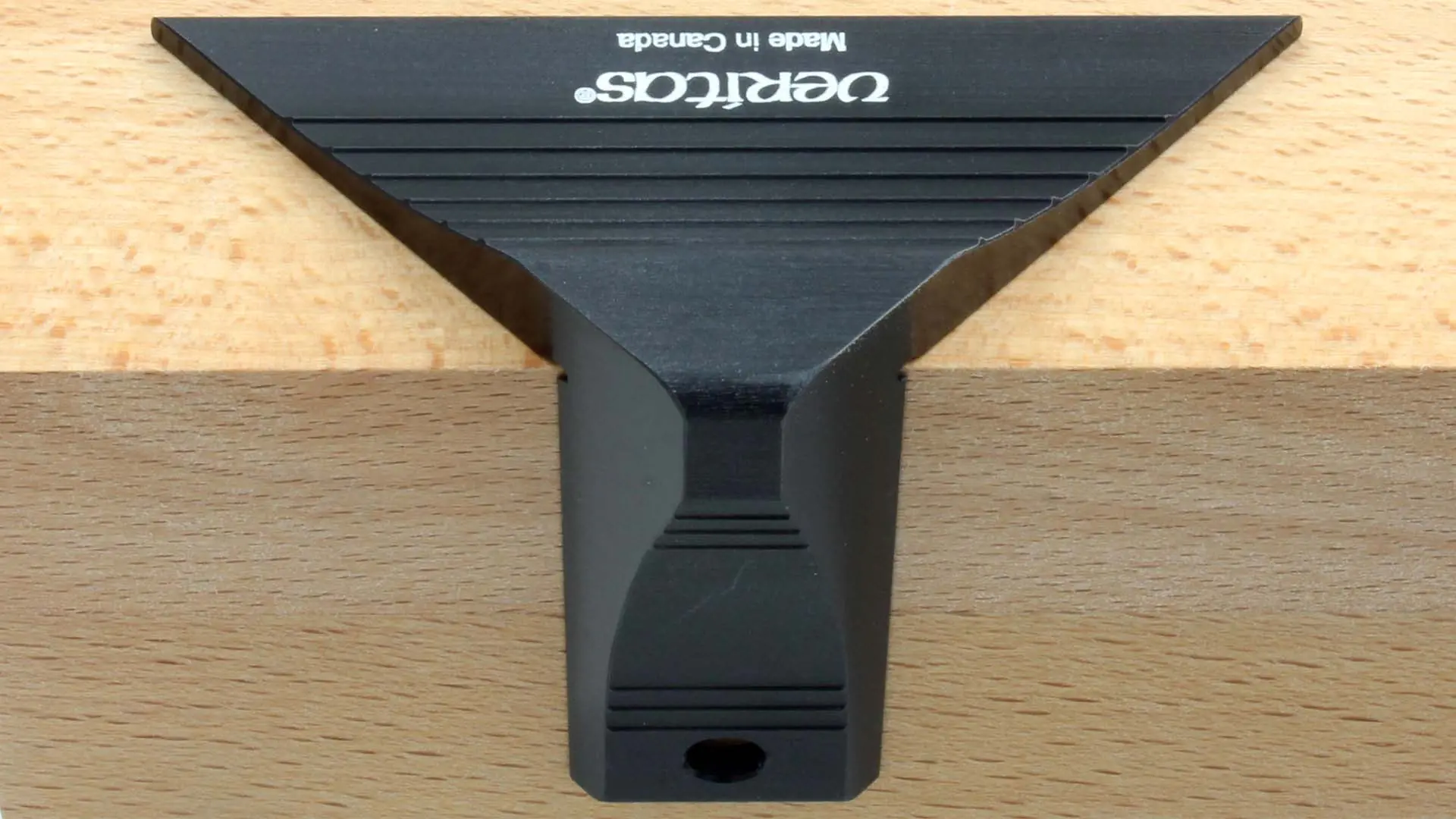

Miter Saddle When working on small items such as picture frames, a large combination square or try square can often be cumbersome. Not so with this miter saddle. The relatively small size makes it easy to use.

Despite its size, it still has a large reference face (3-1/2 inch (89 mm) at the wide end) set at 45°. The leg measures 1 inch (25.4 mm) wide by 2-1/4 inch (57 mm) long. As with the saddle squares, the sides are machined so that a line can be easily and accurately transferred around workpiece corners. With the miter saddle, however, a right-angle line on one surface is transferred as a 45° angle on the adjoining surface, or vice versa. This way, a line for a miter cut can be wrapped around all surfaces precisely and will meet perfectly at the corners. The inside corner is relieved to ensure perfect registration, even on saw whiskers.

Made from anodized aluminum, this marker is light and durable, and will never mark your work.
Code 307842CartPrice € 14.90

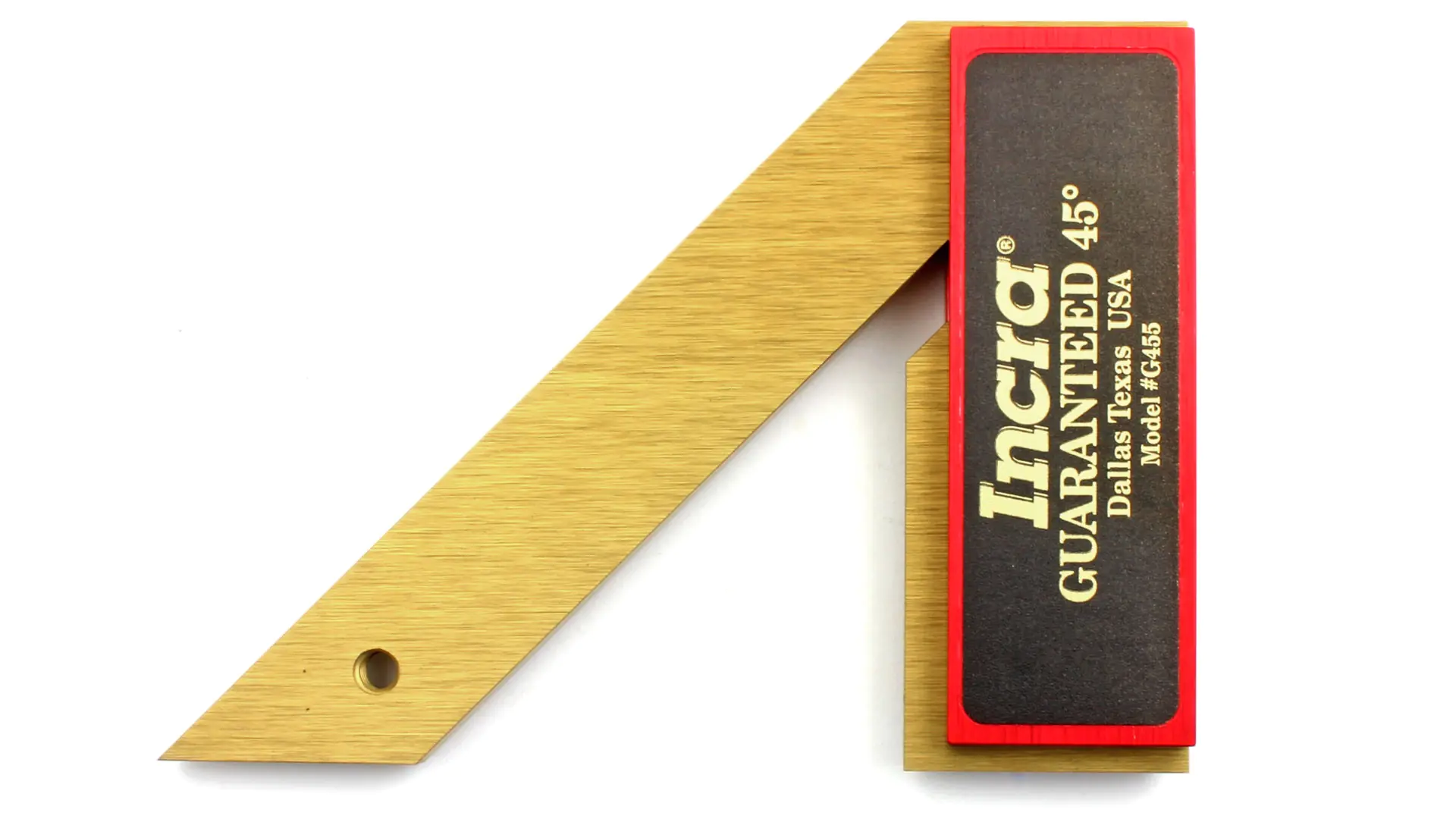

INCRA Guaranteed Mitre Squares The one-piece design uses the most advanced manufacturing methods available to carve out a single, monolithic blade/handle body from a solid slab of hardened aluminum. This means you won’t see the alignment errors that can happen when a separate blade is manually assembled to a separate handle, as in the more common two-piece design.

The solid construction of the Squares just feels right in the palm of your hand. And unlike conventional two–piece designs, the layout angle of this rigid, one–piece body won’t get "bent out of shape" when you drop it! The gold and red hardened anodized surface is not only durable, but beautiful, and it won’t tarnish like brass. Combine this with modern, functional styling and you’ve got a tool that is worthy of the most prominent location in your display cabinet (when you’re not using it, of course).
This shape is both a 45° and a square - see picture left.
Accuracy 0.001 inch (0.03 mm) maximum deviation along the full length of the blade.

INCRA Guaranteed Mitre Square 5 inch Currently not in stock!
Code 314910Cart Price € 75.00

INCRA Guaranteed Mitre Square 7 inch
Code 314911CartPrice € 95.00

Specification Incra mitres
Model
number
Blade
length
Blade
width
Blade
thickness
Base
length
Base
width
Base
thickness
314910 5-1/2 inch
139 mm
1 inch
25.4 mm
1/4 inch
6.35 mm
4 inch
101.6 mm
1-1/2 inch
38.1 mm
3/4 inch
19.05 mm
314911 7-5/16 inch
184 mm
1-1/2 inch
38.1 mm
1/4 inch
6.35 mm
5-1/2 inch
139.7 mm
1-1/2 inch
38.1 mm
3/4 inch
19.05 mm
