Adjustable bevel square
QBS25 HULTAFORS

Product information

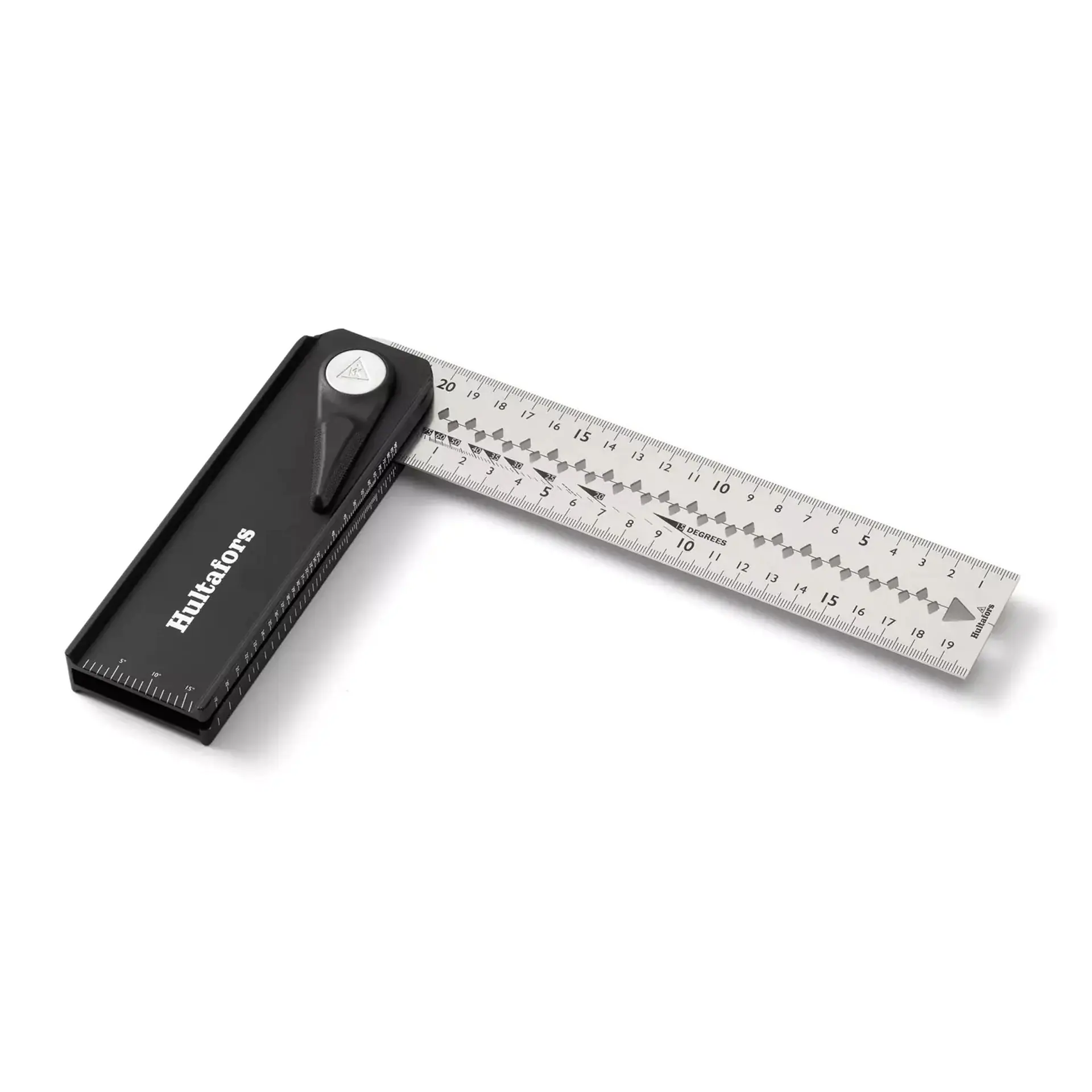

Latest evolutionary stage of foldable measuring tools from Hultafors. This multifunctional tool combines the functionalities of a bevel with those of a folding angle. The core of the construction is the reliable locking mechanism, which operates via a handy swivel lever that can be operated from both sides:

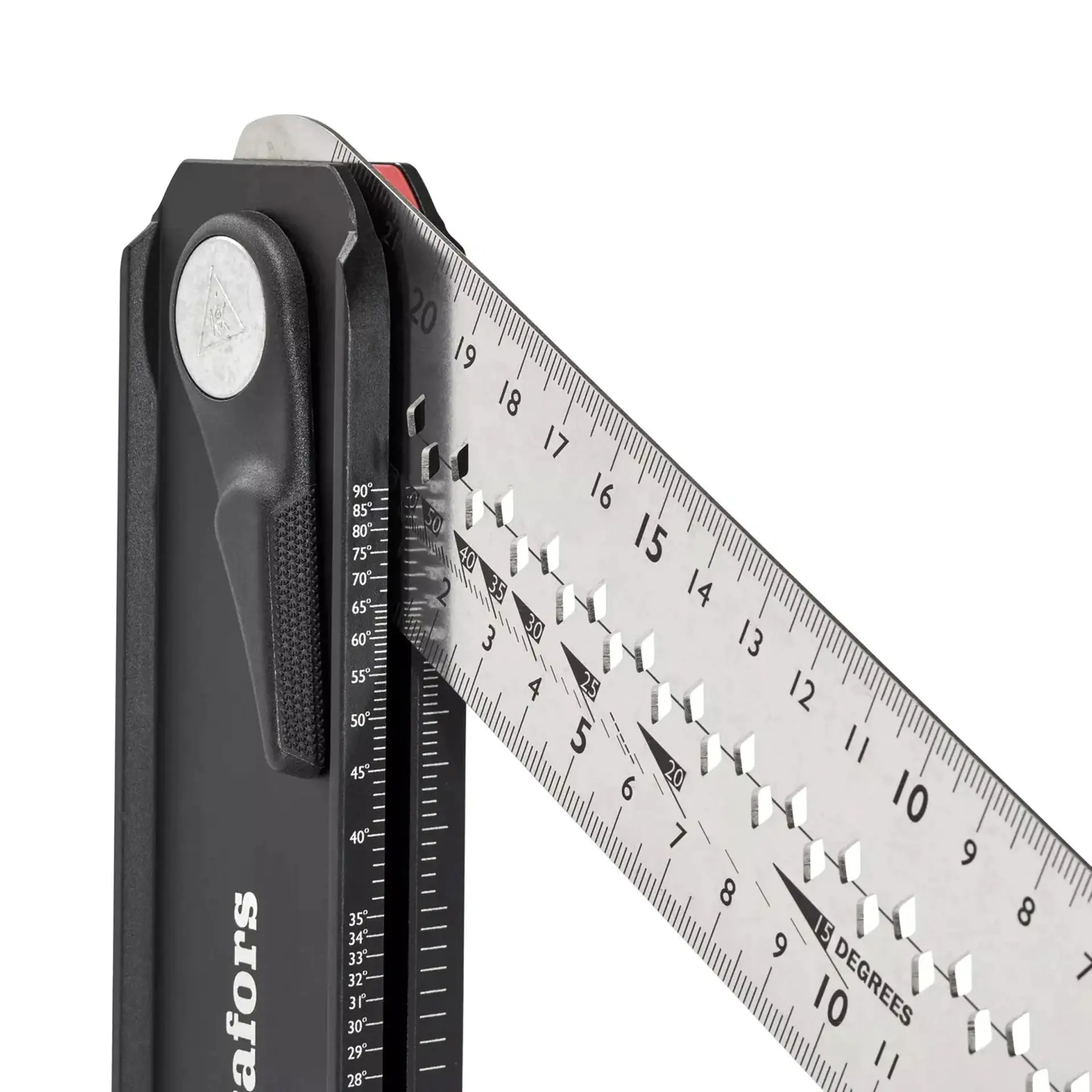

  • In the neutral position (aligned with the „Hultafors” lettering), the blade is freely movable across the entire swivel range. In addition to the transport position, there are six additional detent positions for common settings. Locking is achieved by moving the swivel lever to the „right” position. In the „left” position, the blade is clamped in its current position. Scales are located on the end and long side of the stock as well as on the blade, allowing angles to be set or read.
  • The blade, which includes a hanging feature, is made of semi-rigid, stainless spring steel and features both inner and outer millimeter scale markings on both sides. Additionally, the tapered notches in the middle allow pins of different thicknesses to be automatically brought into the correct position and enable lines to be drawn parallel to a workpiece edge at 5 mm intervals.
  • For easy readability, the scale and markings on the blade are laser-etched.
  • The hollow-designed stock made of matte black anodized aluminum features a well-grip profile.
  • Overall, a highly versatile measuring tool that can be compactly folded for transport or storage, impressively engaging with a solid and play-free locking mechanism and offering practical accuracy through CNC machining!

Made in Sweden!

Features

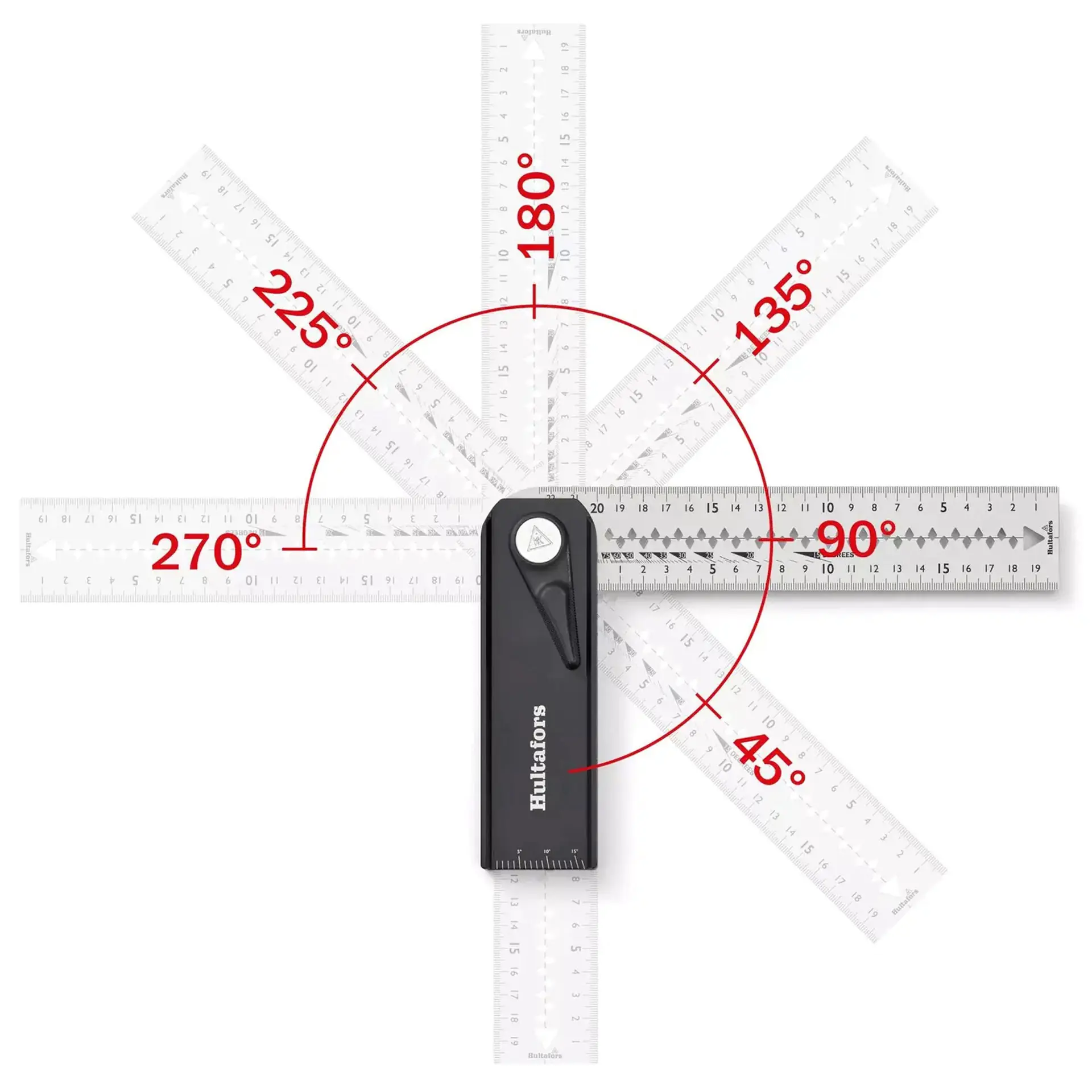

Notch positions45°, 90°, 135°, 180°, 225°, 270°
Markings0-°
Arm (stop)160 × 50 × 19 mm
Transport dimensions245 × 50 × 21 mm
Accuracy+- 0.06° corresponding to 0.1 mm over 100 mm blade length
