3D multifunctional square ❘ BLACK-RED Plus ❘ DASQUA

Product information

Measuring and marking tool made from black anodized and laser-engraved aluminum. Due to the high contrast of the white markings on a black background, it offers excellent, glare-free readability. The scale and labeling in white are not just simply printed but are protected within the recess created by the laser. This ensures the tool remains usable for many years without issues.

Heavily skeletonized, it offers a variety of application possibilities and features such as:

  • 3 scales with millimeter divisions, one of which has a beveled edge to avoid or reduce parallax errors.
  • 3 scales for marking or reading angles, one of which has a beveled edge to avoid or reduce parallax errors.
  • 3 fixed angles: 45°, 60°, 90°

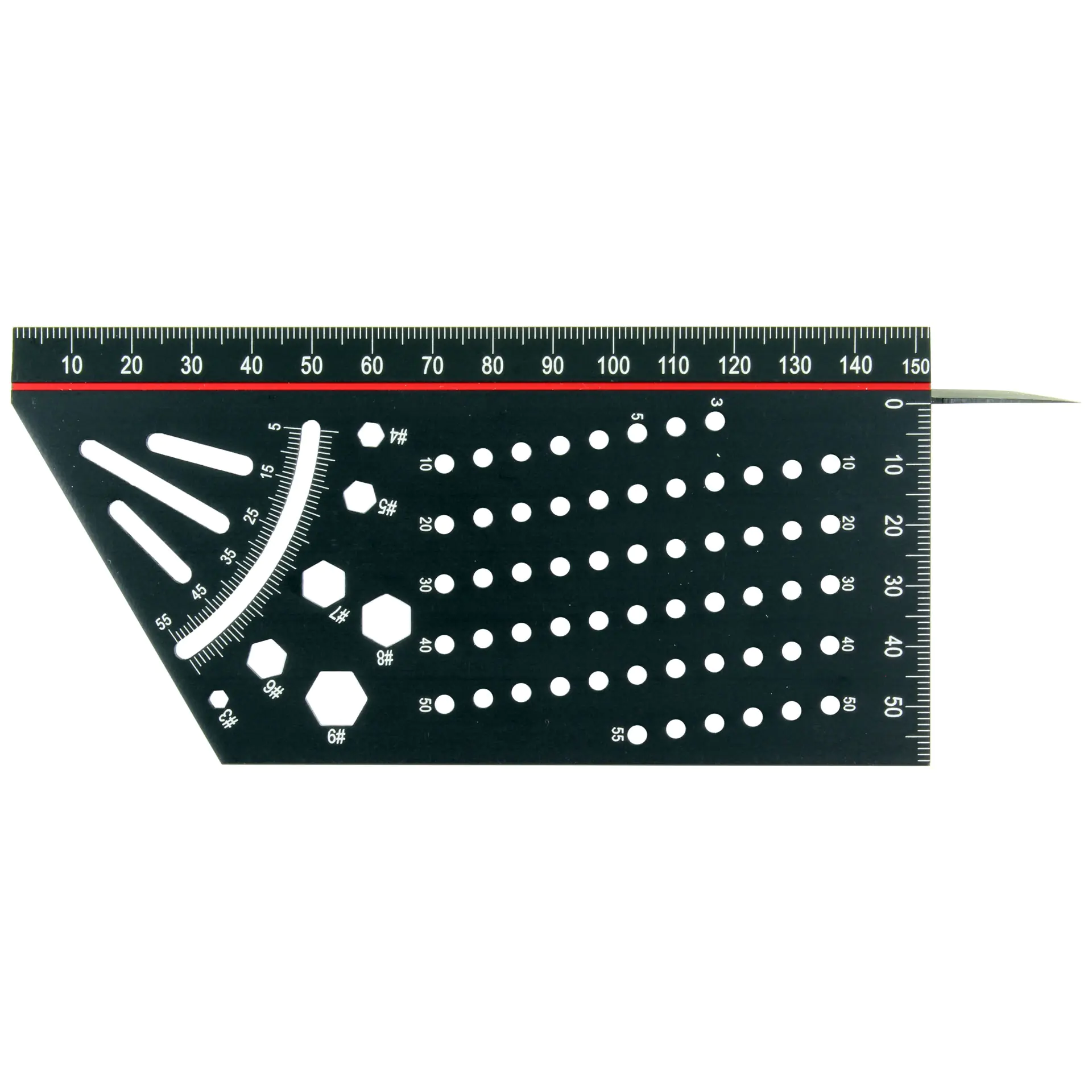

  • Marking holes for drawing parallels in relation to an edge of the workpiece at distances from 3 to 55 mm in 1 mm increments

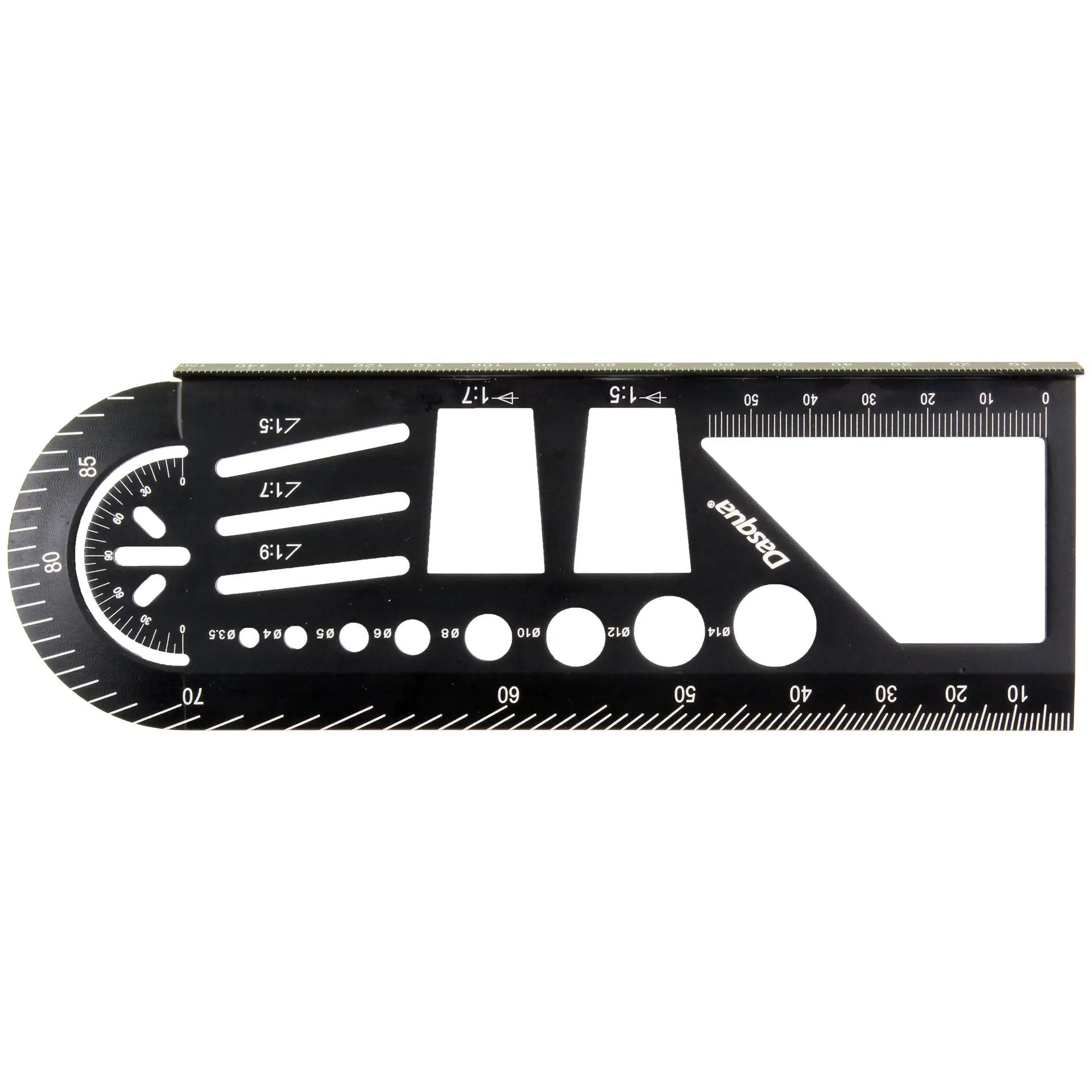

  • 8 openings for quickly determining common diameters from 3.5 to 14 mm
  • Cutouts with side ratios: 1:5 and 1:7, as found in dovetails

Technical Data:

  • Length: 183 mm
  • Arm width: 60 mm
  • Material thickness: 2.7 mm
