Foldable carpentry square Quattro
270 HULTAFORS
New
New
New
€57.90*
Available, delivery time: 1-3 businessdays within Germany
Product number: 303561
Product information
With this version, the Swedish brand, with many years of experience in manufacturing folding squares, sensibly expands its range:

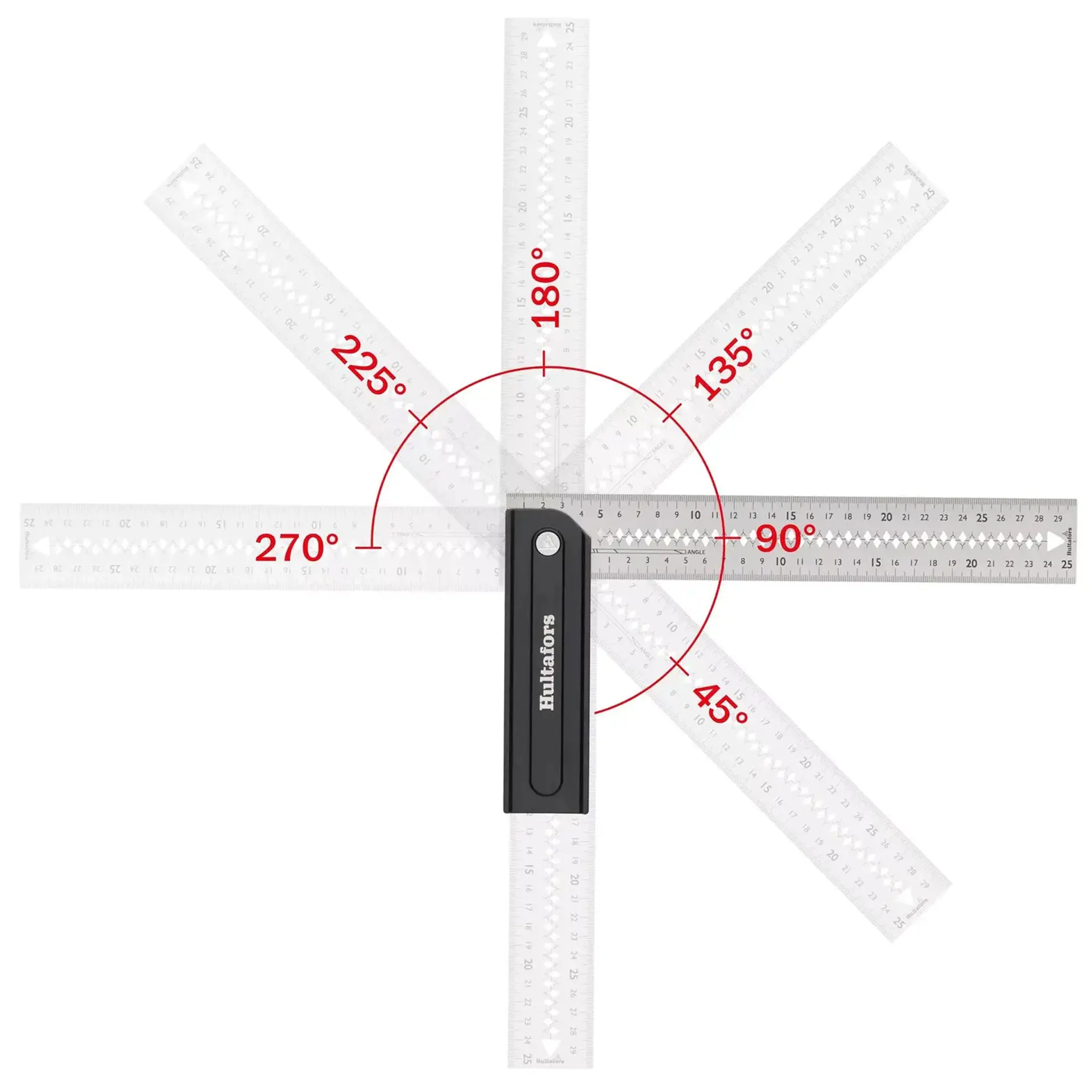

- In addition to the transport position, the square features 6 additional locking positions for common settings. Additionally, markings for other angles are present, aimed at increasing accuracy, which are applied both on the stock and the blade.
- The blade, which includes a hanging option, is made of semi-rigid, stainless band steel and features an internal and external millimeter scale on both sides. The pointed recesses in the middle also allow pins of different thicknesses to be automatically positioned correctly and to draw lines parallel to a workpiece edge at 5 mm intervals.
- For good readability, the scale and inscriptions on the blade are laser-etched.

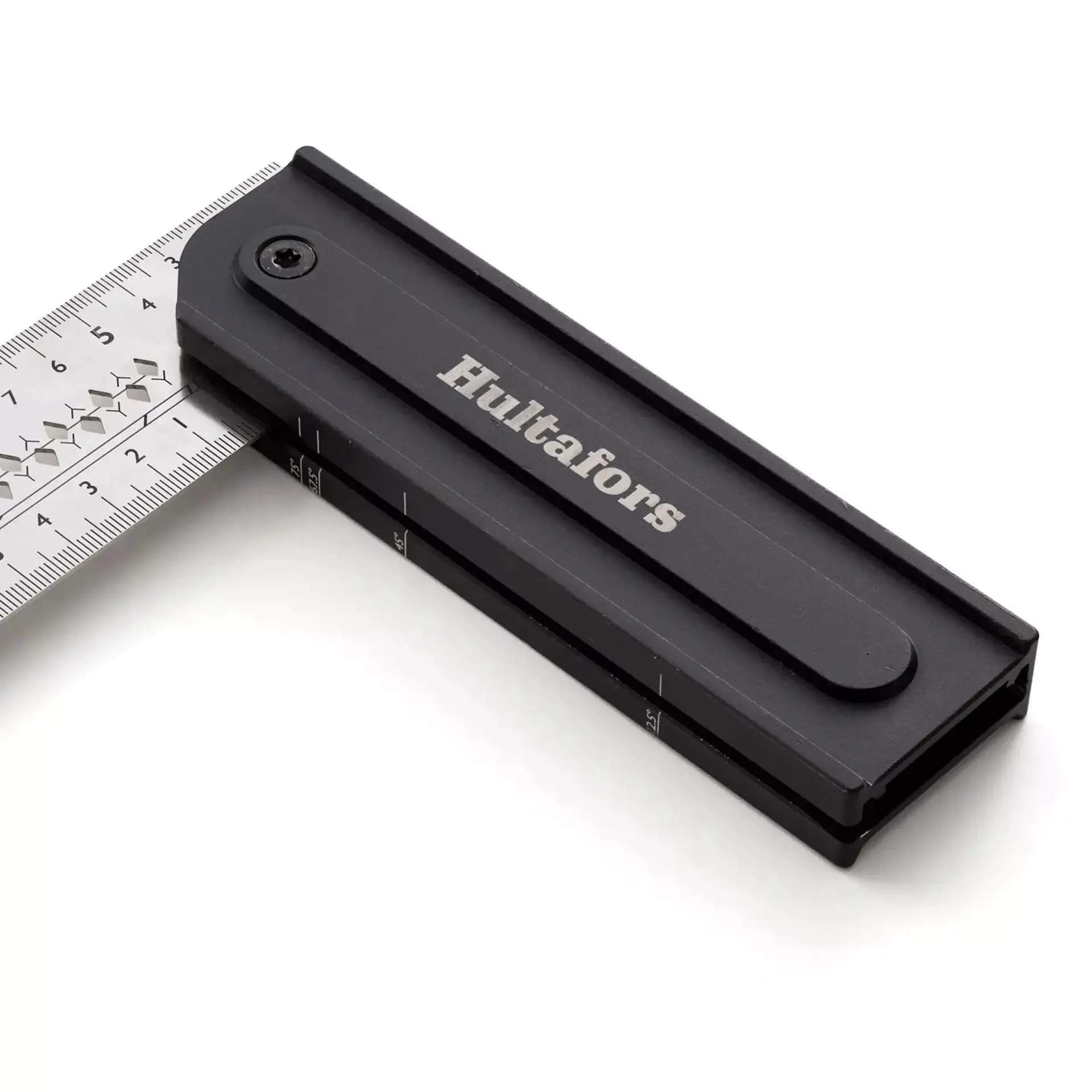

- The hollow stock, made of matte black anodized aluminum, has a well-grippable profiling.
- Overall, a very versatile measuring tool, which can be compactly folded for transport or storage, impressing with a solid and play-free locking, along with practical accuracy achieved through CNC processing!
Made in Sweden!
| Properties | |
|---|---|
| Locking positions | 45°, 90°, 135°, 180°, 225°, 270° |
| Markings | 22.5°, 67.5°, 75° |
| Tongue | 300 × 45 × 1 mm |
| Arm (Stop) | 160 × 45 × 19 mm |
| Transport dimensions | 300 × 49 × 19 mm |
| Accuracy | +- 0.06° corresponding to 0.1 mm over 100 mm tongue length |
