Hand vice jUUMA









Available, delivery time: 1-3 businessdays within Germany
Product information

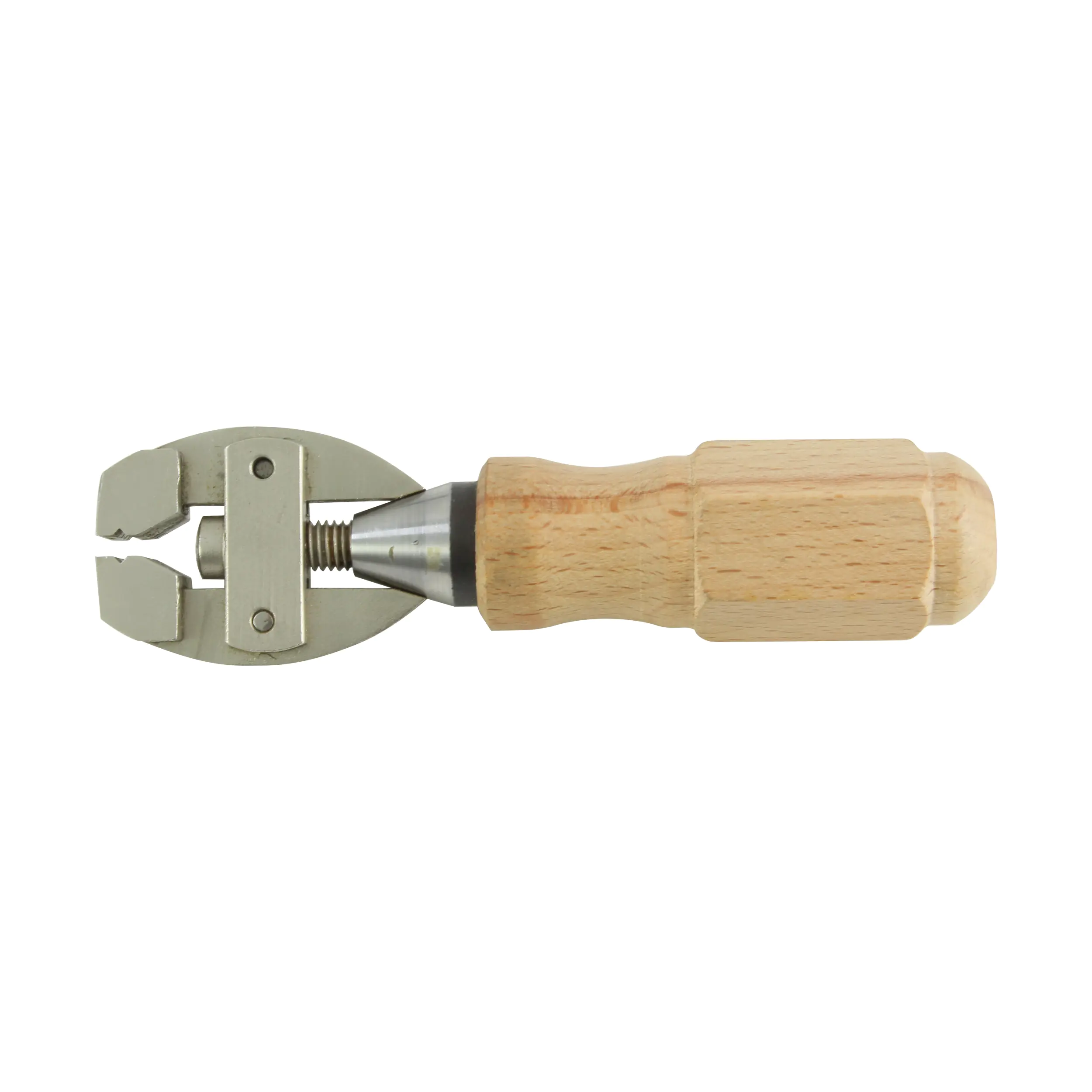

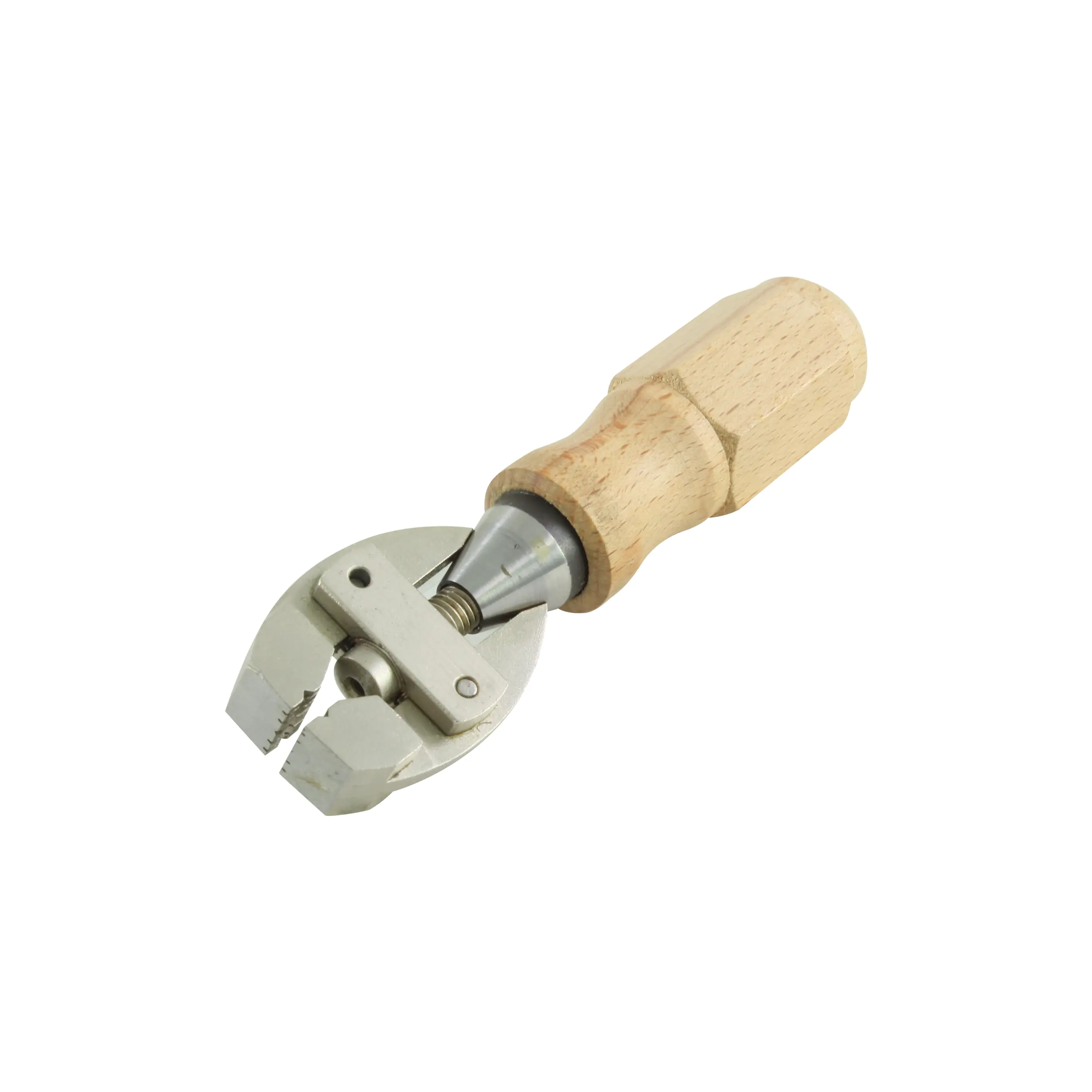

Anyone who has ever tried to clamp a small workpiece in a traditional vise will appreciate the advantages of this hand vise.
To ensure a better grip of the jaws, they are not just left smooth but feature vertical serrations. Additionally, the jaws have a horizontal V-groove, which is extremely advantageous for appropriately shaped, e.g., round parts, and further increases the utility.
The uniform opening and closing of the hardened jaws are elegantly controlled by a mechanism, where turning the beechwood handle allows spring-loaded guides to trace a cone.
Thanks to the skillful coordination between the thread pitch and the handle, sufficiently large torques are possible, allowing a workpiece to be securely clamped.
With its partially hexagonal handle, this handy helper proves beneficial not only for holding delicate parts, such as during carving or grinding, but it can also be reliably clamped into a front or tail vise, or fastened in place with a clamp.
Technical Specifications | |
---|---|
Maximum Clamping Capacity | 5 mm |
Jaw Width | 15 mm |
Total Length | 130 – 140 mm |
Handle Length | 77 mm |
Maximum Handle Diameter | 31 mm |
Clamping Size Hexagonal Handle Part | 27 mm |
Weight | 153 g |
Clamping Head Material | Steel, Clamping Surface Hardened |
Handle Material | Beech |
Adjustment Mechanism | Open and Close by Rotating the Handle |
