Drill Stand max. hole depth
210 mm Star-M
€115.90*
Available, delivery time: 2-3 days
Product number: 323960
Product information

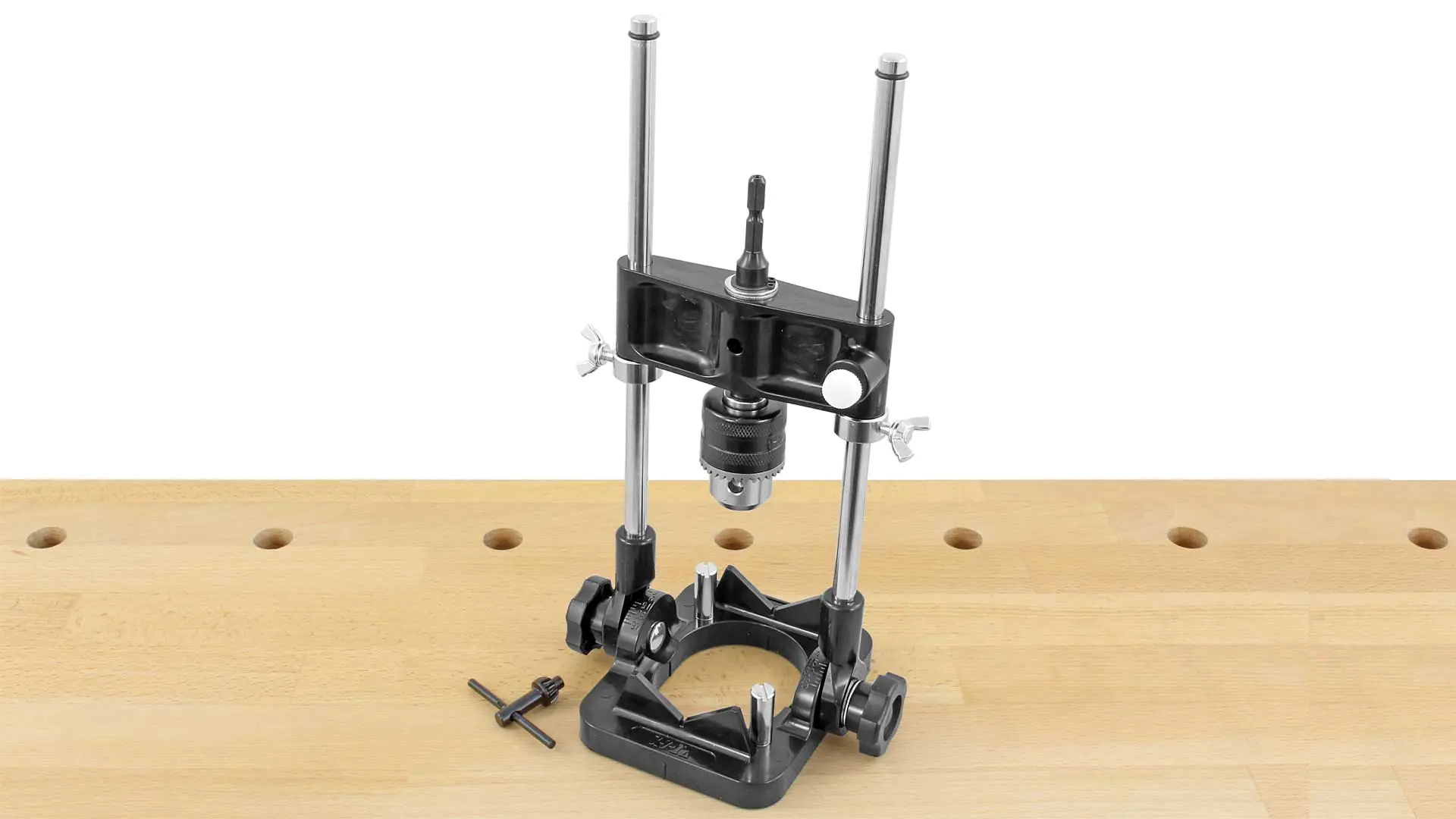

Ideal for straight holes, center holes, dowel holes, round bar processing, angled pocket holes, wood dowels, and locks. Drill bits with a shank diameter of 1.0 – 10 mm can be used in the chuck. The chuck has a 6.35mm hex shank, and the drill stand can thus be used with corded drills, cordless screwdrivers, and in a pinch, even with impact drivers. It is very well-suited for use on assembly, for DIY enthusiasts, or for smaller projects, as the drill stand is lightweight and compact.
- 10mm chuck (1.0-10mm)
- Maximum stroke 210mm
- Maximum tilt angle 45°
- Guide rods material: Steel
- Base plate and chuck holder material: ABS plastic
- Recommended speed max. 3,000 revolutions/min.
- Use with impact driver possible, but not recommended
- Internal base dimensions 57 mm – recommended maximum diameter of the drill bit 55 mm
- Chuck key included
- Weight: 800 gr.

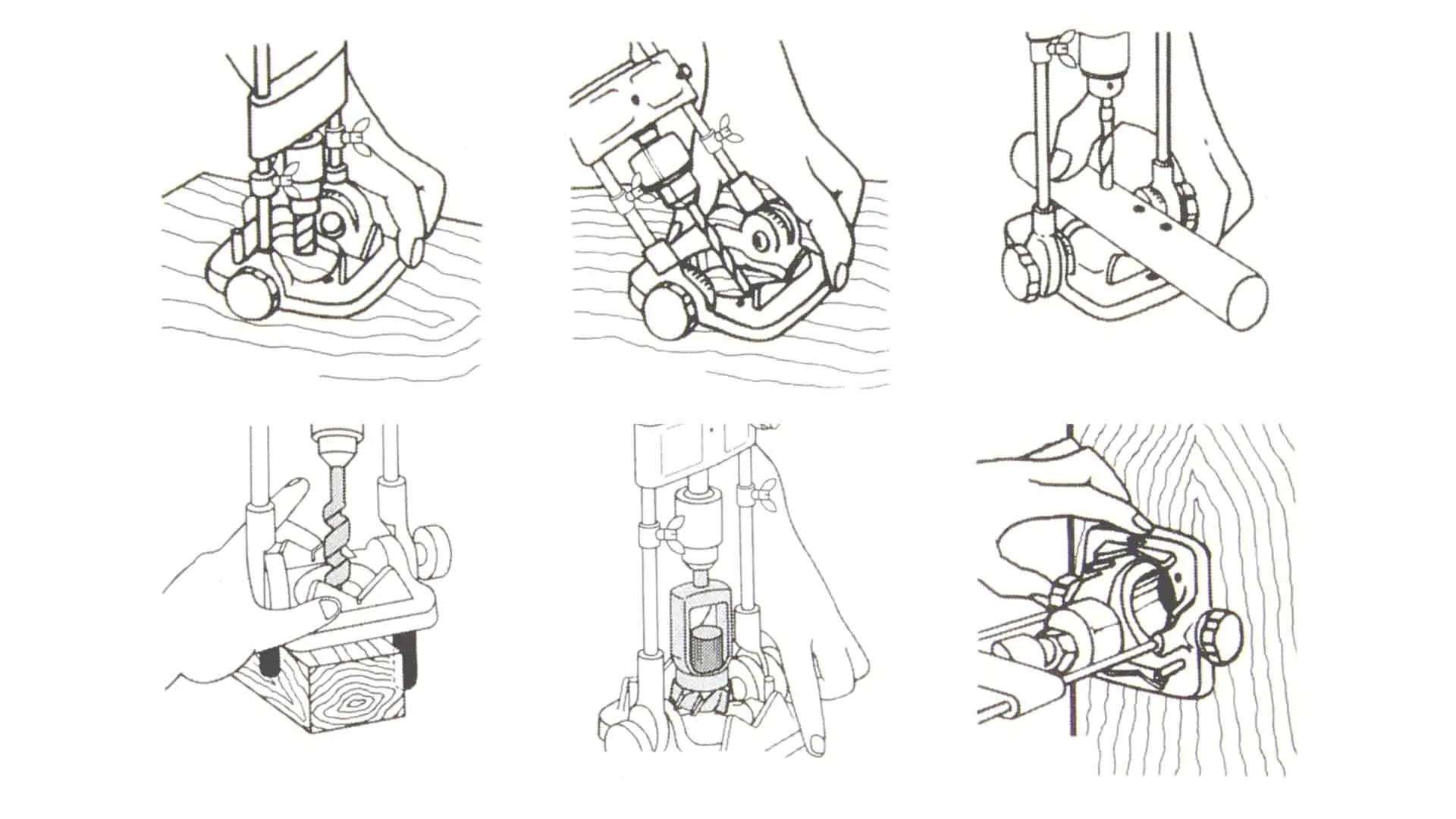

Examples of application:
- Vertical holes at a 90° angle
- Drilling in round bars through the integrated V-groove
- Centered drilling in squared timber through centering pins
- Drilling diagonal holes with continuously adjustable tilt angle
- Continuously adjustable depth stop for, e.g., dowel holes, blind holes
| Properties | |
|---|---|
| Drill Chuck | 10mm (1.0-10mm) |
| Recommended Speed RPM | max. 3,000 revolutions/min |
| Recommended Maximum Drill Diameter | 55 mm |
| Weight | 800 gr. |
| Stroke | 210mm |
| Inner Dimension | 57 mm |
| Material Base Plate and Drill Chuck Holder | ABS Plastic |
| Material Guide Rods | Steel |
| Inclination Angle | 45° |
