Auger Bit Lewis Type Diameter =
5 mm Total Length = 460 mm FAMAG
Available, delivery time: 5-20 days
Product information
Achieve clean, tear-free holes with a flat bottom using the proven auger bits from FAMAG, available in drilling diameters up to 50 mm. Manufactured in Remscheid, Germany.

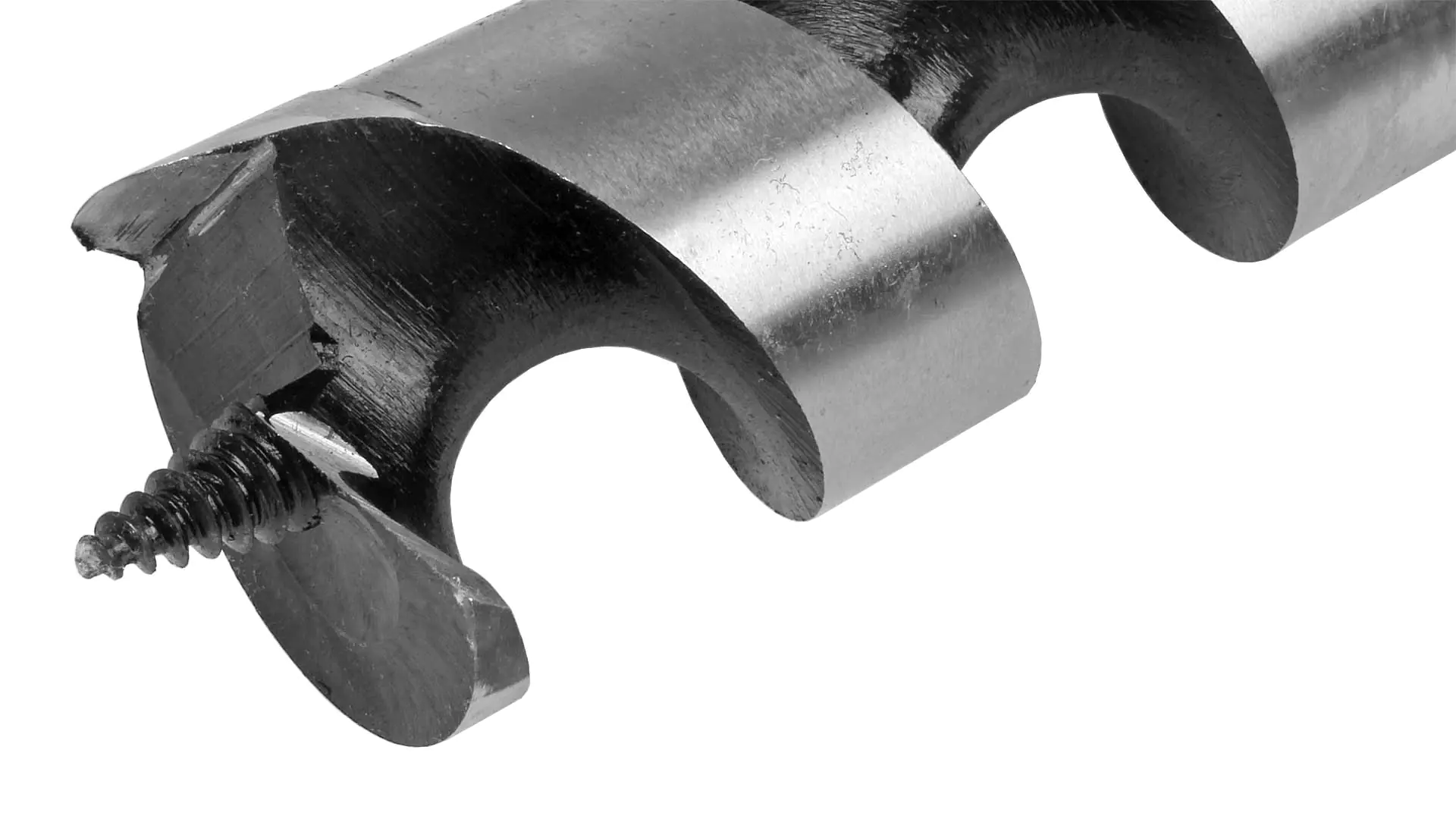

These bits feature a curved, pronounced pre-cutter that creates a clean hole edge even at slow speeds. The main cutting edge is shaped like a chisel that rotates around the threaded tip, shaving off wood layer by layer within the circle cut by the pre-cutter. The threaded tip pulls the bit into the wood, requiring virtually no pressure.
These auger bits are suitable for all softwoods and European hardwoods such as beech and oak. They are not suitable for extremely hard tropical wood. Do not let the bits overheat and frequently „vent,” meaning retract the bit with the drill running (do not pull out) to aid chip removal and cool the bit. Work with light pressure only!
Features:
- Lewis type
- 1 main cutting edge
- 1 pre-cutter
- Threaded tip
- D = 8 mm and larger: hex shank
- D = 7 mm and smaller: round shank
- Up to 24 mm diameter also usable with a powerful cordless screwdriver!
| Features | |
|---|---|
| Total Length | 460 |
| Shank | 4.5 |
| Spiral Length | 380 |
