INCRA Miter Gauges

The extreme accuracy that made INCRA famous is now available in an extraordinary new family of incremental miter gauges. These features make the Incra miter gauges unique:

  • AngleLOCK: Precision angle indexing teeth are laser cut in solid steel to lock in many positive angle stops in 5° increments (or more dependent on type) over a full 180° range.
  • GlideLOCK: Four or Six (dependent on type) expansion disks adjust both sides of the bar for ZERO side play, anti-friction travel on all table saws with standard 3/4 inch x 3/8 inch or near-standard miter gauge channels, including Delta, Craftsman, imports, etc. This means that all of INCRA's incredible precision will actually show up in your work because the bar CAN'T wiggle around in the miter slot.

You can upgrade any INCRA Miter Gauge with this Telescoping Flip Fence!

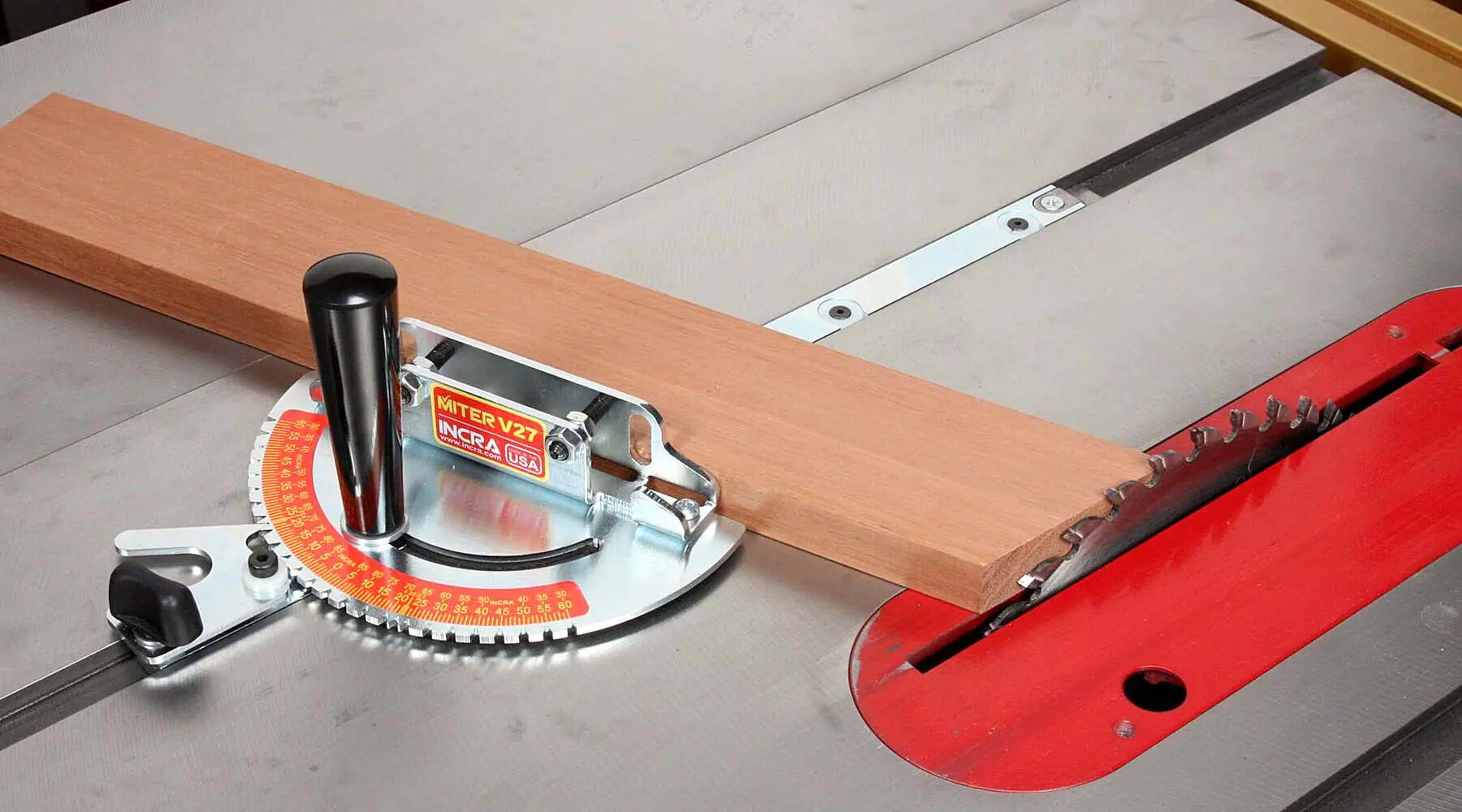

INCRA Miter Gauge V27 The NEW INCRA Miter V27 is engineered to provide a high performance, yet low cost upgrade for your Table Saw, Band Saw, Router Table, Disk Sander, Belt Sander or any other tool in need of a better miter gauge. Like all INCRA Miter Gauges, the V27 delivers extreme miter cutting accuracy through the advanced combination of INCRA's exclusive AngleLOCK indexing system and its patented Adjustable GlideLOCKMiter Bar.

While the V27 delivers ALL of the accuracy of its bigger INCRA Miter Gauge brothers, its no-nonsense design and compact size make it the most affordable Incra Miter Gauge EVER! Now, the INCRA Miter V27 makes it possible to put an INCRA Miter Gauge in EVERY standard miter channel (3/4 inch) in your shop.
More ...
Note: INCRA miters require a one time initial calibration before first use. Follow the instructions in the owner's manual.
Miter Gauge V27
Code 314540CartPrice € 79.90

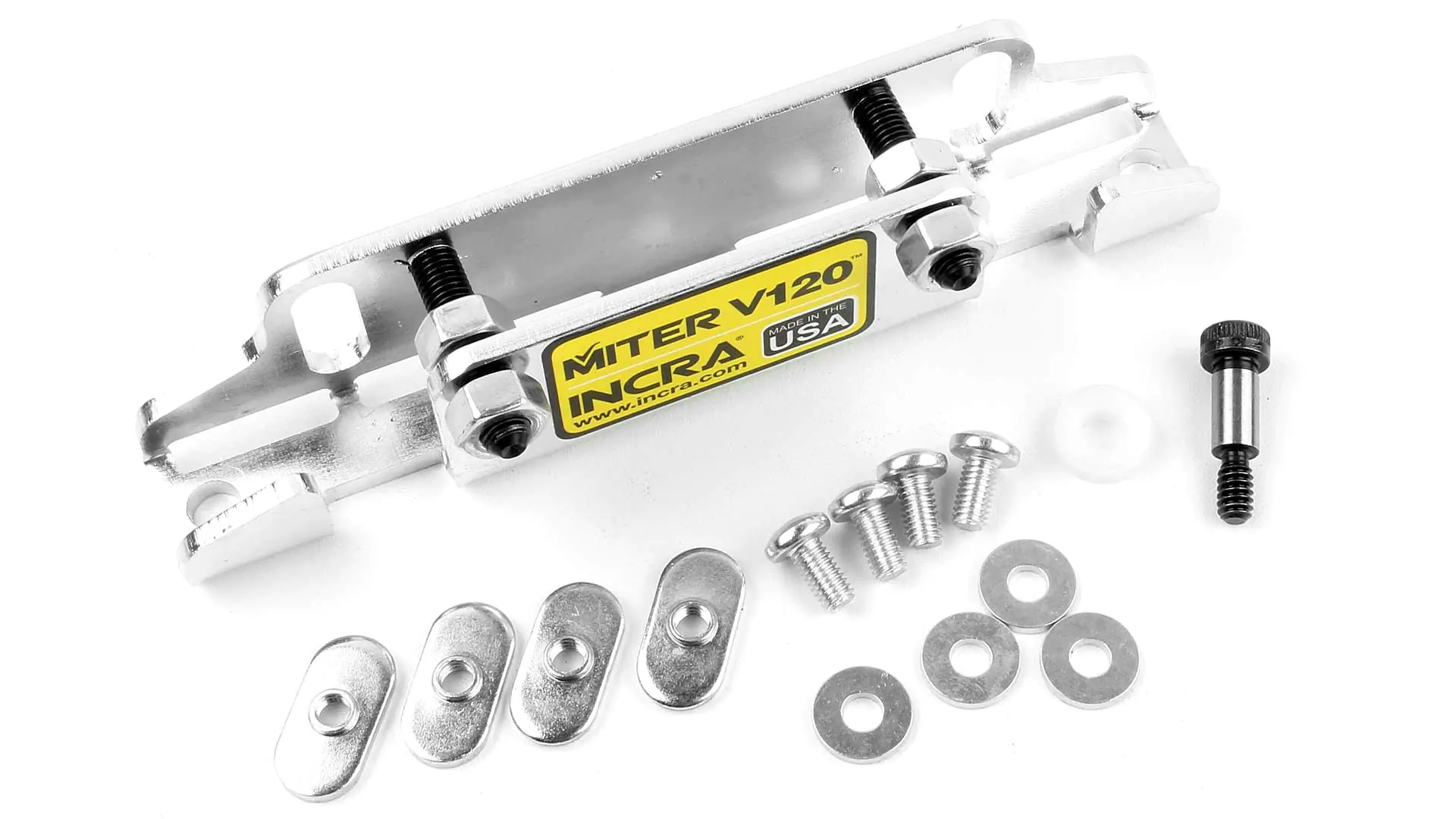

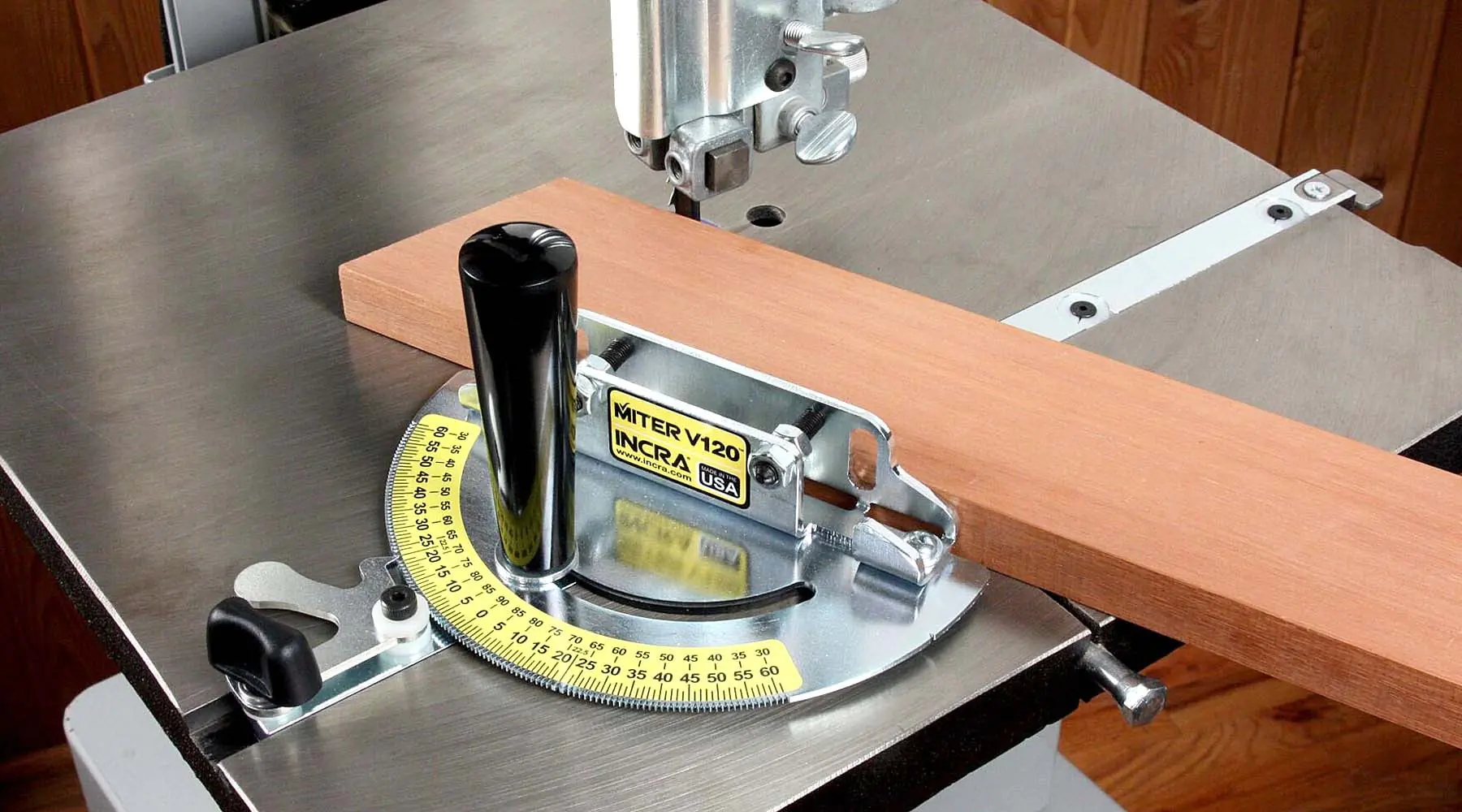

INCRA Miter Gauge V120 Don't let the small size fool you! The NEW Miter V120 puts high-resolution, repeatable accuracy within the budget of every woodworkers. An incredible 120 angle stops are laser cut into the steel protractor, with a stop available for every whole degree and two special stops at 22.5 degrees for cutting eight-sided frames and mouldings.

All of that precision is built into a sturdy, no-fuss package that's compact enough to fit machines where other miter gauges can be a tight squeeze, such as band saws and disc sanders. All-steel construction makes it an excellent long-term investment, and it's also upgradable as your needs change - the V120 can be equipped at any time with any IncraLOCK miter gauge fence and stop.

The steel miter bar is equipped with four patented GlideLOCK adjustment points for a perfect, low-friction fit in a wide variety of machines using a 3/4 inch (19 mm) miter slot. As with all INCRA crosscutting tools, a removable T-slot retaining clip is included, and the adjusters are accessible from the top for quicker set up than traditional miter bars with side-mounted adjusters.

Compatibility: The V120's adjustable miter bar will fit square-sided miter slots 3/4 inch (19 mm) wide, 3/8 inch (9.5 mm) deep, and either with or without a 15/16 inch (23.8 mm) wide T-slot at the bottom. The miter bar's adjustment range accommodates slot widths between 0.740 inch (18.8 mm) to 0.760 inch (19.3 mm). Diameter of halfround head: 172 mm.
Note: INCRA miters require a one time initial calibration before first use. Follow the instructions in the owner's manual.
Miter Gauge V120
Code 314545CartPrice € 97.00

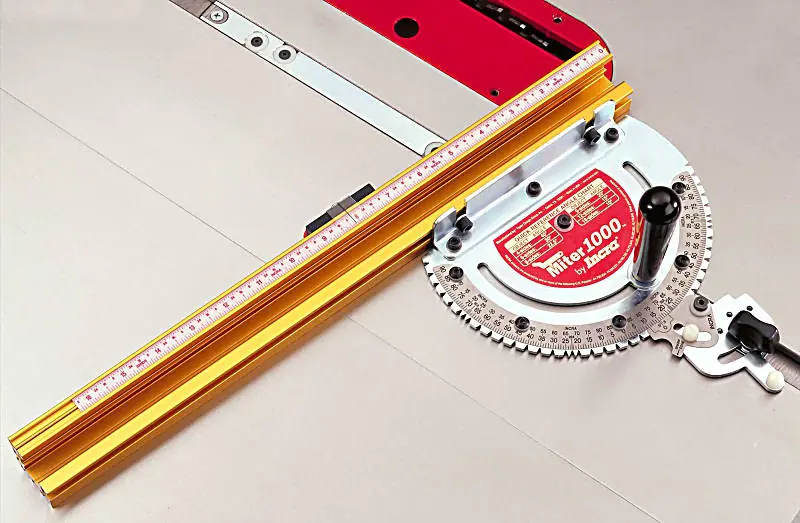

INCRA Miter 1000 If you are looking for a great combination of basic affordability combined with unbeaten accuracy, the INCRA Miter 1000 is a terrific choice. INCRA combined a solid-steel laser cut protracter head with a 457 mm long gold anodized INCRA Track Fence and a Stop Positioner. The sliding scales fit perfectly in the top slot on the fence to make stop positioning easy, fast and accurate. Comes with mm scale!
More ...
Note: INCRA miters require a one time initial calibration before first use. Follow the instructions in the owner's manual.
Miter 1000
Code 314542CartPrice € 145.00

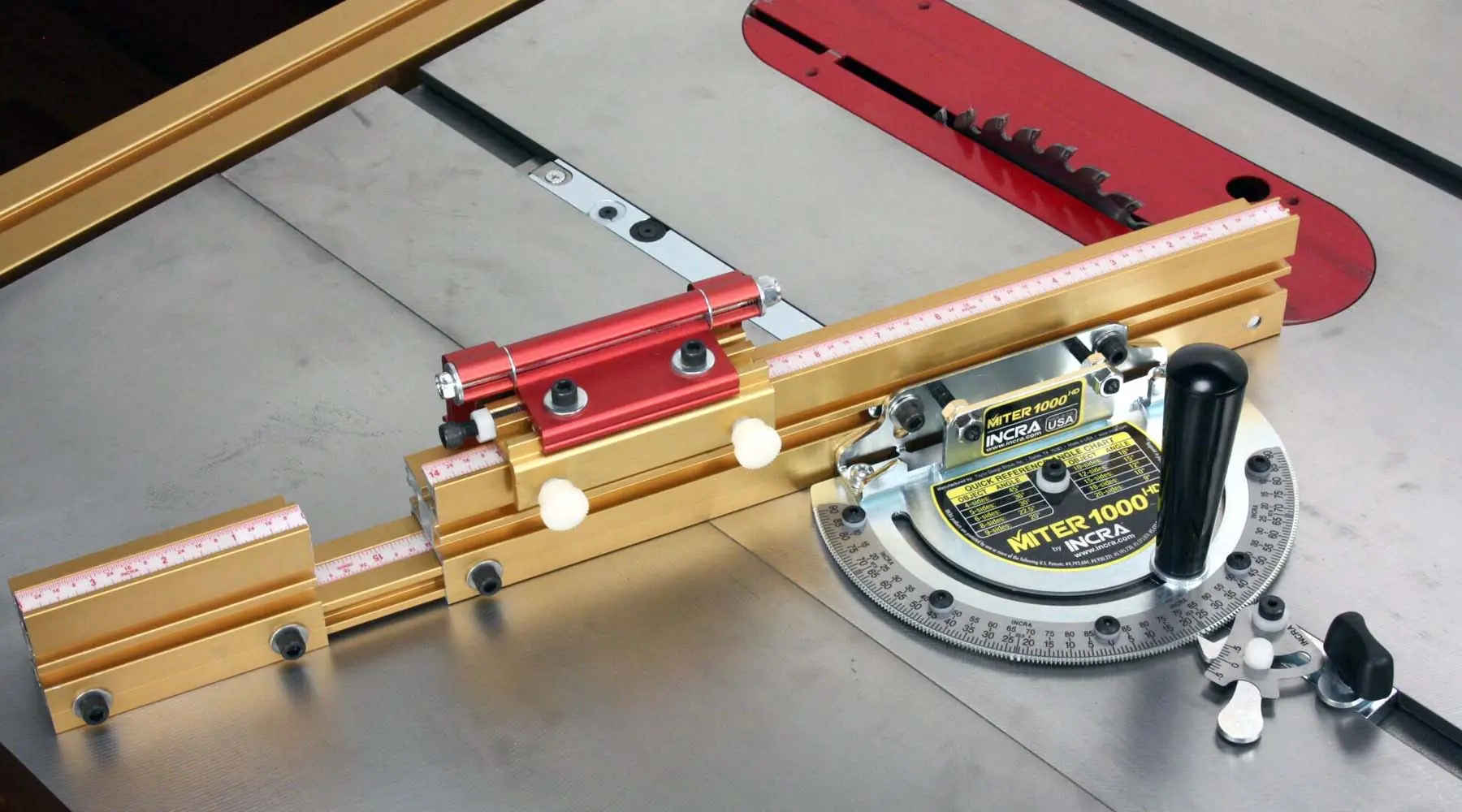

INCRA Miter 1000HD The NEW INCRA Miter 1000HD is the most refined model yet in the Miter 1000 series. The HD stands for High Definition, because the protractor plate's exclusive AngleLOCK Indexing System has a whopping 180 can't-miss angle stops in 1° increments with special stops located at 22-1/2°. Combine that high-resolution protractor with the industry's smoothest adjustable miter bar, a telescoping IncraLOCK Cut-off Fence & Flip Shop Stop, and a steel vernier scale that reads to 1/10°, and you've got a winner that will improve the quality of any project. Are you cutting parts for segmented turning? The Miter 1000HD will allow you to precisely set and quickly duplicate any angle you might need, whether it's 18° for cutting 10 sides, 25.7° for 7-sided objects, or anything else imaginable. Comes with mm scale!
More ...
Note: INCRA miters require a one time initial calibration before first use. Follow the instructions in the owner's manual.
Video
Manual (PDF)

Miter 1000HD
Code 314543CartPrice € 218.00

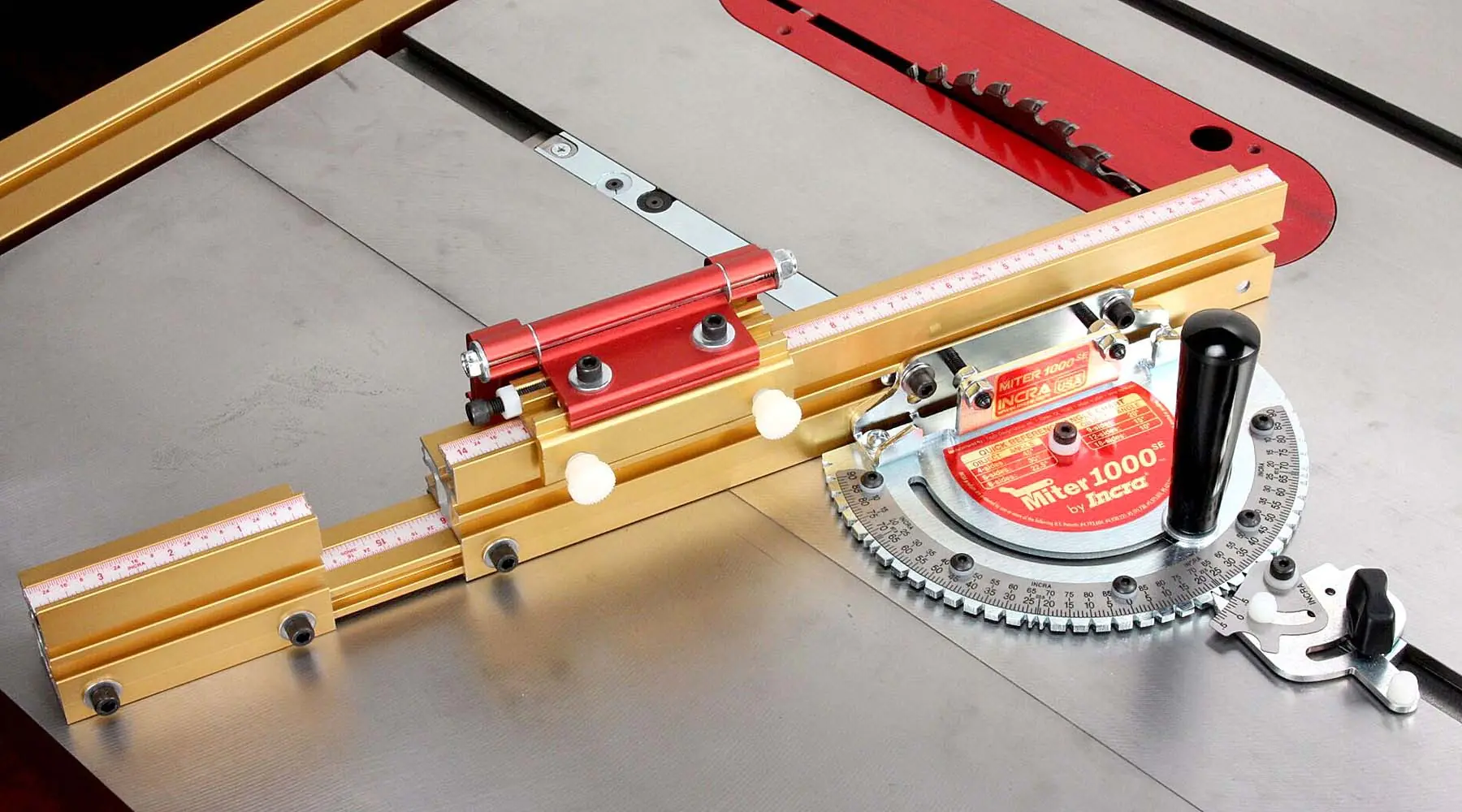

INCRA Miter 1000SE The Miter 1000 Special Edition builds on the excellent foundation provided by the Miter 1000. The Incra exclusive AngleLOCK Indexing System delivers 41 lock solid angle stops in 5° increments over a full 180° range. Combine this with the included GlideLOCK Miter Bar, Telescoping IncraLOCK Cut-off Fence and the Incra Flip Shop Stop, and you'll easily achieve mitering accuracy that you never thought possible. Whether it's your basic 90° cut-off, simple picture frames, or a 20-sided object, the Miter1000SE by Incra delivers perfect, repeatable accuracy.

Six expansion disks adjust both sides of the GlideLOCK Miter Bar for ZERO side play, low-friction travel on table saws with square-sided miter slots measuring 3/4 inch (19 mm) wide, 3/8 inch (9.5 mm) deep, and with or without a 15/16 inch (23.7 mm) T-slot at the bottom. The miter bar's adjustment range accommodates actual slot widths between 0.740 and 0.765 inch (18.8 - 19.4 mm)

The Telescoping Miter Fence telescopes from 18 inch (457 mm) to a full 31 inch (787 mm) length and features a front T-slot for adding a wooden zero-clearance sub fence. The Miter 1000SE's Flip Shop Stop is equipped with INCRA's patented incremental positioning racks for incredible cut-length accuracy and 100% day-to-day repeatability.

Special Edition 1/10th° Vernier Cursor: Precision angle indexing teeth are laser cut in solid steel to lock in positive angle stops every 5° over a 180° range, with special stops at 22-1/2° and 67-1/2°. A stainless steel vernier cursor delivers an incredible 1/10th° resolution between fixed steps.

Comes with mm scale!
Note: INCRA miters require a one time initial calibration before first use. Follow the instructions in the owner's manual.
Manual (PDF, 4.4 MB)

Miter 1000SE
Code 314546CartPrice € 178.00

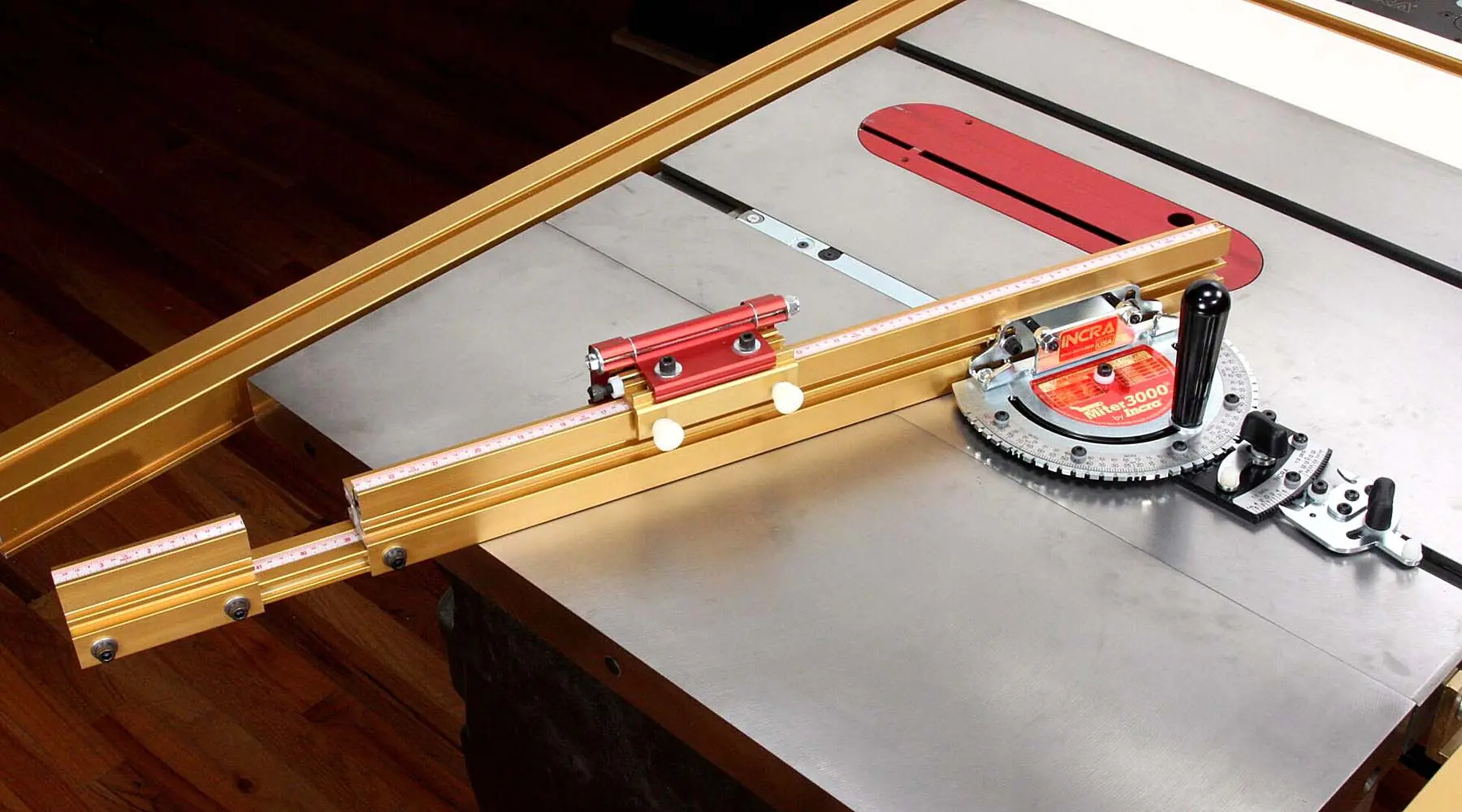

INCRA Miter 3000SE As above but:

The Special Edition Telescoping Miter Fence telescopes from 686 mm (27 inch) to a full 1244 mm (49 inch) length. Includes the Dual Flip Shop Stop and INCRA's patented Automatic Positioning Control.

The AngleLOCK Indexing System delivers 364 lock solid angle stops in 5°, 1° and 1/2° increments over a full 180° range with continuous adjustability between all 1/2° settings.

Comes with mm scale!
Note: INCRA miters require a one time initial calibration before first use. Follow the instructions in the owner's manual.
Manual (PDF, 7 MB)

Miter 3000SE
Code 314547CartPrice € 309.00

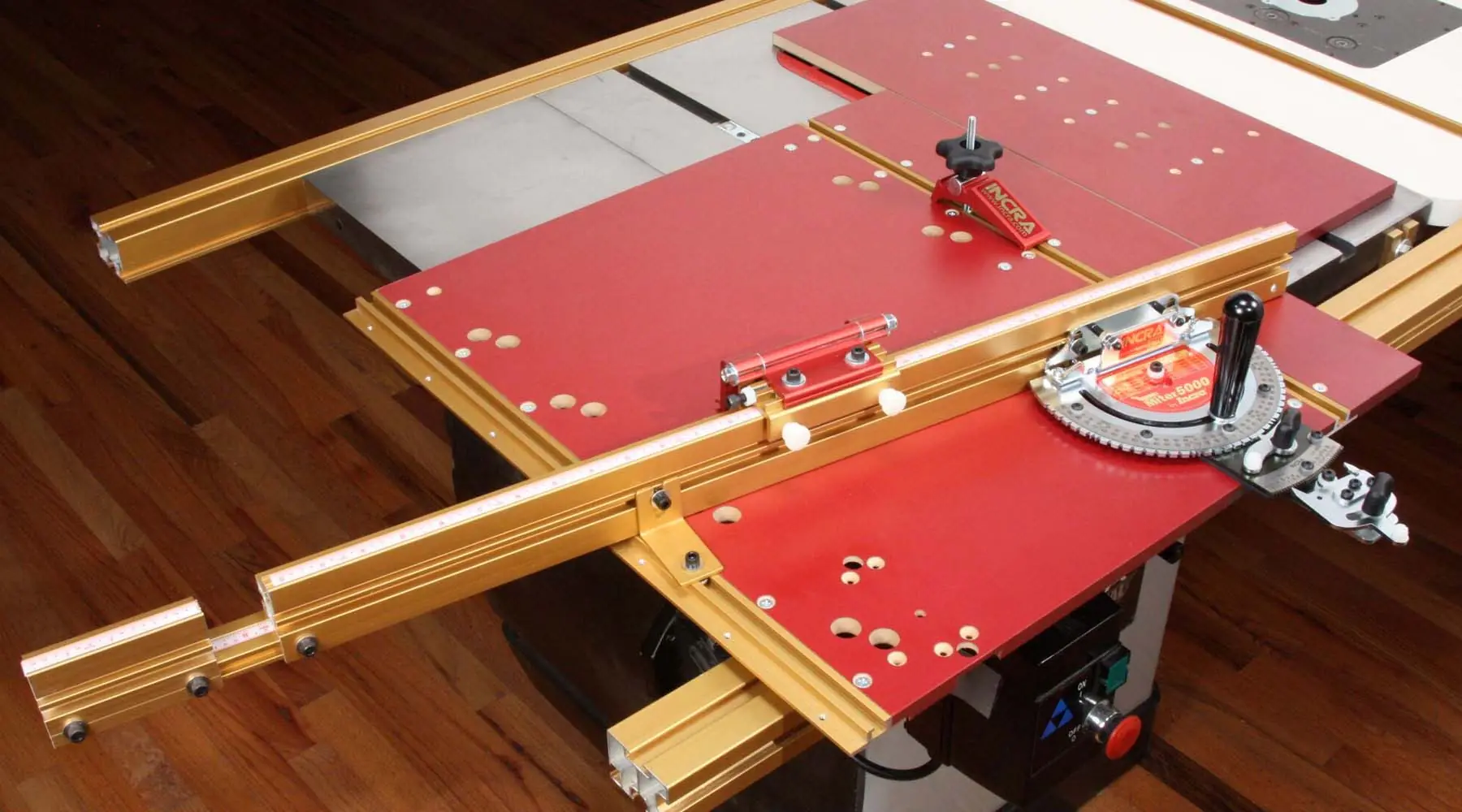

INCRA Miter 5000 The Miter 5000 blends the incremental angle control features of the Miter 3000SE with a very special 3-panel Sled for the ultimate miter cutting workstation for the table saw.

A Renewable Right Panel provides zero-clearance tear-out control and cut-off support on Both sides of the blade. Two aluminum T-tracks are embedded in the MDF panel top to secure an included work piece hold-down clamp and to provide absolute rigid support for the 914 to 1625 mm telescoping IncraLOCK Cut-off Fence. Will crosscut a 635 mm wide board with full control on a standard 10 inch table saw. The Miter5000 by INCRA delivers perfect, repeatable accuracy.

Comes with mm scale!
Note: INCRA miters require a one time initial calibration before first use. Follow the instructions in the owner's manual.

Manual (PDF 2.2 MB)

Code 314544CartPrice € 399.00

INCRA Hold Down Clamp

Included in delivery:

INCRA Hold Down Clamp
included with every Miter 5000 is this simple and incredibly useful Hold Down Clamp which locks your workpiece onto the sled for maximum accuracy and the cleanest cuts possible. It only takes seconds to use and provides the rigidity needed for world class results.

Special Edition Telescoping INCRA-LOCK Fence
This Special Edition Miter Fence telescopes from 914 mm to a full 1625 mm length. Includes the Dual Flip Shop Stop and INCRA's patented Automatic Positioning Control.

AngleLOCK Indexing
Precision angle indexing teeth are laser cut in solid steel to lock in 364 positive angle stops in 1/2°, 1° or 5° increments over a full 180° range. it's also continuously adjustable between 1/2° steps.


IncraLOCK Cut-Off Fence This Top-of-the-Line Fence Fits Any INCRA Miter Gauge!
The IncraLOCK Cut-Off Fence is designed to give you outstanding fence performance and rigidity. Manufactured by INCRA from aircraft grade aluminum extrusions, this fence profile is designed to coordinate perfectly with the Shop Stop.

And of course, INCRA's patented rack system is fully integrated in the fence to give you the incremental accuracy and repeatability made famous by INCRA Tools.

Available in 2 sizes - 27 inch (686 mm) and 52 inch (1321 mm).

Compatibility:
Standard IncraLOCK Cut-of Fences can be used with any INCRA Miter Gauge and the standard Shop Stop. These fences are NOT compatible with the Flip Shop Stop.


IncraLOCK Cut-Off Fence only 27 inch (686 mm)
Comes with mm scale!
Currently not in stock!
Code 314565Cart
Price € 44.90

IncraLOCK Cut-Off Fence only 52 inch (1321 mm)
Comes with mm scale!
Code 314566CartPrice € 66.90

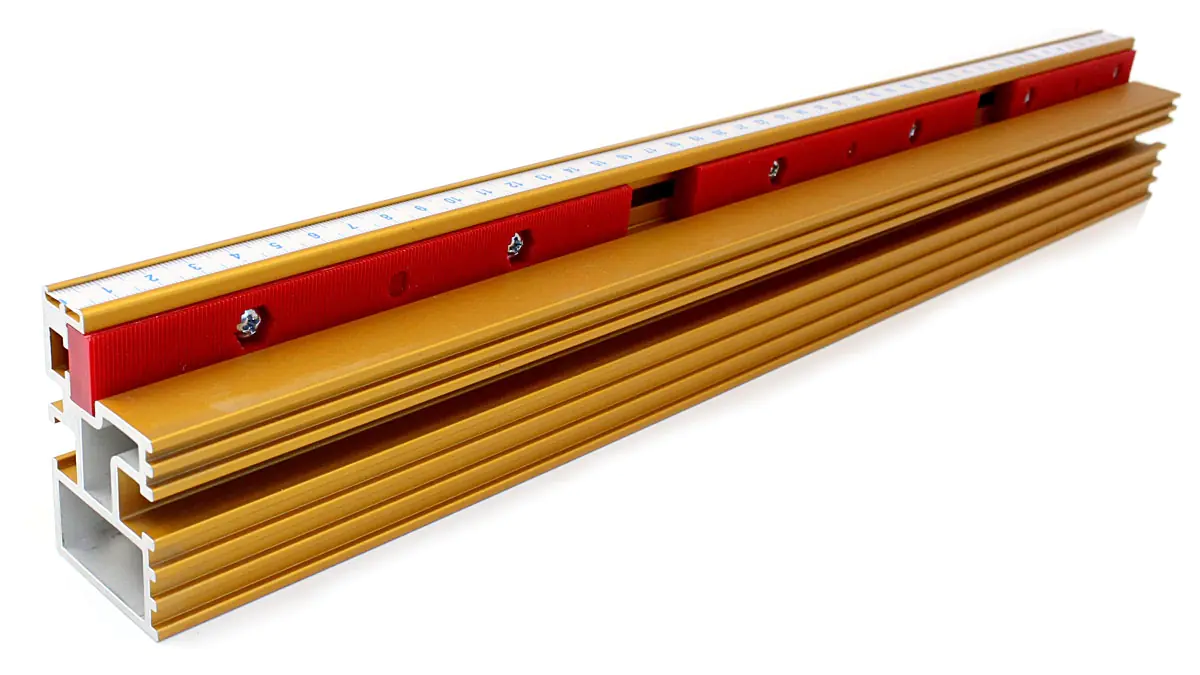

IncraLOCK Incremental Flip Shop Stop Cut-off Fence This Top-of-the-Line Fence Fits Any INCRA Miter Gauge
Perfect for the INCRA V27 and V120 miter gauges!
The one-piece IncraLOCK Flip Fence fits every INCRA Miter Gauge and can be adapted to other brands. Manufactured by INCRA from aircraft grade aluminum extrusions, this fence profile is designed to coordinate perfectly with the INCRA Flip Shop Stop.
INCRA's patented rack system (metric) is fully integrated in the fence to give you the incremental accuracy made famous by INCRA Tools.
This fence is shipped with scales that have the zero on the right, which is appropriate for a fence on the left side of a table saw blade. For scales that read the opposite direction, the original scales can simply be turned upside down in their slots, or you can order a wide selection of optional scales for special applications.

Compatibility:
Flip Fences can be used with any INCRA Miter Gauge and the Flip Shop Stop. Flip Fences are NOT compatible with the standard Shop Stop.


IncraLOCK Incremental Flip Shop Stop Cut-off Fence Length 457 mm
Code 314935CartPrice € 47.00

IncraLOCK Incremental Flip Shop Stop Cut-off Fence Length 914 mm
Currently not in stock!
Code 314936Cart
Price € 59.00

IncraLOCK Incremental Flip Shop Stop Cut-off Fence Length 1320 mm
Code 314937CartPrice € 72.00

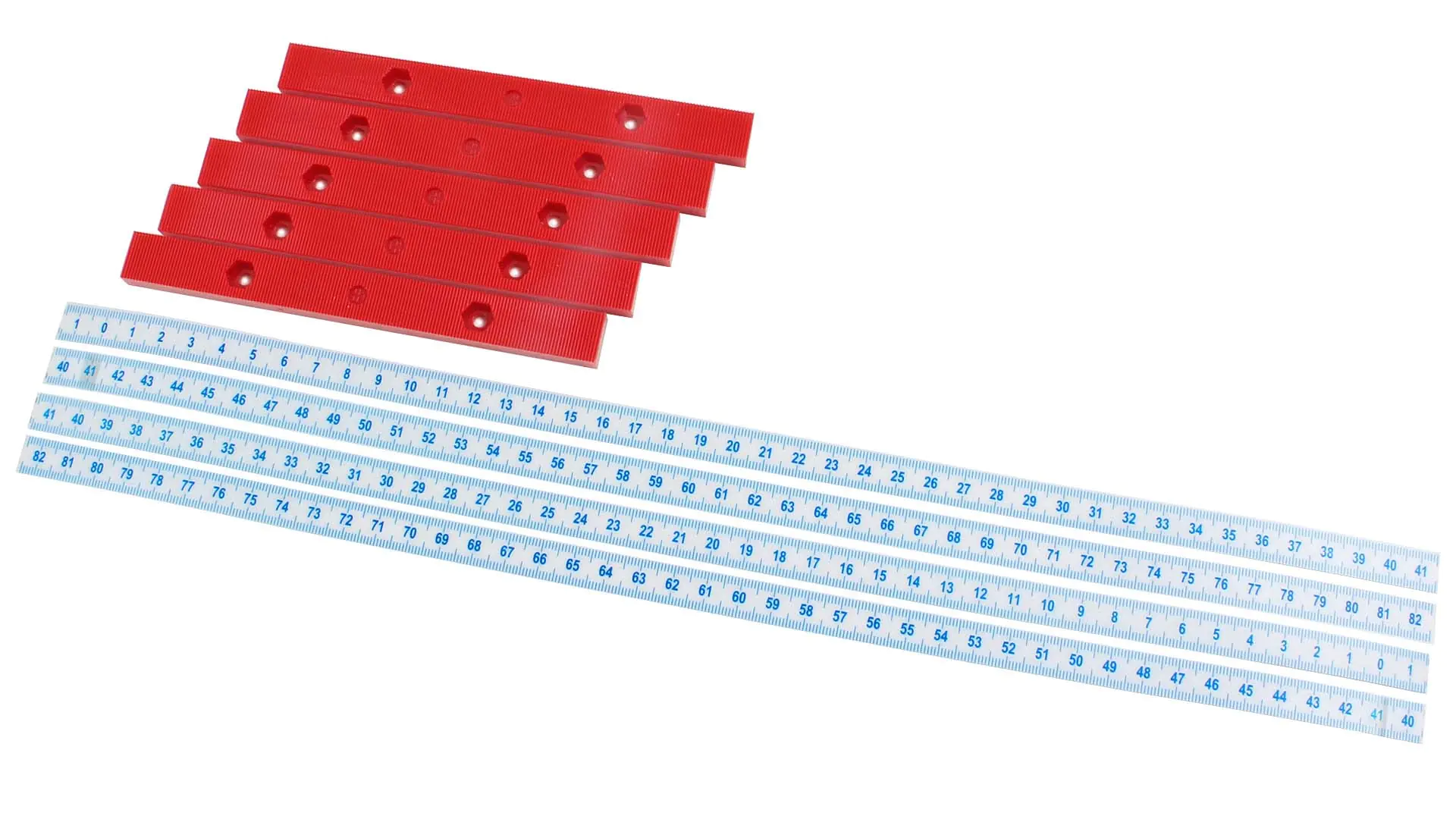

Metric Incremental Rack Pack – 5pc. Set These Metric Rack Packs you need to convert an Inch version Incra miter gauge into the Metric system.
All metric incremental racks are 150 mm long but can be shortened to match existing 4 inch imperial racks if desired.
View scales in full length
Please note that micro adjust mechanisms will retain imperial measurements on products equipped with them. Also, metric-based joinery templates will be required for producing box joints and dovetails after converting from imperial spacing to metric.
Set includes:
• 5 x Metric Incremental Racks
• 1 x 0 mm-410 mm Lexan Scale
• 1 x 410 mm-820 mm Lexan Scale
• 1 x 410 mm-0 mm Lexan Scale
• 1 x 820 mm-410 mm Lexan Scale
Code 314548CartPrice € 10.90

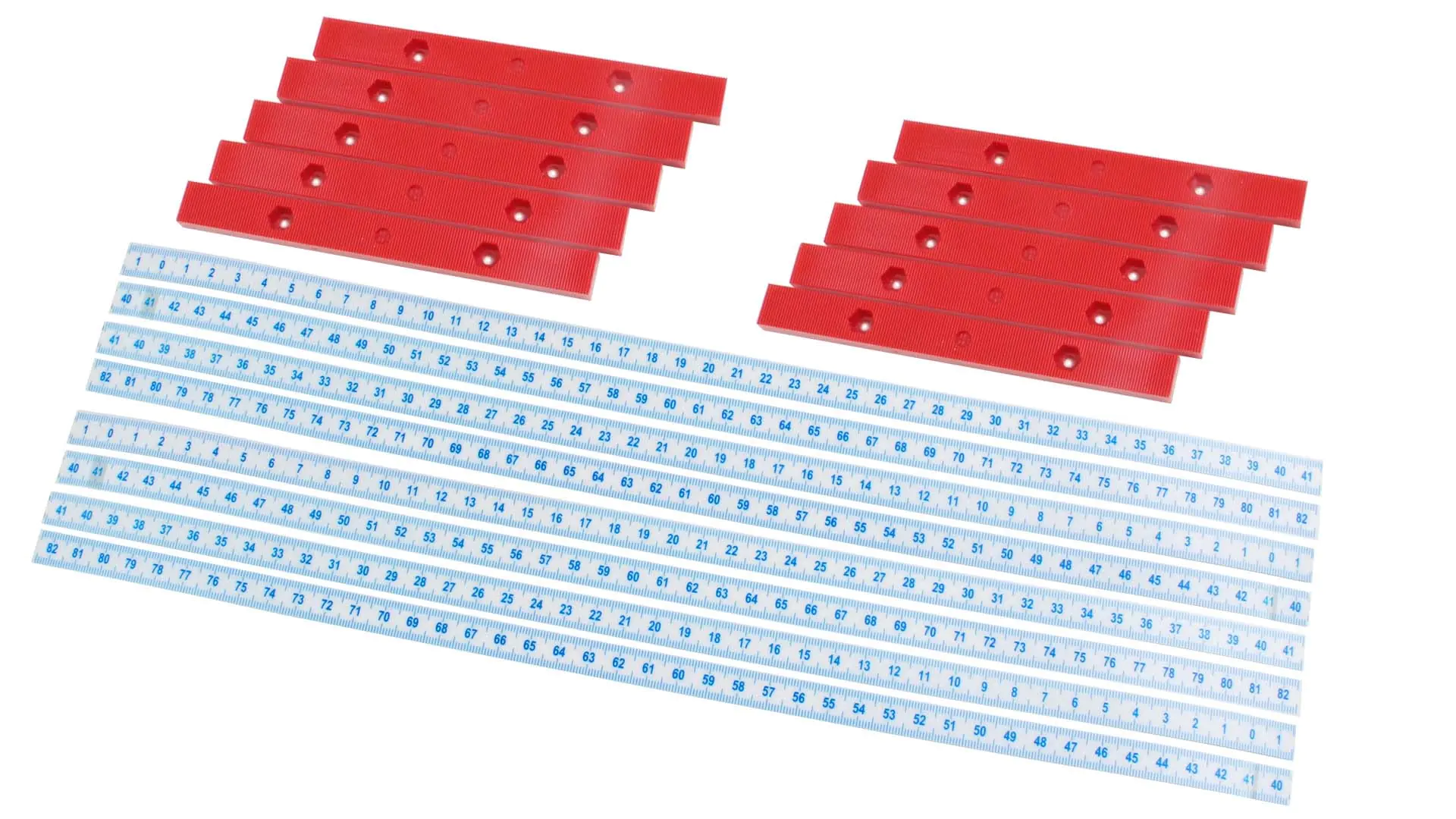

Metric Incremental Rack Pack – 10pc. Set Same as above but larger package.
View scales in full length
Set includes:
• 10 x Metric Incremental Racks
• 2 x 0 mm-410 mm Lexan Scale
• 2 x 410 mm-820 mm Lexan Scale
• 2 x 410 mm-0 mm Lexan Scale
• 2 x 820 mm-410 mm Lexan Scale
Code 314549CartPrice € 18.90

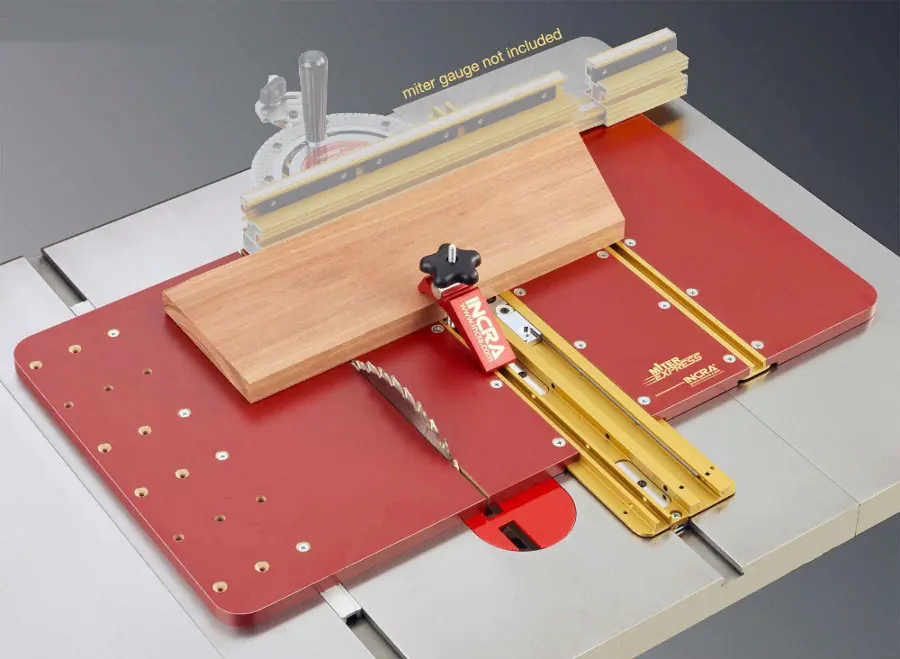

INCRA Miter Express Shown here with optional INCRA Miter Gauge. Miter Gauge not included! Blade cover removed for demonstration purposes. Do not work without blade cover!

INCRA's Miter Express offers any miter gauge owner a safe and accurate cross-cutting and mitering platform. Shown above with an optional INCRA Miter 1000SE mounted and ready, the Express features 2 embedded T-Slot channels to secure the included Hold Down Clamp and Outboard Fence Support. These slots are also invaluable for mounting your own custom Jigs and Fixtures.

The fast "Dock and Lock" system securely locks your miter gauge in just seconds. It eliminates all side play with Incra's patented miter channel expansion technology. Even the least expensive miter gauges will experience a tremendous performance boost when docked on top of the Miter Express.

The crosscut capacity of any miter gauge is safely doubled to more than 609 mm (24 inch) when docked on top of the Miter Express. For these extra-large crosscuts, the non-drag support provided by the sliding panel, along with the extra holding power of the included Hold Down Clamp adds much needed stability and control. As shown on the right, the same INCRA Hold Down Clamp also keeps your fingers comfortably away from the blade when cutting workpieces that are too small to safely hold by hand.

The Miter Express also includes an Outboard Fence Support that locks behind your fence in one of the two T-Slots, providing even more rigidity for all operations.

Currently not in stock!
Code 314568Cart
Price € 179.00
