Unmatched precision and accuracy are achieved with this miter gauge with a simple turn of the adjustment wheel – with the SawStop Precision Miter Gauge REVOLUTION.

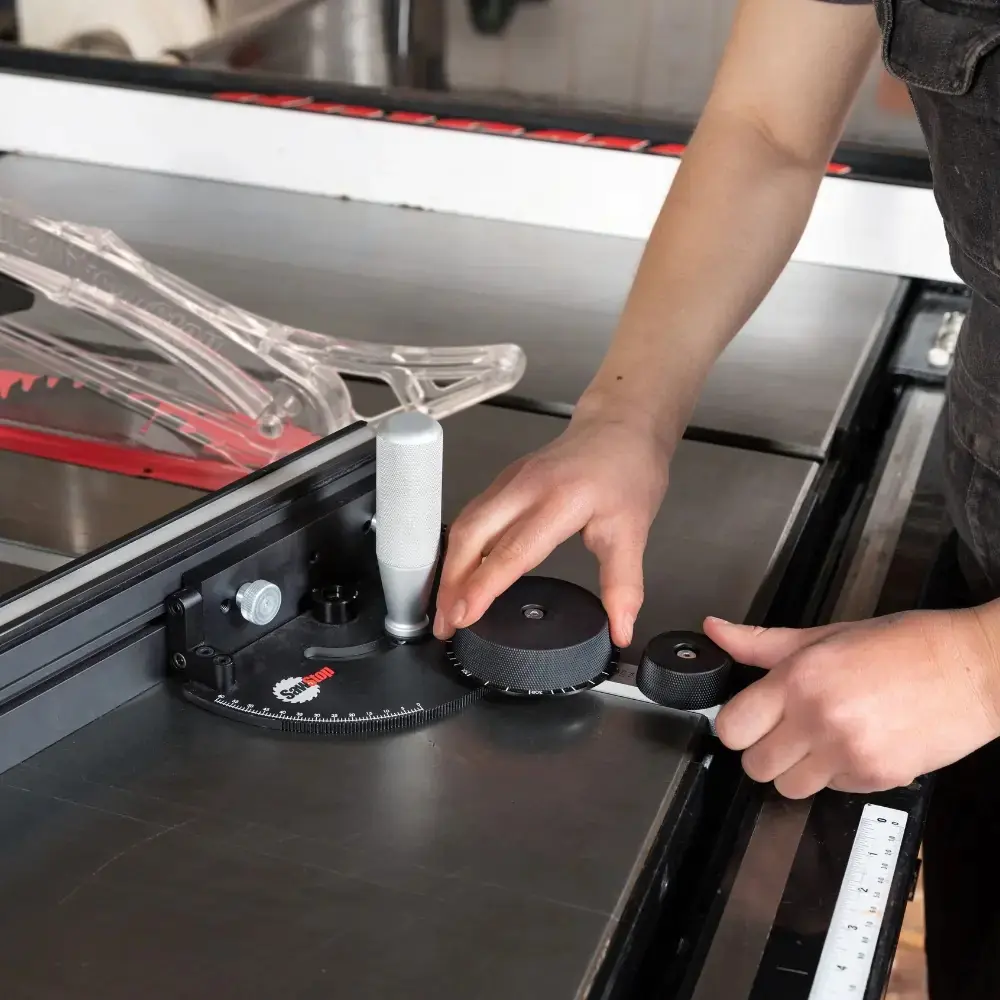

Setting the angles is quick and easy thanks to the intuitive gear-drive system. Angles can be set in increments of 1°, 0.5°, 0.25°, or 0.1° – with a clear „click” at each detent. Alternatively, the detent can be bypassed and the gauge rotated freely.

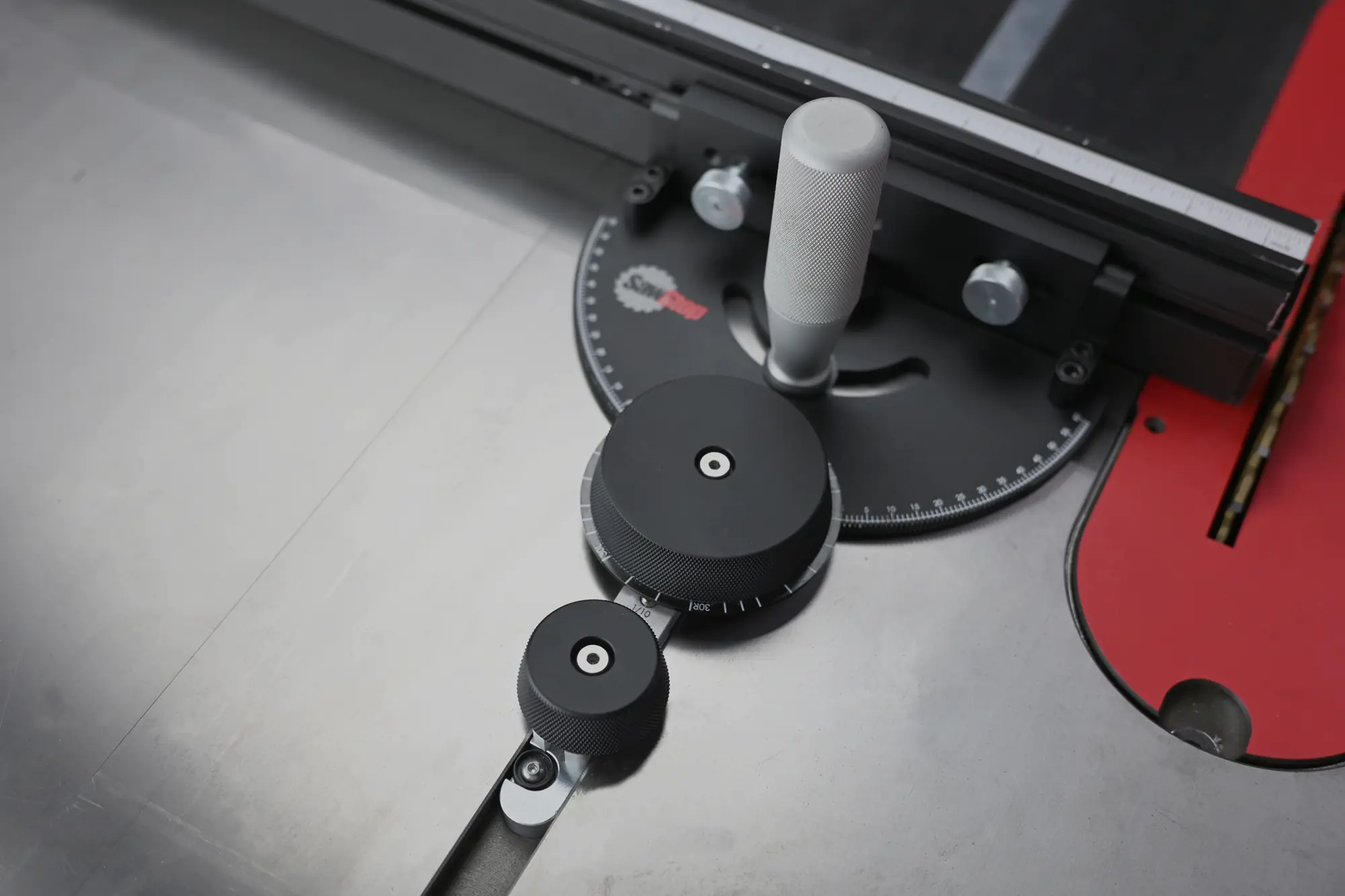

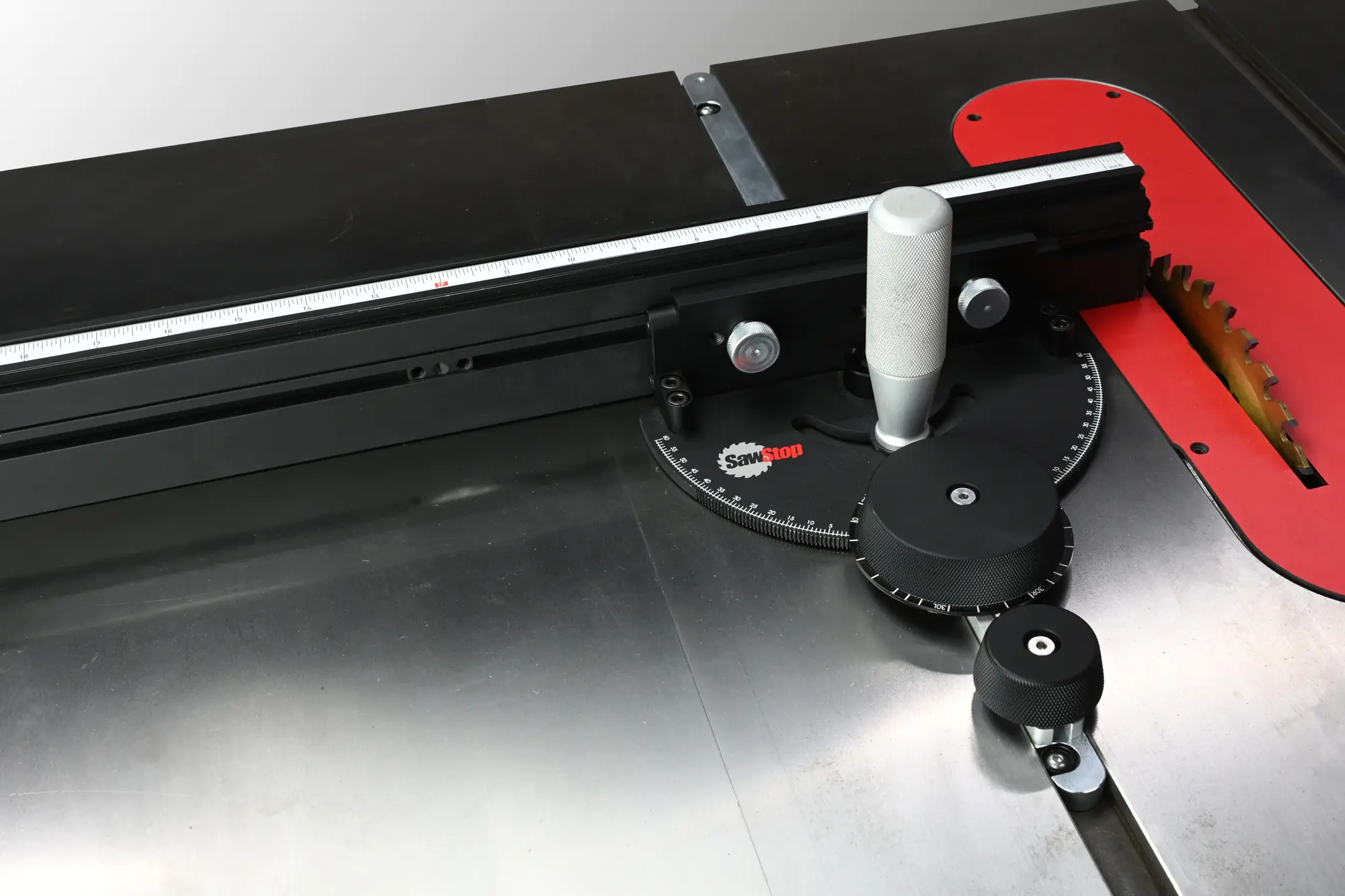

- Two innovative, easy-to-use adjustment wheels for angles up to 60° left or right: Adjustment accuracy up to a tenth of a degree
- Integrated detents with tactile feedback („click” at each detent point)
- Second knob (partial degree adjuster) with four precision levels: full degrees, ½°, ¼°, 1/10°, and decoupling for free rotation
- Marked miter angles on the scale: 0°, 22.5°, 30°, 45° for quick and easy selection
- High-quality 508 mm long steel guide rail with anti-tip protection and fine adjustment
- Suitable for T-slots and U-slots with a cross-section of 9.52 × 19.05 mm (3/8” x 3/4”)
- Robust, extendable aluminum fence with 3-joint flip stop and fine adjustment
- Maximum adjustment length: 495 mm with flip stop, 950 mm with extended extension
- Rotation mechanism made of sturdy steel construction with manufacturing tolerances under 0.02 mm for high precision
- Supplied spare slot stones for attaching custom-made fixtures
| Features | |
|---|---|
| Length of the miter bar | 508mm |
| Weight | 3.81 kg |
| Angle range | 60° left and right |
| Miter slots | T-shaped – 19.05 mm (3/4") top, 25.4 mm (1") bottom, 9.52 mm (3/8") deep |
| Length of stop (retracted) | 495.3mm |
| Length of stop (fully extended) | 952.5mm |
| Height of the stop | 76.2mm |
