SCALE Precision Miter Gauge SawStop
New
New
New
New
New
New
€219.00*
Available, delivery time: 1-3 businessdays within Germany
Product number: 332154
Product information

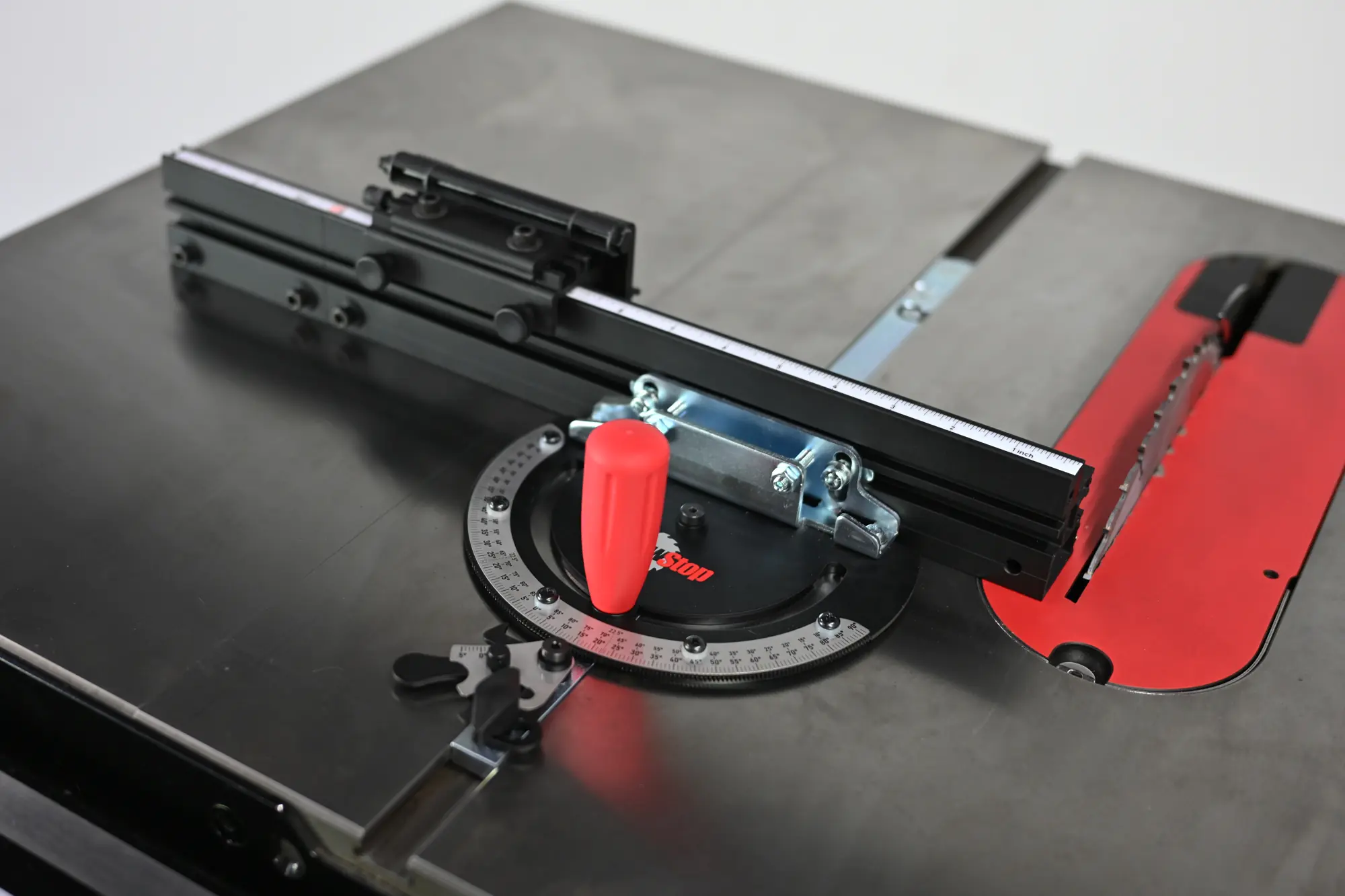

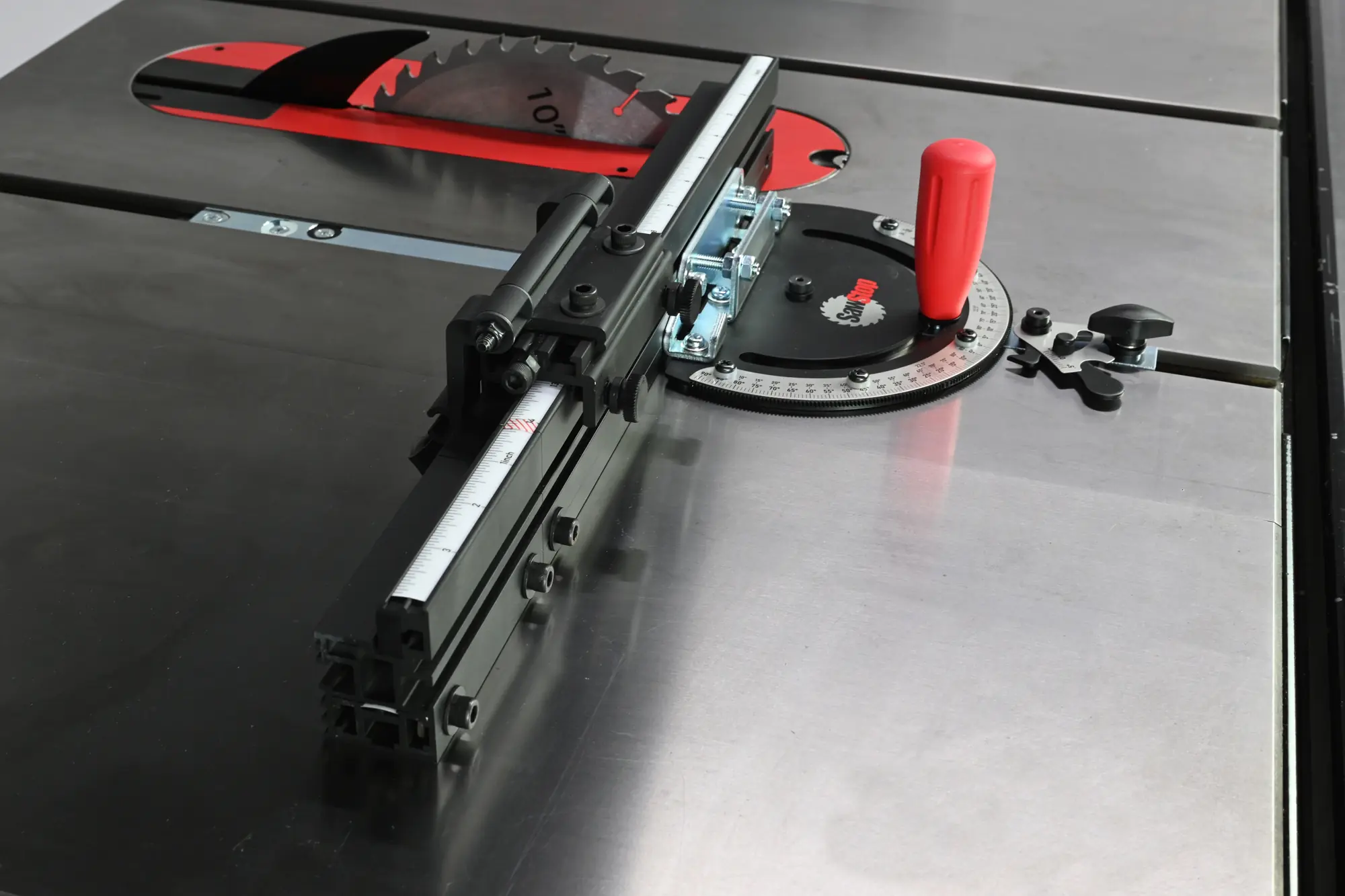

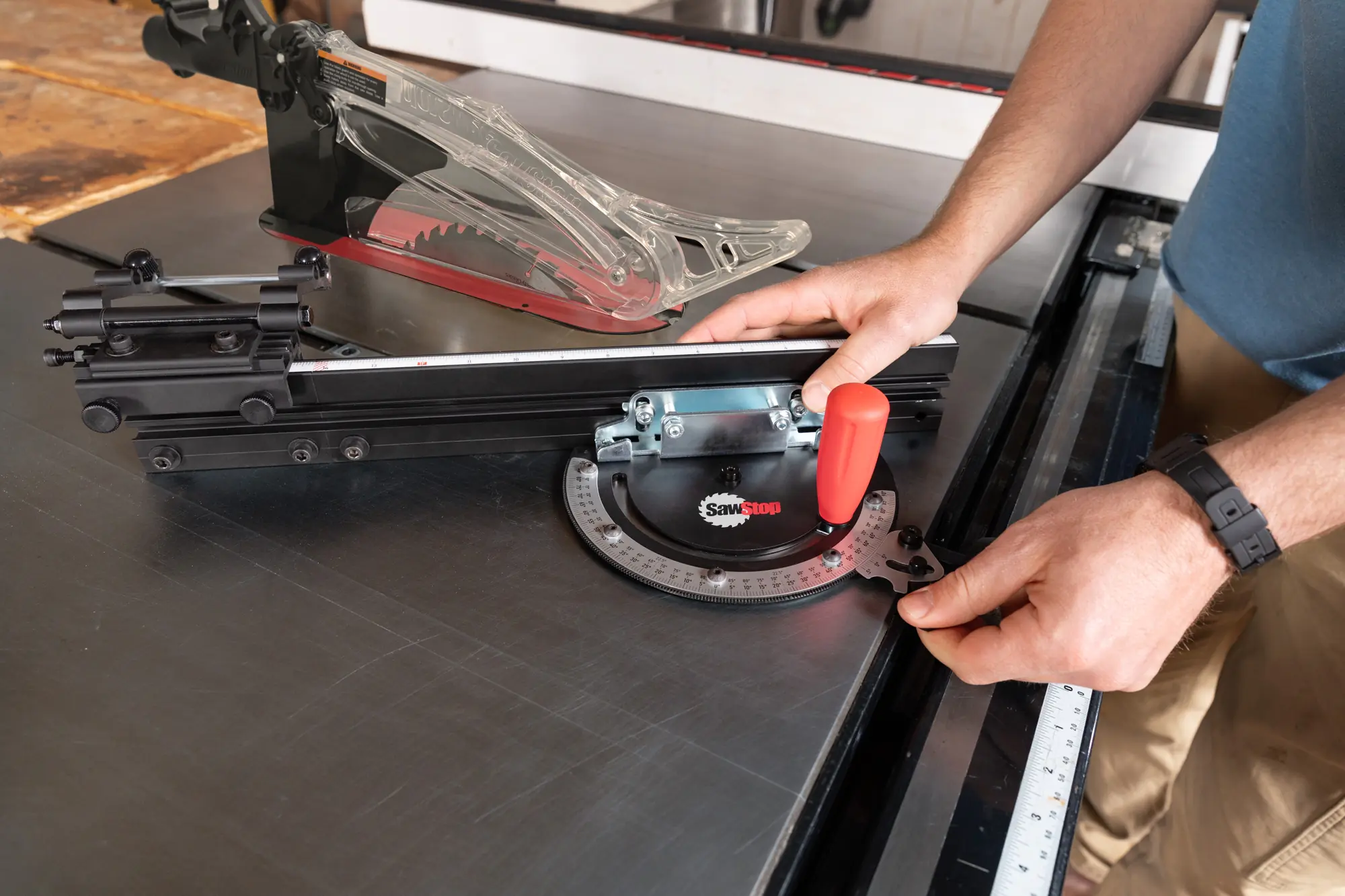

Developed for maximum precision on any table saw: The Precision Miter Gauge SCALE features an angle setting with a pointer-and-notch adjustment system that locks into 181 exact angles.
When combined with a high-quality, adjustable miter bar, a sturdy, extendable fence, and a micro-adjustable flip stop for repeatable cuts, you get a premium miter gauge that elevates woodworking to a new level of precision.

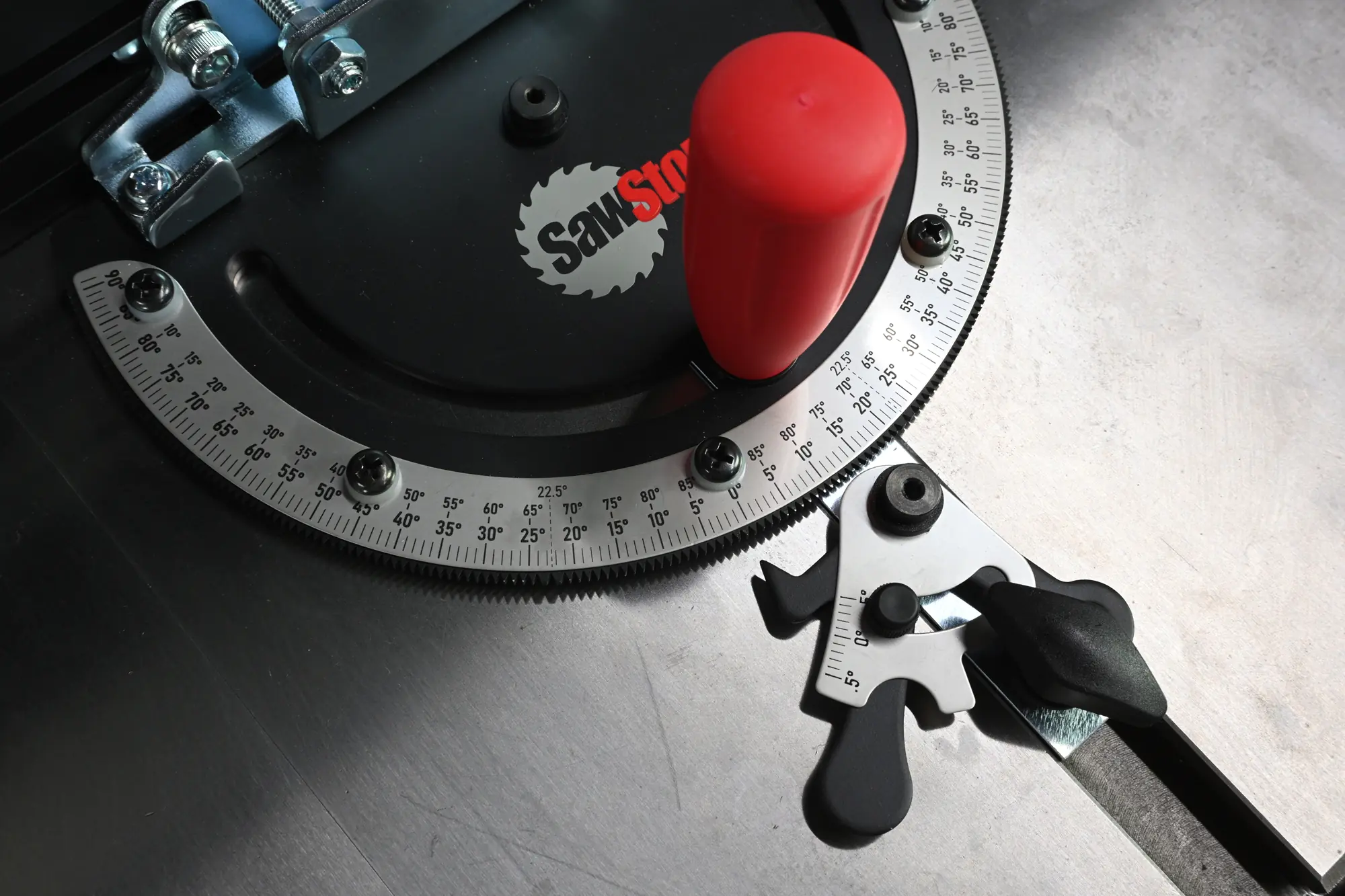

- Precision miter head with pointer and 90 detents in 1° increments on both sides from 0°, additional detents at 22.5° left and right
- Integrated vernier scale for fine adjustment to 1/10° accuracy
- 457 mm long miter bar suitable for 9.52 × 19.05 mm (3/8″ x 3/4″) standard slots
- 6 adjustable disks ensure a play-free fit and smooth glide
- Screw-on T-clip keeps the miter bar horizontal in the slot when lifting the gauge
- Aluminum fence with telescopic extension up to 800 mm, extendable to 864 mm with flip stop
- Front T-slot for attaching auxiliary fences with T-bolts
- Scalable measuring scale on top of the fence for precise crosscuts without marking

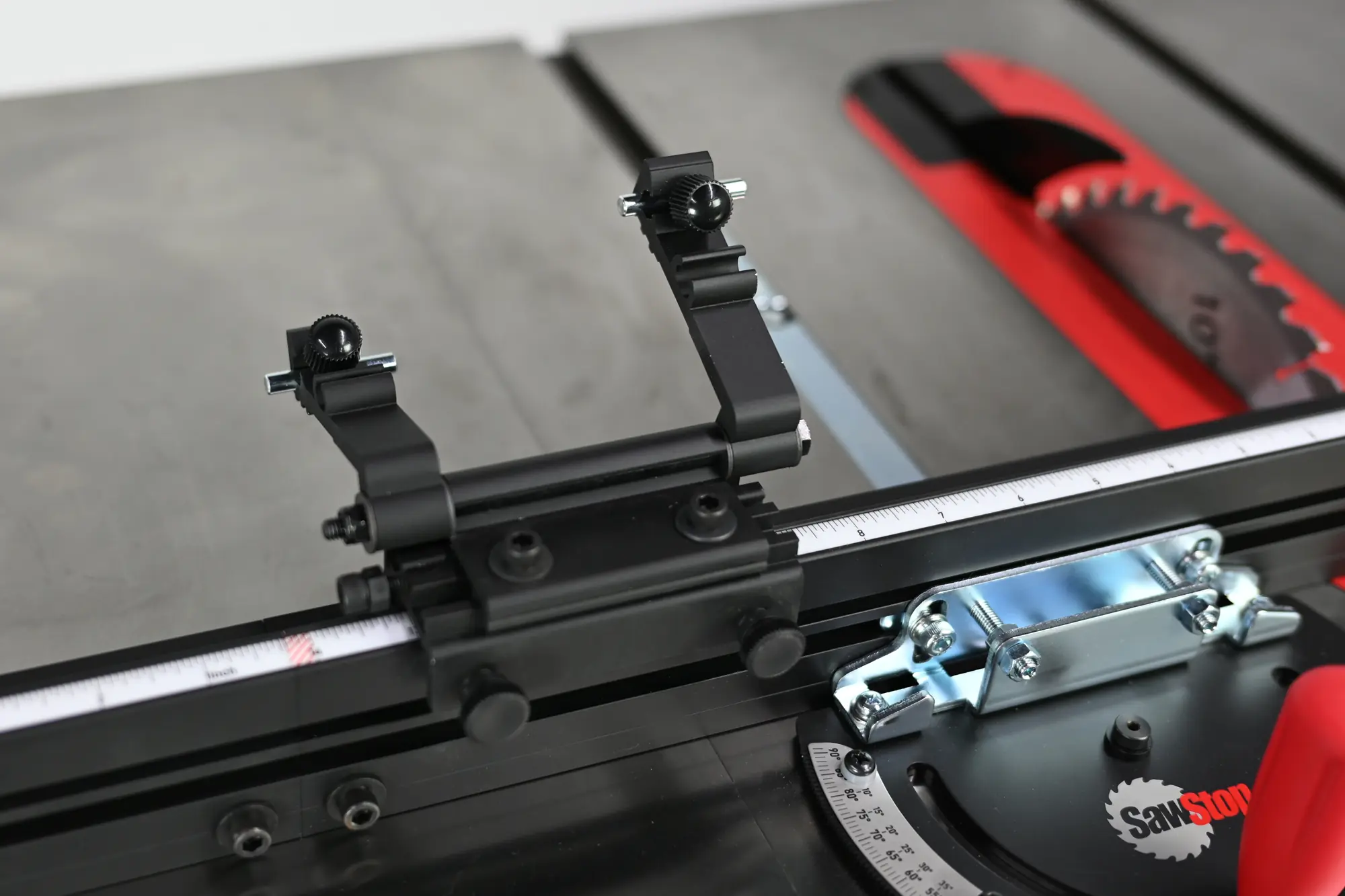

- Flip stop for repeatable cuts
- Positioning in 0.79 mm (1/32″) increments through toothed detents
- Two independently adjustable stop arms or coupled with connecting rod
- Fine adjustment via integrated micro-adjuster
| Features | |
|---|---|
| Angle range | 90° left to 90° right |
| Miter gauge dimensions | 9.52mm x 19.05mm x 457.2mm (3/8” x 3/4” x 18”) |
| Fence height | 60.325mm |
| Miter slots | T-shaped – 19.05 mm (3/4") top, 25.4 mm (1") bottom, 0.37 mm (3/8") deep |
| Angle detents | 181 |
| Fence length | 463.55mm – 800.1mm |
| Weight | 2.81 kg |
