INCRA Miter V120 with 120 Angle Stops
Available, delivery time: 2-3 days
Product information

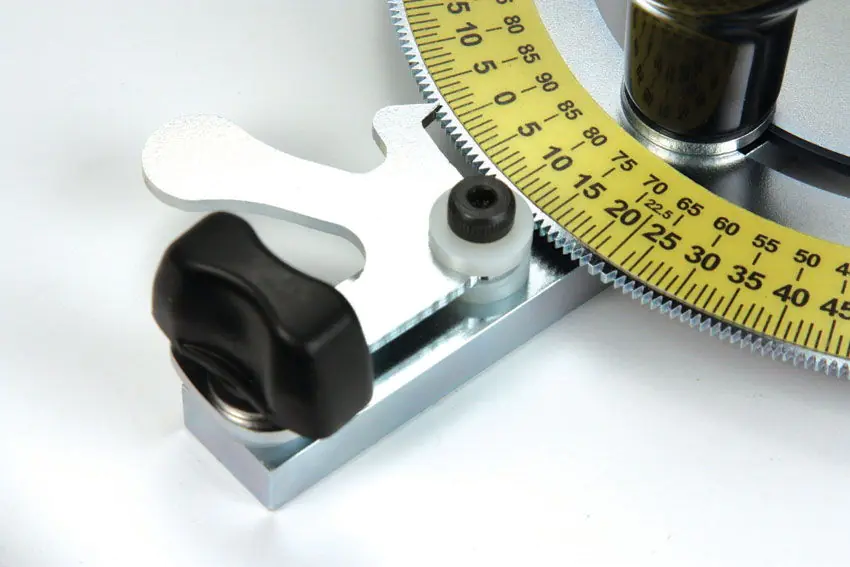

Don’t be fooled by its small size! The miter gauge V120 offers maximum precision in a compact form, with lockable angle settings at every full degree and two additional lock points at 22.5° for octagonal frames, for example.
All this precision is packed into an extremely compact design, ideal for machines with small tables such as band saws and disc sanders. The sturdy all-steel construction makes this gauge a long-term investment for any woodworker. Additionally, the V120 can be upgraded with the IncraLOCK Cut-Off Fence, which is up to 1320 mm long, to handle larger workpieces.
The width-adjustable guide rail fits rectangular slots with a width of 19 mm and a depth of 9.5 mm. If a 23.8 mm wide T-slot is present at the bottom of the groove, the included wider holding nuts can prevent the device from lifting. The fine adjustment for the width ranges from 18.8 mm to 19.3 mm. Diameter of the semicircular base plate: 172 mm.
Before the first use, the gauge must be calibrated, i.e., precisely adjusted by the user. Please follow the included instructions. Currently, this manual is available only in English!
| Features | |
|---|---|
| Width Adjustment | 18.8 mm – 19.3 mm |
| Base Plate Diameter | 172 mm |
| Material | Steel |
| Angle Settings | Locking angle settings at every full degree and two additional locking points at 22.5° |
