INCRA Miter 3000SE with Track Fence 27 - 49 in. = 686 - 1244 mm with Sliding Stop and Telescopic Fence
Available, delivery time: 2-3 days
Product information

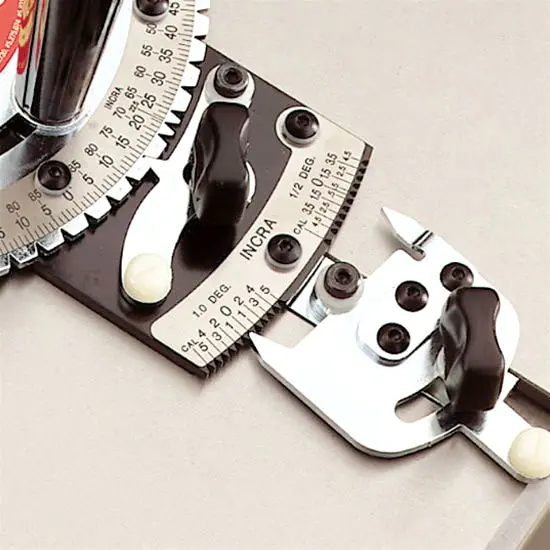

This fence features a two-stage angle gauge with 41 fixed angle settings in the first stage. There is a fixed detent point every 5°. With the second stage, this fence achieves a total of 364 lockable angle settings over the entire 180° range. There is a fixed – and thus very precise – detent point every 1/2 mm.
The GlideLOCK guide fits into all 3/4 inch (19 mm) T-slots, as found on many machines from the Anglo-Saxon region and on imported machines. On German machines, the slots generally have different sizes. Please measure before ordering to ensure the slot is really 19 mm. A 20 mm slot is definitely too large; the plastic expansion washers cannot cover this size. The slot width may vary between 18.8 – 19.4 mm.
With foldable length stop "Flip Shop Stop"
The fence is extendable from 686 mm to 1244 mm.
There are mm scales available, intended for the slots in the upper part of the fence.
Before the first use, the fence must be calibrated by the user, i.e., precisely adjusted. Follow the included instructions for this. These instructions are currently only available in English!
| Features | |
|---|---|
| Sliding Guide | fits all 3/4 inch (19 mm) T-slots |
| Length Stop | foldable, extendable from 686 mm to 1244 mm |
| Slot Width | 18.8 – 19.4 mm variable |
| Scale | available, intended for the mounting slots in the upper part of the stop |
| Protractor | two-stage with 41 fixed angle settings in the first stage, a total of 364 locking angle settings over the entire 180° range |
