Shelf Jig
MILESCRAFT
Available, delivery time: 1-3 businessdays within Germany
Product information

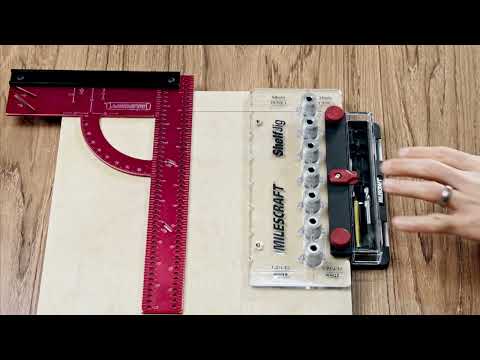

With the ShelfJig™, you can effortlessly implement the proven 32 mm hole system for cabinet divisions or shelves of any kind.
The error-reducing, transparent body made of shatterproof polycarbonate allows for drilling up to 7 holes in a row. Repositioning for the next set is done using the included indexing pins. The centering notches built into the device make alignment a breeze.
The guide stop can be positioned to provide either a 37 mm or 64 mm setback. Removing the guide stop enables use at the rear panel area on an existing cabinet.
The device includes two different drill bits, allowing for the creation of holes for the most common shelf pins on the market. The hex shank on the drill bits allows for quick and easy insertion and changing when using a bit holder, but can also be used in any standard three-jaw chuck. The removable guide stop also serves as a handy storage space for parts not currently in use.
ShelfJig™ Features:
- The included drill bits create both 5 mm and ¼" (6.35 mm) shelf pin holes
- The transparent housing design reduces potential errors
- Standard 32 mm spacing between the individual guide sleeves (center-center) made of hardened metal
- The removable stop can be set to either a 37 mm or 64 mm offset
- Handy centering notches allow for easy alignment
- 5 mm and ¼" (6.35 mm) indexing pins allow for repositioning the device to create unlimited rows of holes
- 3 mm Allen key for changing the depth stop
- Base body dimensions (LxWxH): 256 × 100 × 5 mm
