DowelJigKit™ - Dowel set from
MILESCRAFT
Available, delivery time: 2-3 days
Product information

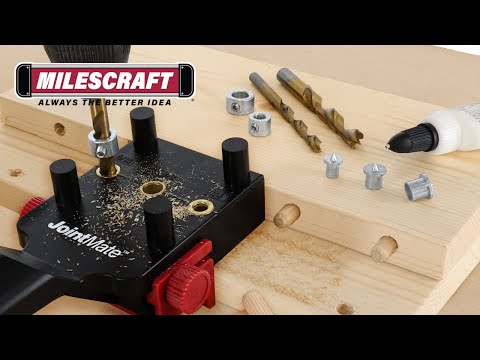

This complete dowel set centered around the JointMate includes everything needed to create durable and precise joints. It’s suitable for corner joints, as well as T-joints and surface joints.

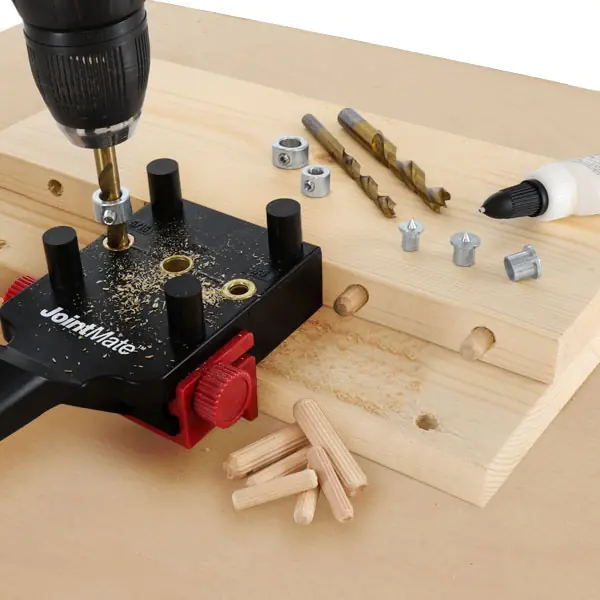

All 3 drill sleeves feature a self-centering function through 4 integrated alignment pins. Additionally, the JointMate includes centering markings besides dowel/guiding grooves and an adjustable guiding stop, which are used for T-joints. The advantage: By avoiding labor-intensive and potentially error-prone measuring and marking tasks, transfer errors are eliminated.
Independent of the JointMate, the included dowel markers in three different diameters can also be used. These allow precisely transferred boreholes from one workpiece to another.
Designed for, and well applicable to, the following workpiece dimensions:
- Material thickness: 12 – 38 mm
- Minimum width for dowels 6 and 8 mm: 51 mm
- Minimum width for dowels 10 mm: 32 mm
- Minimum distance for dowels 6 and 8 mm from the board end: 24 mm
- Minimum distance for dowels 10 mm from the board end: 42 mm

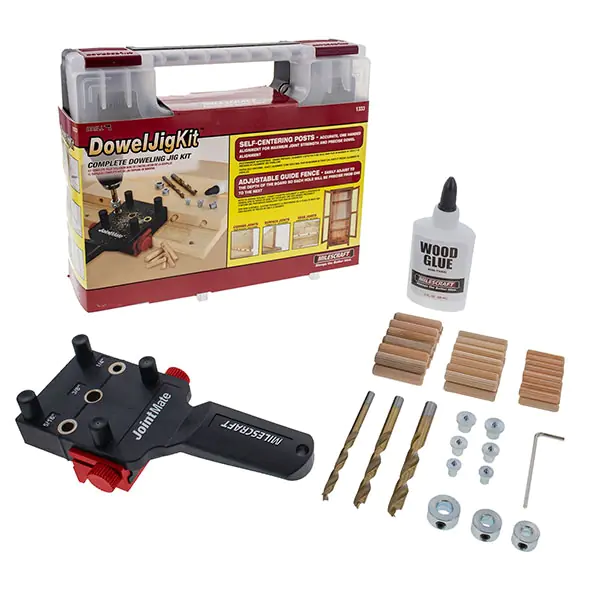

Contents:
- JointMate made of durable ABS plastic with adjustable guiding stop, 4 alignment pins, three embedded drill sleeves made of hardened steel (6, 8, and 10 mm) and 3 corresponding dowel/guiding grooves
- 3 wood twist drills: 6, 8, 10 mm with matching depth stops made of steel and 3 mm hex key
- Dowel markers: 2 each of 6, 8, 10 mm
- Grooved hardwood dowels: 6 mm (26x), 8 mm (24x), 10 mm (22x)
- Wood glue
- Sturdy storage box
Detailed user manual in 4 languages (GB, F, E, D)
