Insert Rabbetting Cutter Head
50 x 30mm Hole 12mm with Arbor KLEIN
Available, delivery time: 1-3 businessdays within Germany
Product information

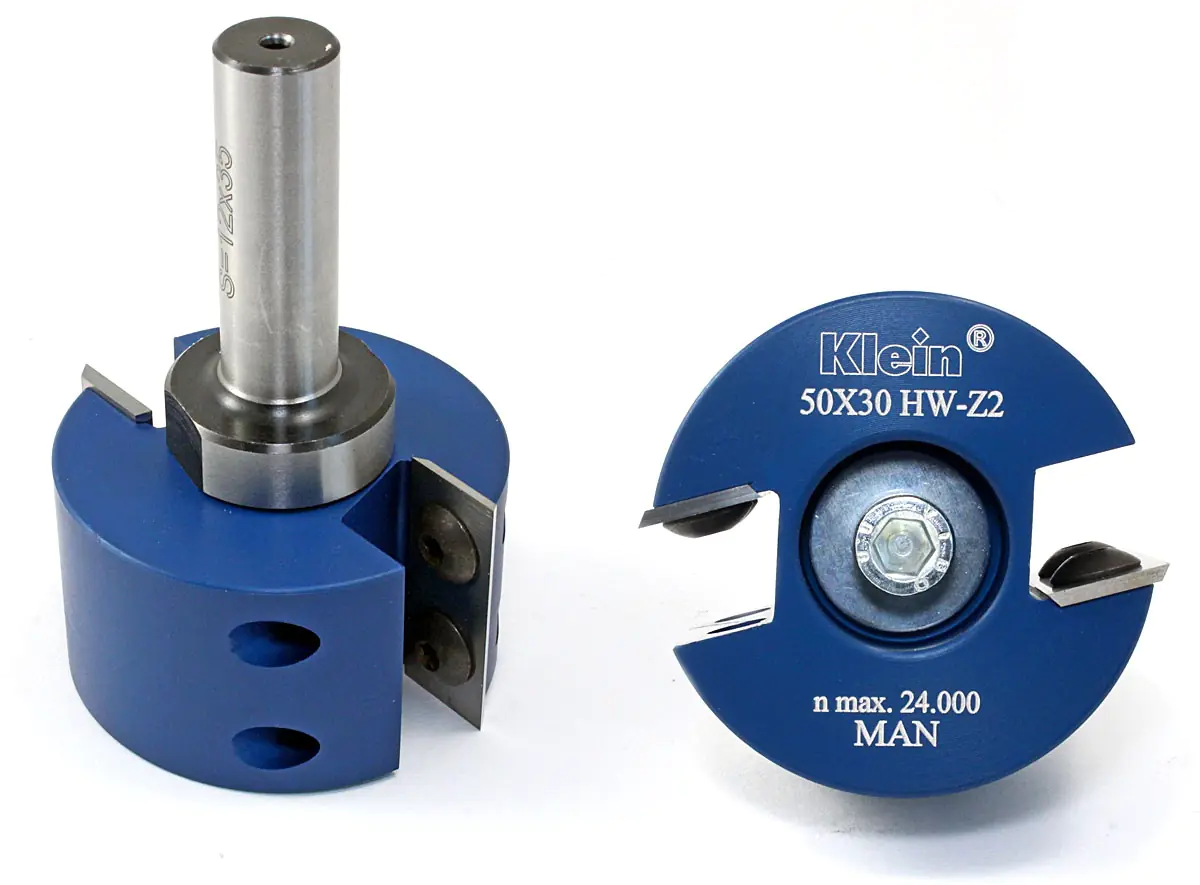

This insert rebate cutter consists of a rebate cutter head equipped with 2 HW inserts and a mounting arbor with a 12 mm shank. This is the right cutter when speed and cleanliness are crucial in the production of rebates. Due to its size and weight, this rebate cutter must only be used stationary with a powerful router (from 2000 W) installed in a router table. The rebate head is made of aluminum. For changing the blades, you will need a Torx key T15 (included in the delivery).
| Technical Data | |
| Diameter | 50 mm |
| Max. Rebate Depth | 30 mm |
| Shank Ø | 12 mm |
| Max. Speed | 24000 RPM |

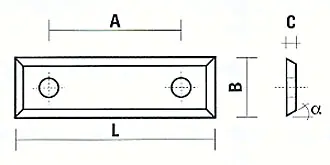

| Blade Dimensions | |
| L | 30 mm |
| B | 12 mm |
| C | 1.5 mm |
| A | 14 mm |
| α 30 mm Side | 30° |
| α 12 mm Side | 20° |
| Features | |
|---|---|
| Diameter | 50 mm |
| Max. Rabbet Depth | 30 mm |
| Maximum Speed | 24000 RPM |
| Shank Diameter | 12 mm |
