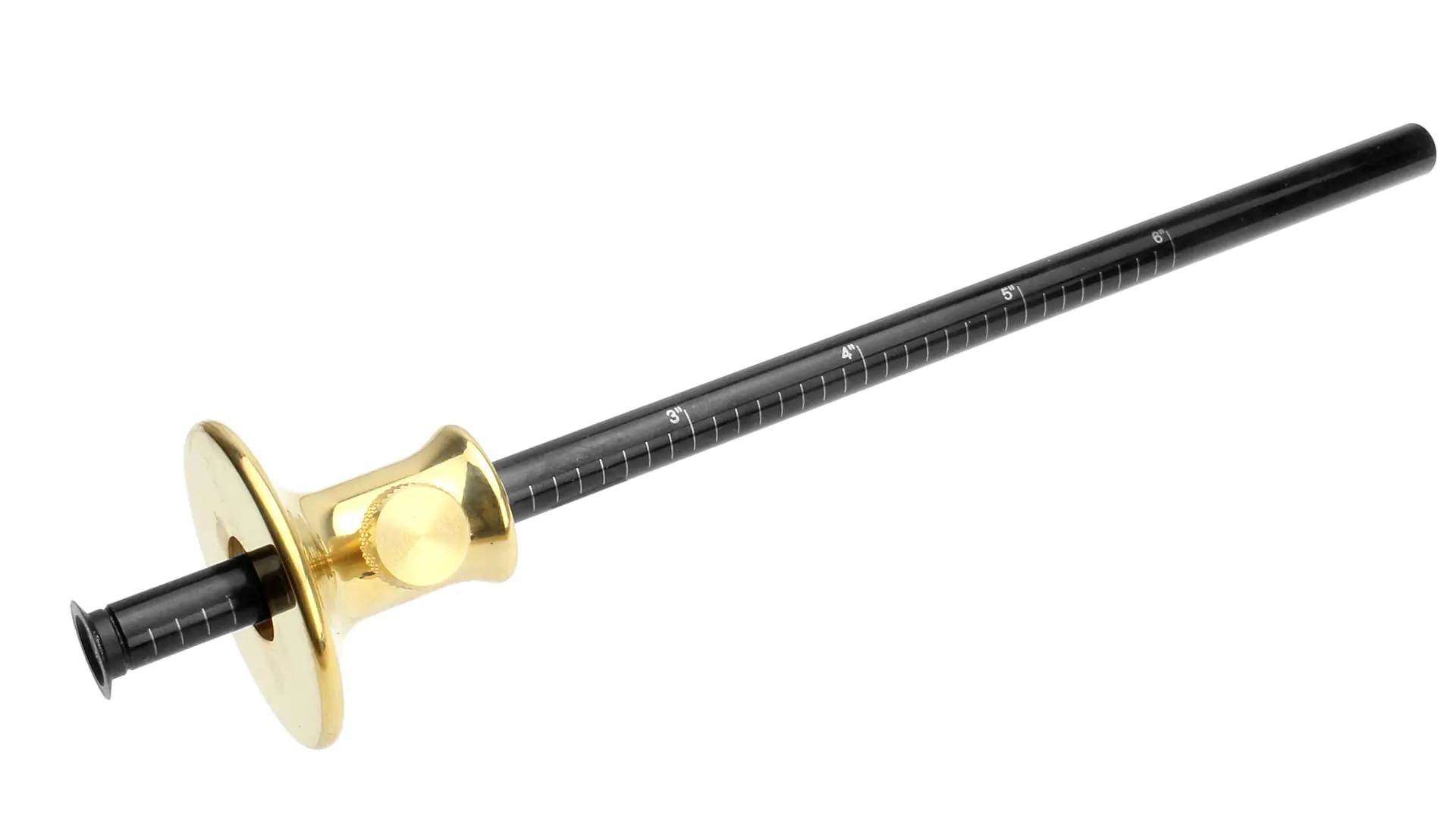

Wheel Marking Gauge with mm and inch scale
Available, delivery time: 2-3 days
Product information

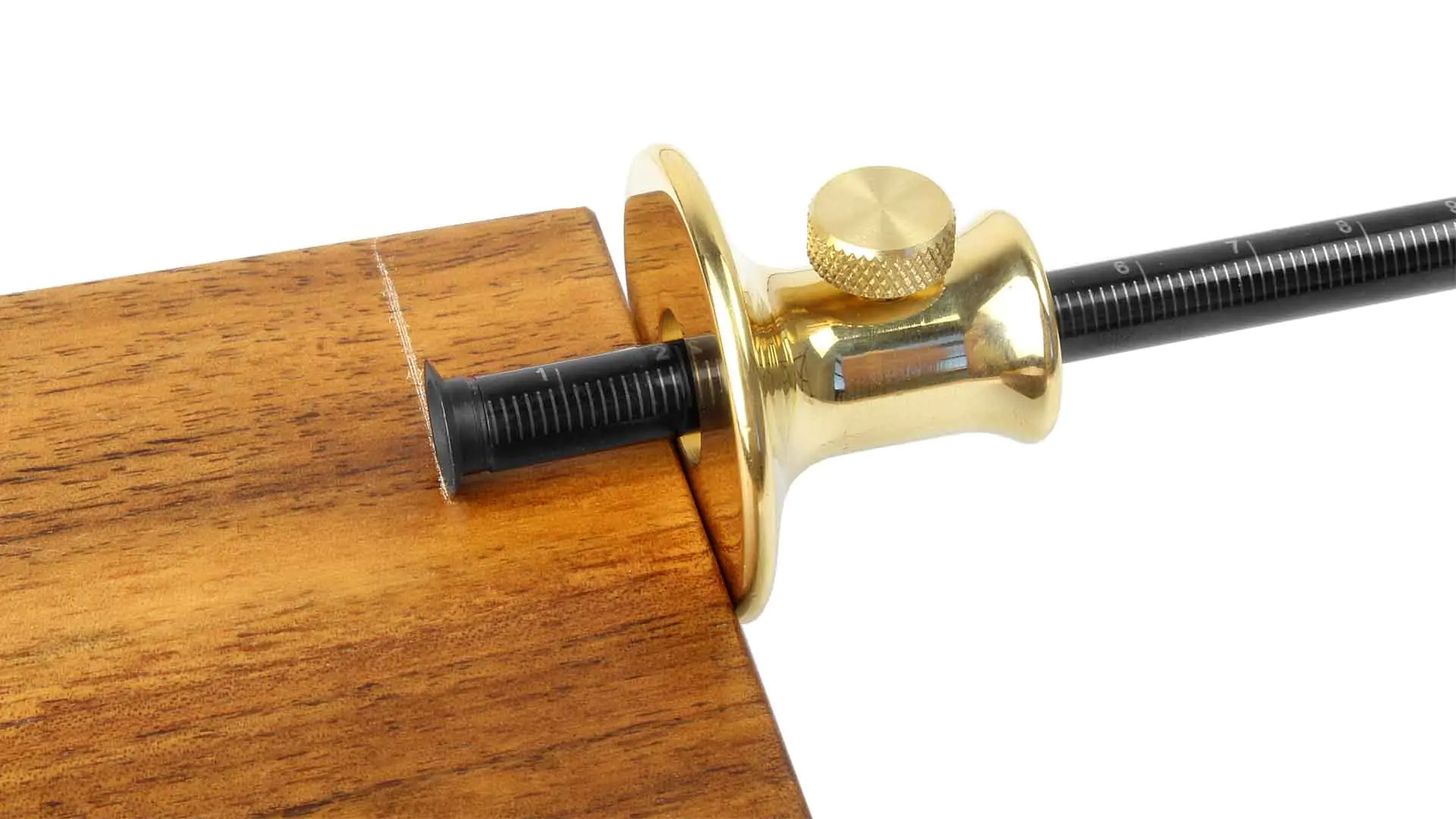

A cutter wheel made of hardened steel is virtually a guarantee for clean scribing in both longitudinal and cross wood. The round steel guide rod features a printed mm scale on one side and an inch scale on the other, allowing for depth measurements on wood joints. The stop body and guide plate are made of solid brass. The cutter wheel can be fully retracted into the stop body, ensuring it can be stored and transported safely without damage.
| Specifications | |
|---|---|
| Diameter of guide plate | 40 mm |
| Diameter of cutting wheel | 12 mm |
| Guide rod diameter | 8 mm |
| Length of guide rod | 203 mm |
| Length of stop block | 30 mm |
| Inch scale | 0 – 6 inches in 1/8 inch increments |
| Metric scale | 0 – 15 cm in 1 mm increments |
