4-piece digital measuring tool set from

DASQUA

This versatile measuring device set has proven particularly practical, especially the digital leveling box and the digital depth gauge, which, once used, you won’t want to do without.

Both the caliper and the bevel gauge undoubtedly fulfill their purpose, but they are more or less to be considered as additional inclusions.

Contents of the Set

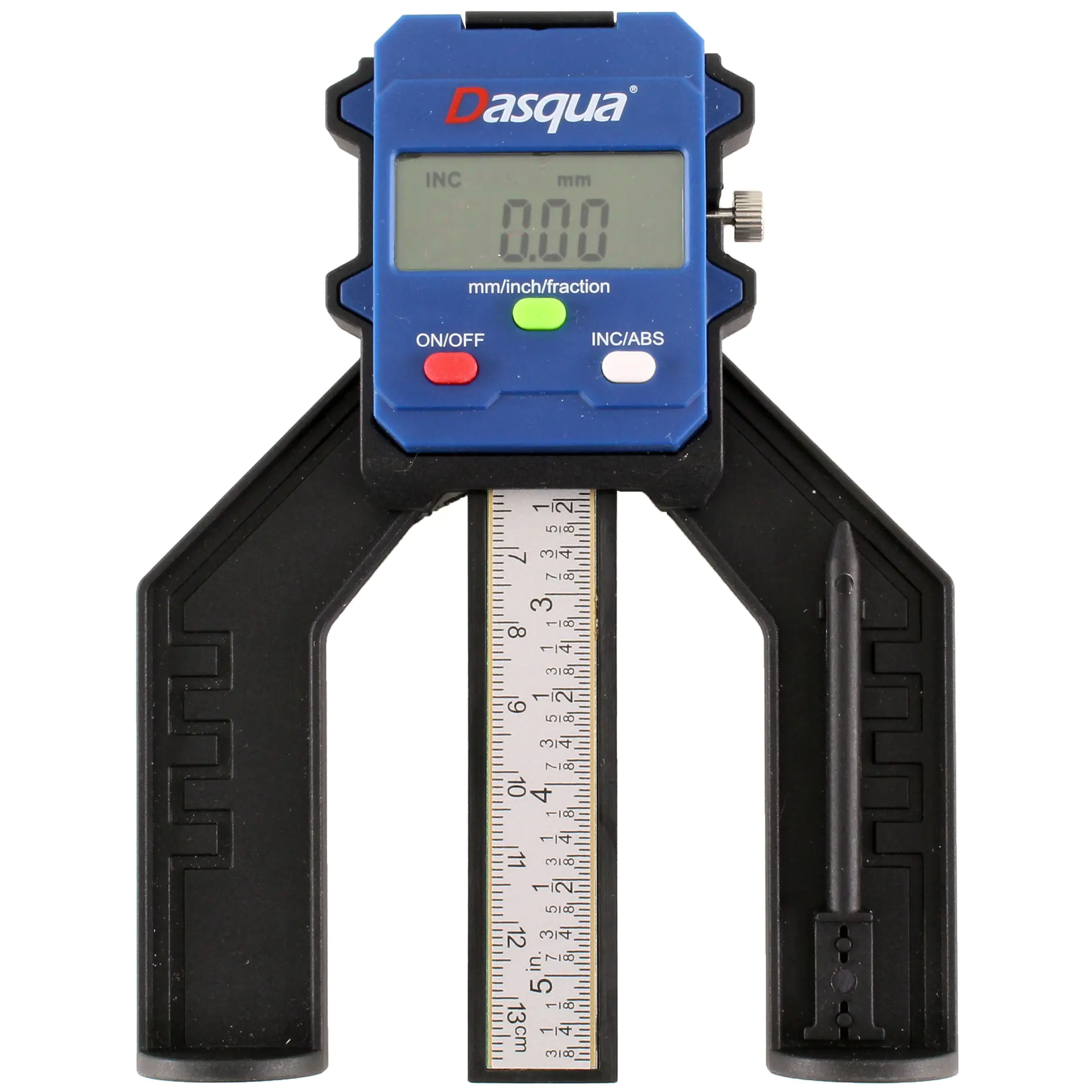

Digital Depth Gauge
A versatile digital helper that has proven itself when setting stops on circular and band saws as well as milling tables. Also useful for measuring and setting milling depths on routers and depth measurements on drill holes, among many other applications.

Sufficiently rigid construction made of plastic to withstand stress, with a flattened back for enhanced accessibility in tight situations. The measuring ruler can be locked with a knurled screw, and the measuring needle locks in the parked position when not in use. Magnetic feet allow for both vertical and horizontal use.

Stepless adjustment and measuring range within the resolution of the display, which is further extended by the interchangeable measuring needle (bottom and top!).

Effortless operation with just three buttons that have nearly self-explanatory functions. Switchable from millimeters to inches and from absolute (reference = bottom edge of the feet) to incremental measuring mode (zero point can be set anywhere within the measuring range).

Technical Data:

• Measuring range: 79 mm in height (83 mm in recess), 55 mm in depth (with measuring needle)
• Diameter of measuring needle: 4.5 mm (for holes from 5 mm diameter)
• Clear width of feet: 59mm
• Display resolution: 0.05 mm
• Accuracy: +/- 0.1 mm
• Dimensions: 110 × 143 × 25 mm (W x H x D)
• Housing material: Plastic
• Battery type: Button cell CR2032 3V (included)

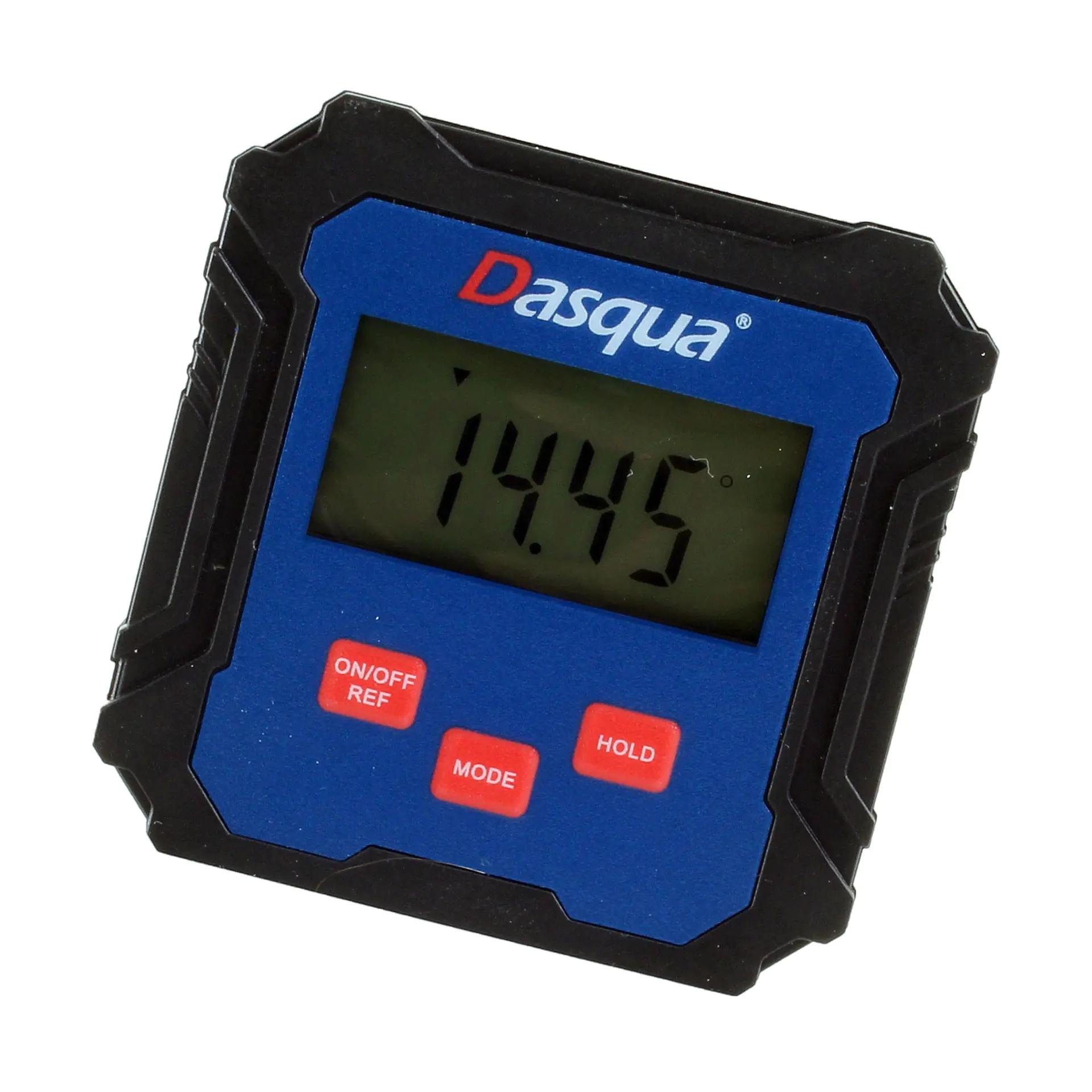

Digital Leveling Box
With this practical measuring device, it’s easy to set machines at a specific angle, be it the inclination of a circular saw blade or the work table of a pillar drill or band saw. The application possibilities extend far beyond that.

The bottom is prismatically designed to be clearly placed on curved surfaces (pipes). A strong magnet in the base area acts as a „third” hand. The housing is made of material-friendly plastic, preventing scratches on the surfaces of machines when placing or removing the box.

The „Hold” function stores the current measurement value, which can be advantageous in hard-to-see areas. The large, easy-to-read display (LCD) is backlit and can switch between °, %, mm/m, or inch/ft. There is also a choice between absolute (ABS) and relative (REF) measuring modes. Operation is extremely simple with just three buttons.

To minimize the impact of temperature fluctuations on measurement results and maintain accuracy at a high level, a chip from the USA is installed.

The leveling box is powered by an inexpensive standard AAA battery. Due to its compact dimensions, it’s always with you!

Technical Data:

• Display resolution: 0.05°
• Accuracy: +/- 0.1° at 0°/90°, otherwise +/- 0.2°
• Display: selectable °, %, mm/m, or inch/ft
• Dimensions: 60 × 60 × 28 mm (W x H x D)
• Housing material: Plastic
• Battery type: 1x AAA 1.5 V microcell (included)

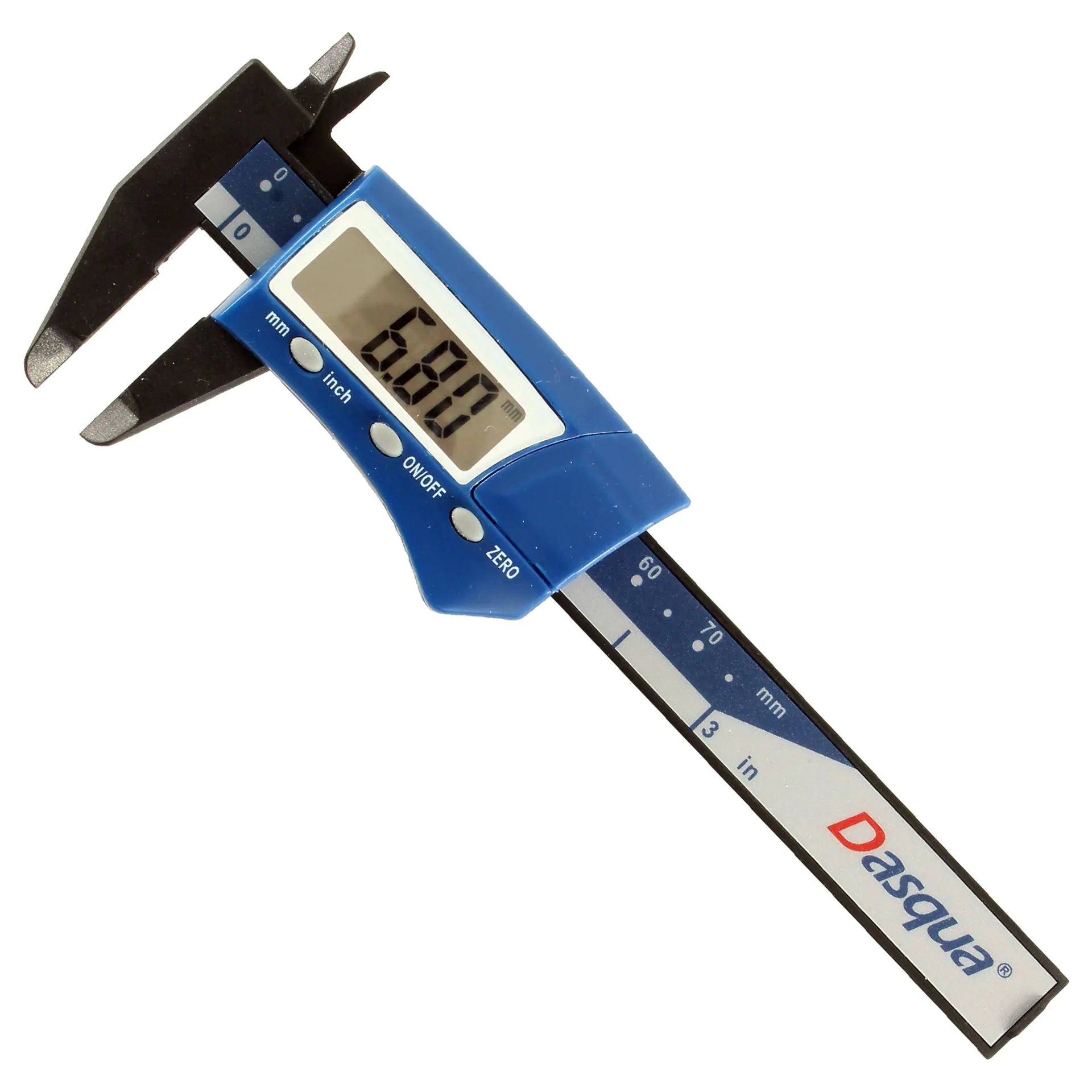

_ Digital Fiber Caliper 75mm_
A „simple” caliper that, due to its compact size, lightweight, and clip on the back, can always be with you. The chosen material prevents the risk of scratches on sensitive surfaces of objects being checked.

Easy-to-read digital display (LCD) that can switch between metric and imperial display. Additionally, the reference point („zero”) is freely selectable.

Self-explanatory operation with three clearly assigned buttons. Suitable for internal and external measurements.

Technical Data:

• Measuring range: 0 – 75 mm
• Display resolution: 0.01 mm
• Accuracy: 0.2 mm
• Display: selectable mm / inch
• Dimensions: 138 × 53 × 20 mm (W x H x D)
• Housing material: Fiber composite material
• Battery type: 1x LR54 1.55 V (included)

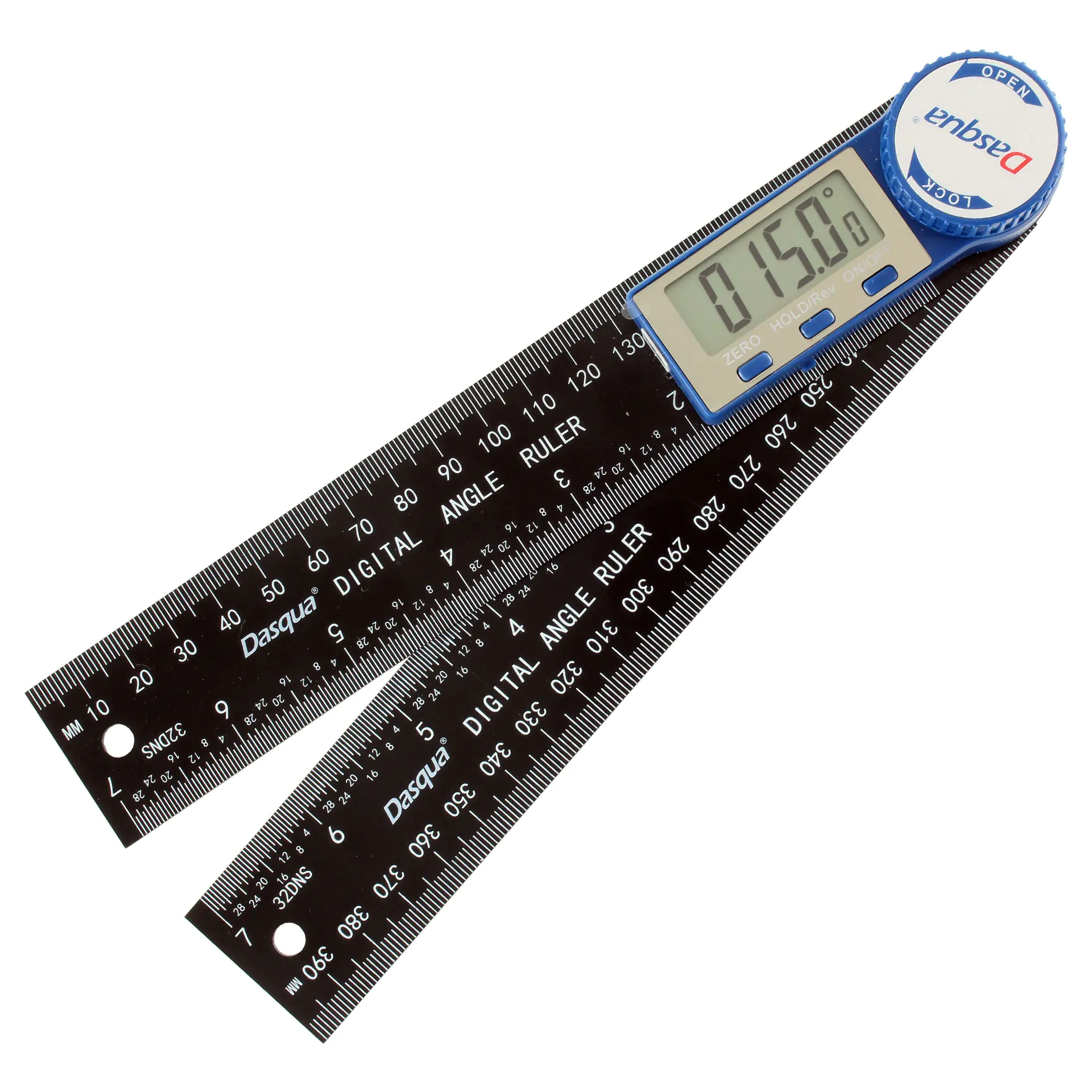

Digital Bevel Gauge
Digital bevel gauge, whose opening behavior (smoothness) can be chosen over a wide range and can also be locked for transfer. Easy-to-read display (LCD), appreciated especially when setting up machines.

Technical Data:

• Display resolution: 0.05°
• Accuracy: 0.2°
• Dimensions: 218 × 35 × 23 mm (W x H x D) folded, unfolded (180°) 400 × 35 × 23 mm
• Material: Plastic
• Battery type: Button cell CR2032 3V (included)
