Aluminium Bar Clamp Opening
600 mm (24 inch) DUBUQUE
Available, delivery time: 1-3 businessdays within Germany
Product information

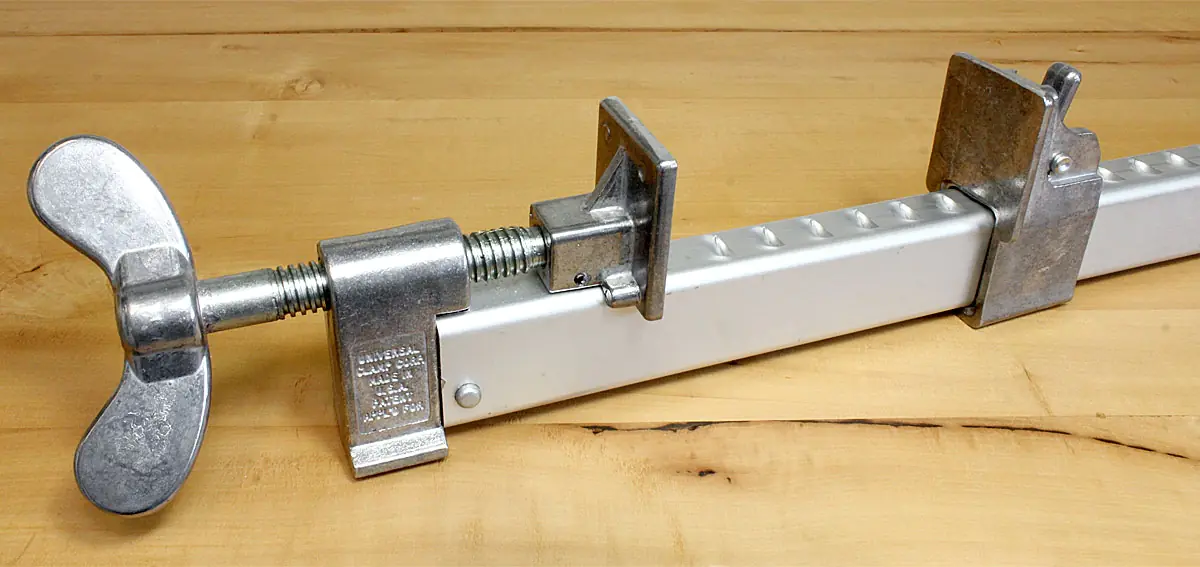

These door and panel clamps from DUBUQUE are true lightweight tools. The rails are made of extruded aluminum, while the heads, including the spindle, are made of cast aluminum. The sides of the rails have a material thickness of 3 mm, making them well-protected against bending and twisting, and they remain straight even under tension. The movable clamping head grips securely with its spring claw into the deep grooves of the rail with a grid dimension of 16 mm, ensuring a firm hold. Sliding the head on the rail is quick and easy. The half-inch spindle (12.7 mm) of the fixed clamping head has a travel path of 37 mm. The smooth-operating large wing screw with a wing diameter of 88 mm allows for convenient and quick clamping with one hand.
Made in the USA.
| Features | |
|---|---|
| Total length | 800 mm |
| Weight | 920 g |
| Rail cross-section | 35 × 22 mm |
| Clamping jaws H x W | 41 × 40 mm |
| Clamping width | 600 mm |
| Spindle travel | 37 mm |
