Set of
2 corner clamps
Available, delivery time: 1-3 businessdays within Germany
Product information

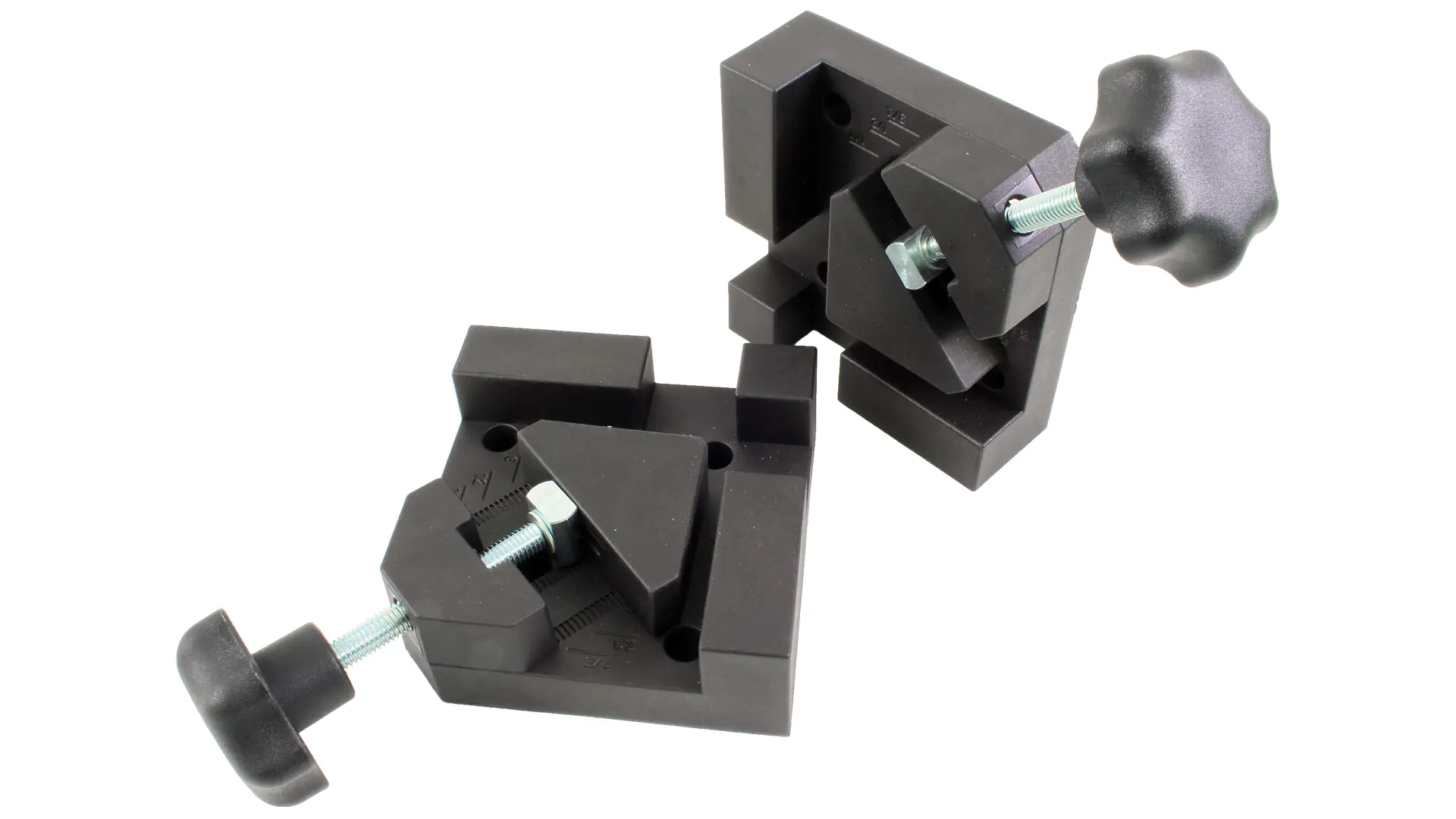

Angle clamp made of robust polyamide 66 with an approximately 8 mm thick steel spindle and a practical star grip. The internal bracing ensures a lightweight design, while guaranteeing long-lasting durability.
With three recesses each, the angle clamps can be mounted on a suitable surface using screws (not included!), for instance, when the same dimensions need to be processed in a series.

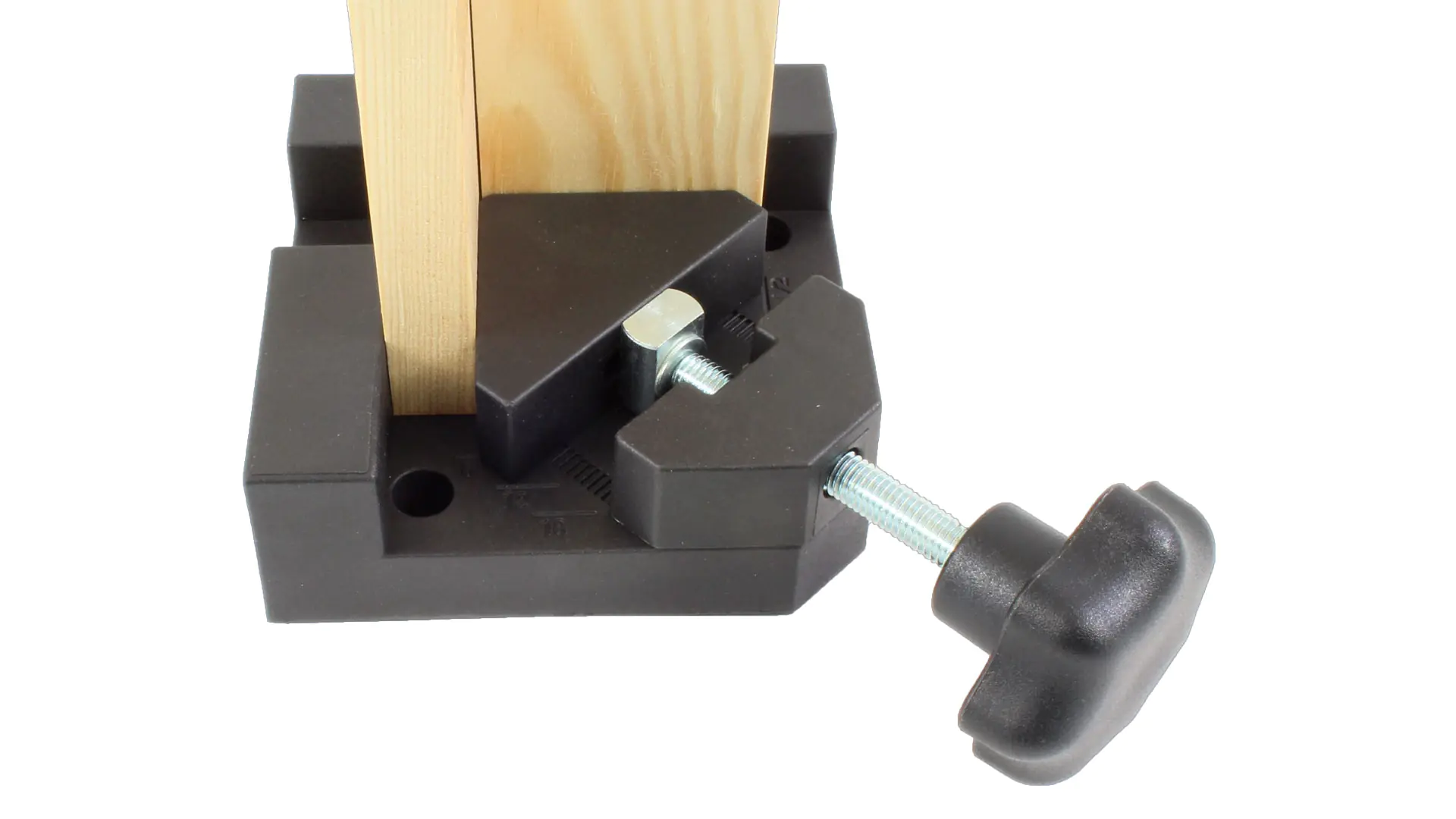

Suitable for T-connections or miter joints, even with different board or panel thicknesses. With the same material thickness, a maximum capacity of 22 mm is achieved. When fully utilizing the clamping range of 25 mm on one arm, there still remain a maximum of 20 mm for the other.

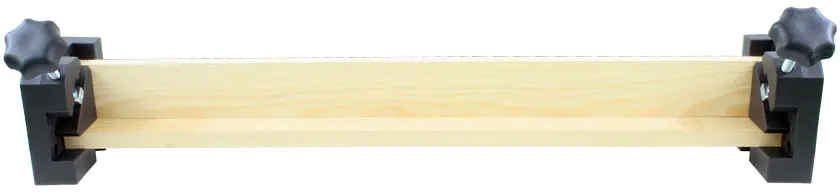

Apart from the usual (picture) frame constructions, this set is also ideal for clamping the long sides of boards or panels together for building a carcass. The jaw height of 19 mm proves to be helpful here as well.
