Trimming Cutters with Upper Ball Bearing

Trimming Cutters with Upper Ball Bearing

Trimming Cutters with Upper Ball Bearing
Trimming Cutters with Upper Ball Bearing

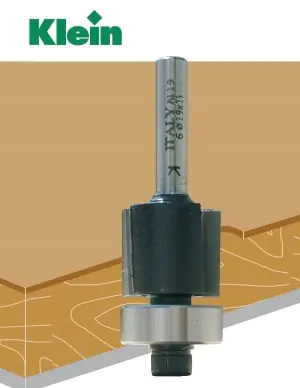

Trimming Cutters with upper ball bearing Trimming cutters are often used to trim the edges of surface layers glued to a substrate, like veneers or plastic laminates in order to have a precisely finished edge. The ring bearing contacts the edge of the substrate material, and the cutter, having the same diameter as the ring bearing, trims any overlap cleanly back, leaving a flat edge.

No. 361075 with cutting length 13 mm and no. 361076 with cutting length 13 mm are specially made for the Incra Router Table Template.

These Sistemi Klein router bits are Tungsten Carbide tipped (TCT).

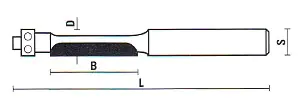

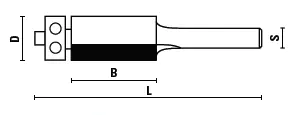

Trimming Cutters with upper ball bearing and shank 6 mm
Dia-
meter
D
Cutting
length
B
Total
length
L
Number
of teeth
Z
Shank
diameter
S
Material CodePrice
19 mm 11 mm 56 mm 2 6 mm TCT
Code 361078CartPrice € 31.90
12.7 mm 13 mm 50 mm 2 6 mm TCT
Code 361075CartPrice € 21.90
12.7 mm 19 mm 57 mm 2 6 mm TCT
Code 361076CartPrice € 22.50
12.7 mm 25.4 mm 63 mm 2 6 mm TCT
Code 361070CartPrice € 21.50
12.7 mm 32 mm 69 mm 2 6 mm TCT
Code 361071CartPrice € 25.90
16 mm 25.4 mm 63 mm 2 6 mm TCT
Code 361072CartPrice € 22.90
19 mm 25.4 mm 63 mm 2 6 mm TCT
Code 361073CartPrice € 25.90
12.7 mm 32 mm 69 mm 2 6 mm TCT
Code 361071CartPrice € 25.90
Trimming Cutters with upper ball bearing and shank 8 mm
Dia-
meter
D
Cutting
length
B
Total
length
L
Number
of teeth
Z
Shank
diameter
S
Material CodePrice
16 mm 32 mm 69 mm 2 8 mm HM
Code 361079CartPrice € 32.90
Repl. Parts for Trimming Cutters with Upper Ball Bearing Shank 6 mm
Item Picture Measurements
d = Inside D = Outside B = Thickn.
CodePrice

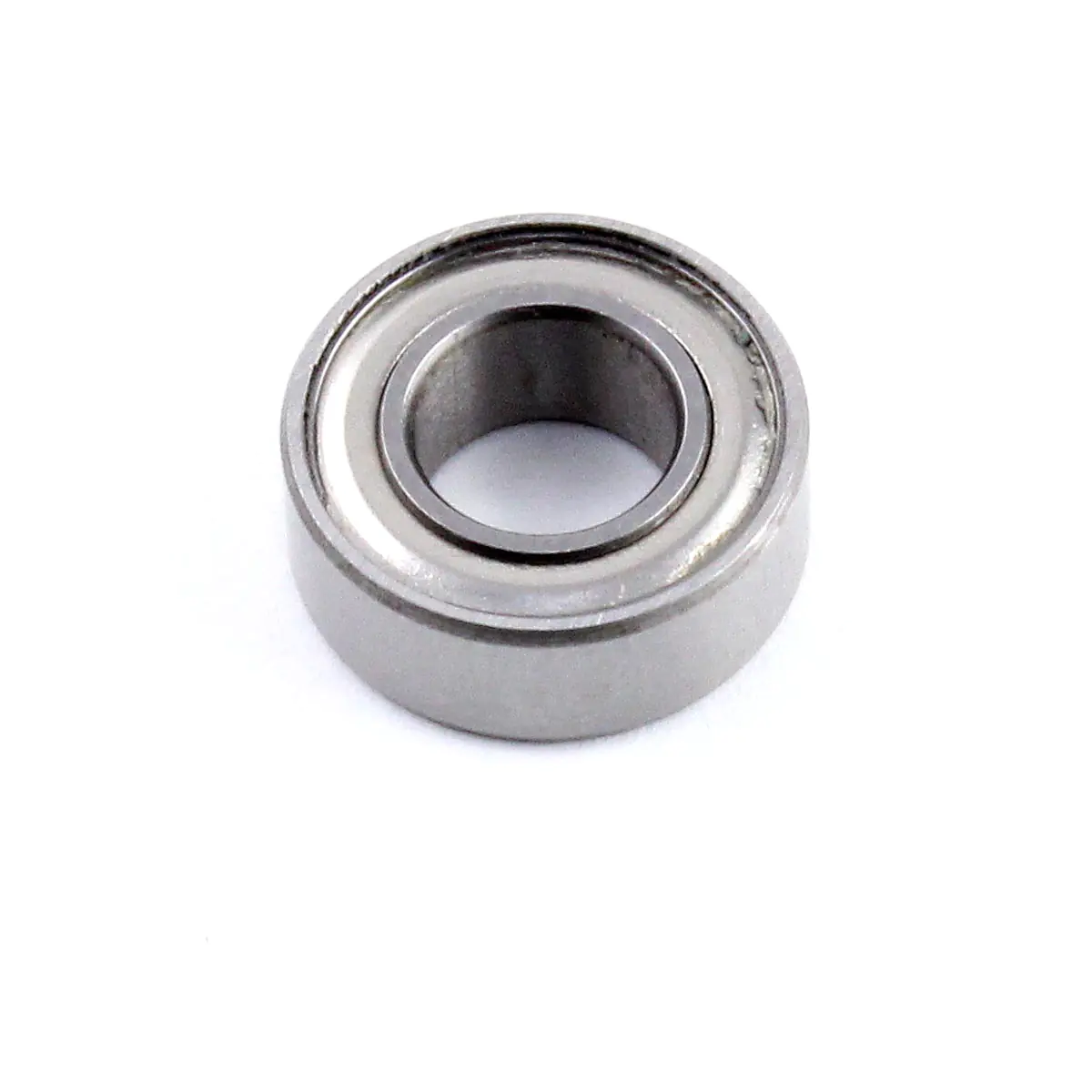

Ball Bearing Ball Bearing d = 6.4 mm D = 12.7 mm B = 4.7 mm
Code 360640CartPrice € 4.90

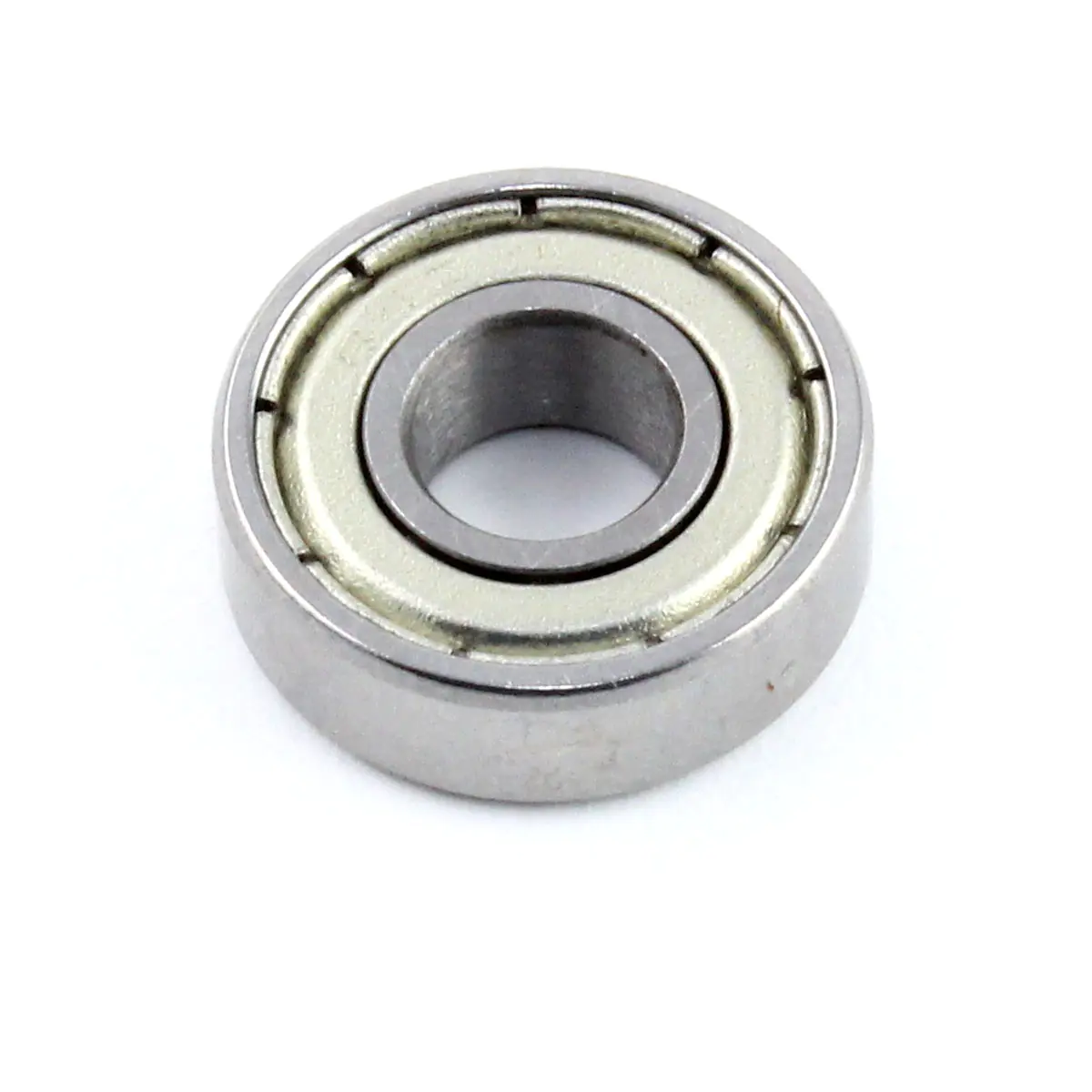

Ball Bearing Ball Bearing d = 6.4 mm D = 15.8 mm B = 5 mm
Code 360641CartPrice € 4.90
Ball Bearing Ball Bearing d = 6.4 mm D = 19 mm B = 7.1 mm
Code 360642CartPrice € 5.10

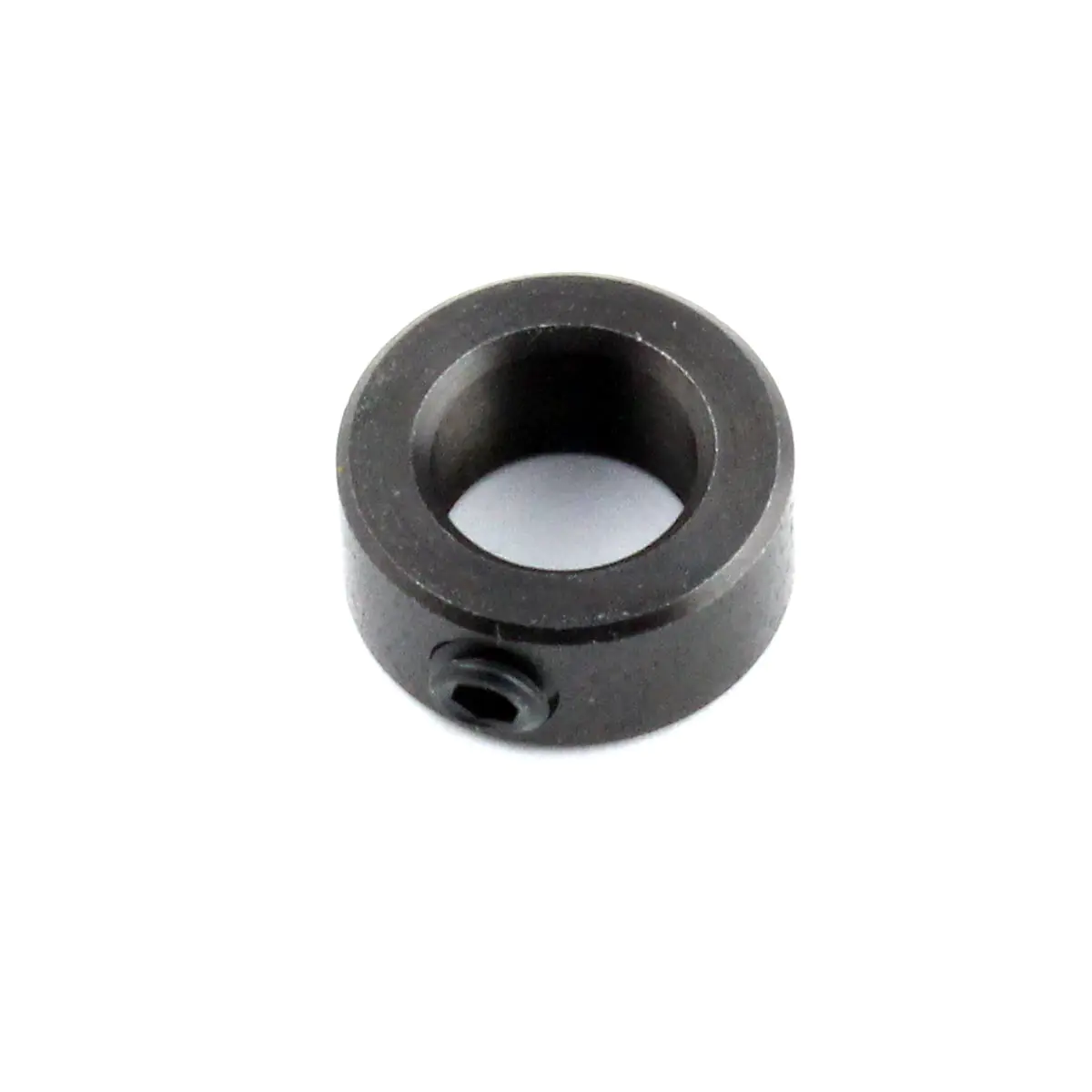

Lock Ring Lock Ring d = 6.3 mm D = 11 mm B = 6 mm
Code 362600CartPrice € 2.50

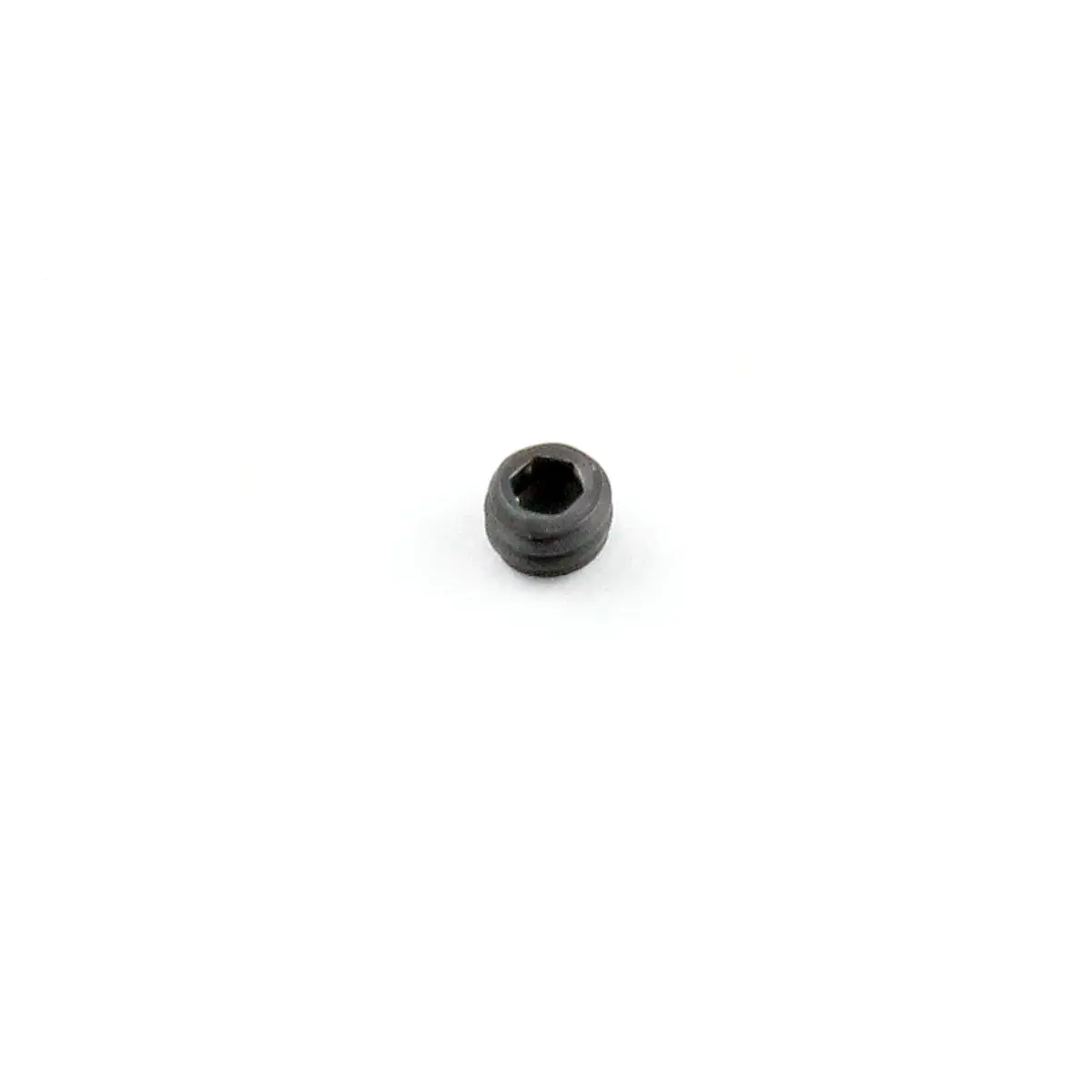

Setscrewfor Lock Ring Setscrew D = 3.1 mm L = 2.4 mm
Thread: #5-40 UNC (1/8 inch)
Code 361284CartPrice € 1.30
Notice relevant for setscrew: You need an Allen key 1/16 inch.
Notice relevant for ball bearing: Shank dia of Trimming cutters in the sector of ball bearing and setscrew is 6.3 mm.

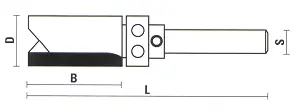

Trimming Cutters with upper ball bearing and shank 12 mm
Dia-
meter
D
Cutting
length
B
Total
length
L
Number
of teeth
Z
Shank
diameter
S
Material CodePrice
19 mm 11 mm 64 mm 2 12 mm TCT
Code 361435CartPrice € 32.90
25.4 mm 11 mm 64 mm 2 12 mm TCT
Code 361436CartPrice € 37.50
38 mm 16 mm 69 mm 2 12 mm TCT
Code 361437CartPrice € 47.90
19 mm 25.4 mm 77 mm 2 12 mm TCT
Code 361430CartPrice € 29.50
25.4 mm 45 mm 95 mm 2 12 mm TCT
Code 361431CartPrice € 47.50
Replacement Ball Bearing Suitable for trimming cutters with ball bearing 361435.
Item Picture Measurements
d = Inside D = Outside B = Thickn.
CodePrice

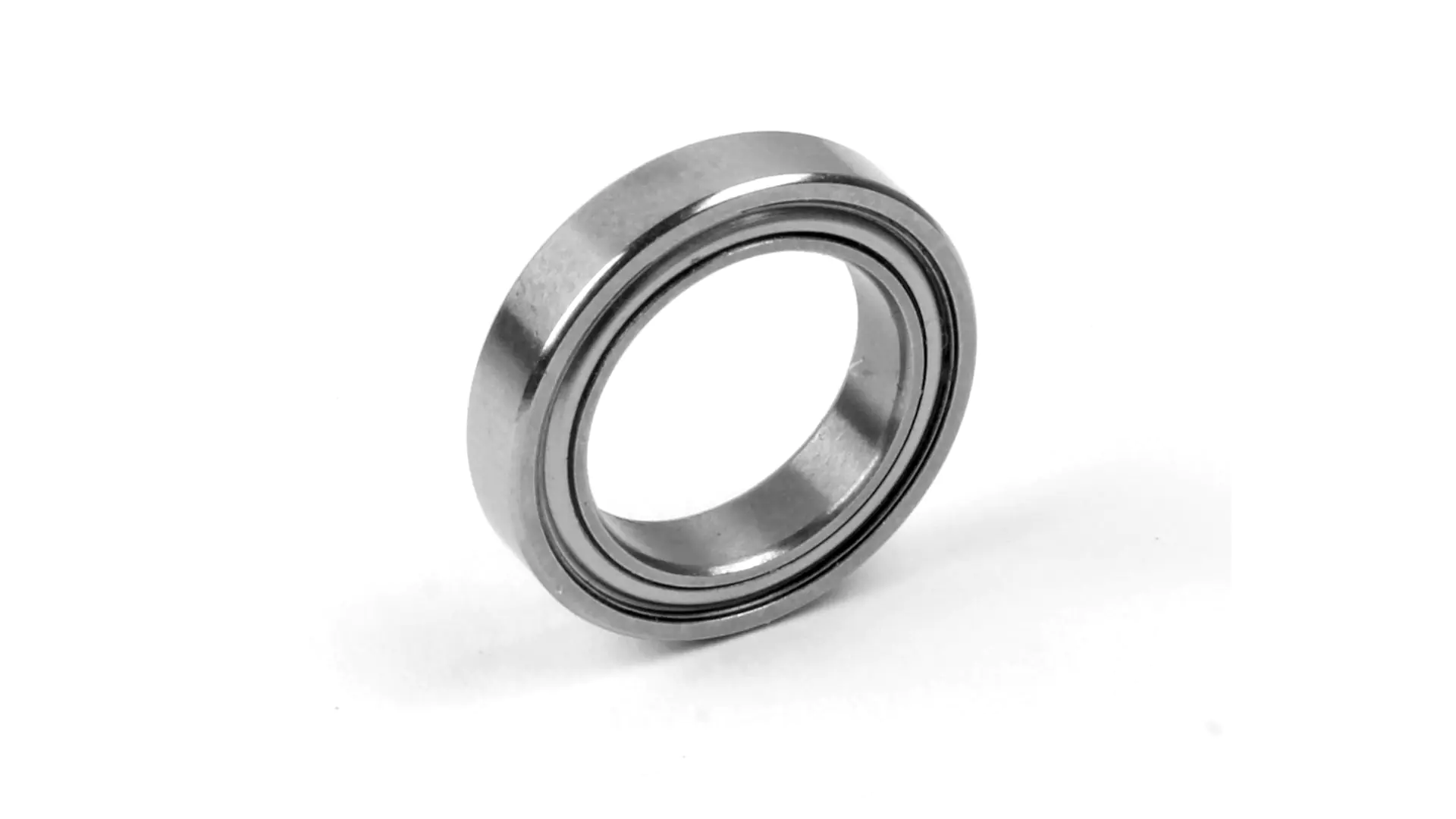

Ball Bearing Ball Bearing d=12.7 mm D=19 mm B=4.0 mm
Code 360644CartPrice € 9.90
