Panel Pilot Bit
TCT D=6.4mm B=19mm L=63mm Z=1+1 S=6mm KLEIN
€18.90*
Available, delivery time: 2-3 days
Product number: 360301
Product information

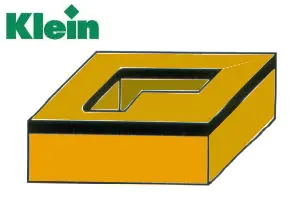

These milling cutters are used for producing copies from wood or panel materials with the help of a template, which is attached underneath the workpiece to be machined. The cutting tip allows for direct plunge into the material, eliminating the need for pre-drilling. They are also very well suited for creating cut-outs, flush trimming, and contour milling. Maximum workpiece thickness is 18 mm.
The copy milling cutters from Sistemi Klein are made of solid carbide (VHM) or are carbide-tipped (HM), depending on the size.
| Features | |
|---|---|
| Number of Teeth | 1 + 1 |
| Diameter D | 6.4 mm |
| Total Length L | 63 mm |
| Material | HM |
| Shank Diameter S | 6 mm |
| Cutting Length B | 19 mm |
