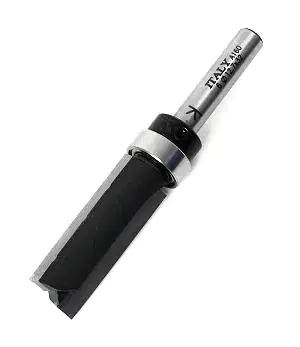

Trimming Cutters with upper Ball Bearing
TCT D=12.7mm B=13mm L=50mm S=6mm KLEIN
Available, delivery time: 2-3 days
Product information
Flush trim bits with a bearing on the shank side are used for trimming protruding, laminated materials such as veneers, to achieve a flat edge surface. The guide bearing is positioned centrally on the edge of the substrate panel, while the cutters remove the excess material. In the flush trim bit with a bearing on the shank side, both the cutter and the bearing have the same diameter.
The flush trim bits No. 361075 with a cutting length of 13 mm and No. 361076 with a cutting length of 19 mm are suitable for the Incra router template for router tables.
The flush trim bits from Sistemi Klein are equipped with carbide (HM).
| Properties | |
|---|---|
| Number of Teeth | 2 |
| Diameter D | 12.7 mm |
| Total Length L | 50 mm |
| Material | HM (carbide) |
| Shank Diameter S | 6 mm |
| Cutting Length B | 13 mm |
