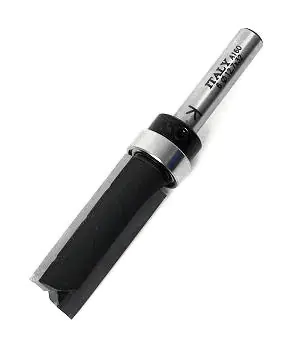

Trimming Cutters with upper Ball Bearing
TCT D=19mm B=25.4mm L=77mm S=12mm KLEIN
Available, delivery time: 1-3 businessdays within Germany
Product information
Flush trim routers with a shaft-side guide ring are used for trimming protruding, laminated coating materials such as veneers to achieve a flat edge surface. The guide ball bearing is centered on the edge of the base plate while the blades remove the excess material. In flush trim routers with a shaft-side guide ring, the cutting edge and guide ring have the same diameter.
Flush trim routers from Sistemi Klein are carbide-tipped (HM).
| Properties | |
|---|---|
| Number of Teeth | 2 |
| Diameter D | 19 mm |
| Total Length L | 77 mm |
| Material | HM |
| Shank Diameter S | 12 mm |
| Cutting Length B | 25.4 mm |
