Bessey Clamping Elements for Workbenches

Clamping elements or workpiece hold-downs for planing benches and workbenches have previously suffered from the disadvantage that the shaft was firmly connected to the hold-down part and was therefore only suitable for one hole size. This resulted in several incompatible systems. One workbench had 3/4 inch holes, another had 20 mm holes, and then there were some exotic ones with 1 inch holes and several more.

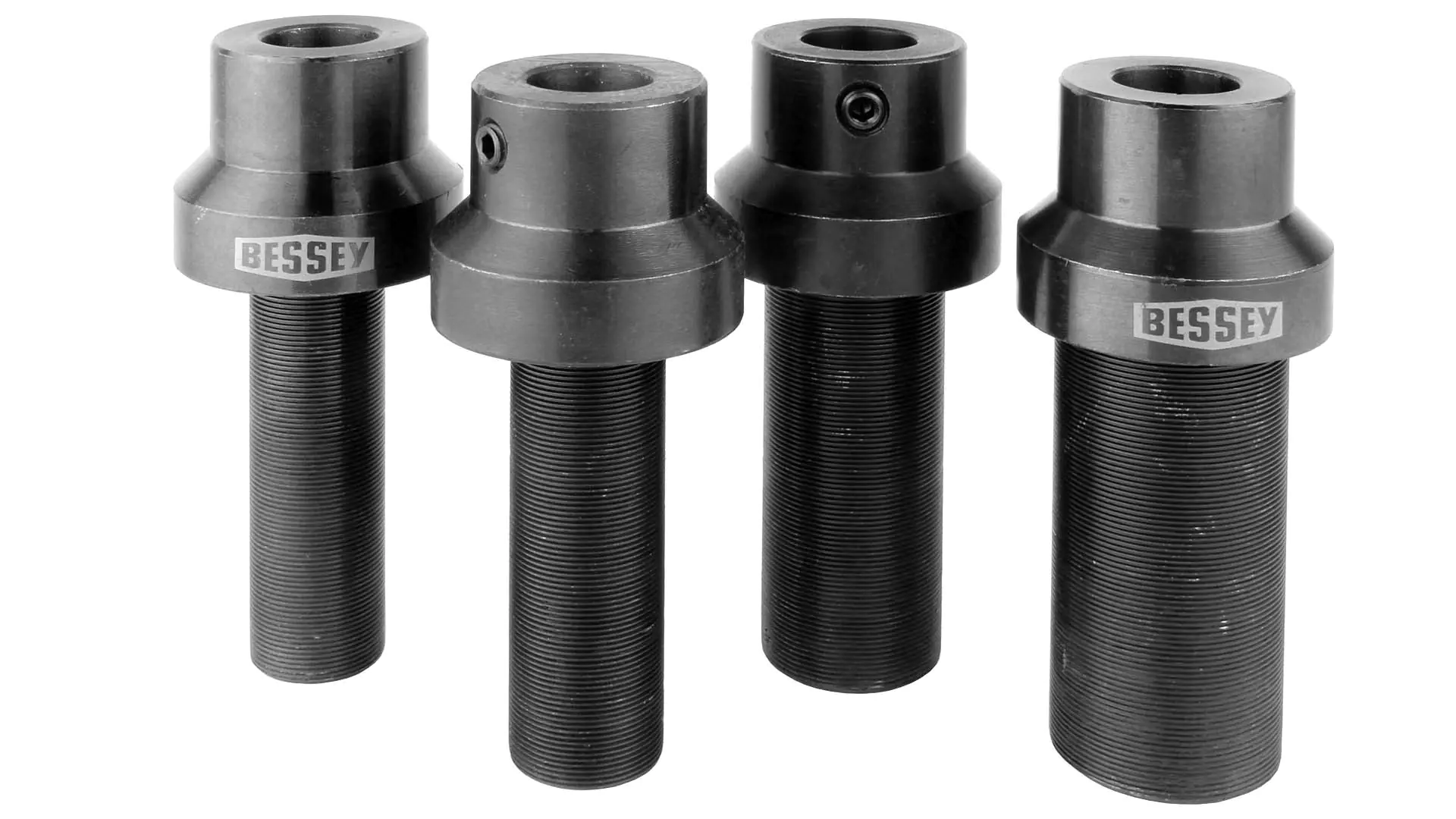

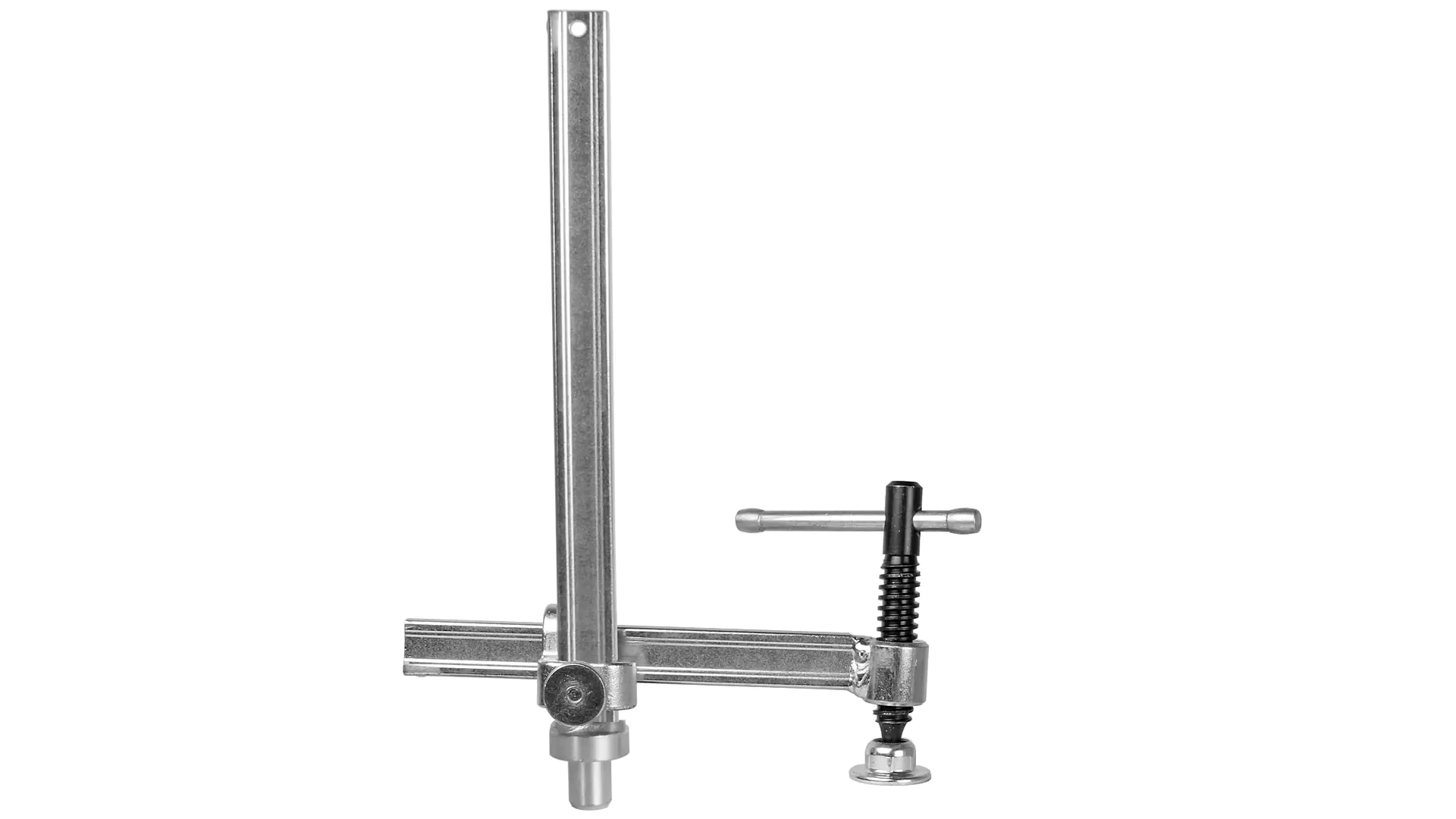

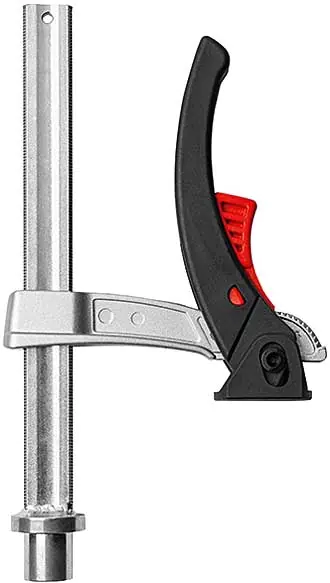

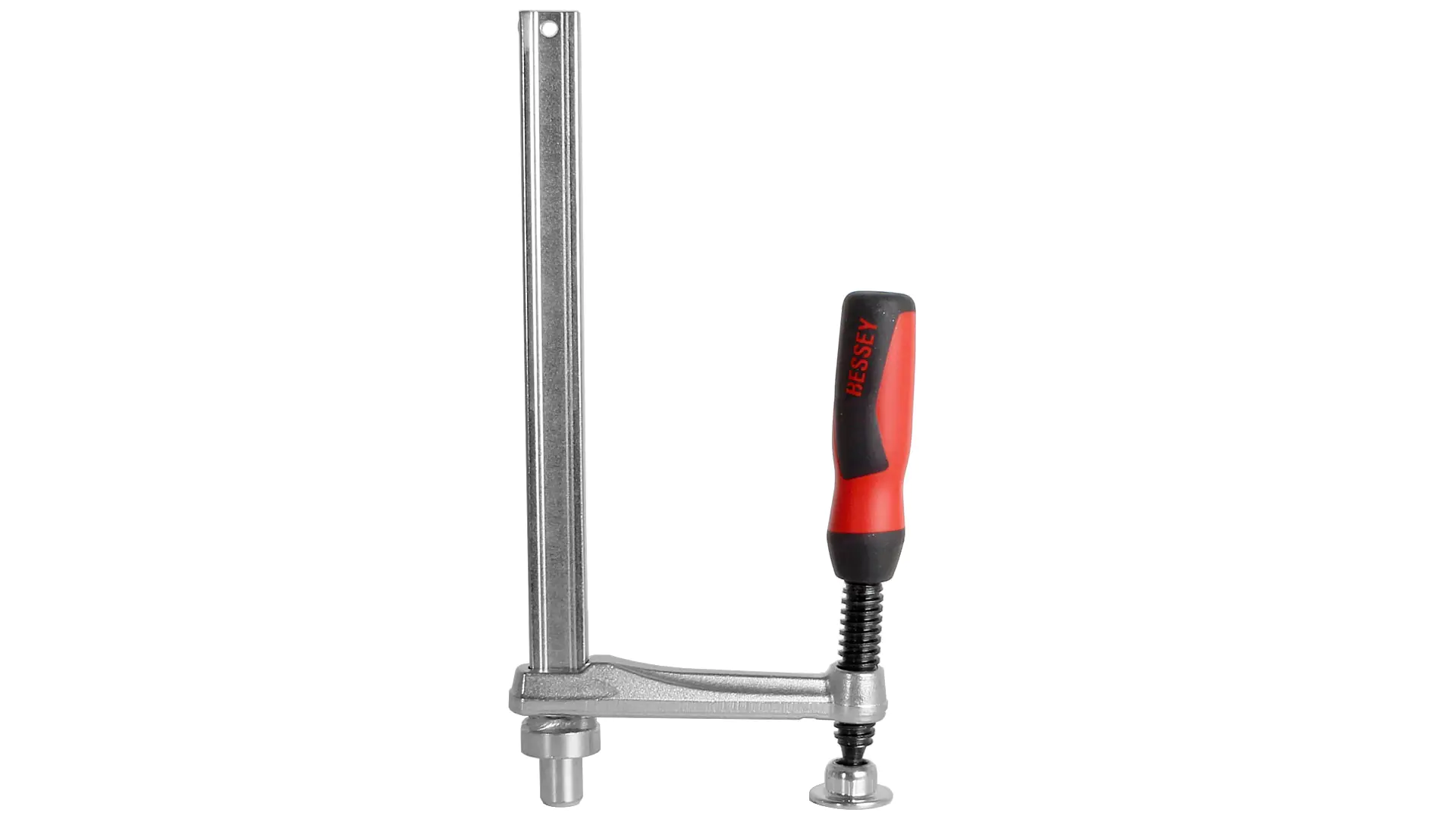

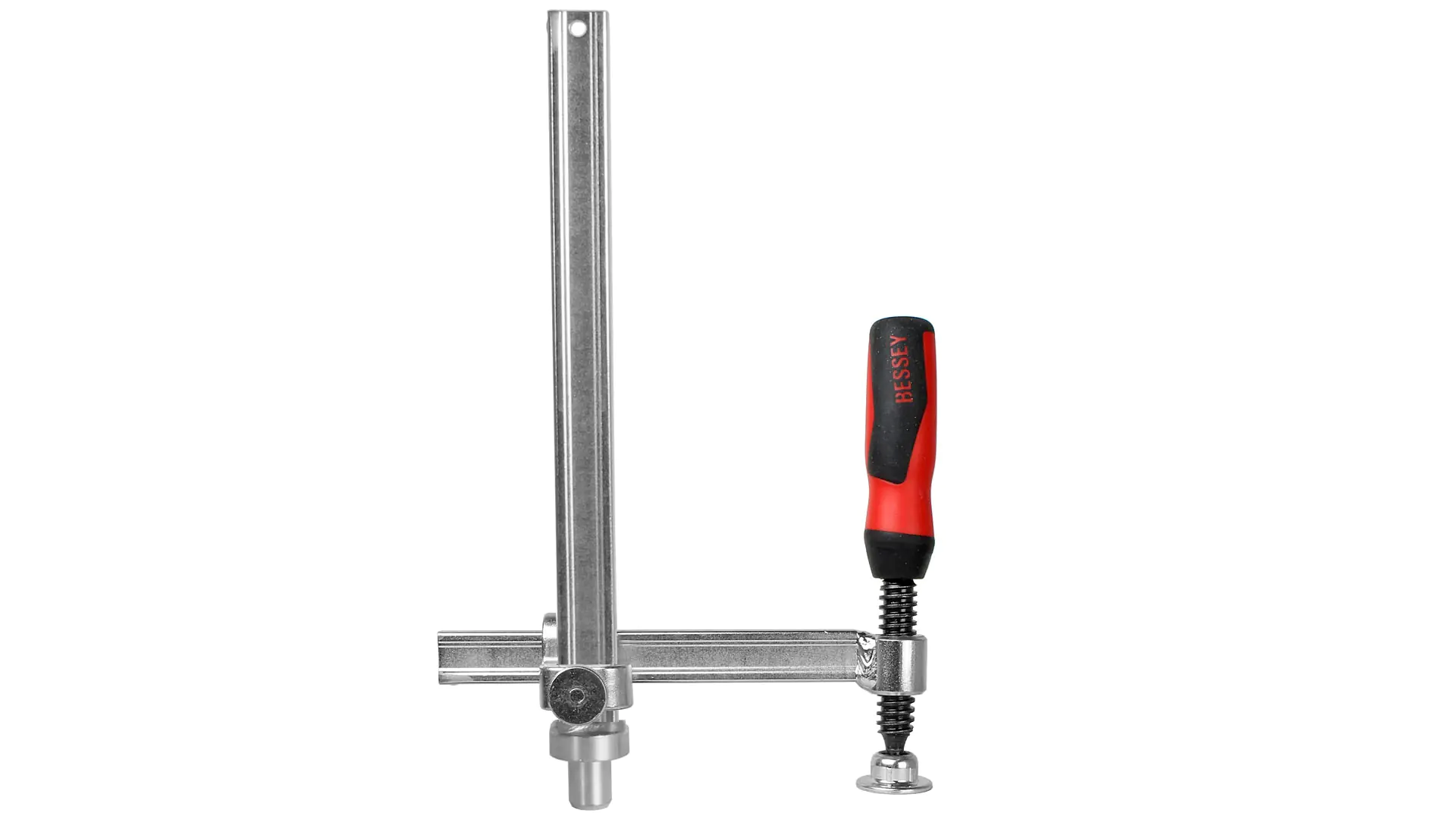

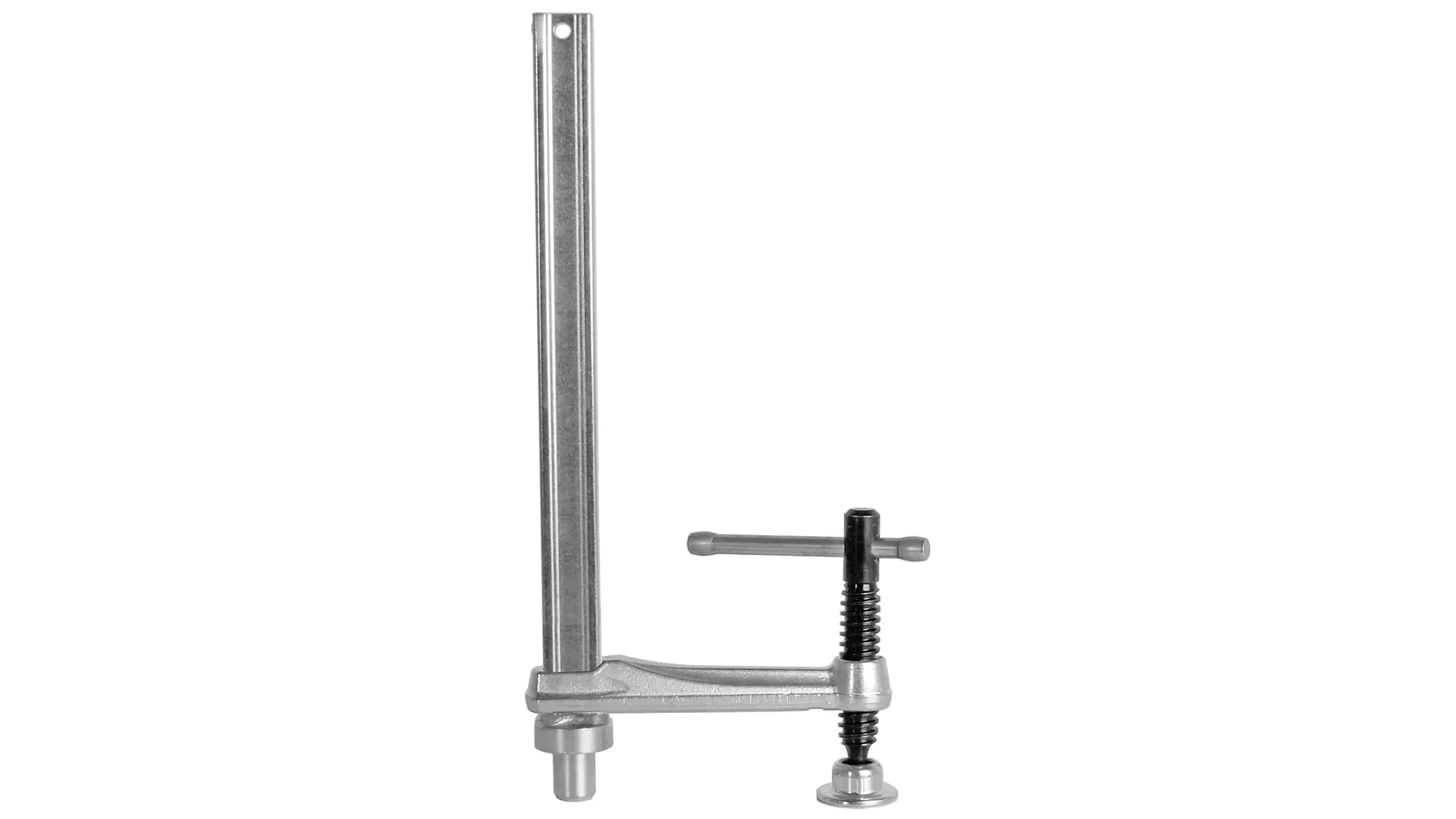

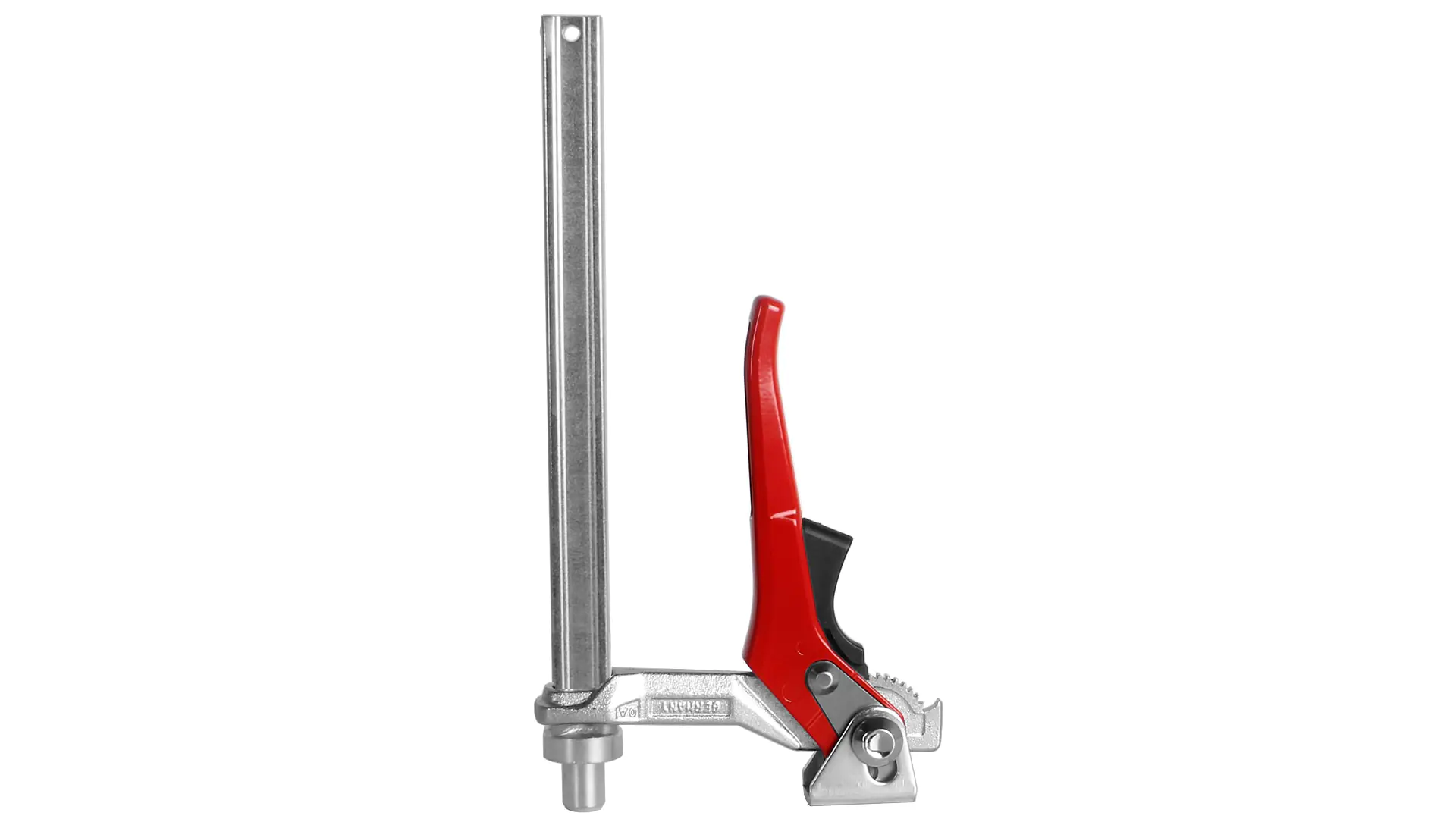

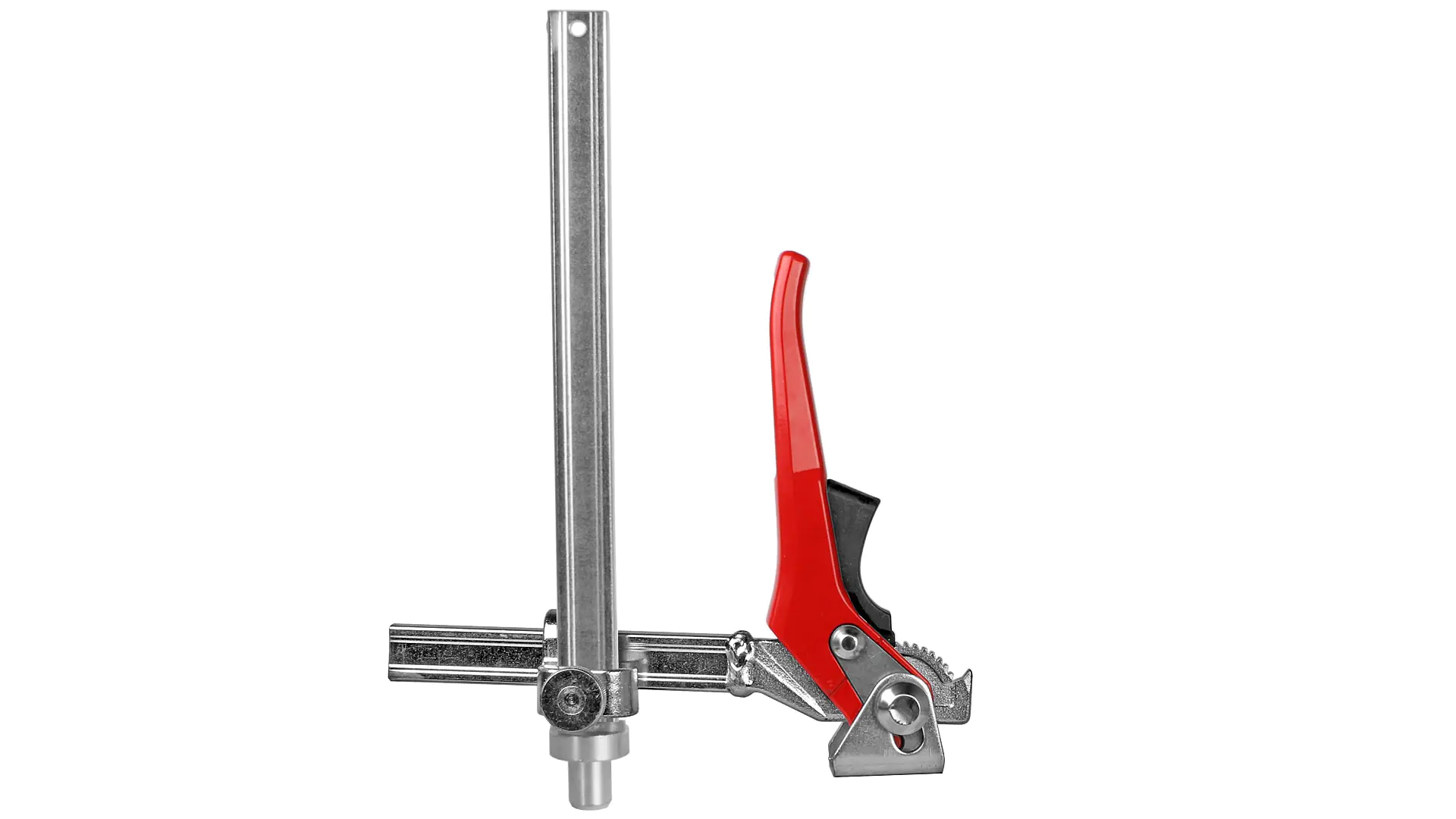

Bessey has now solved this problem by separating the hold-down part from the shaft. There are now clamping elements available in various designs with fixed or variable reach, with a two-component handle like on screw clamps, or a T-handle and eccentric handle. All variants fit on the separately available workbench adapters, of which there are 3 different ones with corresponding shafts for 19 mm, 20 mm, and 30 mm holes. If your workbench has any of these hole diameters, you can use all the clamping elements in this series. The clamping elements are simply placed on the adapter part and secured with an internal hex screw.
