Table Clamp with fixed throat depth and lever handle TW16-20-10H
BESSEY
Available, delivery time: 1-3 businessdays within Germany
Product information
Clamping elements or workpiece hold-downs for planing benches and workbenches previously suffered from the disadvantage that the shaft was firmly connected to the hold-down part and therefore only suitable for one hole size. This resulted in several incompatible systems. One workbench had 3/4 inch holes, another had 20 mm holes, and then there were some with 1 inch holes and a few more variations.
Bessey has now solved this problem by separating the hold-down part from the shaft. Now, there are clamping elements available in various designs with fixed or variable reach, with a two-component handle like on screw clamps or with a T-handle and eccentric handle. All variants fit the separately available workbench adapters, of which there are 3 different ones with corresponding shafts for 19 mm, 20 mm, and 30 mm holes. If your workbench has any of these hole diameters, you can use all clamping elements of this series. The clamping elements are simply placed onto the adapter part and secured with an internal hex screw.

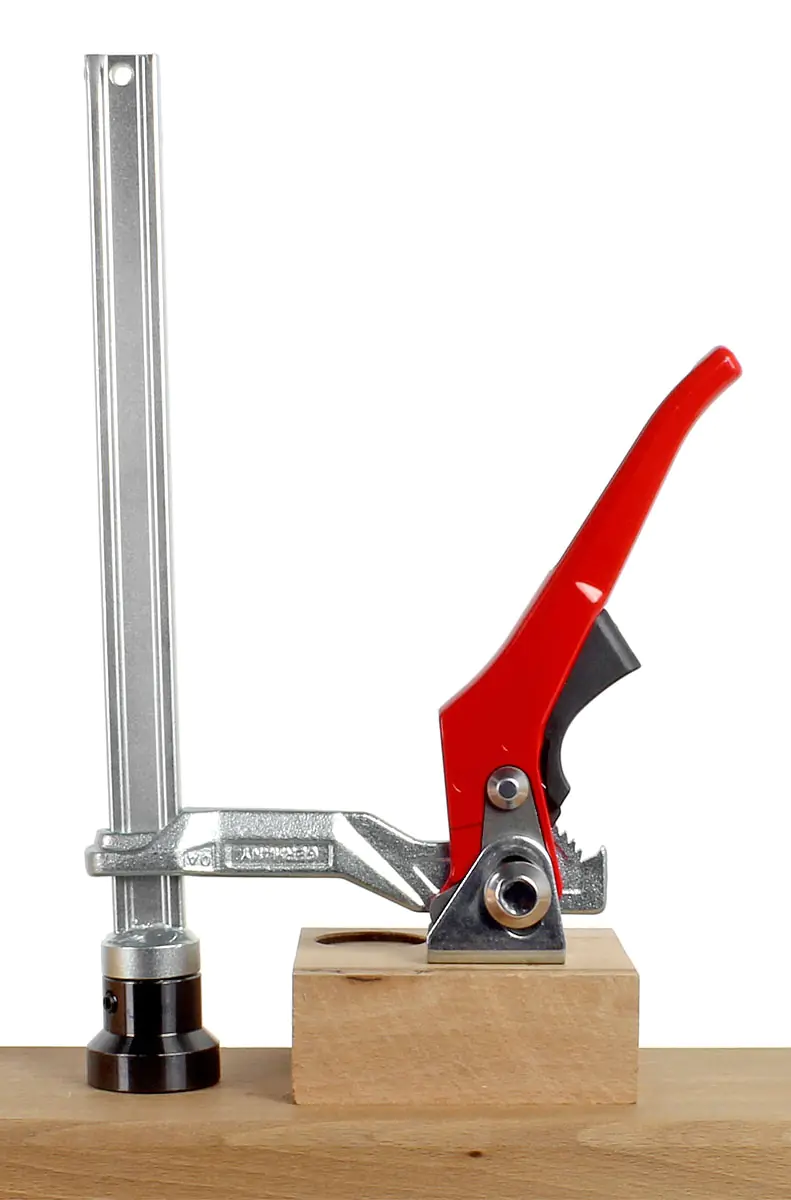

In this lever handle version, the natural force of the lever is utilized. The ratchet mechanism ensures controlled, quick, and vibration-proof clamping. The wear-resistant eccentric guarantees a long service life.
Delivery WITHOUT adapter!
| Features | |
|---|---|
| Manufacturer No. | TW16-20-10H |
| Shank Diameter | 16 mm |
| Shank Length | 20 mm |
| Rail Profile | 22 × 8.5 mm |
| Clamping Height | max. 200 mm |
| Clamping Depth | 100 mm |
