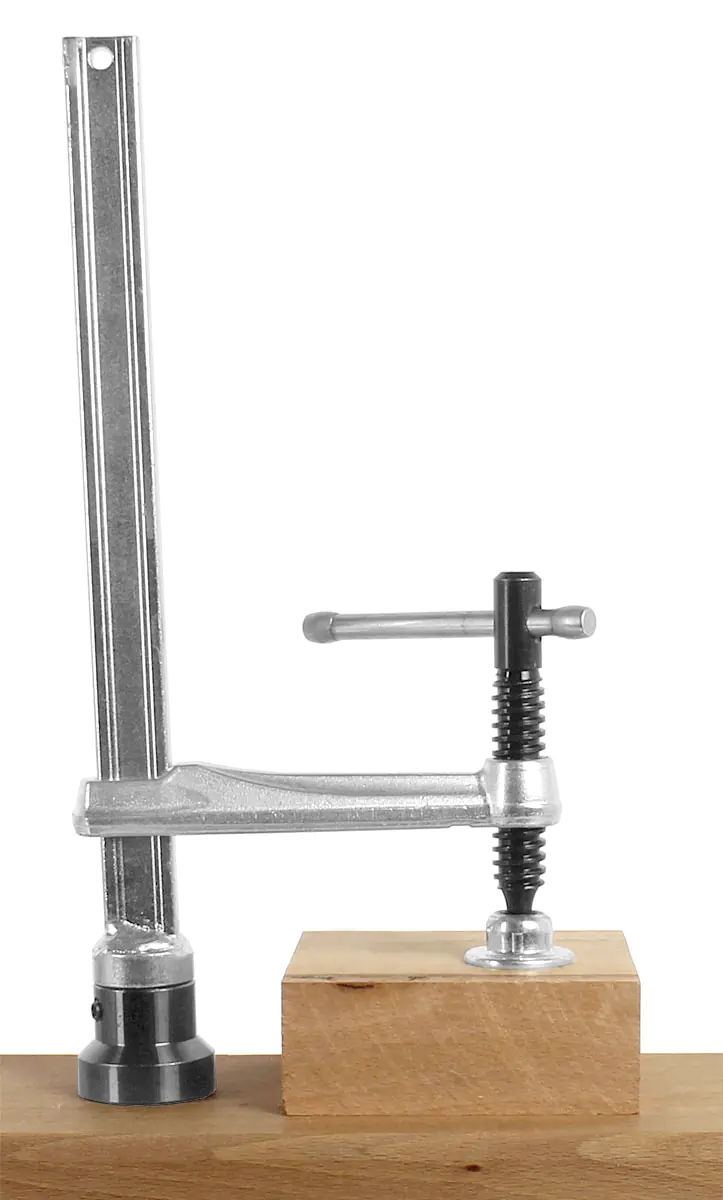

Table Clamp with fixed throat depth and T-handle TW16-20-10K
BESSEY
Available, delivery time: 1-3 businessdays within Germany
Product information
Clamping elements or workpiece hold-downs for planers and workbenches previously suffered from the disadvantage that the shaft was firmly connected to the hold-down part and thus only suitable for one hole size. This resulted in several incompatible systems. One workbench had 3/4 inch holes, another had 20 mm holes, and then there were some exotic options with 1 inch holes and even more.
Bessey has now solved this problem by separating the hold-down part and the shaft. There are now clamping elements available in various designs with fixed or variable outreach, with a two-component handle like on screw clamps or a T-handle and eccentric lever. All variants fit the separately available workbench adapters, of which there are 3 different ones with corresponding shafts for 19 mm, 20 mm, and 30 mm holes. If your workbench features any of these hole diameters, you can use all clamping elements of this series. The clamping elements are simply attached to the adapter part and secured with a hex socket screw.
The surface-coated spindle with trapezoidal thread is smooth-running and does not jam.
Delivery WITHOUT adapter!
| Properties | |
|---|---|
| Manufacturer No. | TW16-20-10K |
| Shaft Diameter | 16 mm |
| Shaft Length | 20 mm |
| Rail Profile | 22 × 8.5 mm |
| Clamping Height | max. 200 mm |
| Clamping Depth | 100 mm |
