INCRA Miter Channel - Aluminium T-Slot Length 48 in. = 1219 mm
Available, delivery time: 1-3 businessdays within Germany
Product information

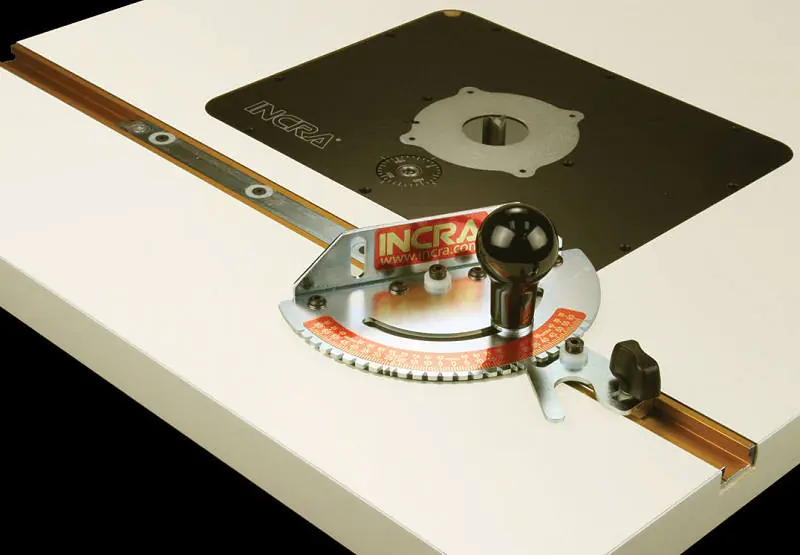

Your table doesn’t have a 3/4 inch (19 mm) T-slot? Use this T-slot track to accommodate the adjustable aluminum guide in your machine table or build a new one from sheet material. Suitable for the above-mentioned aluminum guide and for Incra miter or crosscut fences as well as for all 3/4 inch machine guides. Easy installation through pre-drilled mounting holes (diameter 3/16 inch (4.8 mm) spaced 3 inches (76 mm) apart) and supplied screws. Made from hard-anodized aluminum.

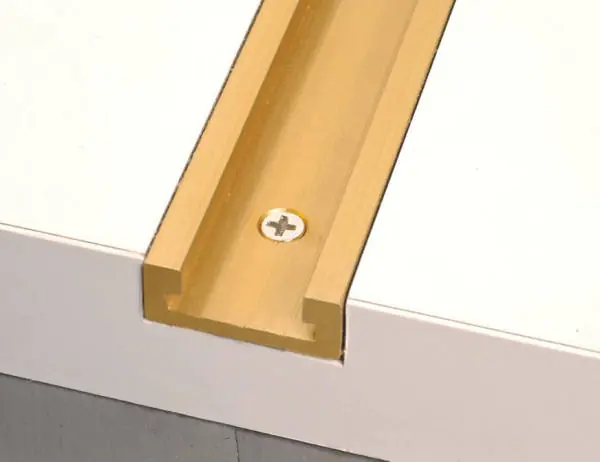

Application: Cut a groove in your worktop with a width of 28.6 mm and a depth of 12.7 mm to accommodate this T-slot track. When mounted, the track should not protrude above the level of the board, rather rout it a tenth deeper!
| Features | |
|---|---|
| Application | For mounting the adjustable aluminum guide in your machine table or for building a new table from sheet material |
| Length | 48 inch (1219 mm) |
| Material | hard-anodized aluminum |
| Mounting holes | Diameter 3/16 inch (4.8 mm) spaced 3 inch (76 mm) apart |
