INCRA Miter Slider - Adjustable Aluminium Runner 18 in. = 457 mm
Available, delivery time: 1-3 days
Product information
This aluminum guide is suitable for 3/4-inch table slots as found in many machine tables in the Anglo-Saxon region or in imported machines. Machines manufactured in Germany rarely feature table slots of this size. Table slot dimensions: 3/4 inch x 3/8 inch (19.05 × 9.52 mm). With a small turn of the two width adjustment screws, the side play can be reduced to zero. If your machine table has a different size, it is recommended to build a guide from seasoned hardwood yourself. Please measure before ordering to ensure your table’s slot is indeed 19 mm. A 20 mm slot is definitely too large, the width adjustment screws cannot cover this size.
Dimensions: 18 × 3/4 × 25/64 inch (457 × 19 × 10 mm)
Slight undersize in width: 18.85 mm

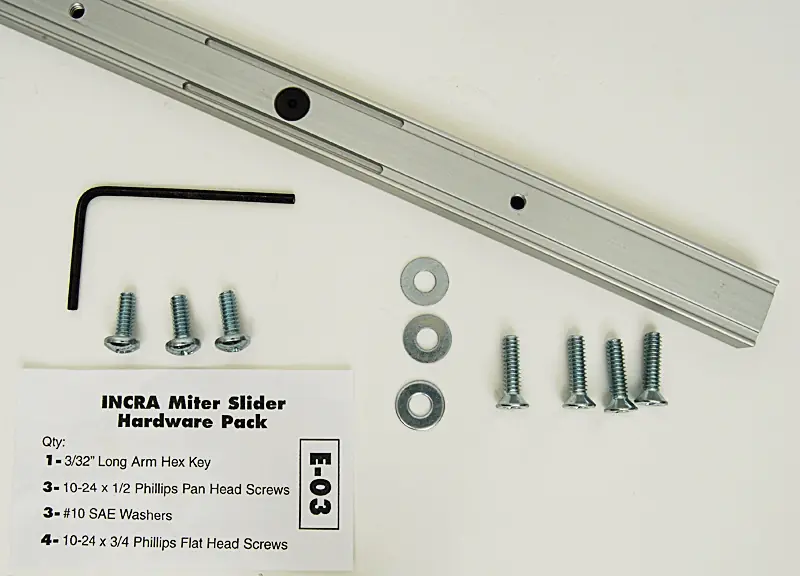

Included in delivery:
- 1 angle key 3/32 inch
- 3 Phillips round head screws 10-24 × 1/2 UNC
- 3 washers 10 SAE
- 4 flat head screws 10-24 × 1/2 UNC (The thread diameter "10-24" refers to a coarse thread with a diameter of 3/16 inch. The screws are 12.7 mm long without the head. Important: these threads are not compatible with metric threads!)
| Features | |
|---|---|
| Included Items | 1 angle wrench 3/32 inch, 3 Phillips round head screws 10-24 × 1/2 UNC, 3 washers 10 SAE, 4 flat head screws 10-24 × 1/2 UNC |
| Dimensions | 18 × 3/4 × 25/64 inch (457 × 19 × 10 mm) |
| Table slot dimensions | 3/4 inch x 3/8 inch (19.05 × 9.52 mm) |
| Undersize in width | 18.85 mm |
