Special Japanese Planes

Special Japanese Planes: Champfer Plane, Rabbet Plane left and right, Side Rabbet Plane left and right

Japanese planes are not ready for use. They require some tuning before you can start planing. Detailed instructions how to tune up a Japanese plane you find in Toshio Odate’s book: Japanese Woodworking Tools. Click on the images to see a magnified view!

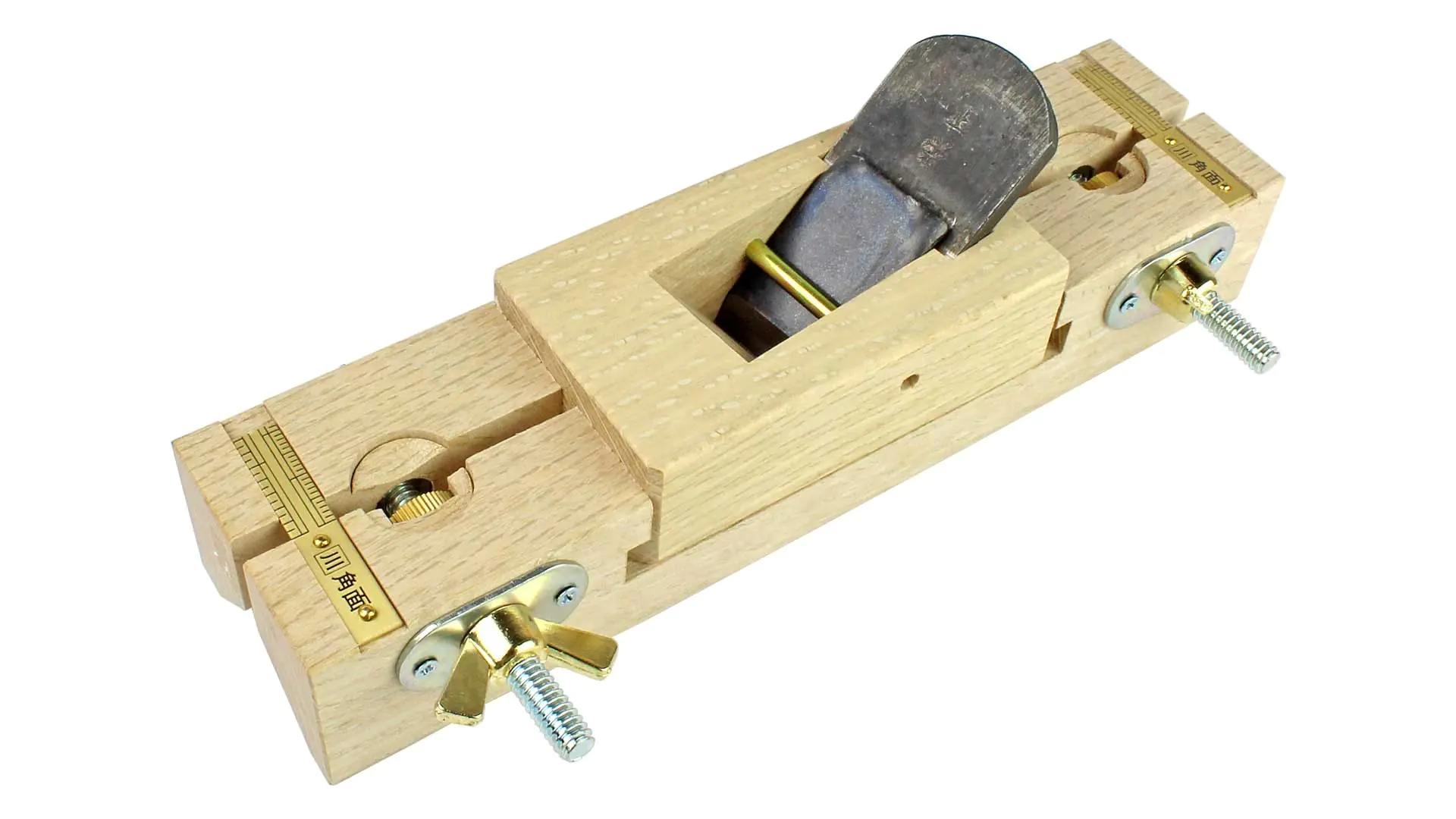

Mentori Kanna - Chamfer Plane
You can ease the edges of your work effortlessly with this Japanese chamfer plane, Mentori Kanna. Because the plane's iron is set at an angle to the body, it makes a "pulling" cut. You get much better results because the iron is brought into contact with the work progressively (holding a plane at an angle to the workpiece is also effective in other planing work - try it; you'll be convinced!). The iron of the Mentori Kanna is adjustable side-to-side; if one part of the iron becomes dull, you can adjust it to present a sharp part of the edge, and temporarily put off sharpening. Chamfer angle 45°. Enlargement!
Currently not in stock!
Code 309803Cart Price € 99.00
Kiwa Kanna - Rabbet Plane left
The angled iron in this rabbet plane allows a pleasant, pulling cut - no jerks or seizing while cutting the wood! The plane comes in right- and left-cutting models. This feature is not only designed to allow comfortable planing for both right and left-handed people: if the planes are used as a pair, one has the possibility to cut always with the run of the wood fibers and to reduce or eliminate the problems with tear-out associated with cutting against the grain. The plane body is made of white oak. This plane comes in two widths.

The iron is of laminated steel about 7 mm thick. The cutting edge is formed of "Blue Steel", a modified carbon steel. A chip breaker allows a good, uniform depth of cut and reduces tear-out.

the Japanese character for "left" Left-side Rabbet Plane.

Narrow Kiwa Kanna left
Blade width 36 mm (1-13/32 inch)
Max. width of rabbet 35 mm (1-3/8 inch)
Body 220 x 54 x 33 mm
(8-21/32 x 2-1/8 x 1-5/16 inch)
Code 310477CartPrice € 139.00

Wide Kiwa Kanna left
Blade width 42 mm (1-21/32 inch)
Max. width of rabbet 40 mm (1-37/64 inch)
Body 235 x 60 x 33 mm
(9-1/4 x 1-3/8 x 1-5/16 inch)
Code 310475CartPrice € 149.00

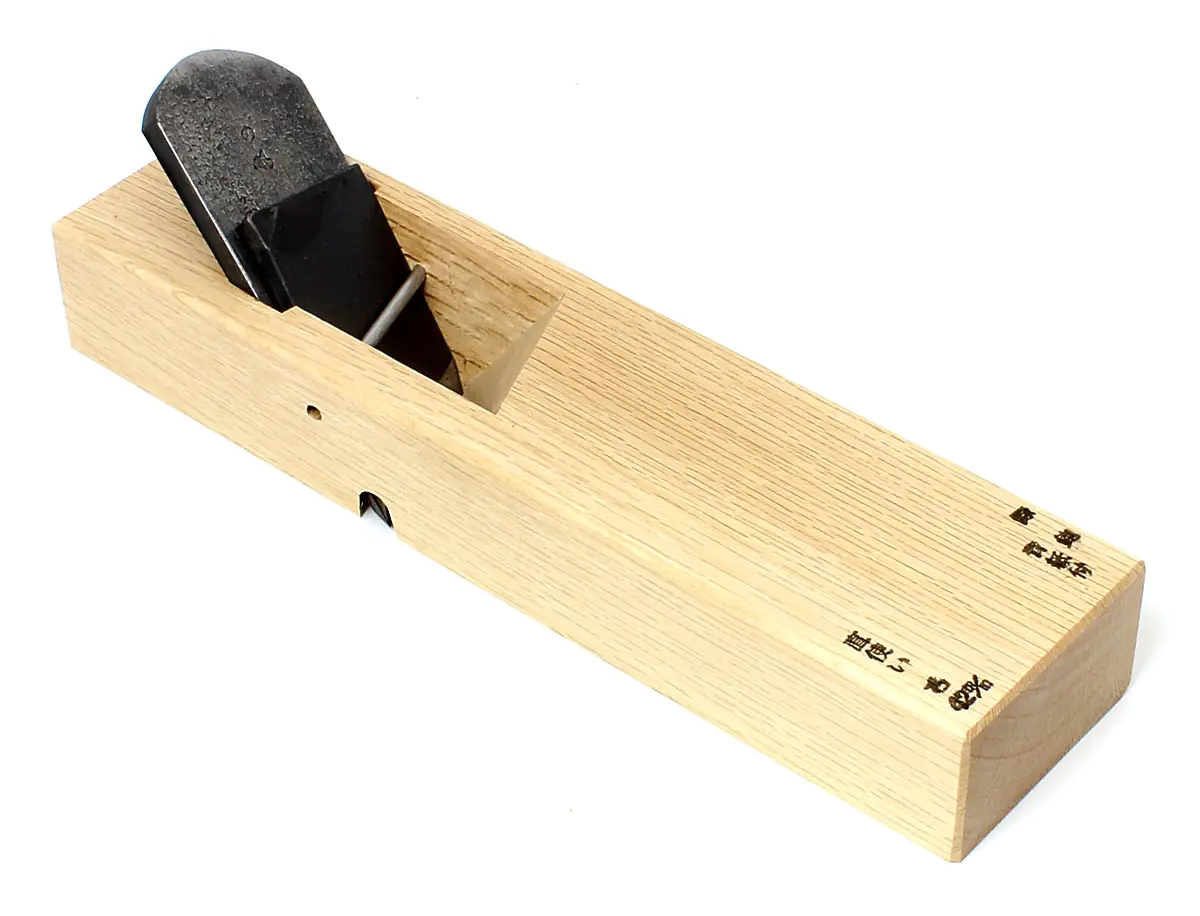

Kiwa Kanna - Rabbet Plane right
Same as above, but cuts on right side.

Japanese character for "right" Right-side Rabbet Plane.

Narrow Kiwa Kanna right
Blade width 36 mm (1-13/32 inch)
Max. width of rabbet 35 mm (1-3/8 inch)
Body 220 x 54 x 33 mm
(8-21/32 x 2-1/8 x 1-5/16 inch)
Code 310478CartPrice € 139.00

Wide Kiwa Kanna right
Blade width 42 mm (1-21/32 inch)
Max. width of rabbet 40 mm (1-37/64 inch)
Body 235 x 60 x 33 mm
(9-1/4 x 1-3/8 x 1-5/16 inch)
Code 310476CartPrice € 149.00
Uwaanwakitori - Side Rabbet Plane left

This plane clears away waste material on the side of rabbets. It can be used to widen, adapt, or straighten the cut. For more comfortable working there is a left cutting and a right cutting model. The iron is 20 mm broad, but because of the angle ground into the end of the blade, the width of the cut ends up being 32 mm. The rabbet can be cut to a maximum depth of 26 mm. The plane is 260 mm long. The body is of white oak.

If you want to work on the sides of the slots of this plane: the minimum width of the grove should be 20 mm. If you want to work on narrower slots, the plane must be modified and the lower piece of the body cut somewhat narrower.

The iron is made of laminated carbon steel. A chipbreaker allows a very thin ribbon of wood to be cut. Unlike most Japanese planes, this one is ready for use. We recommend nevertheless to flatten the mirror side and hone the blade on a fine stone before use.

Japanese character for "left" Left-cutting plane.

Code 310483CartPrice € 198.00

Uwaanwakitori - Side Rabbet Plane right

The same as above, but right-cutting.

Japanese character for "right" Right-cutting plane.

Code 310484CartPrice € 198.00

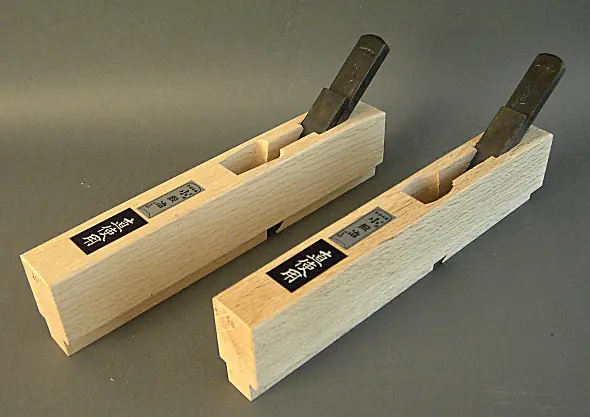

Osakasokotori - Rabbet Plane
These Japanese rabbet planes have an offset sole and an iron of laminated carbon steel 8 mm thick. A chip breaker helps - during fine work - to avoid tear out in the wood. There is a generously-sized throat at the top of the plane to allow shavings to work their way out of the body and prevent clogs building up at the sole. This works, naturally, only if the plane is correctly adjusted. For this to work, the chip breaker must be fixed as near as possible to the iron's cutting edge (less than 1 mm), so that only a thin shaving is removed.

The iron should be flattened, sharpened and honed before use. The plane iron bed may need to be widened slightly before use also. The body is of white oak. Both planes are 258 mm long.

Blade
width
Total
width
Max. Depth
of Rabbet
CodePrice
18 mm 32 mm 15 mm
Code 310486CartPrice € 129.00
21 mm 35 mm 15 mm
Code 310485CartPrice € 129.00
Mado waku shakuri kanna
Window-frame plane
Blade width 36 mm
Rebate depth 6 mm
Blue Steel
Code 310488CartPrice € 109.00
Aisokotori
Rabbet plane
Blue steel


Blade width 18 mm
Code 310412CartPrice € 109.00
Kushisakuri
Rabbet plane
Blue steel


Blade width 12 mm
Code 310411CartPrice € 59.00
Hikoki Ganna - Mullion Plane
This plane is used to surface a number of different posts or frames at the same time during the crafting of Japanese shoji screens and doors. The side rails, with a slanted slot, are used to set the final dimension of the workpieces and are fixed in place using the screw shown. There is a bamboo roller in the sole of the plane to prevent individual frame pieces from bending up, while guaranteeing an even pressure on all the parts. The plane body is 272 mm long and 88 mm wide. The side rails are 320 mm long. The laminated iron is 68 mm wide and made of high-carbon steel 10 mm thick at the top and is fitted with a chipbreaker. The plane can handle material up to 60 mm wide.

The iron is hand forged by the knifesmith Hideji Ogata. The plane body, in white oak is hand made by the well-known plane (dai) maker Isao Inomoto.
More pictures
Code 315809CartPrice € 899.00
