Slider for Circular Saw Guide
SHINWA
Available, delivery time: 2-3 days
Product information

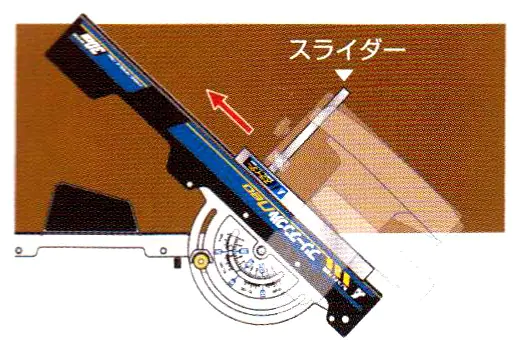

Fits the guide rails with continuously adjustable angle (No. 310374, 310375, 310376) and the new guide rails with fixed angle (No. 310380, 310381, 310782). The U-profile of this glide stop can be hooked into a slot of the guide rail that runs parallel to the stop edge. The tongue part is attached to the stop holder of the hand-held circular saw. Please note that this glide stop is not designed for the European market and therefore fits only a few small machines. Please take note of the measurements listed below.
The U-profile is 230 mm long with an outer cross-section of 20 × 7 mm and a material thickness of 2 mm. The tongue part is 146 mm long with a cross-section of 12 × 3 mm.
| Properties | |
|---|---|
| Tongue part length | 146 mm |
| U-profile length | 230 mm |
| U-profile cross-section | 2 mm, 20 × 7 mm |
| Tongue cross-section | 12 × 3 mm |
Login

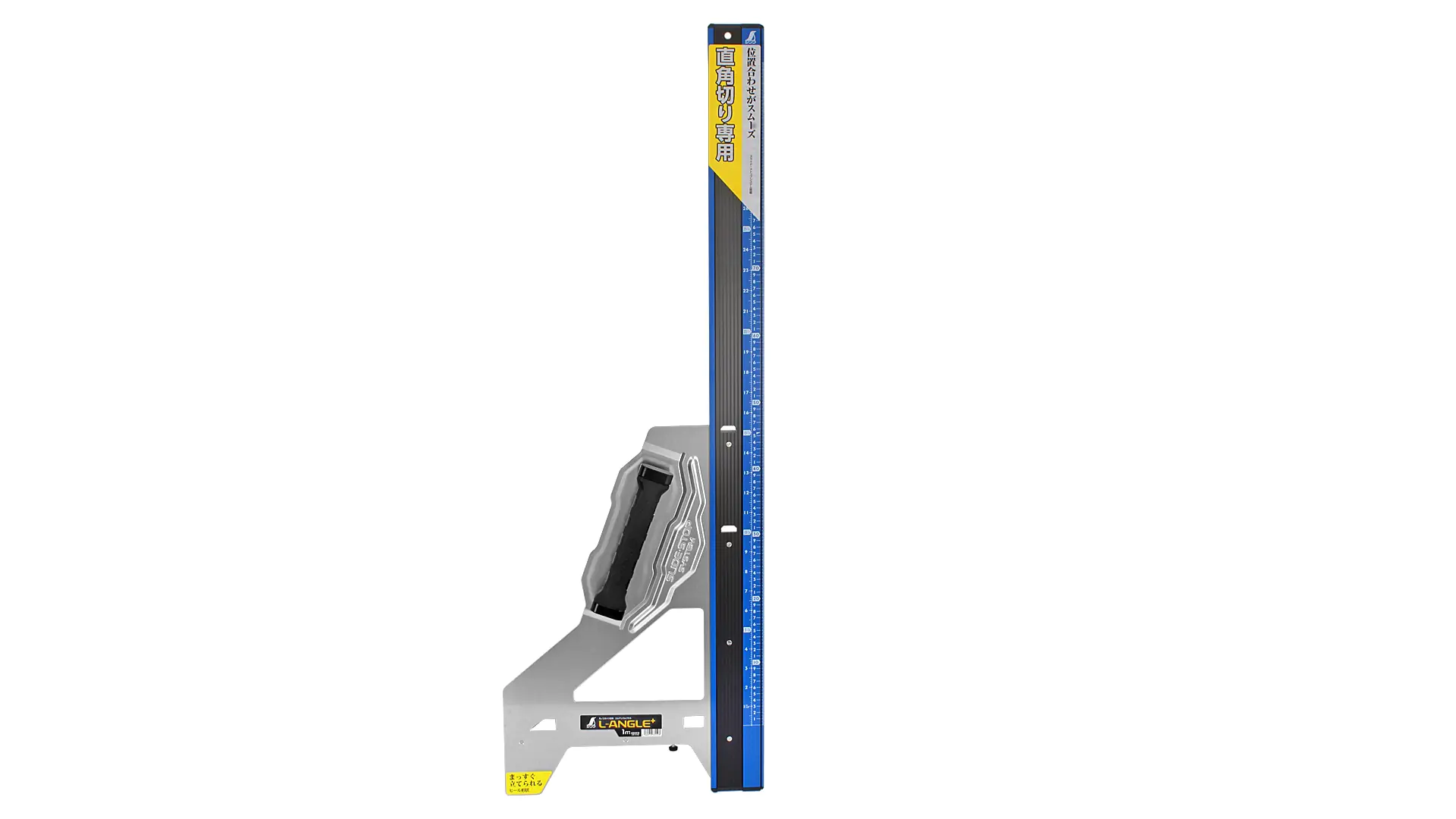

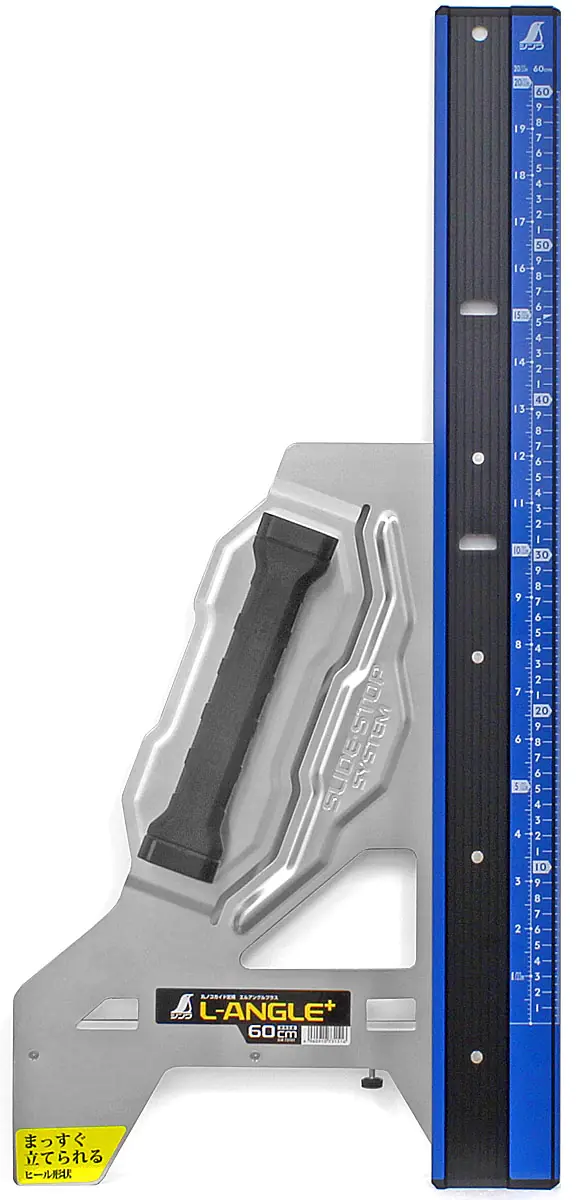

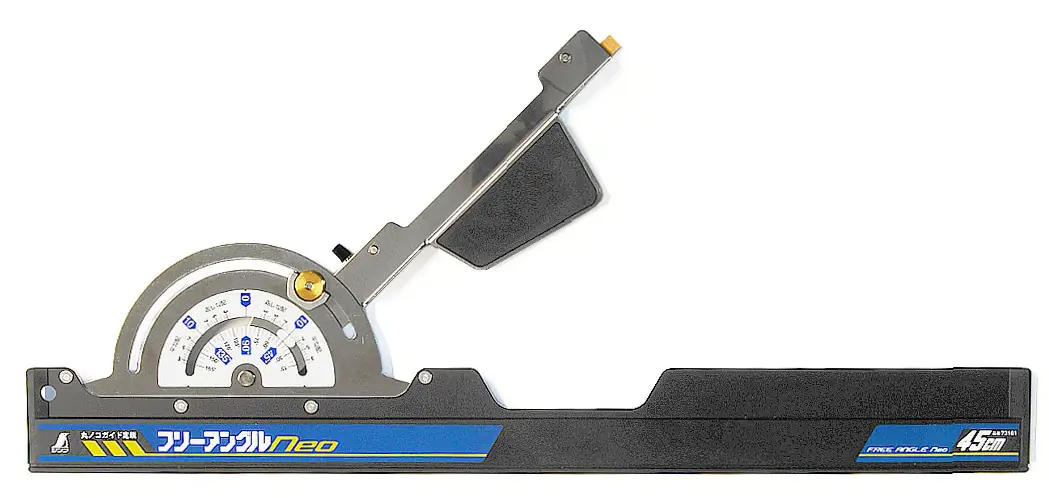

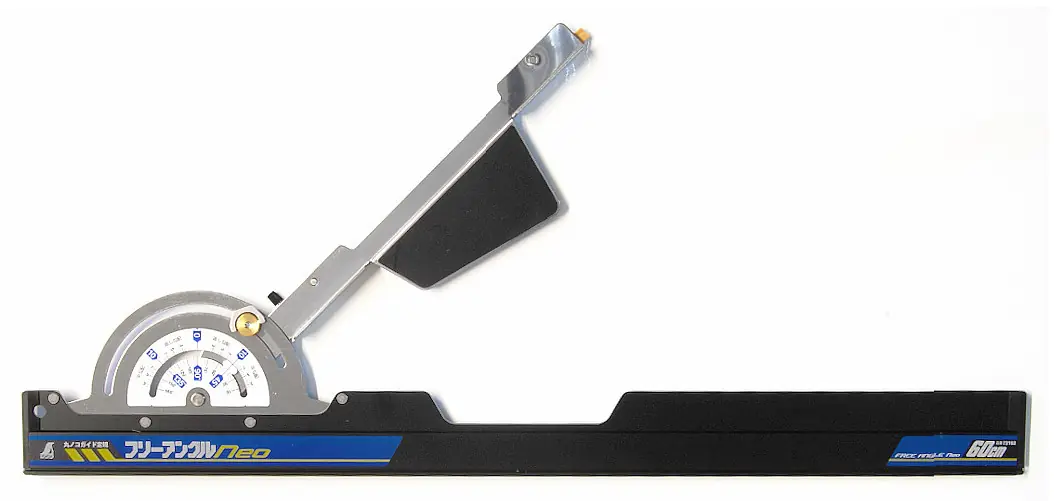

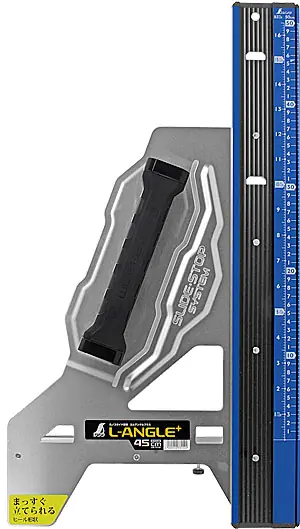

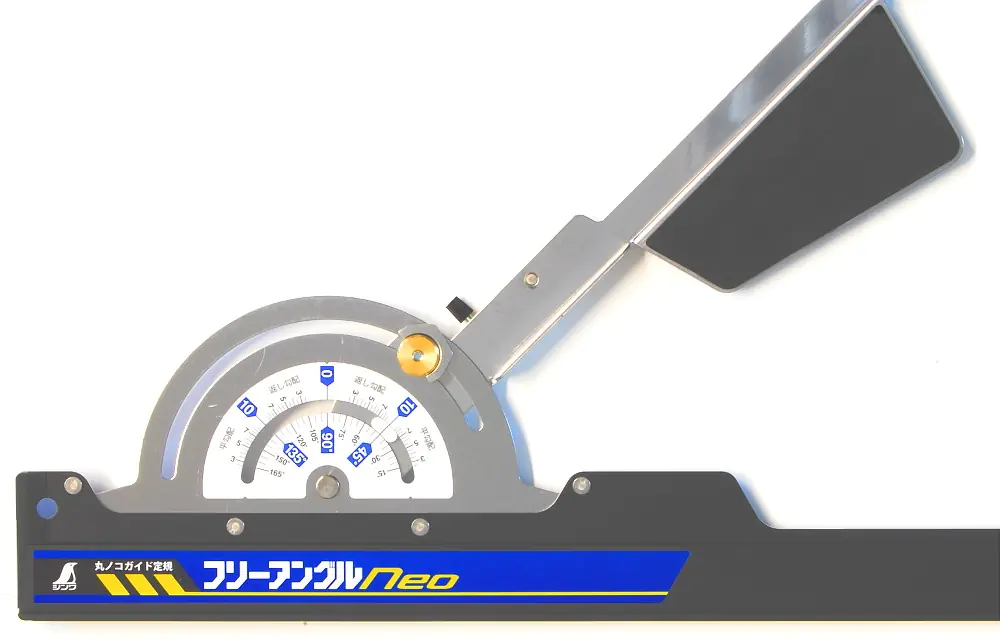

Fits for
