Circular Saw Guide 90°-Angle 100cm
SHINWA
Available, delivery time: 1-3 businessdays within Germany
Product information

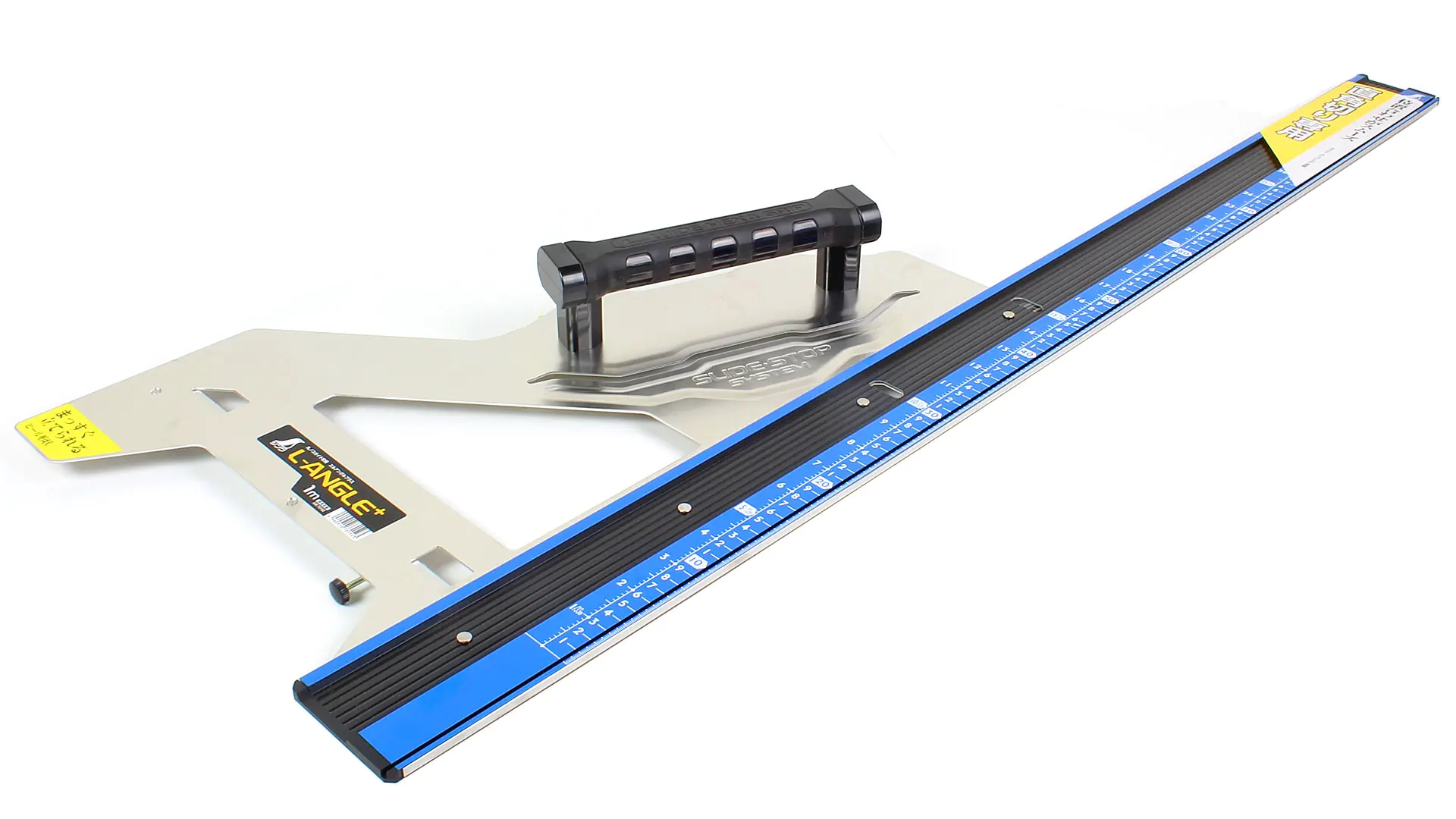

This precise guide rail, to which any circular saw can be applied, makes cutting boards safe and easy. The angle and handle are firmly riveted. Rubber pads on the underside effectively prevent slipping on the workpiece.
The angle part, stop, and rail are made of lightweight aluminum, ensuring fatigue-free work even during prolonged use. The weight is only 1500 g. The handle made of ABS is ergonomic and coated with soft elastomer so that it never feels cold or uncomfortable even in unheated rooms or outdoors during the cold season. The edge of the rail is made of stainless steel.
For good readability of the scales, the rail is blue-coated and marked with white lettering. Since these guide rails are manufactured for the Japanese market and carpenters still use traditional units of measurement, there are two scales on the rail: besides metric, also „Shaku” (303 mm or 10/33 m) and 1 division on the numbers „Sun” (30.3 mm or 1/33 m). The metric scale is the main scale on the edge, with „Shaku” behind it, so to speak, in the second row.
The Japanese manufacturer Shinwa guarantees an angular accuracy of 0.1 mm over the entire length of the rail. The total length of the rail is 116 cm, with an effective usable length (= max. workpiece width) of 100 cm. To better position the circular or jigsaw on the workpiece, the rail extends 10 cm beyond the workpiece, as seen at the rail end in the lower part of the image. The rail itself is 82 mm wide and 6 mm high.
The underside stop that lies against the wood is hollow and equipped with a knurled screw. An 8 × 8 mm strip (included) can be inserted into this hollow stop and secured with the knurled screw. This allows you to determine the distance between the rail and the saw cut edge once, so you always know what distance to maintain from the line for future cuts.

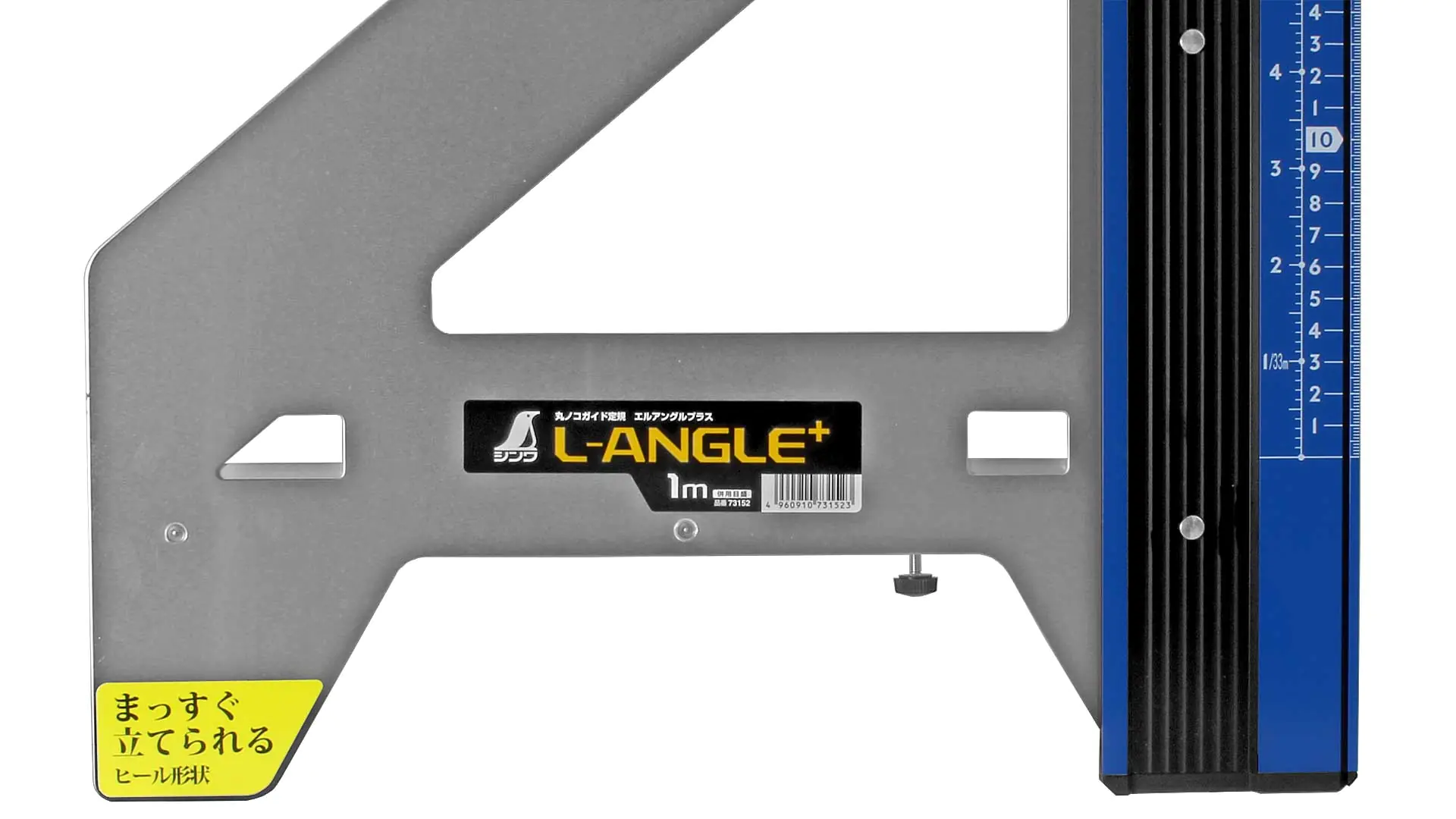

Two holes in the angle part on the right and left of the company logo at the bottom give a clear view of the underside stop. This allows you to easily check from above whether it is cleanly resting against the workpiece.
| Features | |
|---|---|
| Overall dimensions | 1162 × 400 × 82 mm |
| Overall length | 1162 mm |
| Weight | 1500 g |
| Maximum workpiece width | 1000 mm |
| Rail cross-section | 83 × 7 mm |
