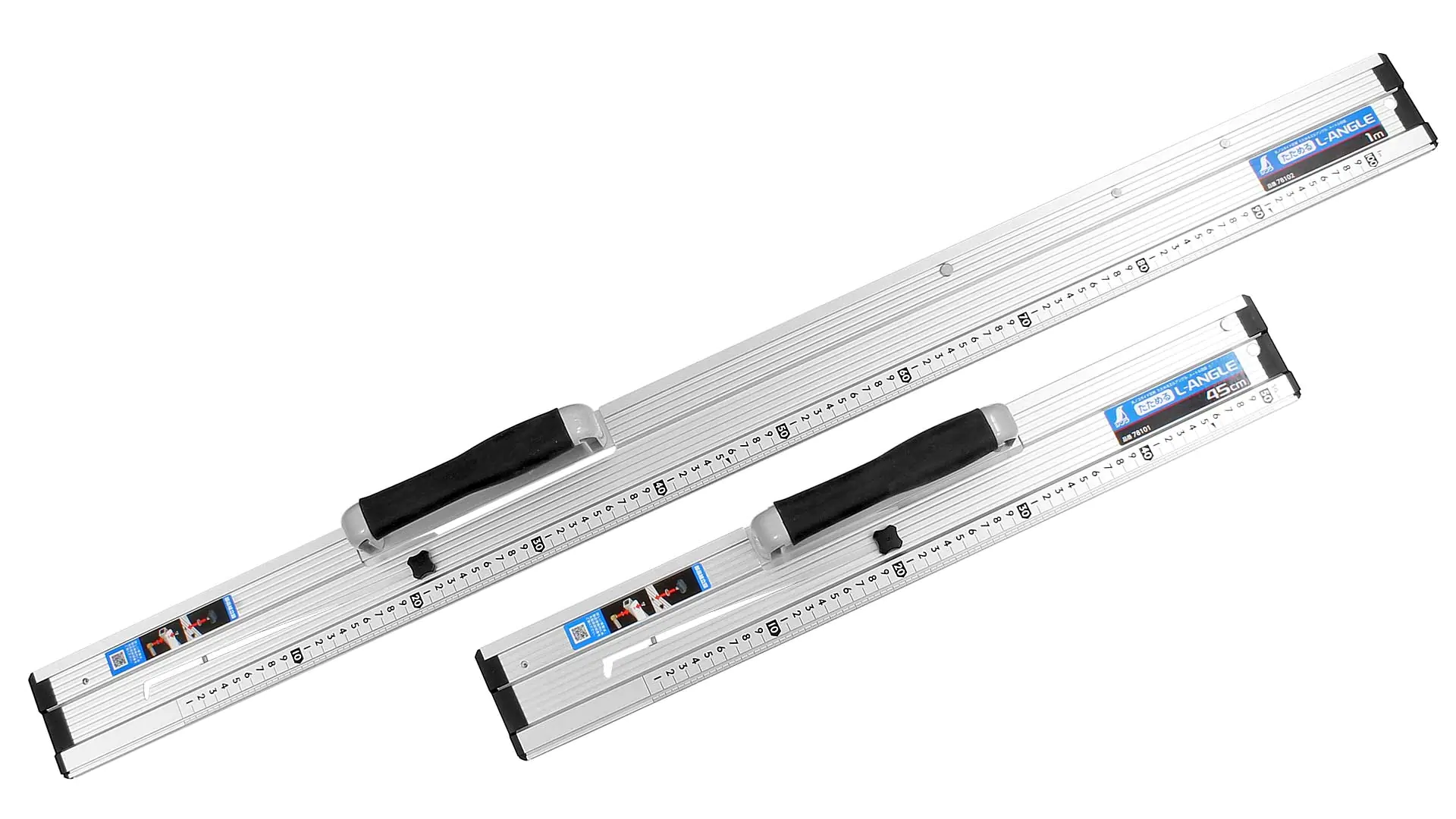

Circular Saw Guide 90°-Angle Foldable 45cm

SHINWA

This precise guide rail, to which any circular saw can be applied, makes cutting boards and panels safe and easy. Since the angle can be folded down with the large, rubberized handle, this guide rail is ideal for use on assembly, construction sites, or in the small workshop. When folded, it takes up just as little space as a wide stop ruler. With the centrally placed hole, the rail can be hung up easily, space-saving, and securely. The 45 cm rail also weighs only about 700 g.

Rubber pads on the underside effectively prevent slipping on the material being cut. The angle part, stop, and rail are made of lightweight aluminum, which ensures fatigue-free work even during extended use. The scale is large, high-contrast, and very easy to read. For better placement of the circular saw or jigsaw on the workpiece, the rail extends about 7 cm beyond the workpiece.

The Japanese manufacturer Shinwa guarantees an angular accuracy of 0.33mm over 100mm rail length for these foldable guide rails.

The underside stop that lies against the wood is hollow and equipped with a knurled screw. An 8 × 8 mm strip (included) can be inserted into this hollow stop and secured with the knurled screw. This allows you to determine the distance between the rail and the saw cut edge once, so you always know what distance to maintain from the mark for future cuts.

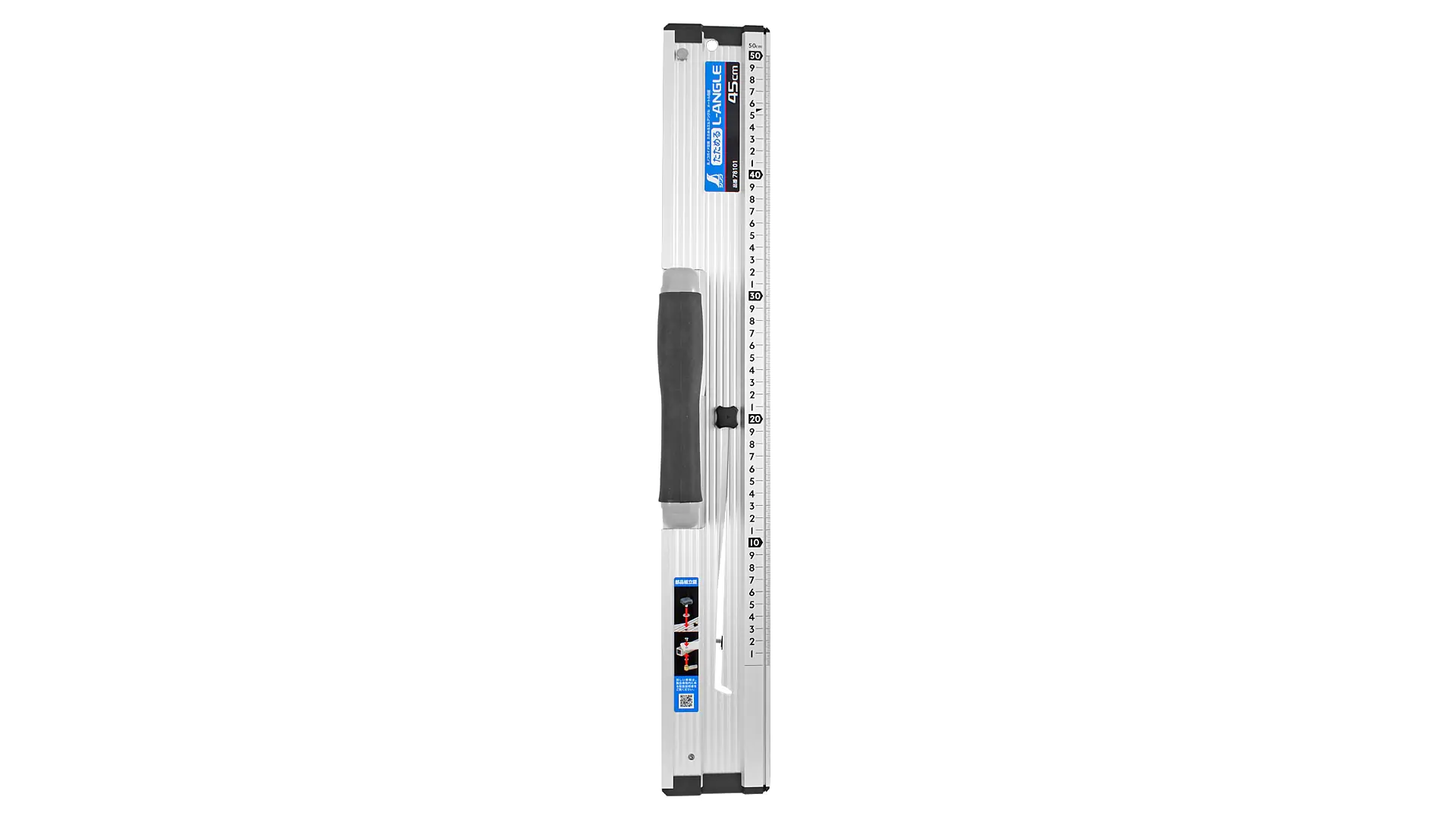

• Can be compactly stored, as the stop with handle is foldable.
• By simply opening from the folded state, it is quickly ready for use as a guide rail with stop at any time.
• The lightweight and robust construction facilitates handling and transport.
• Also usable as a cutting ruler by removing the stop with handle.
• Comes with a groove for the Shinwa sliding stop (available separately). This prevents the cut from deviating.
• Equipped with a metric scale, enabling marking tasks and measurements.
• Comes with a protective cover for storage.
• A thin and robust stainless steel plate is applied to the edge of the guide rail.

Specification 45-cm Rail

• Angle 90°
• Accuracy: Deviation max. 0.33mm over 100mm rail length
• Scaling up to: 50 cm
• Stop height: 15 mm
• Rail: Aluminum

Guiding surface: Stainless steel

• Size folded: 632 × 88 × 73 mm

Unfolded: 632 × 336 × 73 mm

• Weight: 700 g
• Accessory 1 wooden strip 8 × 8 mm
