Circular Saw Guide 90°-Angle 60cm
SHINWA
Available, delivery time: 2-3 days
Product information
This precise guide rail, to which any circular saw can be applied, makes cutting boards safely and easily. The angle and handle are firmly riveted. Rubber pads on the underside effectively prevent slipping on the material being cut.
The angle section, stop, and rail are made of lightweight aluminum, which ensures fatigue-free work even during prolonged use. The weight is only 1300 g. The handle made of ABS is ergonomic and coated with soft elastomer, so it never feels cold or uncomfortable even in unheated rooms or outdoors during the cold season. The edge of the rail is made of stainless steel.
For good readability of the scales, the rail is coated in blue and marked with white lettering. Since these guide rails are manufactured for the Japanese market and carpenters and joiners still use traditional units of measurement, there are two scales on the rail: alongside metric, there is also „Shaku” (303 mm or 10/33 m) with individual markings at the numbers „Sun” (30.3 mm or 1/33 m). The metric scale is the main scale at the edge, with „Shaku” behind it, so to speak, in the second row.

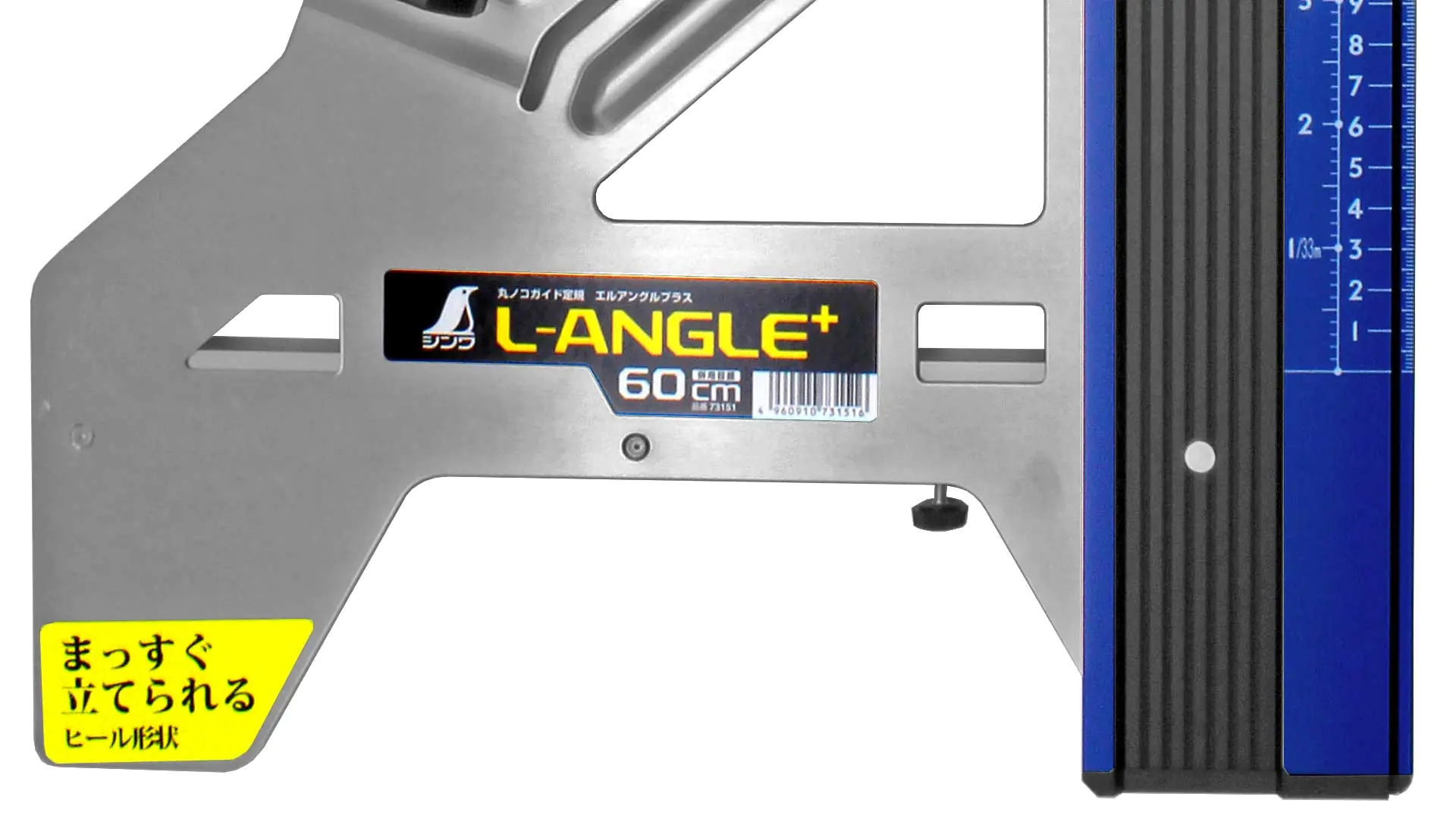

The Japanese manufacturer Shinwa guarantees an angle accuracy of 0.1 mm over the entire length of the rail. The total length of the rail is 75 cm, and the effective usable length (= max. workpiece width) is 60 cm. For easier positioning of the circular saw or jigsaw on the workpiece, the rail extends 8.5 cm beyond the workpiece, as seen at the rail end in the lower part of the image. The rail itself is 82 mm wide and 6 mm high.
The underside stop that rests against the wood is hollow and equipped with a knurled screw. Into this hollow stop, a strip of 8 × 8 mm (included) can be inserted and secured with the knurled screw. This allows you to determine the distance between the rail and the saw cut edge once, so you always know the distance to maintain from the line for future cuts.
Two holes in the angle section, each to the right and left of the company imprint at the bottom, provide a clear view of the underside stop. This allows you to easily see from above whether it is properly aligned with the workpiece.
| Features | |
|---|---|
| Overall dimensions | 750 × 350 × 82 mm |
| Overall length | 750 mm |
| Weight | 1300 g |
| Maximum workpiece width | 600 mm |
| Rail cross-section | 82 × 7 mm |
