Screw for T-Tracks with Hex Nut and Washer M8x8x32
Available, delivery time: 2-3 days
Product information

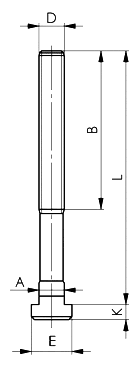

These T-slot nuts from AMF come complete with fastening, extra thick washer, and hex nut. The head is forged, and the T-slot guide is precisely milled. Thread execution: rolled thread. M8 to M12 is tempered to strength class 10.9, M14 to 8.8. Suitable for a variety of applications: clamping machine vises on the base plate of drill stands, mounting sliding stops on T-slot rails, etc. When selecting, consider the dimensions in conjunction with the letter abbreviations. "D" means the thread designation (M8) and should not be confused with "A" (shank diameter) as both dimensions can sometimes differ significantly. "A" (shank diameter) is always a few tenths of a mm below the slot width.

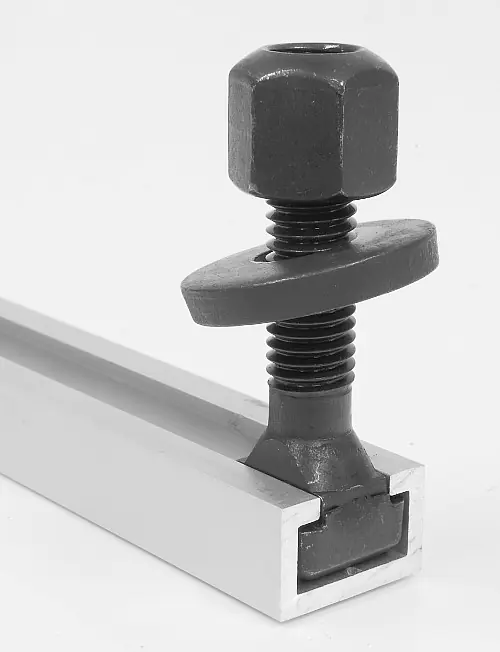

*Example of application
*The T-slot nut with M8 thread fits perfectly in the Aweso T-slot rails.
Unfortunately, it does not fit in the Incra T-slot rails, as the T-width is only 12 mm in these. Note: Price per piece!
| Properties | |
|---|---|
| Total length | 32 mm |
| Thread length | 22 mm |
| Shaft diameter | 7.7 mm |
| T-width | 13 mm |
| T-height | 6 mm |
