Machine Vise Economy Line Jaws
96 mm
15% Discount
15% Discount
€95.97*
€112.90*
You save €16.93!
Available in 5 days, delivery time 1-3 businessdays within Germany
Product number: 307791
Product information

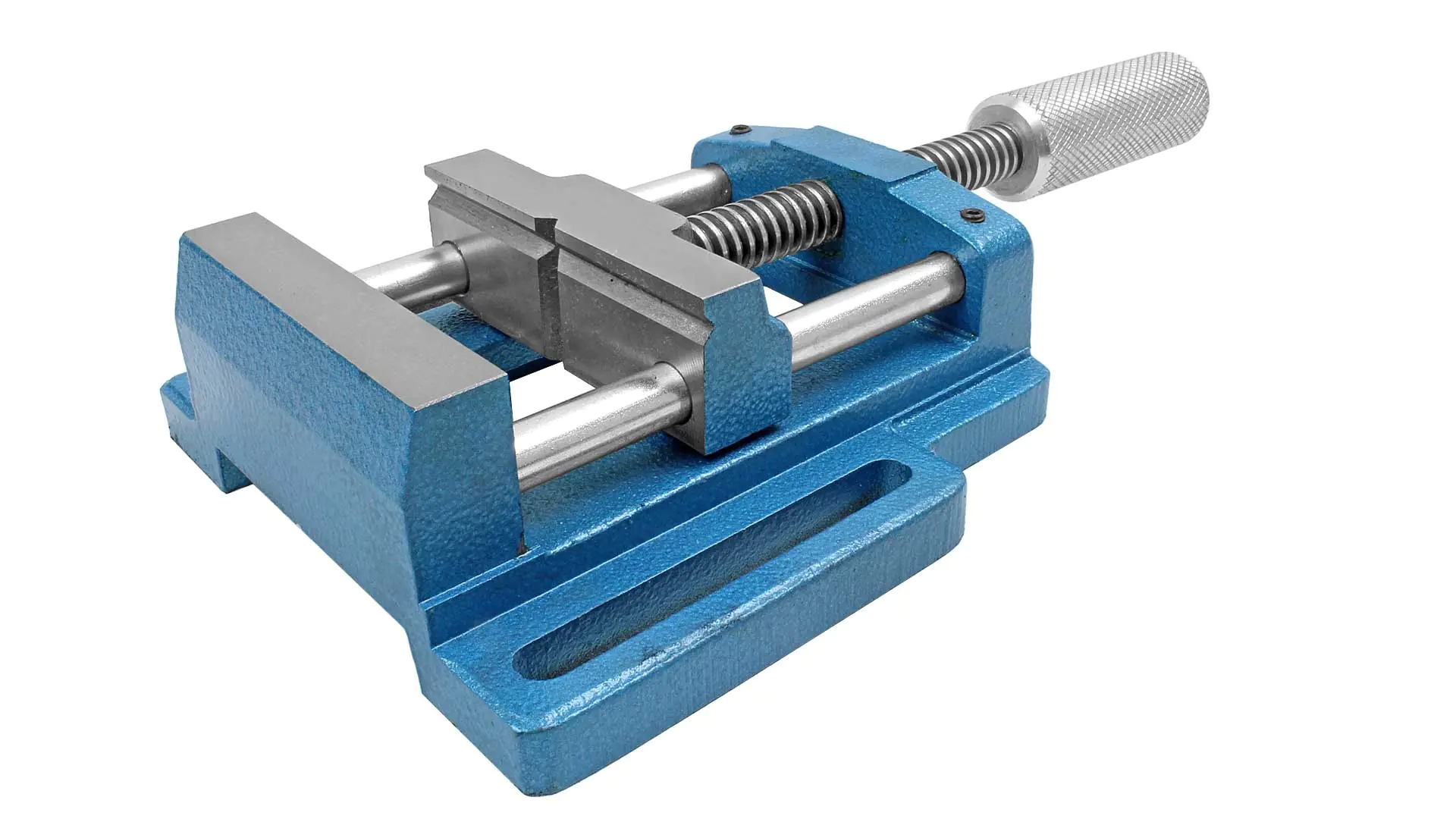

This lightweight drill press vise features jaws made of hardened steel, with the movable jaw designed as a prism jaw to clamp round workpieces both vertically and horizontally. The movable jaw is precisely guided by the two guide rods. The knurled aluminum handle, 90 mm long with a diameter of 30 mm, allows for comfortable and effective operation.
Manufactured by the traditional forge York in the Czech Republic, producing vises since 1921.
| Properties | |
|---|---|
| Jaw Type | Prism Jaw |
| Jaw Width | 97 mm |
| Jaw Material | Hardened Steel |
| Guide Rods | Diameter 12 mm |
| Total Width | 158 mm |
| Total Height | 59 mm |
| Total Length (with jaws closed) | 260 mm |
| Weight | 3.4 kg |
| Handle | Knurled Aluminum Handle, 90 mm long, Diameter 30 mm |
| Manufacturer | York |
| Material Thickness in Clamping Groove Area | 15 mm |
| Groove Spacing | 130 mm (center – center) for M8 Screws or T-nuts |
| Surface Treatment | Hammer Finish Paint |
| Clamping Groove Width | 10 mm |
| Clamping Groove Length | 90 mm |
| Clamping Depth | 16 mm |
| Clamping Range | 94 mm |
| Spindle | Trapezoidal Thread Diameter 15.9 mm |
