Precision Machine Vise professional Line Jaws
102 mm
Available, delivery time: 2-3 days
Product information

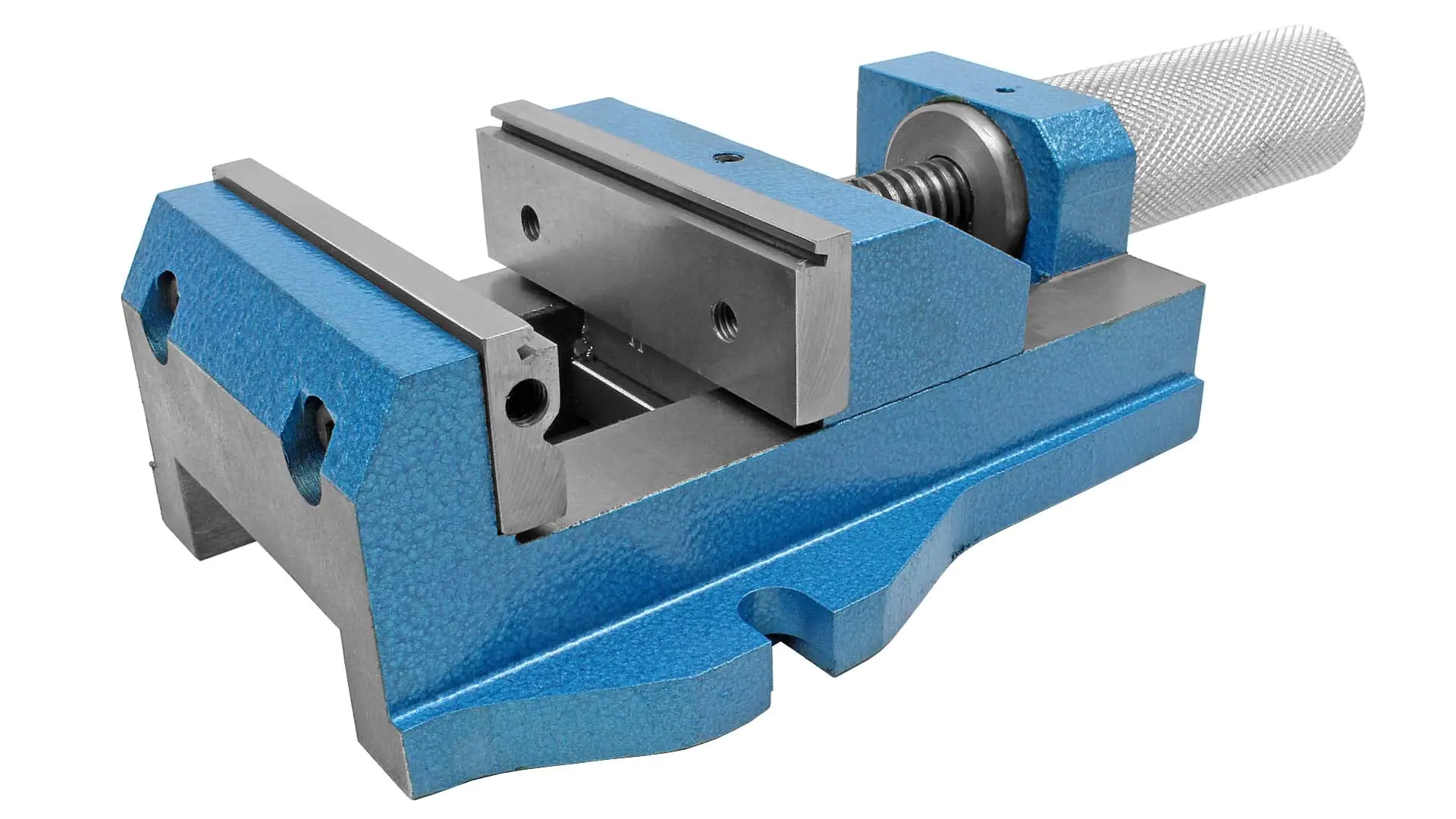

This heavy yet compact model features interchangeable jaws made of steel, hardened to 45 HRC. One jaw is designed as a prism jaw, allowing round workpieces to be clamped both vertically and horizontally. The knurled aluminum handle, 110 mm long with a diameter of 40 mm, allows for comfortable and effective operation. The jaws of this model have a stepped upper edge, 4 mm high and 3.5 mm deep, to securely clamp flat materials as well. The flat guide with large sliding surfaces is very precise, runs smoothly, and withstands greater loads.
Manufactured by the traditional forge York in the Czech Republic, which has been producing vises since 1921.
| Properties | |
|---|---|
| Recess | 12.5 × 12.5 mm |
| Jaw width | 102 mm |
| Total width | 140 mm |
| Total height | 73 mm |
| Total length with closed jaws | 300 mm |
| Weight | 5.1 kg |
| Hammer finish | available |
| Hole spacing (center – center) | 125 mm |
| Material thickness in the area of the recess | 13.5 mm |
| Clamping depth | 34 mm |
| Clamping range | 94 mm |
| Spindle with trapezoidal thread diameter | 18.7 mm |
