Screw for T-Tracks with Hex Nut and Washer M10x10x40
Available, delivery time: 2-3 days
Product information

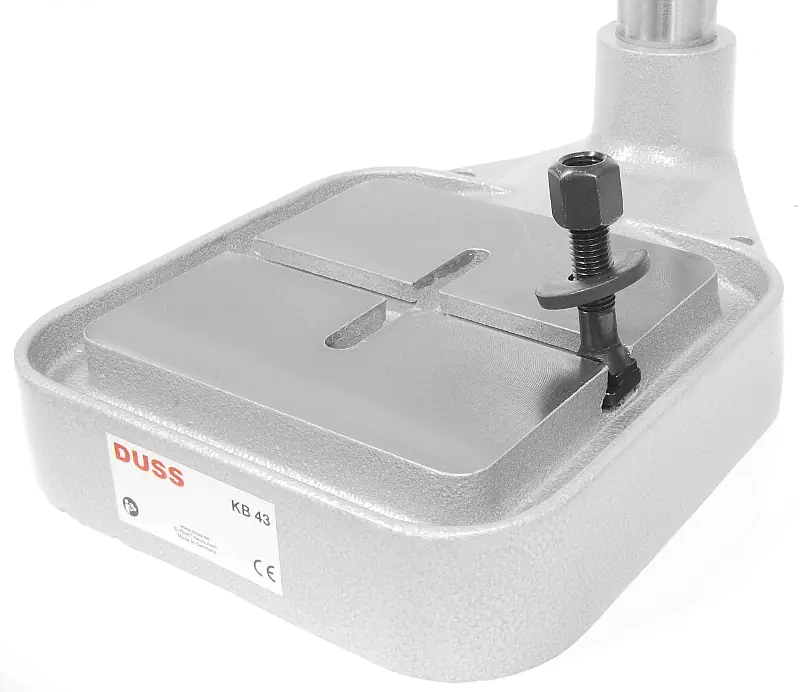

These T-slot nuts from AMF come complete with a bolt, extra thick washer, and hex nut. The head is forged, and the T-slot guide is precisely milled. Thread specification: rolled thread. From M8 to M12, they are tempered to strength class 10.9, and M14 to 8.8. Suitable for a variety of applications: clamping machine vises on the base plate of drill stands, mounting sliding stops on T-slot rails, etc. Please note the dimensions in relation to the letter abbreviations when selecting. „D” means the thread designation (M10) and should not be confused with „A” (shaft diameter) as both measurements can differ significantly. „A” (shaft diameter) is always a few tenths of a mm below the slot width. Application example: The T-slot nut with a 10 mm thread fits into the T-slot of the Duss drill stand.
Bolt for T-slot with hex nut and washer with thread M10 (D) for slot width 10 mm.
Note: Price per piece!
| Properties | |
|---|---|
| Overall Length | 40 mm |
| Thread Length | 30 mm |
| Shaft | 9.7 mm |
| T-Width | 15 mm |
| T-Height | 6 mm |
