Optical Centre Punch Set
Available, delivery time: 1-3 businessdays within Germany
Product information
If precision is key, and/or your eyes, perhaps particularly under suboptimal lighting conditions in the workshop, are not what they used to be, this set can provide a welcome relief.
The classic use case is center punching on hard metal surfaces to have a clearly defined starting point for drilling, preventing the drill from wandering uncontrollably.
The application is remarkably simple:

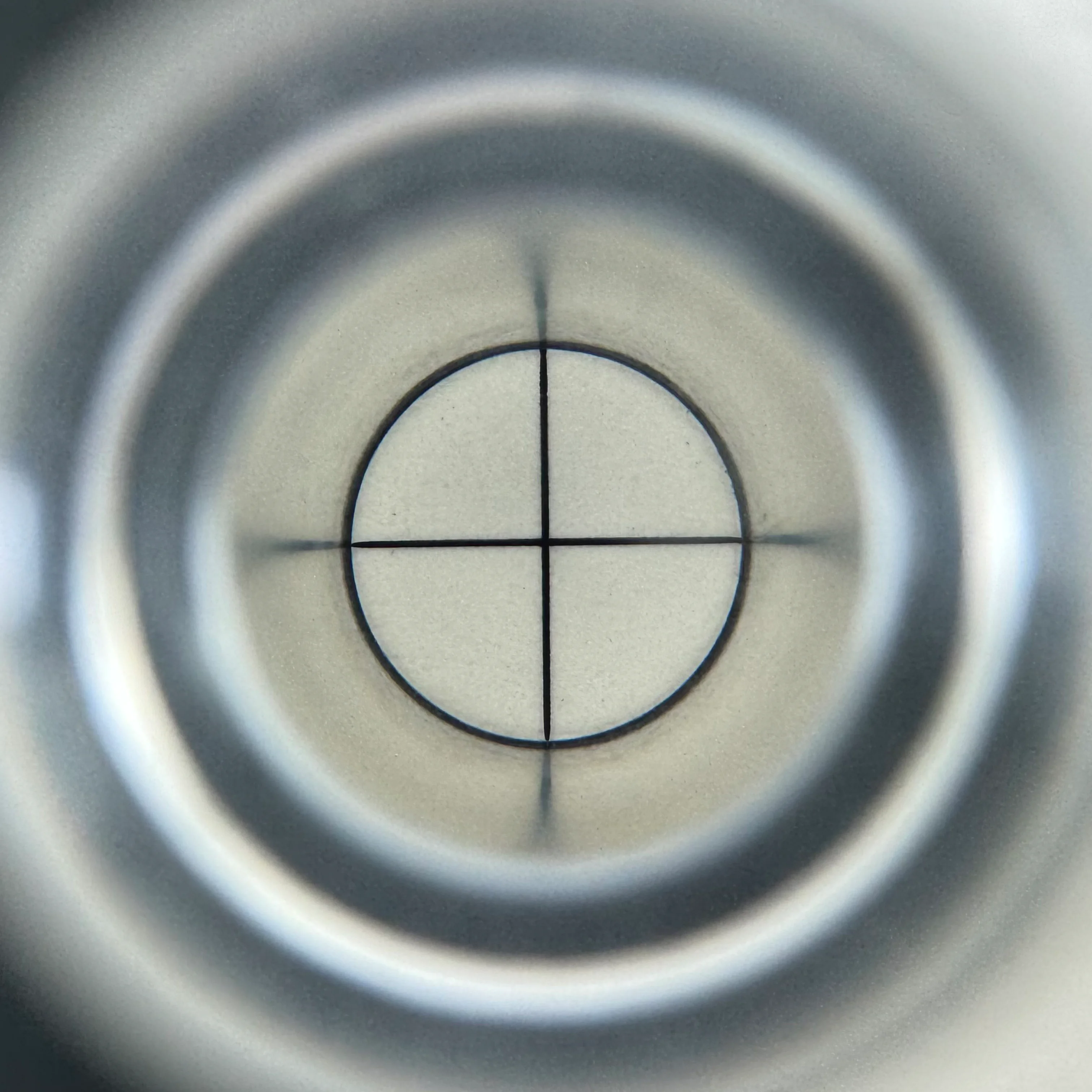

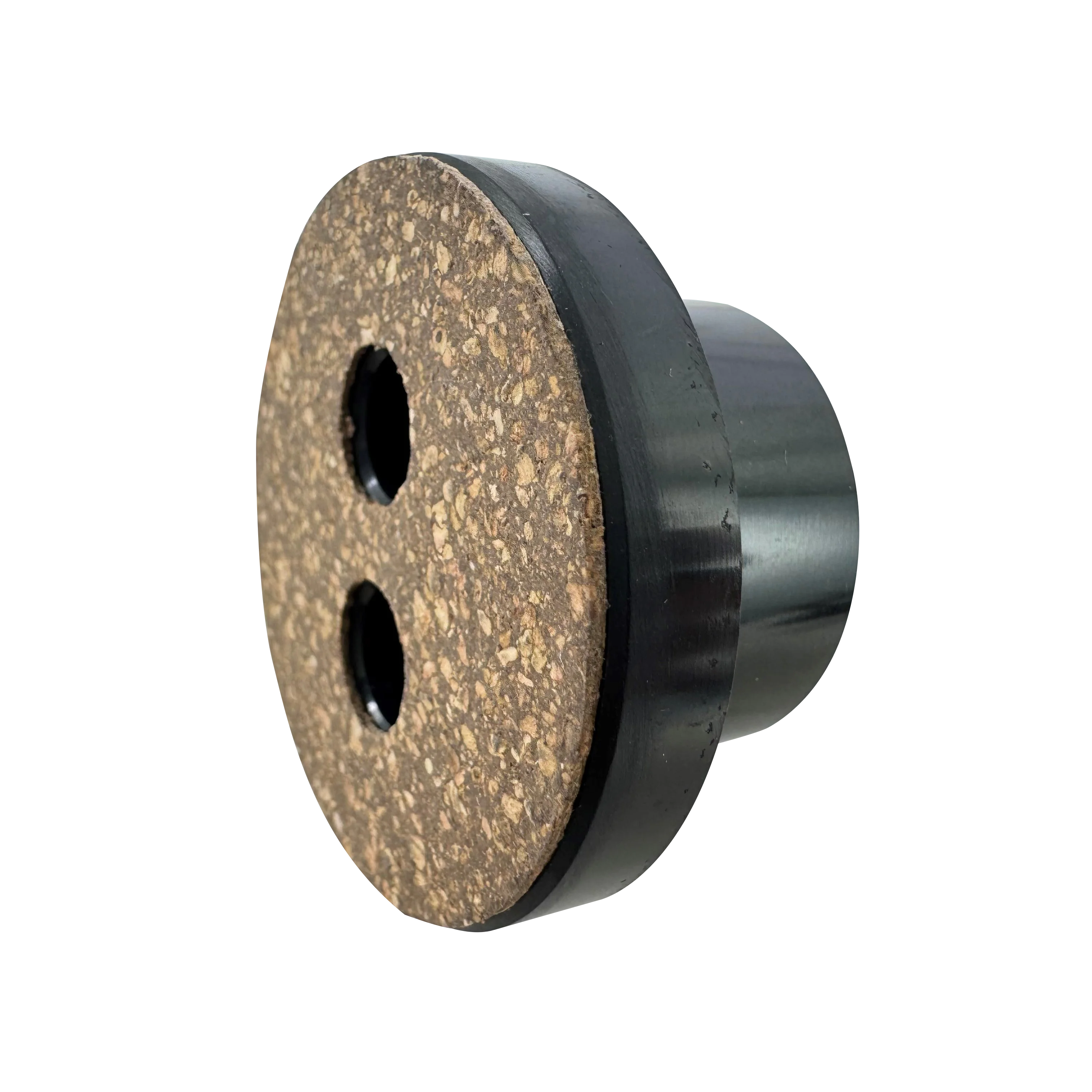

The base, equipped with a cork layer on the underside to protect the workpiece’s surface and prevent slipping, is positioned precisely over the point to be marked using one of the two highly magnifying center finders. You can choose between a crosshair version and one with a circle and centrally arranged point. The surface and personal preferences can determine the choice of one over the other. Then the center finder is replaced by the center punch of choice. Two versions are available, tailored to the respective conditions. With a decisive hammer blow on the end of the punch, the marking is finally set.
Contents:
- Main body
- 2 optical inserts (center finders)
- 2 punches
- Well-padded storage and transport box
| Technical Data | |
|---|---|
| Center Definition | Crosshair, circle with central point |
| Base Diameter | 48 mm |
| Base Height | 26 mm |
| Accuracy | 0.03 mm! |
| Tip Angle of Punches | 60° Wood/Plastic, 120° Metal |
| Lens Magnification | 9x |
| Base Material | Aluminum covered with cork |
| Punch Material | Hardened tool steel |
| Lens Material | Acrylic |
| Total Weight | 333 g |
