Drillstand DrillMate (shaft&chuck)
MILESCRAFT
€51.90*
Available, delivery time: 2-3 days
Product number: 328682
Product information

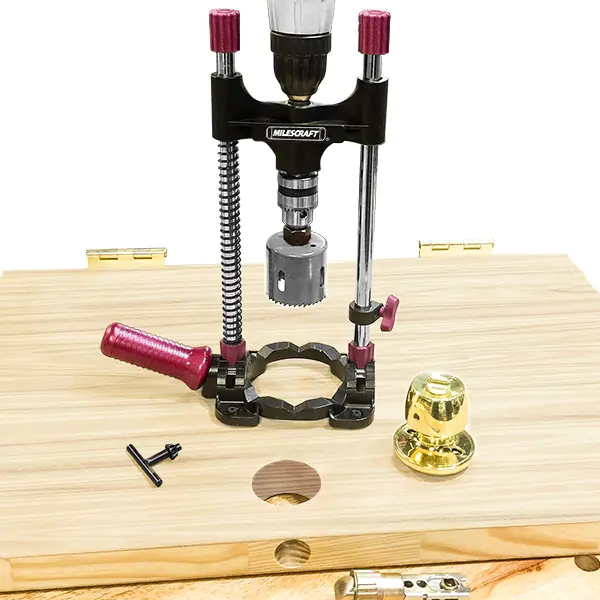

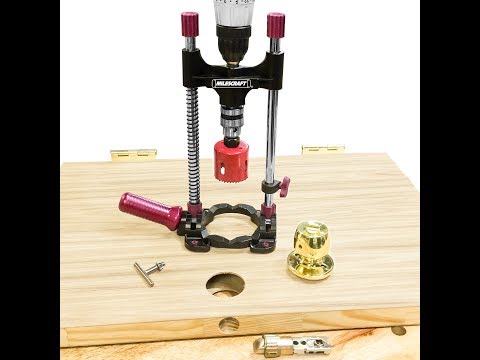

With the mobile drill stand from Milescraft (DrillMate™), you can easily and accurately drill right-angle holes, angled holes, edge holes, and holes in round workpieces. Often, the success of projects depends on clean and accurate drilling. Now, you can achieve remarkable results on site or in your home hobby workshop by combining a powerful cordless drill with this drill stand.
DrillMate™ Metal Head
- Ball-bearing drill spindle
Innovative metal base plate with easy-to-adjust angles
- Self-centering base plate

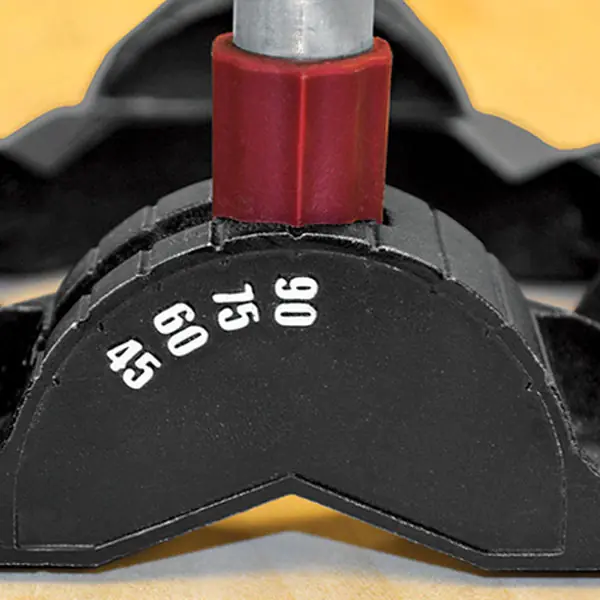

- Common angles of 45°, 60°, 75°, and 90° can be easily set and read
- V-groove for working on round workpieces
- Non-slip TPE feet ensure a firm grip and protect the workpiece surface
- If necessary, the drill stand can even be fixed with screws (the corresponding holes are already present in the base plate)
Metal Angle Adjustment
- Allows fixing the drill angle after adjustment
Adjustable Depth Stop
- For repeatable drilling at a predetermined depth
3/8” Chuck with Key
- The key is compatible with many 3/8” keyed chucks
Additional Handle

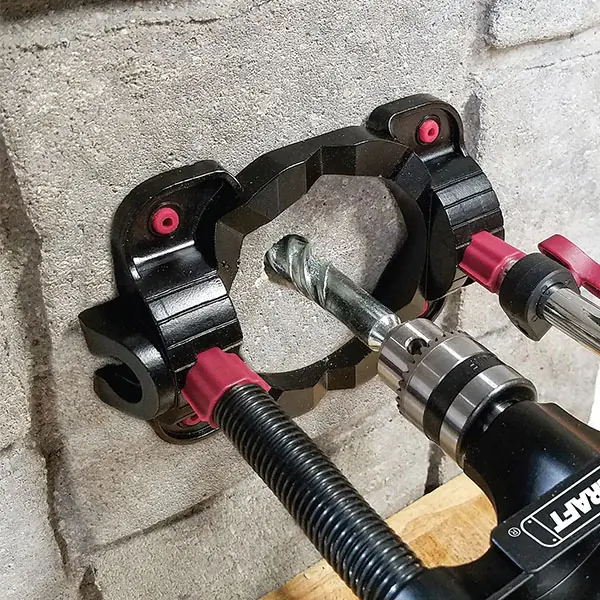

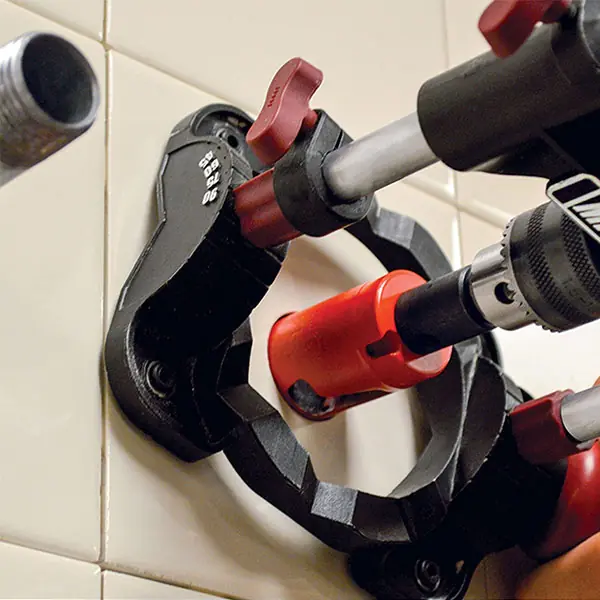

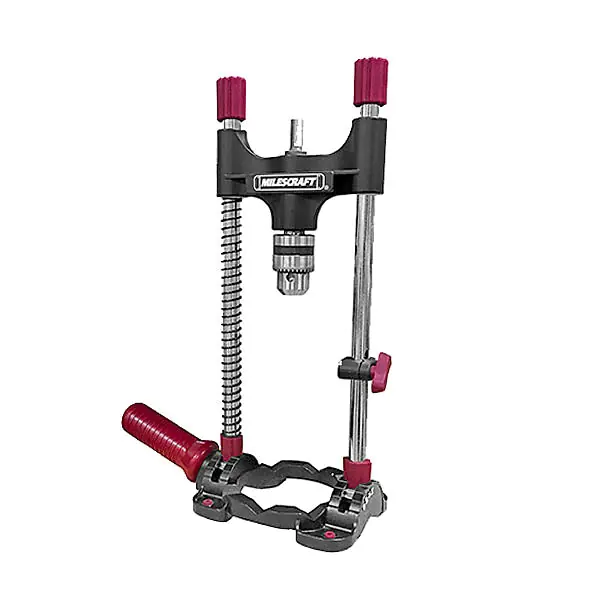

- This can be attached to the base plate (see Image 1 and 5) and supports a secure hold of the drill stand, even when used horizontally.
3/8" Chuck Ring 3/8" x 24 thread
| Features | |
|---|---|
| Distance from chuck to base plate bottom | 190 mm |
| Drive | 8 mm hexagonal shank |
| Chuck | 3/8" with key (1.5-10 mm) |
| Guide rod diameter | 14 mm |
| Weight | approx. 1.9 kg |
| Base plate dimensions | 140 mm x 108 mm |
| Inner distance between guide rods | 101.2 mm |
| Drive shaft length | 93 mm |
| Material | Metal, Plastic |
| Opening diameter | 88 mm |
