Asahi Lightool spanners

Asahi Lightool spanners

A fitter’s toolkit full of spanners can be a weighty thing. Reducing and optimizing your daily workload makes life easier especially during overhead assembly or when lugging heavy kit. The Lightool spanners from Japanese tool manufacturer Asahi address this problem. Recesses and holes in the handles and spanner heads significantly reduce the weight without compromising on stability. Depending on the model, you can save up to 30 % in weight. Just put your present spanner on a scale and compare the weight with the weight of the corresponding Asahi spanner in the tables on this page.

The spanners are made of chrome vanadium steel, finished to a high quality and meet the Japanese Industry Standard (JIS). All spanners on this page are hard chrome plated.

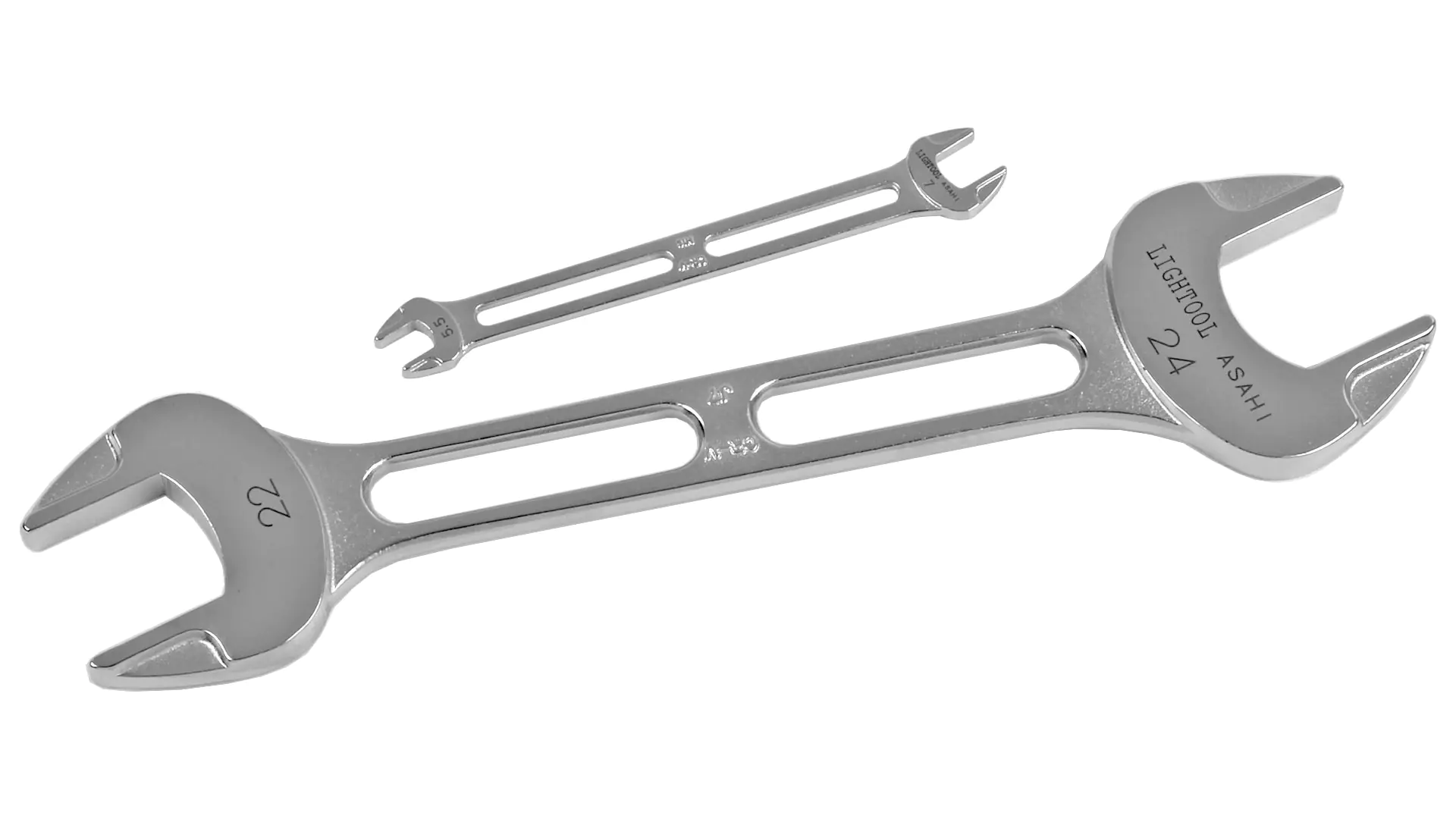

Double open-ended spanners

Double open-ended spanners Sketch, Double open-ended spanners

Double open-ended spanners are universally applicable for all types of hexagonal and square bolt heads. The spanner head is at angle of 15° to the handle axis for easier access in constricted situations. Each spanner gives you two different sizes, which are permanently engraved on the head. They are approx. 30 % lighter than conventional double open-ended spanners.

Size
mm
C1 / C2
Total
length
mm
L
Outside diameter
mm
C1 / C2
Thickness
mm
T
Weight
g
Asahi
Code
CodePrice
5.5 / 7 102 12.7 / 15.5 2.9 11 LSX0507
Code 337300CartPrice € 4.35
6 / 7 102 12.7 / 15.5 2.9 11 LSX0607
Code 337301CartPrice € 4.45
8 / 10 144 12.7 / 15.5 4.2 18 LSX0810
Code 337302CartPrice € 4.60
10 / 12 115 21.5 / 26 5 33 LSX1012
Code 337303CartPrice € 4.75
11 / 13 125 23.5 / 28 5.4 35 LSX1113
Code 337304CartPrice € 6.20
12 / 14 130 26 / 29.5 5.8 45 LSX1214
Code 337305CartPrice € 6.30
13 / 17 140 28.5 / 36 6.7 67 LSX1317
Code 337306CartPrice € 6.90
14 / 17 160 28.5 / 36 6.7 67 LSX1417
Code 337307CartPrice € 6.95
17 / 19 177 36 / 40 7 95 LSX1719
Code 337308CartPrice € 8.35
19 / 21 195 40 / 44.5 7.5 136 LSX1921
Code 337309CartPrice € 8.95
22 / 24 215 46.5 / 50.5 8 173 LSX2224
Code 337310CartPrice € 11.80

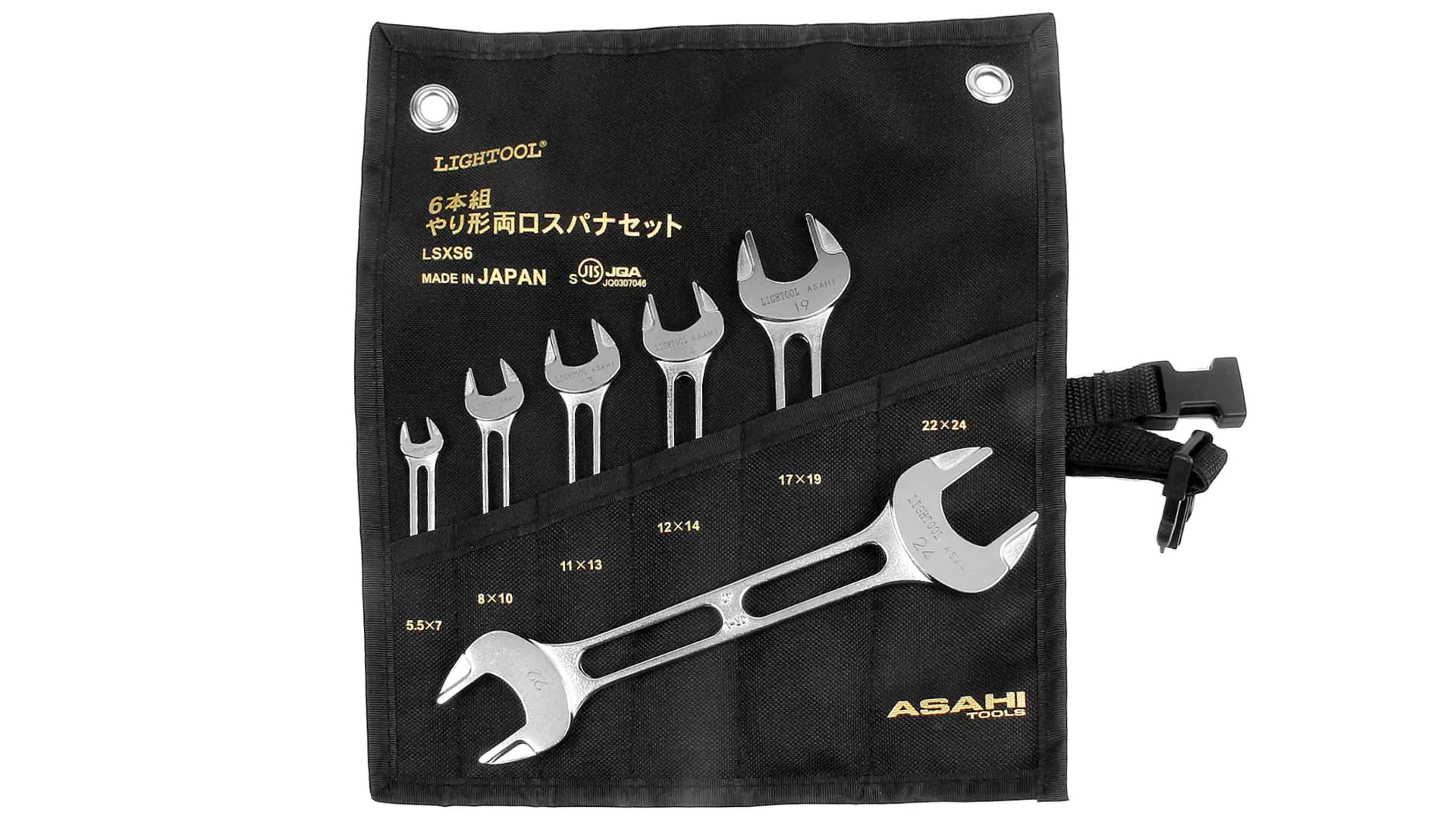

Asahi 6-piece set double open-ended spanners

Sizes 5.5 x 7, 8 x 10, 11 x 13, 12 x 14, 17 x 19, 22 x 24 mm
Supplied in a plastic pouch
Weight 454 g

Code 337315CartPrice € 37.30

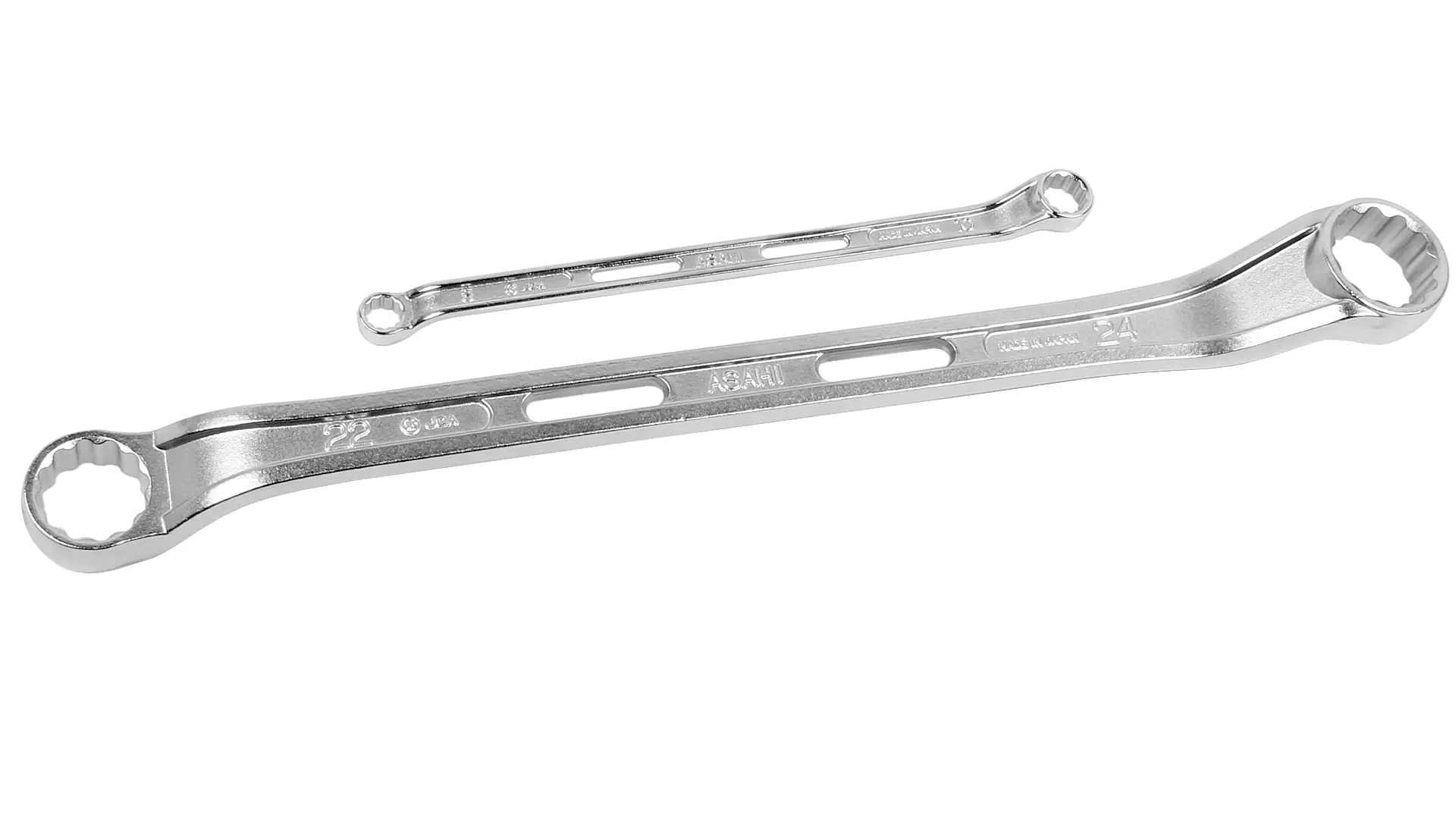

Ring spanners
Ring spanners Sketch, Offset wrench

Ring spanners need unrestricted access to the bolt head. On the other hand, they will not slip off as easily as open-ended spanners. The double-hex profiles of these double-ended ring spanners make for flexible access even when space is restricted. The 45° offset on the ring and the additional 7° offset of the shank help to keep your knuckles out of harm’s way. Each spanner gives you two different sizes, which are permanently engraved. They are approx. 15 % lighter than conventional double open-ended spanners.

Size
mm
Total
length
mm
L
Outside diameter
mm
D1 / D2
Thickness
mm
T1 / T2
Weight
g
Asahi
code
CodePrice
8 / 10 180 12.7 / 15.3 6 / 6.5 35 LOF0810
Code 337320CartPrice € 9.75
10 / 12 195 15.3 / 18.5 6.5 / 7.6 44 LOF1012
Code 337321CartPrice € 9.95
11 / 13 210 17 / 19.5 7.5 / 8 66 LOF1113
Code 337322CartPrice € 10.35
12 / 14 220 18.5 / 21 7.6 / 9.5 77 LOF1214
Code 337323CartPrice € 10.50
13 / 15 234 19.5 / 22.5 8 / 10 100 LOF1315
Code 337324CartPrice € 11.50
14 / 17 255 21 / 25 9.5 / 10.7 124 LOF1417
Code 337325CartPrice € 11.75
16 / 18 268 24 / 27 10.5 / 11.5 149 LOF1618
Code 337326CartPrice € 13.70
17 / 19 280 25 / 28 10.7 / 12.2 186 LOF1719
Code 337327CartPrice € 13.70
19 / 21 314 28 / 30.5 12.4 / 13.4 258 LOF1921
Code 337328CartPrice € 16.30
22 / 24 333 32 / 35 13.2 / 14 287 LOF2224
Code 337329CartPrice € 19.95

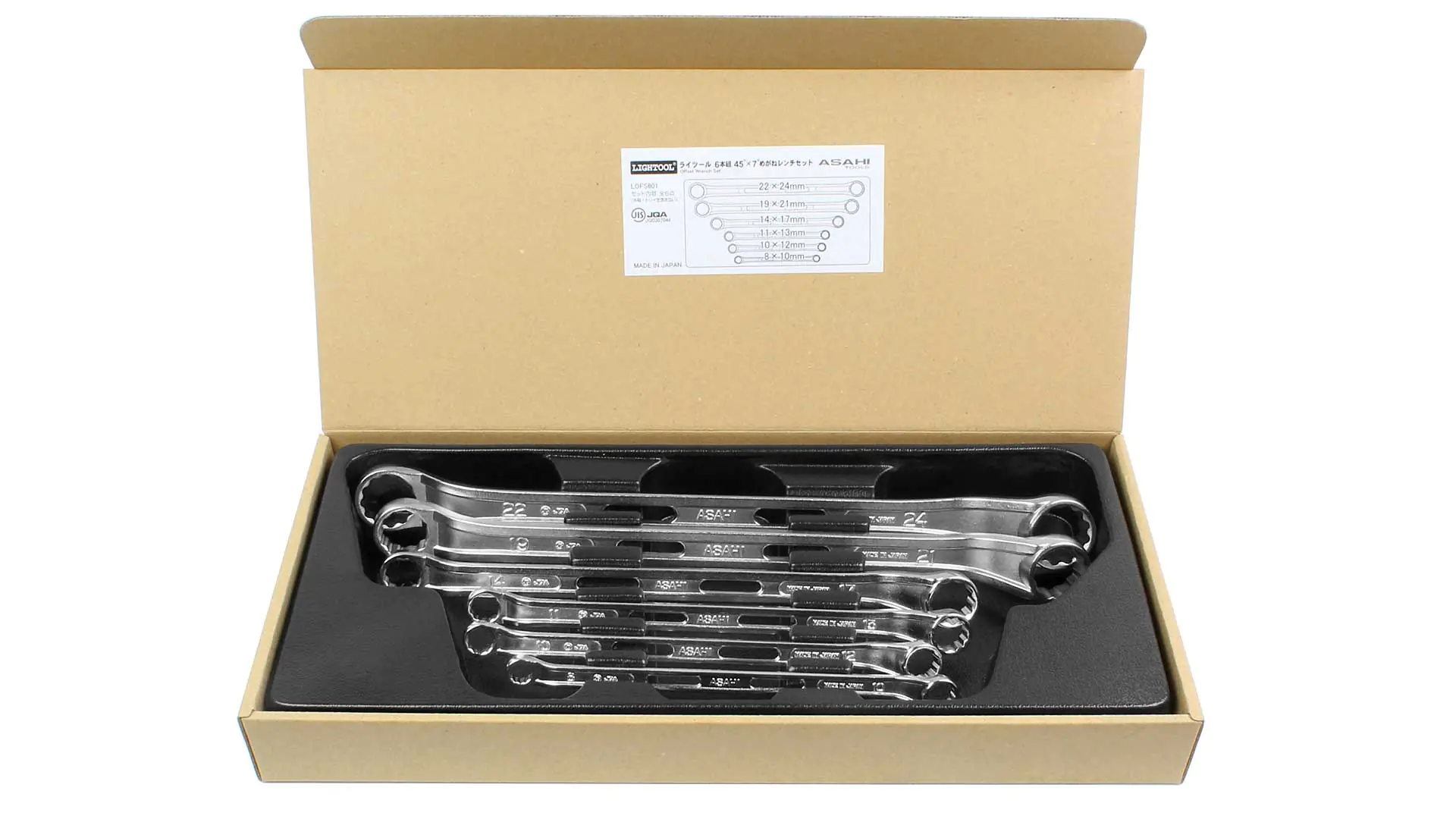

Asahi 6-piece set ring spanners

Sizes 8 x 10, 10 x 12, 11 x 13, 14 x 17, 19 x 21, 22 x 24 mm
Supplied in an open plastic moulded shell in a cardboard box
Weight 912 g

Code 337335CartPrice € 69.90
Combination wrenches
Combination wrenches Sketch, Combination wrench

The ring/open-ended spanner combinations unite the plus points of each spanner type. In each case the open-ended spanner and ring spanner heads are the same size. This makes for far more flexible application options than available with a pure ring spanner or open-ended spanner. On the ring side the spanner is offset by 12°. Spanners are approx. 25 % lighter than traditional ring/open-ended spanner versions.

Size
mm
Total
length
mm
L
Outside diameter
mm
C / D
Thickness
mm
T1 / T2
Weight
g
Asahi
code
CodePrice
5.5 100 12.7 / 10.5 2.9 / 5 11 LCW0005
Code 337340CartPrice € 6.20
7 105 17.5 / 12.7 3.5 / 5.7 15 LCW0007
Code 337341CartPrice € 6.25
8 105 17.5 / 12.7 3.5 / 5.7 15 LCW0008
Code 337342CartPrice € 6.30
10 119 21.5 / 15.3 4.2 / 6.5 21 LCW0010
Code 337343CartPrice € 6.80
12 141 26 / 18.7 5 / 7.5 37 LCW0012
Code 337344CartPrice € 7.10
13 151 28 / 20 5.4 / 8 44 LCW0013
Code 337345CartPrice € 7.90
14 171 29.5 / 22 5.8 / 8.5 58 LCW0014
Code 337346CartPrice € 7.95
15 191 34.5 / 23.7 6 / 9.5 83 LCW0015
Code 337347CartPrice € 9.20
16 191 34.5 / 23.7 6 / 9.5 73 LCW0016
Code 337348CartPrice € 9.30
17 216 36 / 26.5 6.5 / 10.5 100 LCW0017
Code 337349CartPrice € 9.75
19 235 40 / 28.5 7 / 11.5 131 LCW0019
Code 337350CartPrice € 11.95
21 255 46.5 / 32 7.5 / 12 186 LCW0021
Code 337351CartPrice € 16.10
22 255 46.5 / 32 7.5 / 12 186 LCW0022
Code 337352CartPrice € 16.20
24 280 50.5 / 34 8 / 13 220 LCW0024
Code 337353CartPrice € 19.20
27 340 56 / 39.5 10.5 / 16 363 LCW0027
Code 337354CartPrice € 27.80
30 370 62 / 43 11 / 18 442 LCW0030
Code 337355CartPrice € 34.50
32 700 65.5 / 47 11.5 / 18.5 562 LCW0032
Code 337356CartPrice € 40.50
Asahi 6-piece set combination wrenches

Sizes 10, 12, 13, 14, 17, 19 mm
Supplied in a plastic pouch
Weight 472 g

Code 337360CartPrice € 45.90

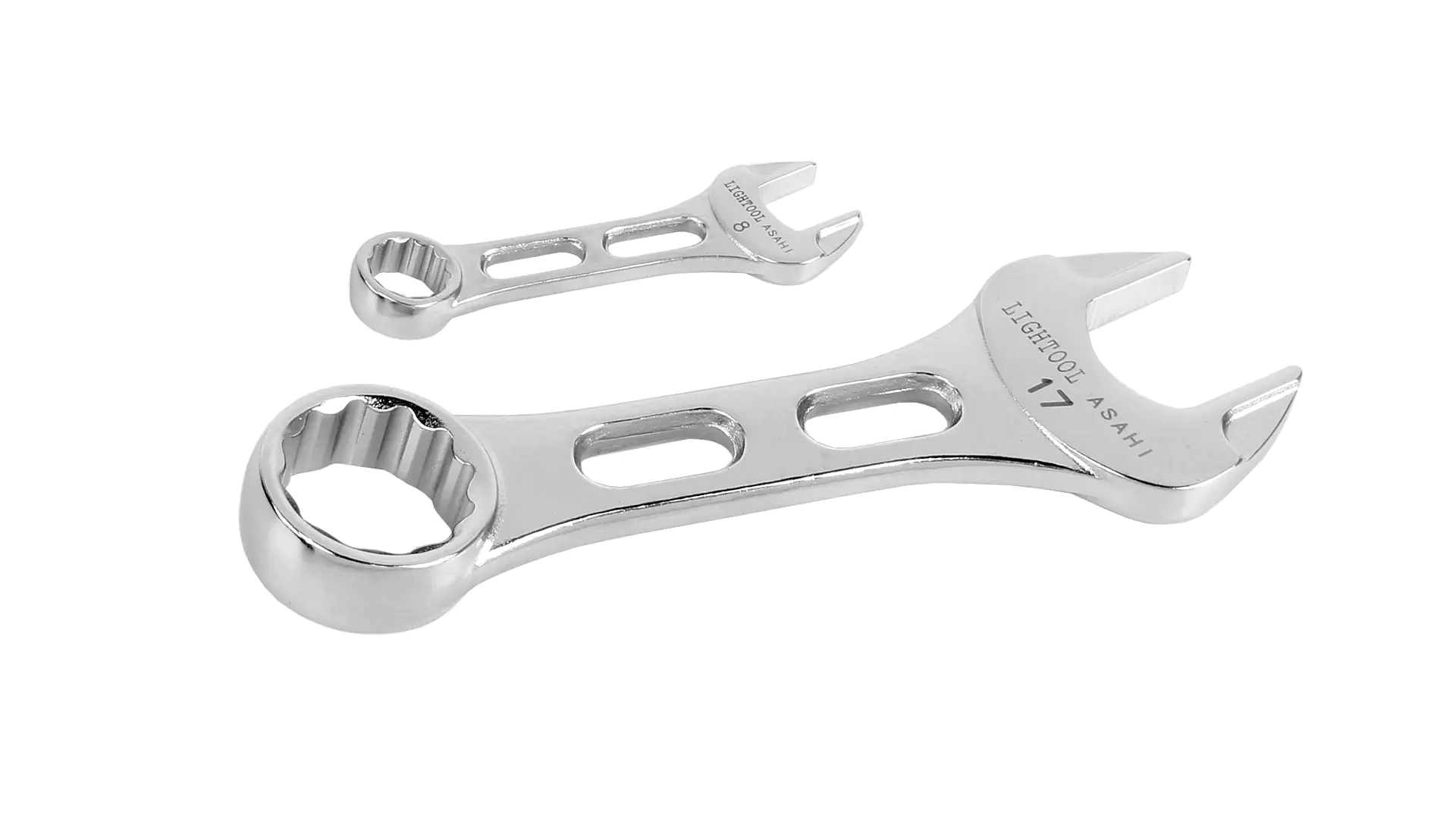

Short combination wrenches
Short combination wrenches Sketch, Short combination wrench

For great flexibility in restricted spaces consider these short ring/open-ended spanners. See above for more technical details.

Size
mm
Total
length
mm
L
Outside diameter
mm
C1 / D
Thickness
mm
T / T2
Weight
g
Asahi
code
CodePrice
5.5 48 13.5 / 11 2.9 / 5.1 6 LCWU005
Code 337370CartPrice € 6.10
6 48 13.5 / 11 2.9 / 5.1 6 LCWU006
Code 337371CartPrice € 6.20
7 60 18 / 13 3.5 / 5.7 11 LCWU007
Code 337372CartPrice € 6.30
8 60 18 / 13 3.5 / 5.7 11 LCWU008
Code 337373CartPrice € 6.60
10 68 21 / 15.3 4.2 / 6.5 14 LCWU010
Code 337374CartPrice € 7.10
12 76 24 / 19 5 / 7.5 23 LCWU012
Code 337375CartPrice € 7.50
13 87 28 / 20 5.4 / 8 33 LCWU013
Code 337376CartPrice € 8.25
14 95 29.5 / 22 5.8 / 8.5 44 LCWU014
Code 337377CartPrice € 8.50
17 115 36 / 26.5 6.5 / 10.5 73 LCWU017
Code 337378CartPrice € 10.50

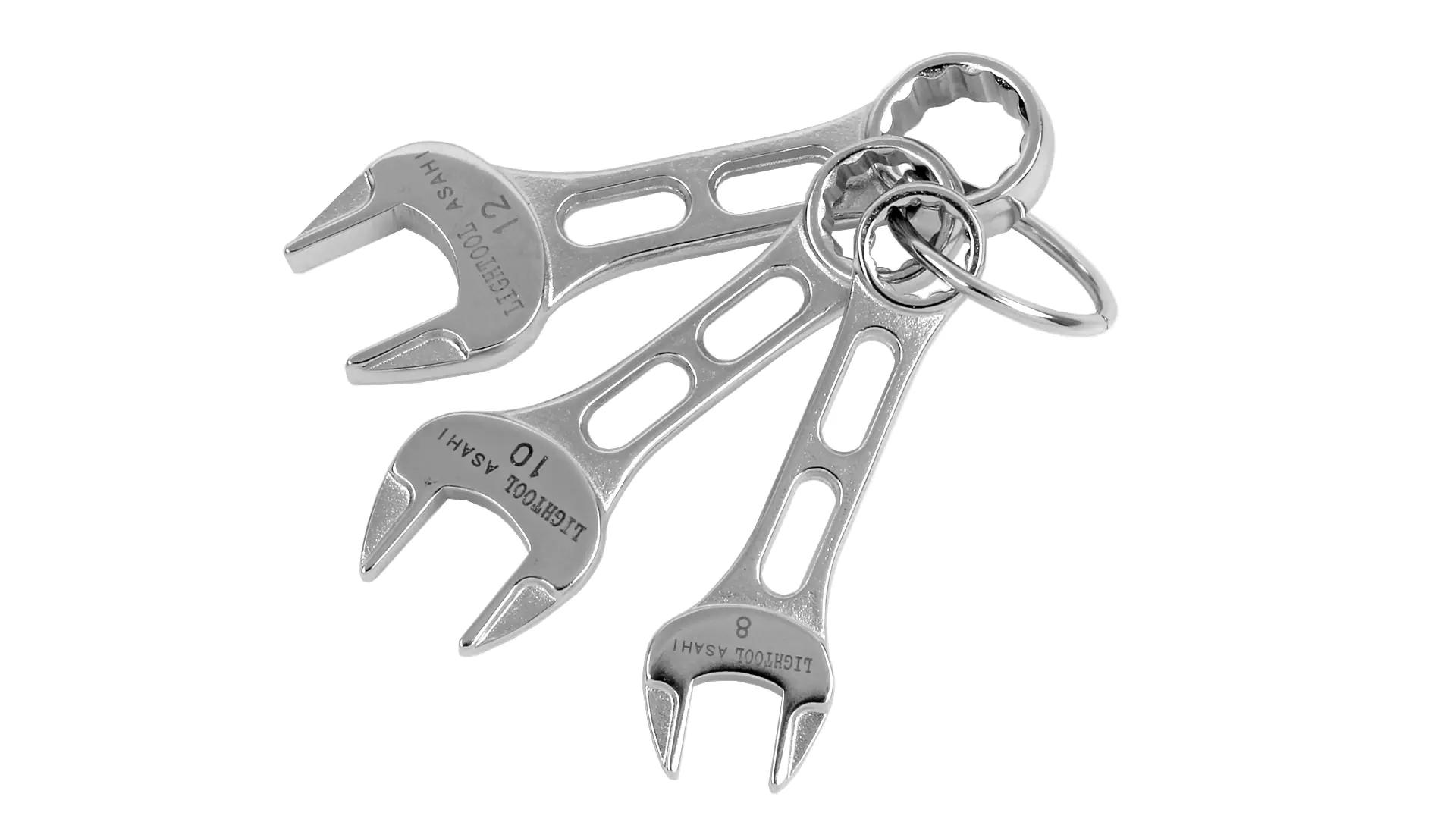

Asahi 3-piece set (8, 10, 12) short combination wrenches

Sizes 8, 10, 12 mm
Held on a key ring, detachable
Supplied in a blister pack
Weight 48 g

Code 337385CartPrice € 18.95

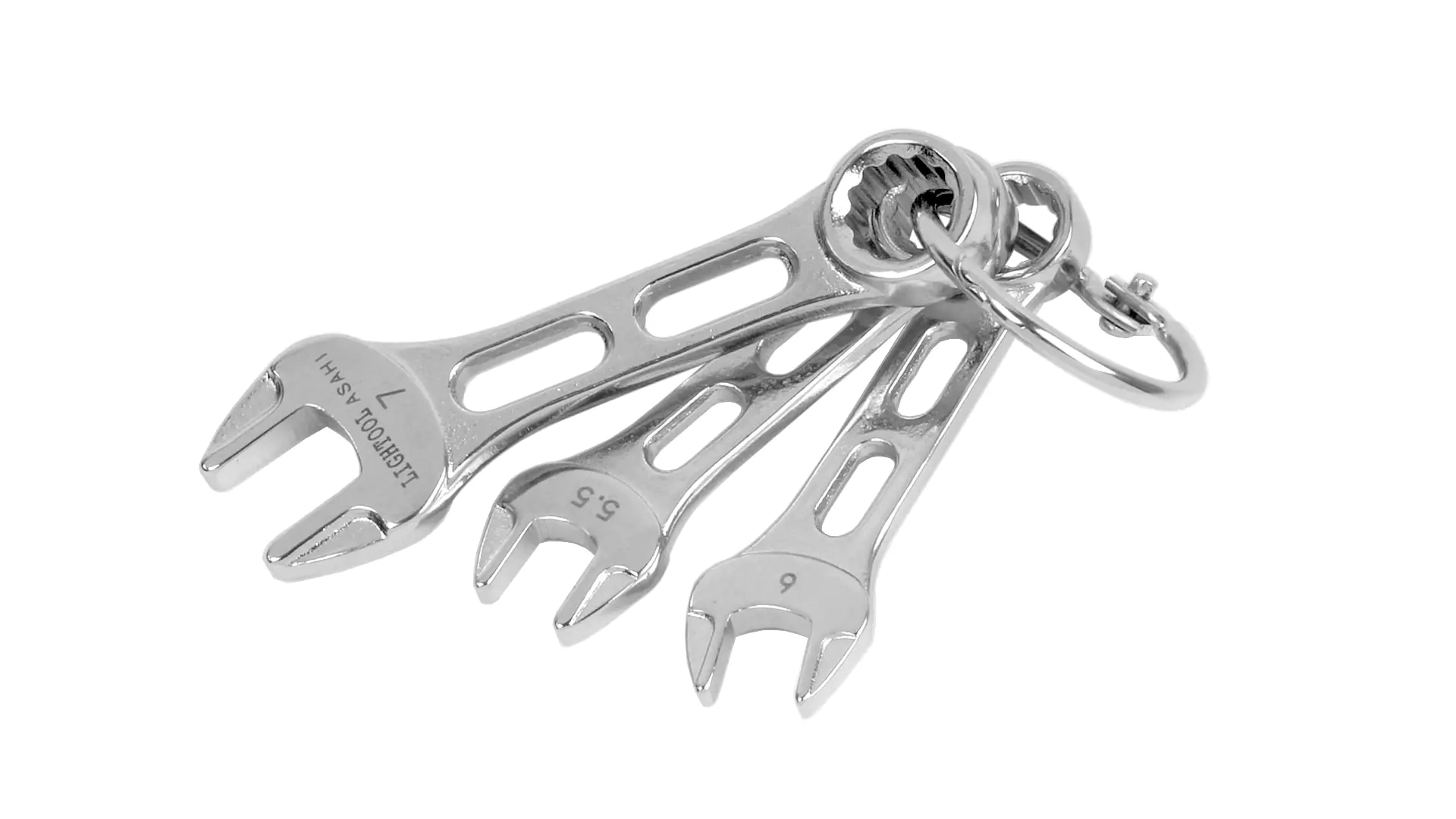

Asahi 3-piece set (5.5, 6, 7) short combination wrenches

Sizes 5.5, 6, 7 mm
Held on a key ring, detachable
Supplied in a blister pack
Weight 26 g

Code 337386CartPrice € 17.50

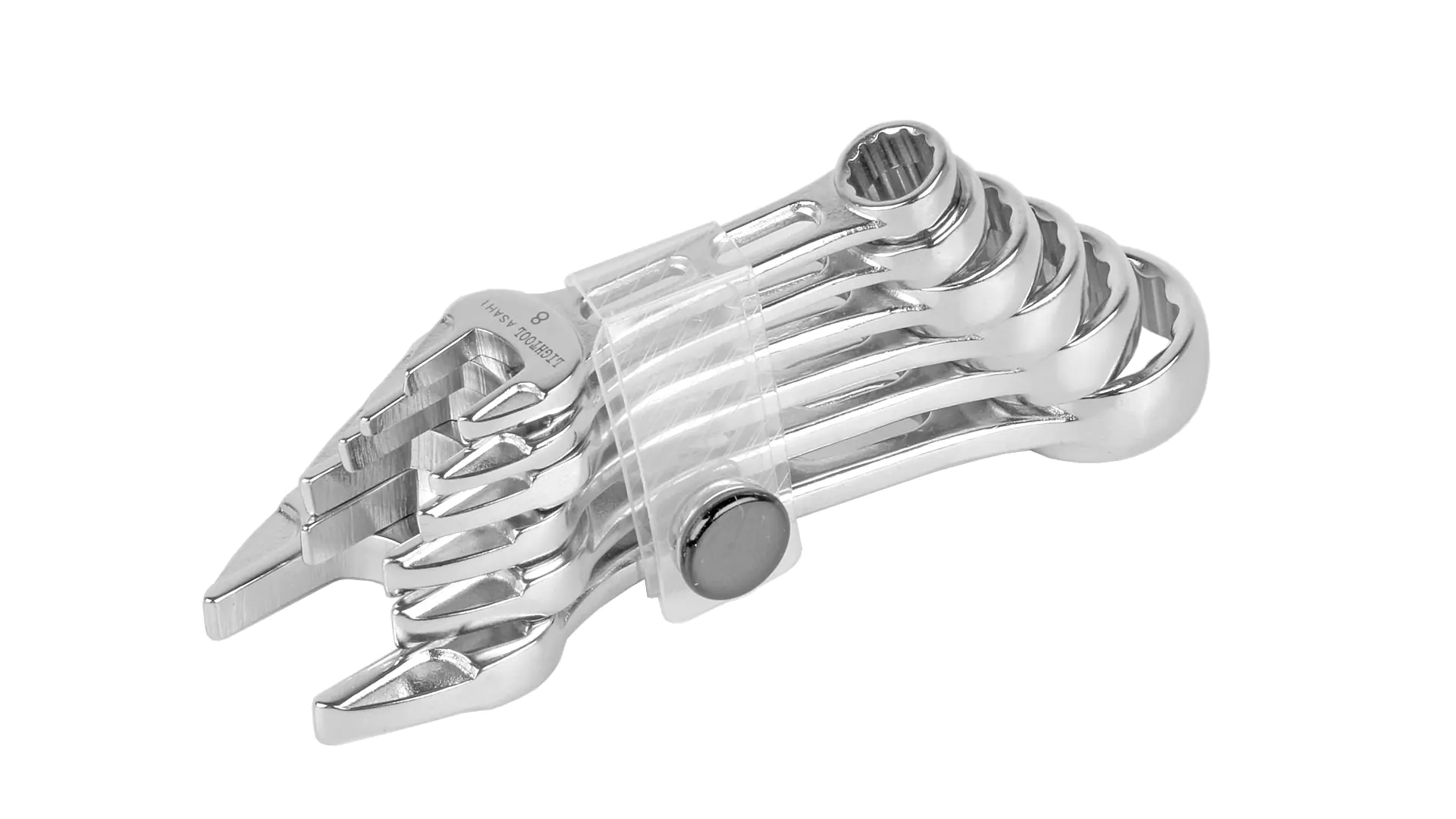

Asahi 6-piece set (8 to 17) short combination wrenches

Sizes 8, 10, 12, 13, 14, 17 mm
Held by plastic band with a press stud
Supplied in a blister pack
Weight 196 g

Code 337387CartPrice € 43.50
